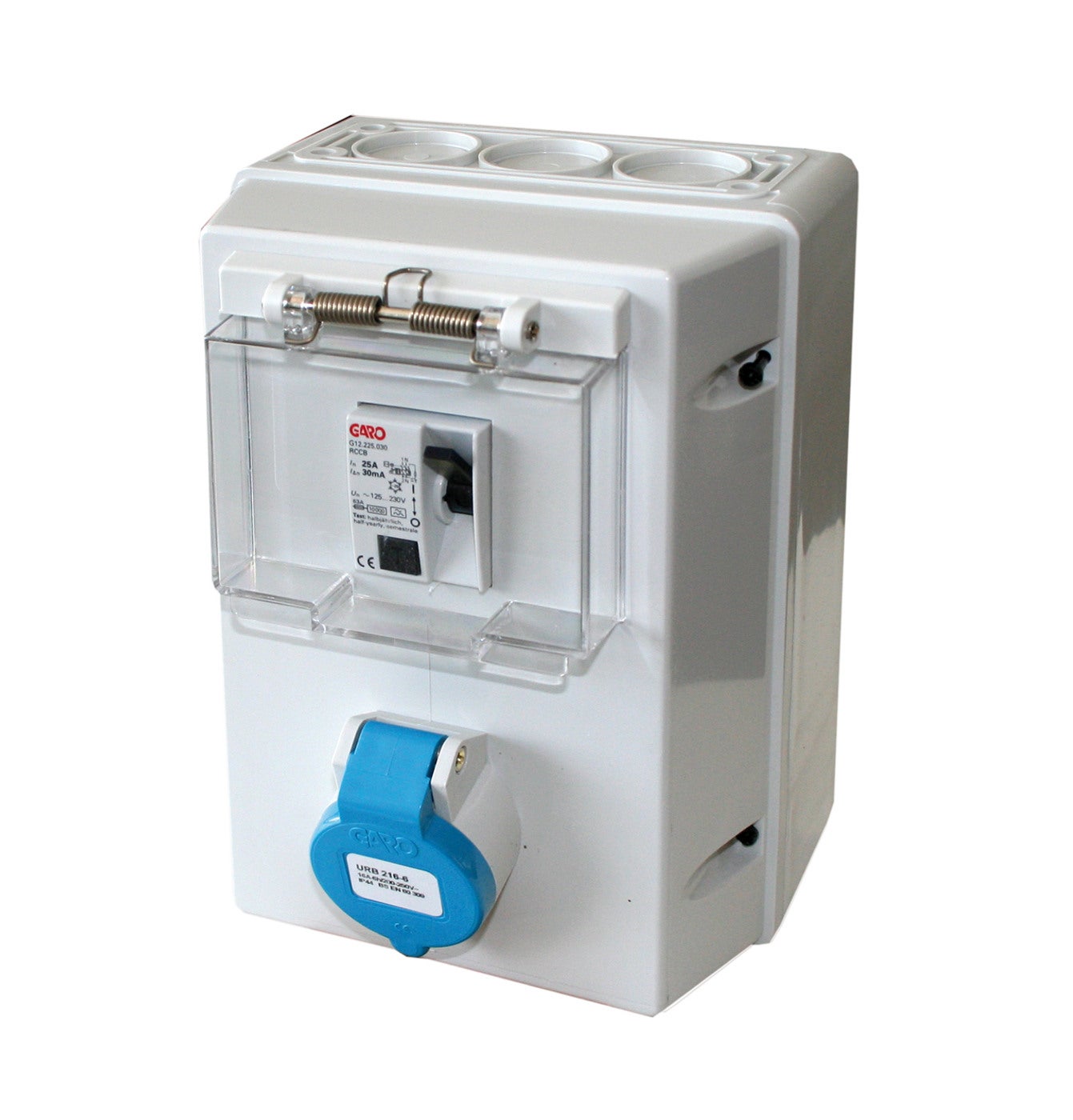

OUTLETBOX 3P 16A 6h URB

Outlet box without Schuko 16A IP44

Outlet boxes with one IEC/CEE socket on the front. Ample connection space. FL13 in the top and bottom combined with knockouts. Supplied with glands adapted to each box. Cable entry options from both the top and bottom. Outlet box with RCCB 3-pole 16A 6h URB
E-number
E2468701
Article number
2468701
Support
Standard EN61439-4
Frequency [Hz] 50/60Hz
Housing material Plastic
Rated current [A] 16A
Earthing terminal block Yes
Knockouts Ø32 Down [pcs] 3
Knockouts Ø32 Up [pcs] 3
Degree of protection [IP] IP44
Name OUTLETBOX 3P 16A 6h URB
E-number E2468701
Article number 2468701
Type designation URB 216-6 S
Color Blue
Rated voltage [V AC] 200-250V AC
Number of poles 3/2P+E
Number of RCCB [pcs] 1 1pcs 2P 25A
Number of RCBO [pcs] Yes

More variants of Outlet box without Schuko 16A IP44

E-number Article number Type designation Color Rated voltage [V AC] Number of poles Clock hour position [h] Number of MCB 1P (1) Number of RCCB [pcs] 1 Number of RCBO [pcs] EngineerWidth EngineerHeight EngineerDepth
OUTLETBOX 3P 16A 6h URB E2468701 2468701 URB 216-6 S Blue 200-250V AC 3/2P+E 1pcs 2P 25A Yes

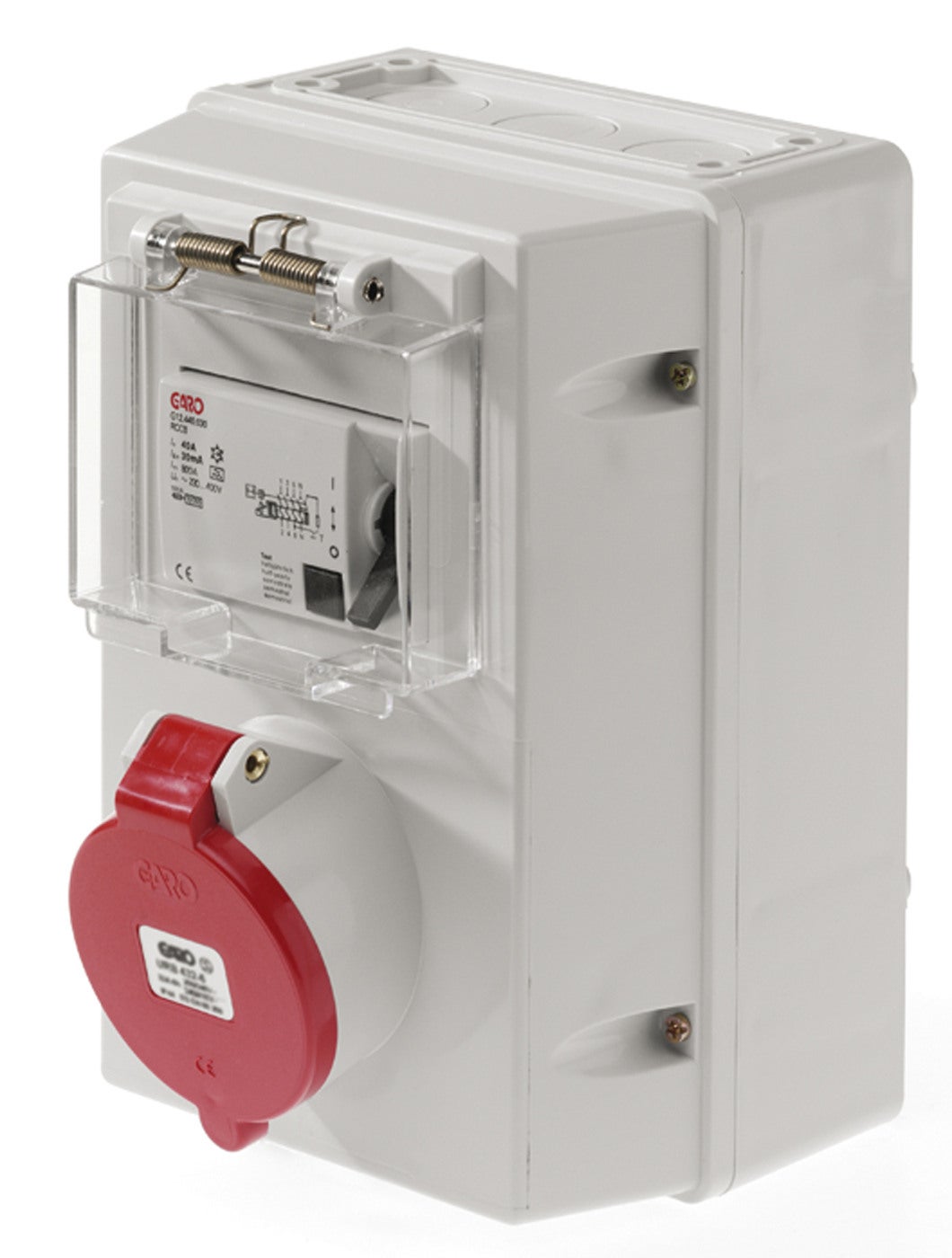

OUTLETBOX 4P 16A 6h URB E2468703 2468703 URB 316-6 S Red 400V AC 4/3P+E 6h 1pcs 4P 25A Yes
OUTLETBOX 5P 16A 6h URB E2468705 2468705 URB 416-6 S Red 230/400V AC 6h 1pcs 4P 25A Yes

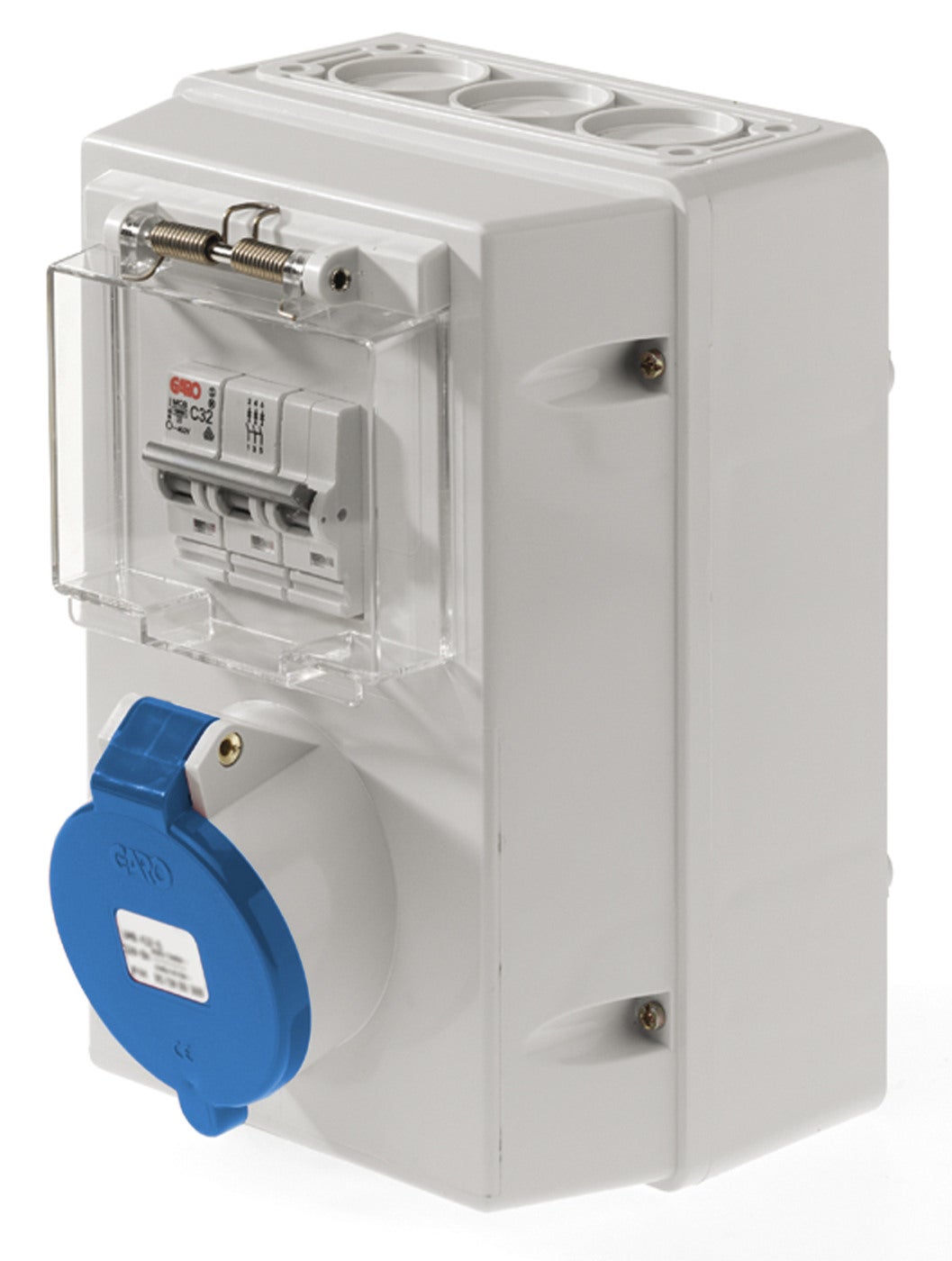

OUTLETBOX 3P 16A 6h UMB E2468764 2468764 UMB 216-6 S Blue 200-250V AC 3/2P+E 6h 160 220 141
OUTLETBOX 4P16A 6h UMB E2468766 2468766 UMB 316-6 S Red 400V AC 4/3P+E 6h 1pcs C316 Yes 160 220 143

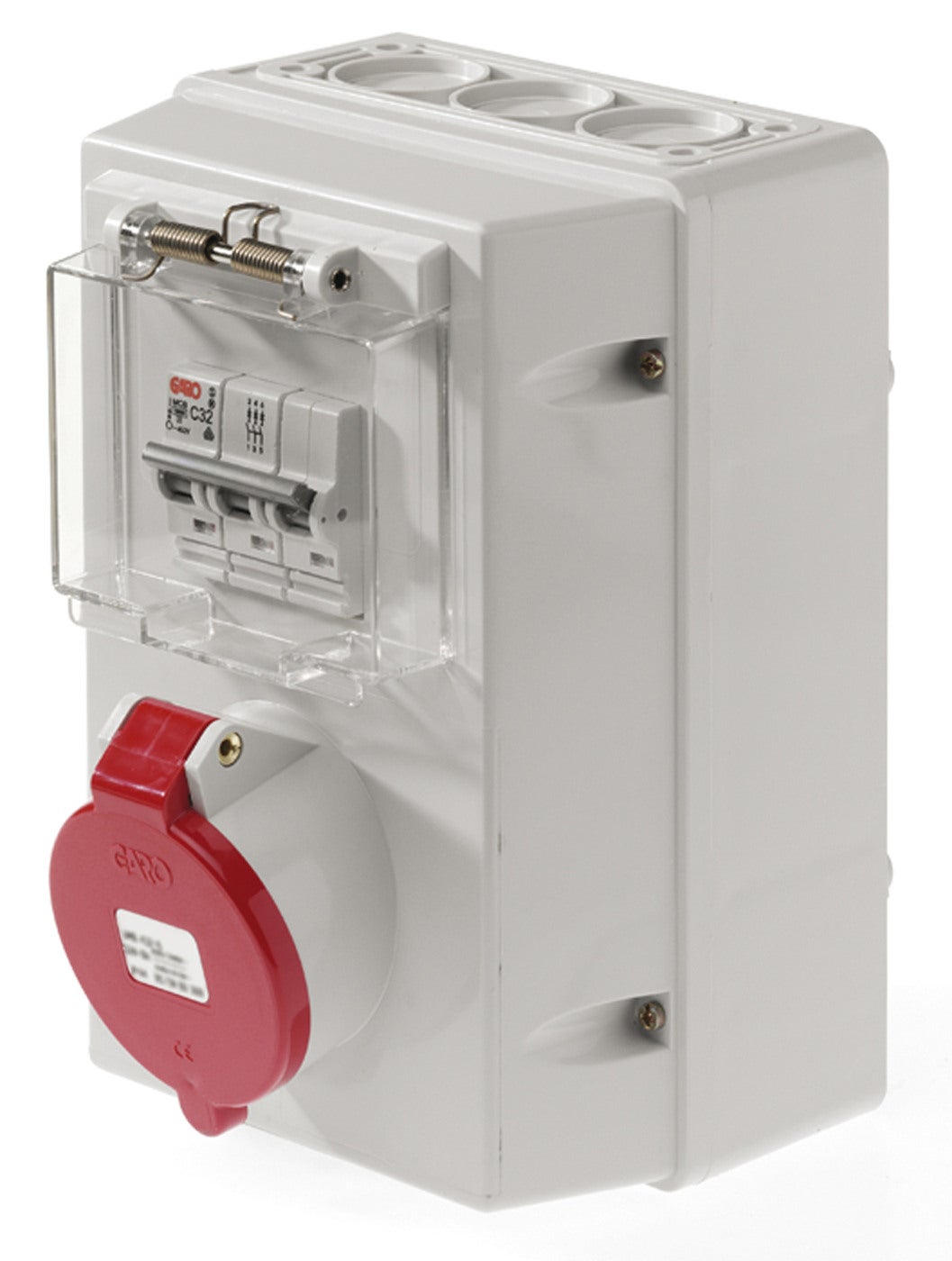

OUTLETBOX 5P16A 6h UMB E2468768 2468768 UMB 416-6 S Red 230/400V AC 5/3P+N+E 6h 1pcs C316
