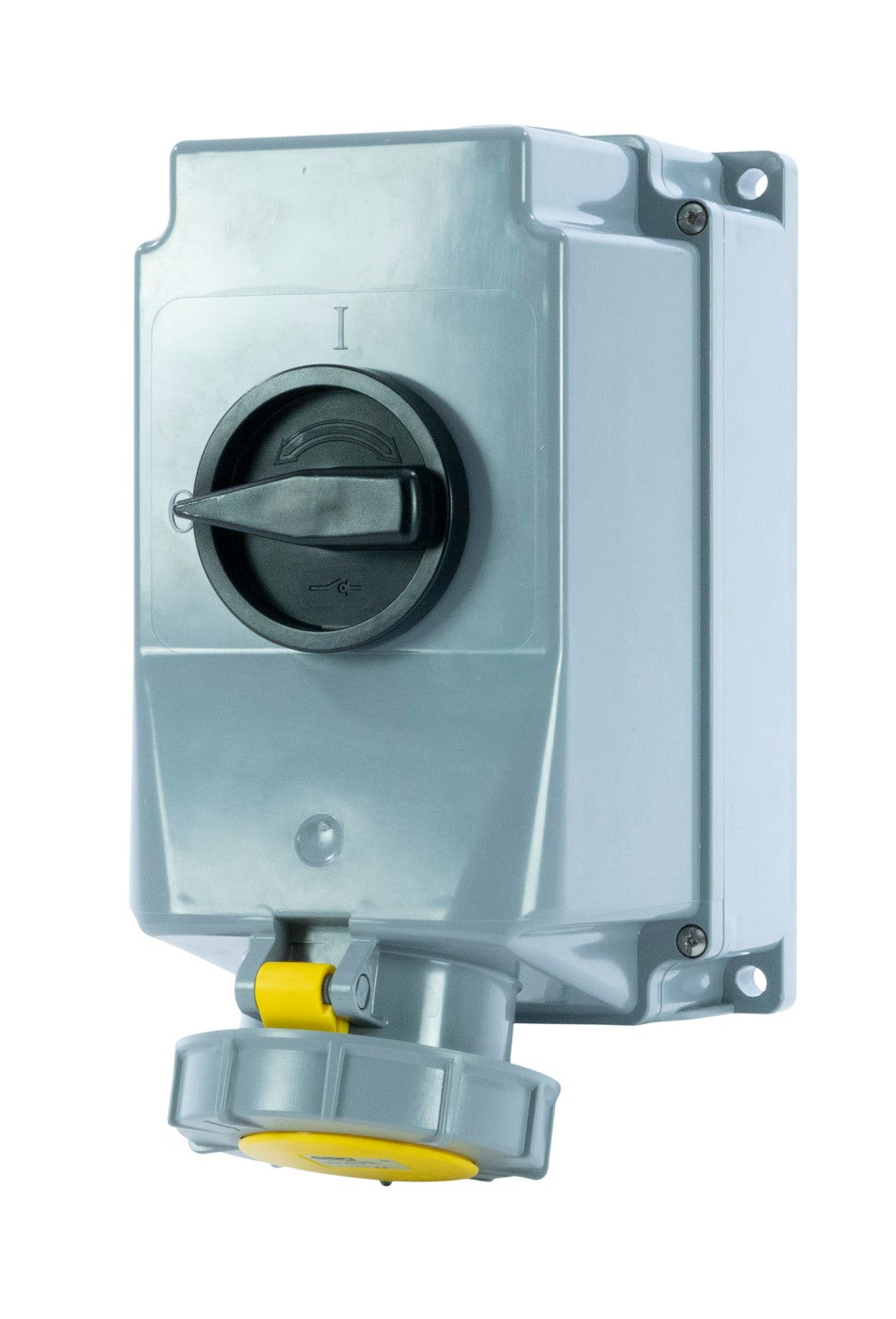

INTERLOCKED SOCKET 3P 63A 4h WT

Interlocked socket 63A IP67

GARO’s interlocked socket in a waterproof design for wall mounting with one IEC/CEE socket on the front panel is lockable in open and closed positions, ample connection area with knockouts at the top and bottom. Supplied with glands adapted to each box. Cable entry options from both the top and bottom. Interlocked socket 3-poles 63A 4h watertight.
E-number
E2425816
Article number
2425816
Support
Standard EN61439-4
Frequency [Hz] 50/60Hz
Housing material Plastic
Rated current [A] 63A
Earthing terminal block Yes
Knockouts Ø40 Down [pcs] 2x40
Degree of protection [IP] IP67
Name INTERLOCKED SOCKET 3P 63A 4h WT
E-number E2425816
Article number 2425816
Type designation UBV 263-4 S
Color Yellow
Rated voltage [V AC] 100-130V AC
Number of poles 3/2P+E
Clock hour position [h] 4h

More variants of Interlocked socket 63A IP67

E-number Article number Type designation Color Rated voltage [V AC] Number of poles Clock hour position [h]
INTERLOCKED SOCKET 3P 63A 4h WT E2425816 2425816 UBV 263-4 S Yellow 100-130V AC 3/2P+E 4h
INTERLOCKED SOCKET 3P 63A 6h WT E2425817 2425817 UBV 263-6 S Blue 200-250V AC 3/2P+E 6h
INTERLOCKED SOCKET 4P 63A 6h WT E2425820 2425820 UBV 363-6 S Red 400V AC 4/3P+E 6h

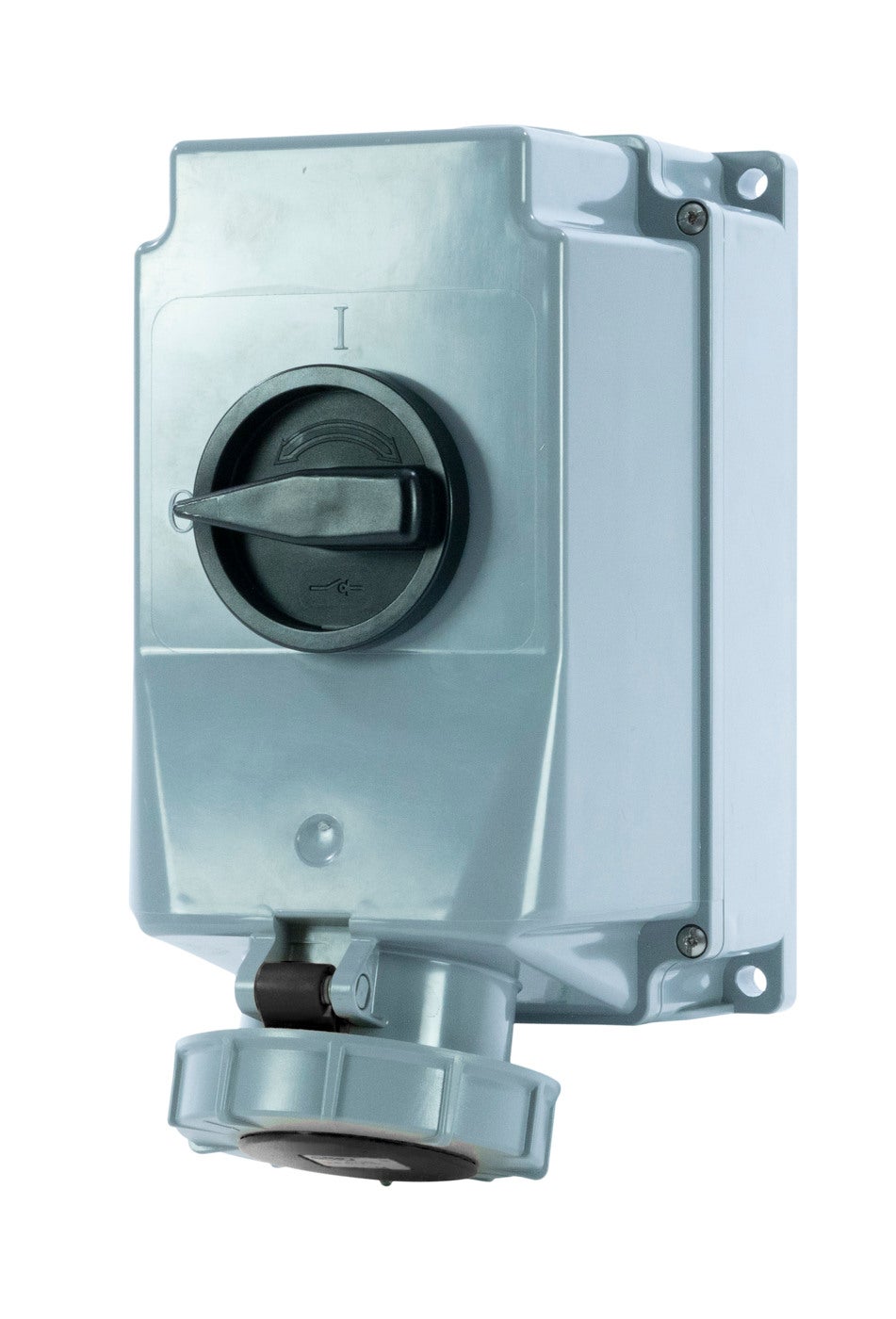

INTERLOCKED SOCKET 4P 63A 7h WT E2425821 2425821 UBV 363-7 S Black 480-500V AC 4/3P+E 7h

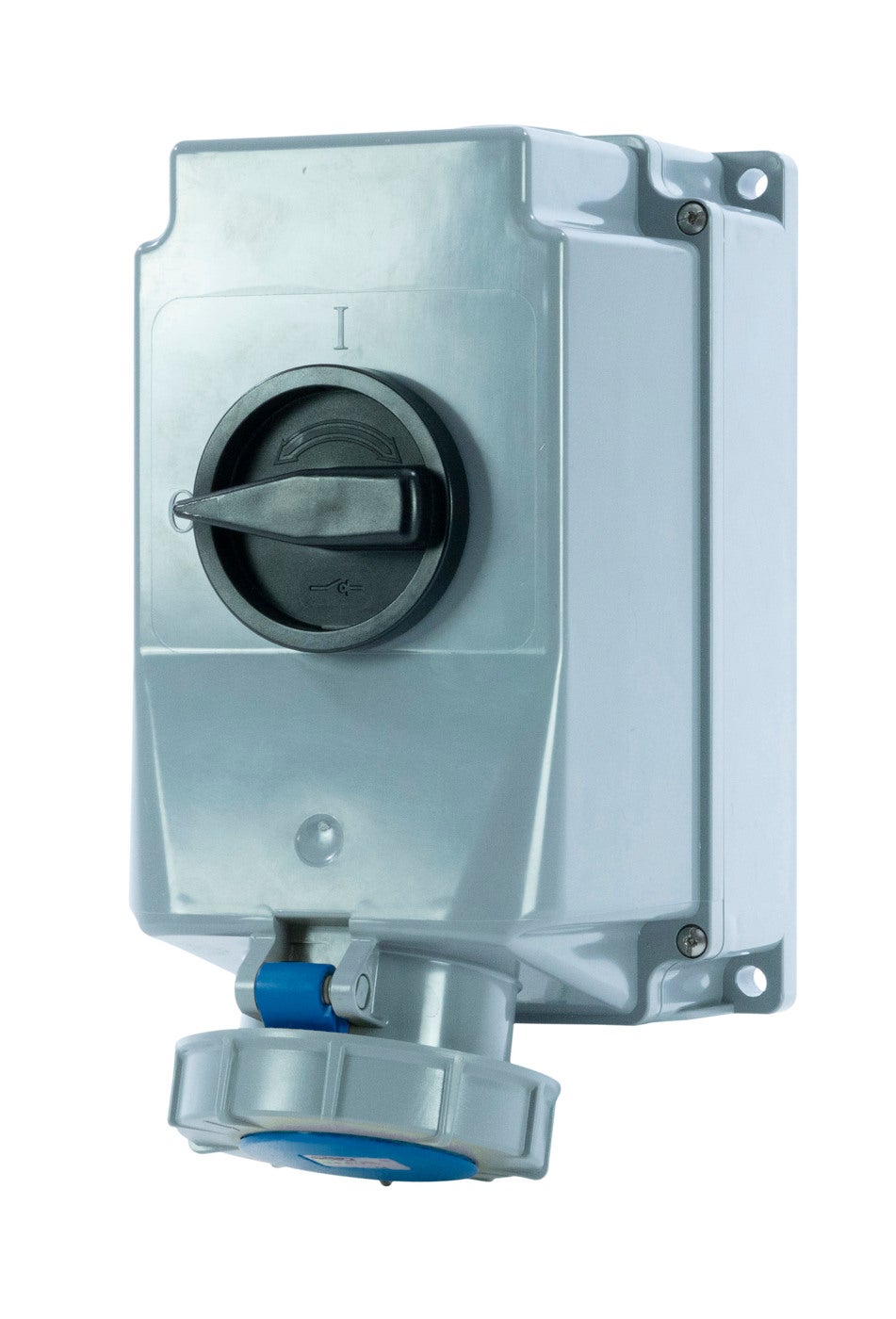

INTERLOCKED SOCKET 4P 63A 9h WT E2425822 2425822 UBV 363-9 S Blue 230V AC 4/3P+E 9h

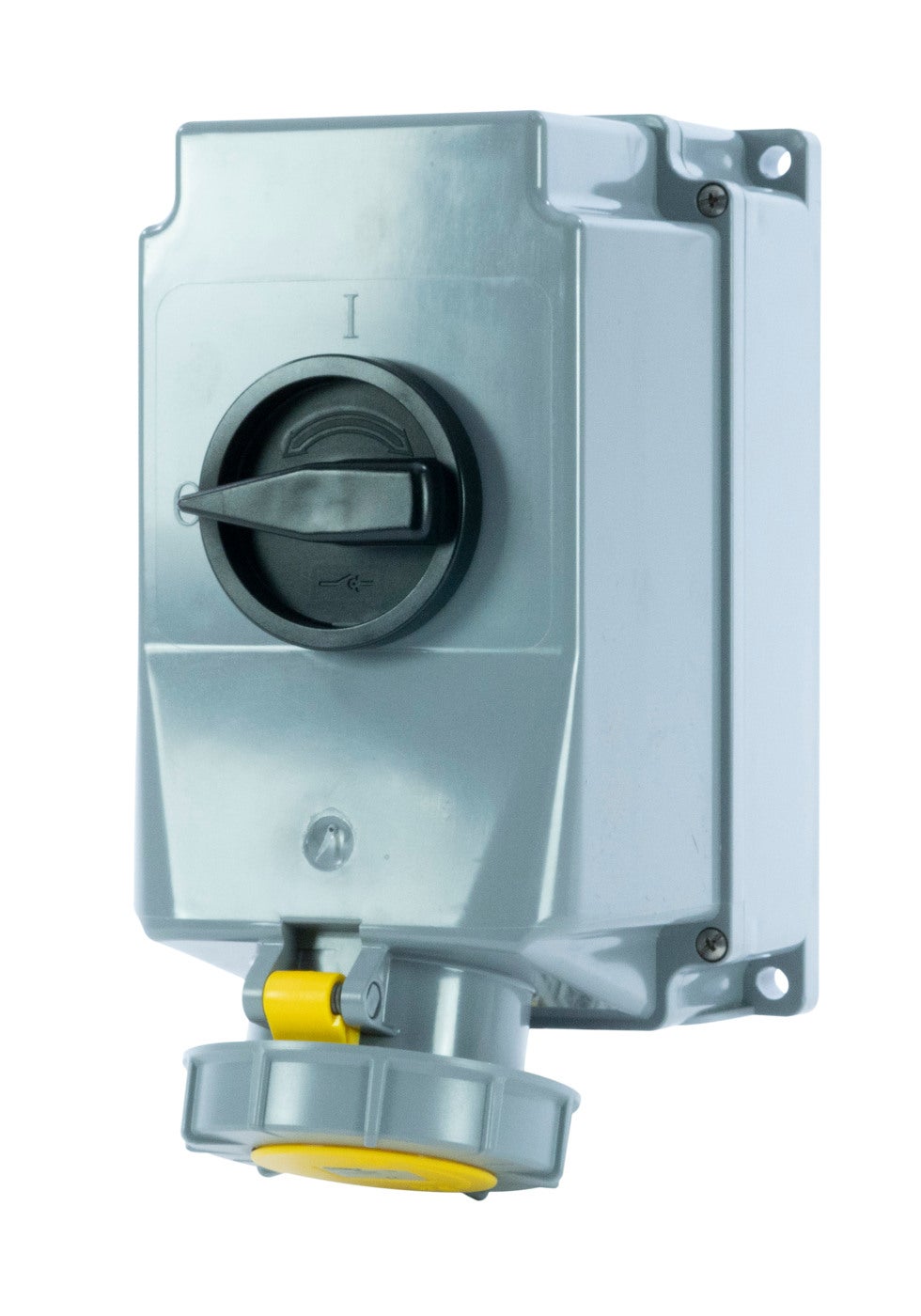

INTERLOCKED SOCKET 5P 63A 4h WT E2425823 2425823 UBV 463-4 S Yellow 100-130V AC 4/3P+E 4h

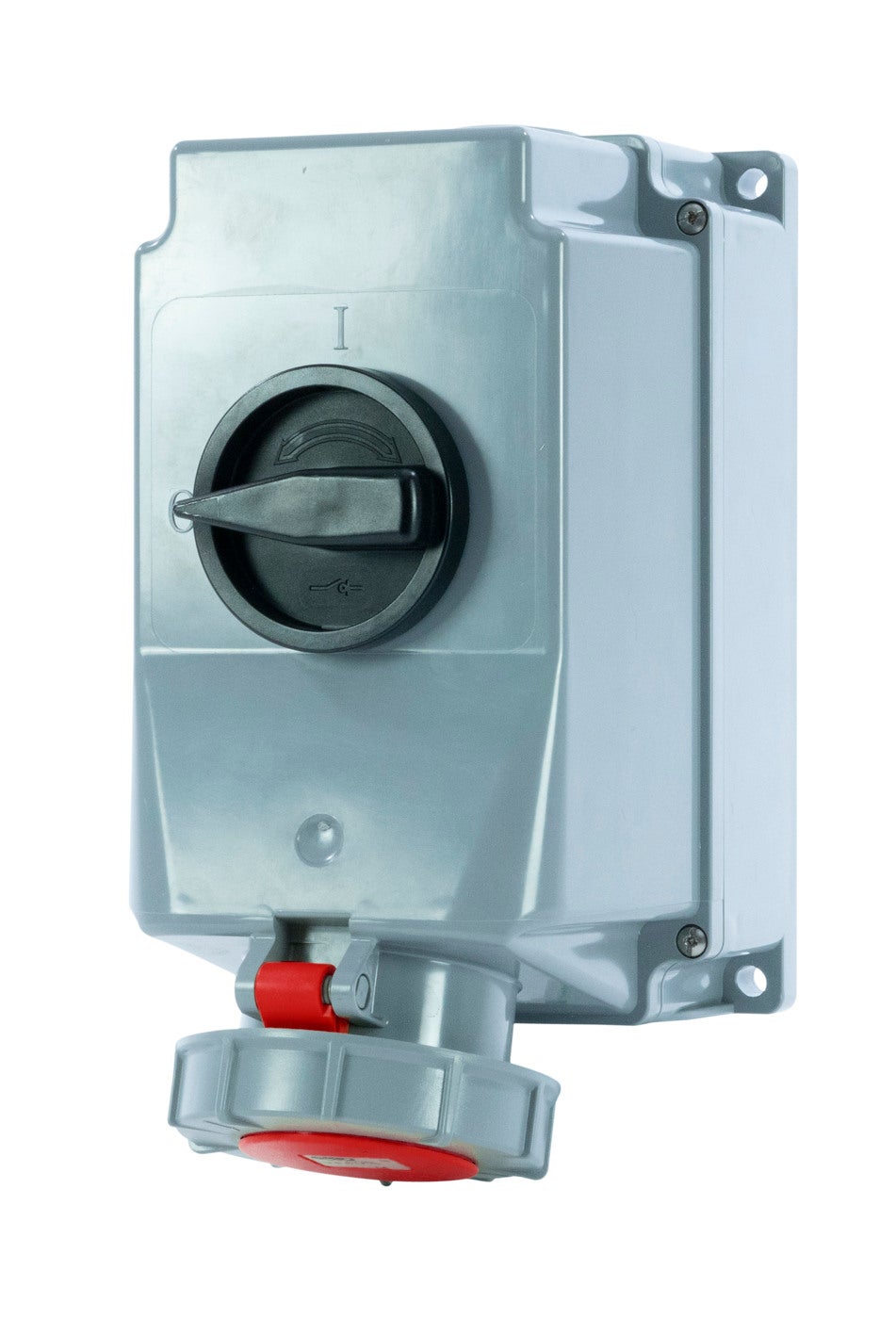

INTERLOCKED SOCKET 5P 63A 6h WT E2425824 2425824 UBV 463-6 S Red 230/400V AC 5/3P+N+E 6h
