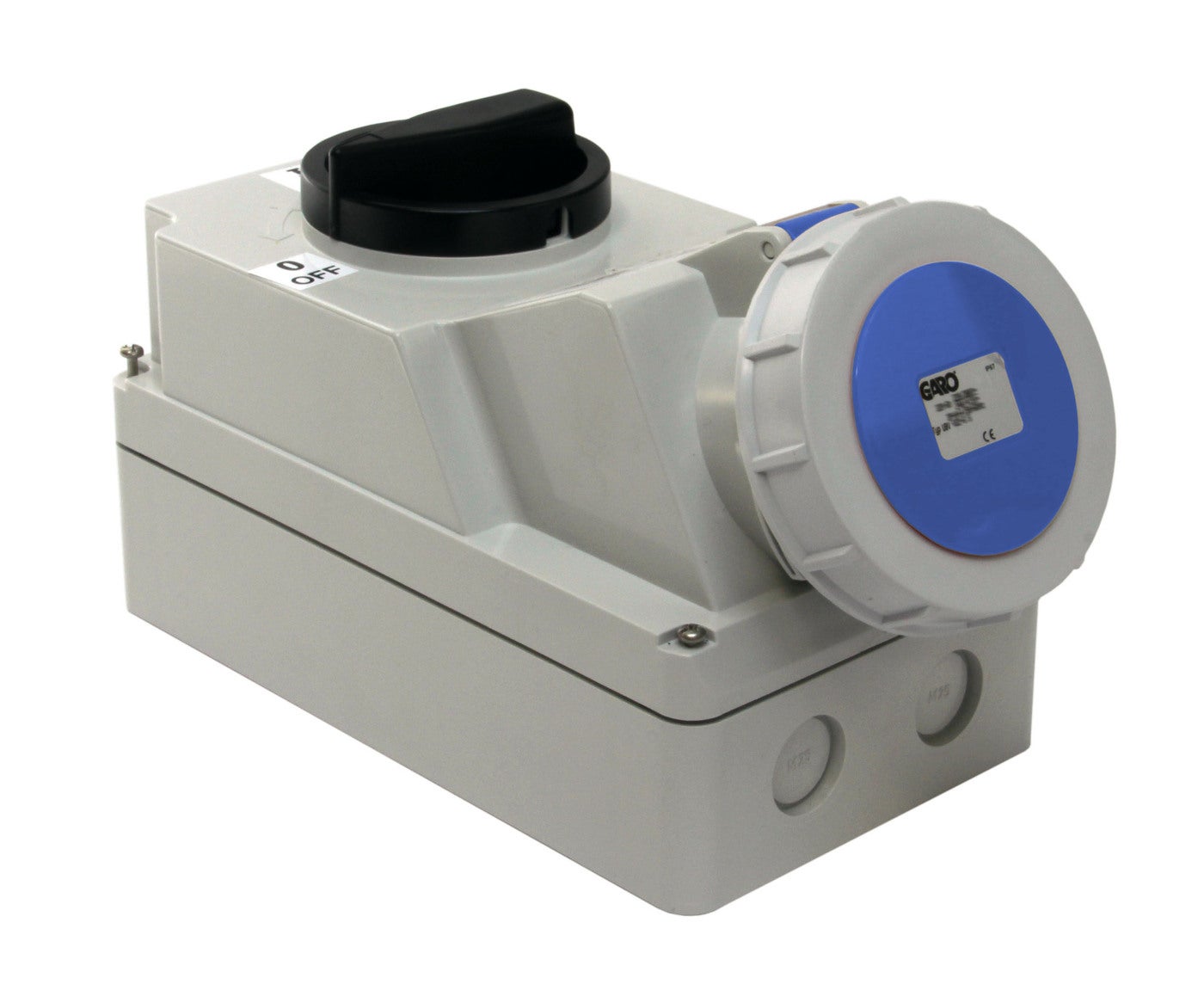

• INTERLOCKED SOCKET 3P 16A 6h WT - 1

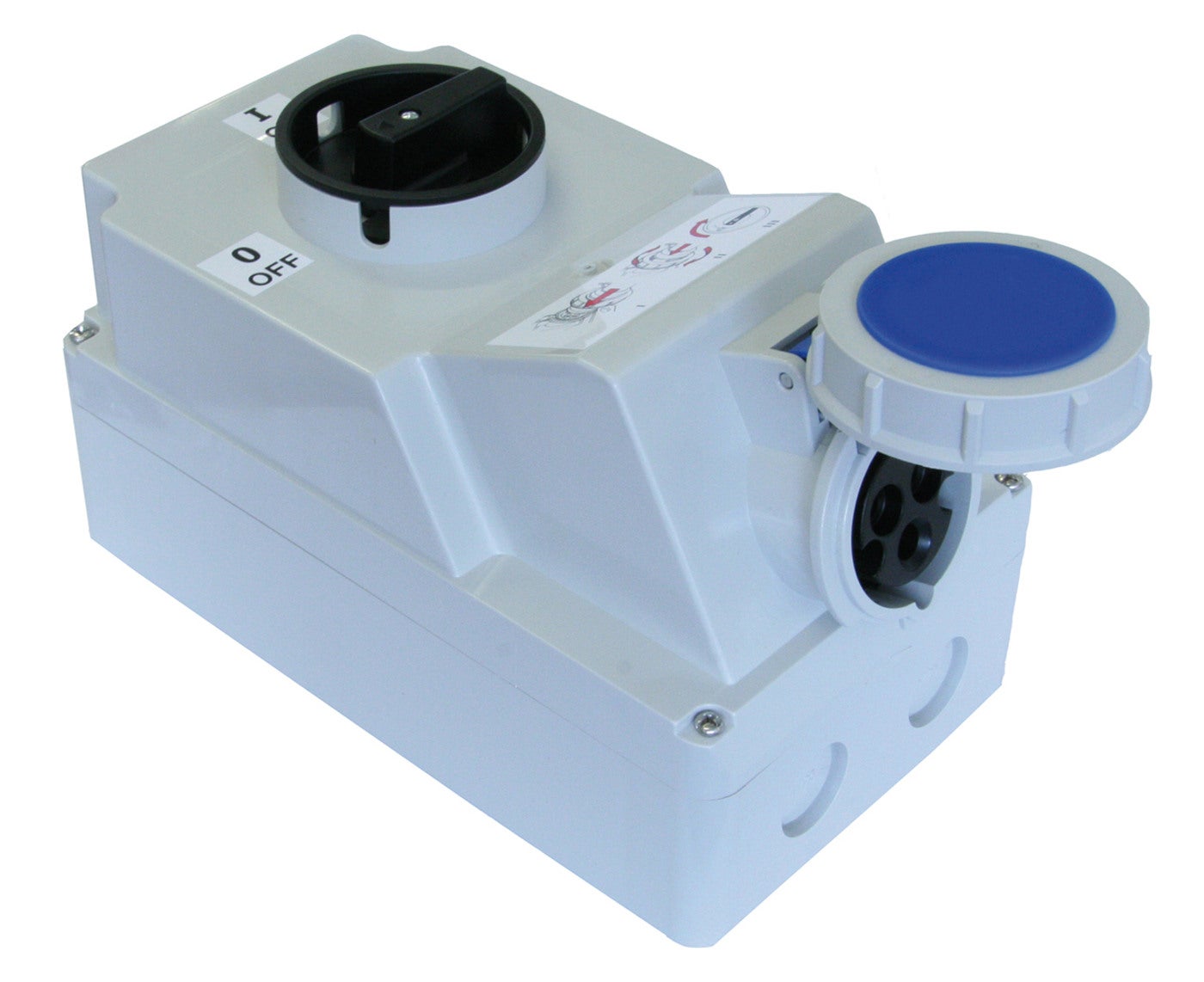

  • INTERLOCKED SOCKET 3P 16A 6h WT - 2

Interlocked socket 16A IP67

GARO’s interlocked socket in a waterproof design for wall mounting with one IEC/CEE socket on the front panel is lockable in open and closed positions, ample connection area with knockouts at the top and bottom. Supplied with glands adapted to each box. Cable entry options from both the top and bottom. Interlocked socket 3-poles 16A 6h watertight
E-number
E2425796
Article number
2425796
Support
Standard EN61439-4
Frequency [Hz] 50/60Hz
Housing material Plastic
Earthing terminal block Yes
Knockouts Ø25 Down [pcs] 2x25
Knockouts Ø25 Up [pcs] 1x25
Degree of protection [IP] IP67
Name INTERLOCKED SOCKET 3P 16A 6h WT
E-number E2425796
Article number 2425796
Type designation UBV 216-6 S
Color Blue
Rated current [A] 16A
Rated voltage [V AC] 200-250V AC
Number of poles 3/2P+E
Clock hour position [h] 6h

More variants of Interlocked socket 16A IP67

E-number Article number Type designation Color Rated current [A] Rated voltage [V AC] Number of poles Clock hour position [h]
INTERLOCKED SOCKET 3P 16A 6h WT E2425796 2425796 UBV 216-6 S Blue 16A 200-250V AC 3/2P+E 6h
INTERLOCKED SOCKET 4P 16A 6h WT E2425799 2425799 UBV 316-6 S Red 16A 400V AC 4/3P+E 6h

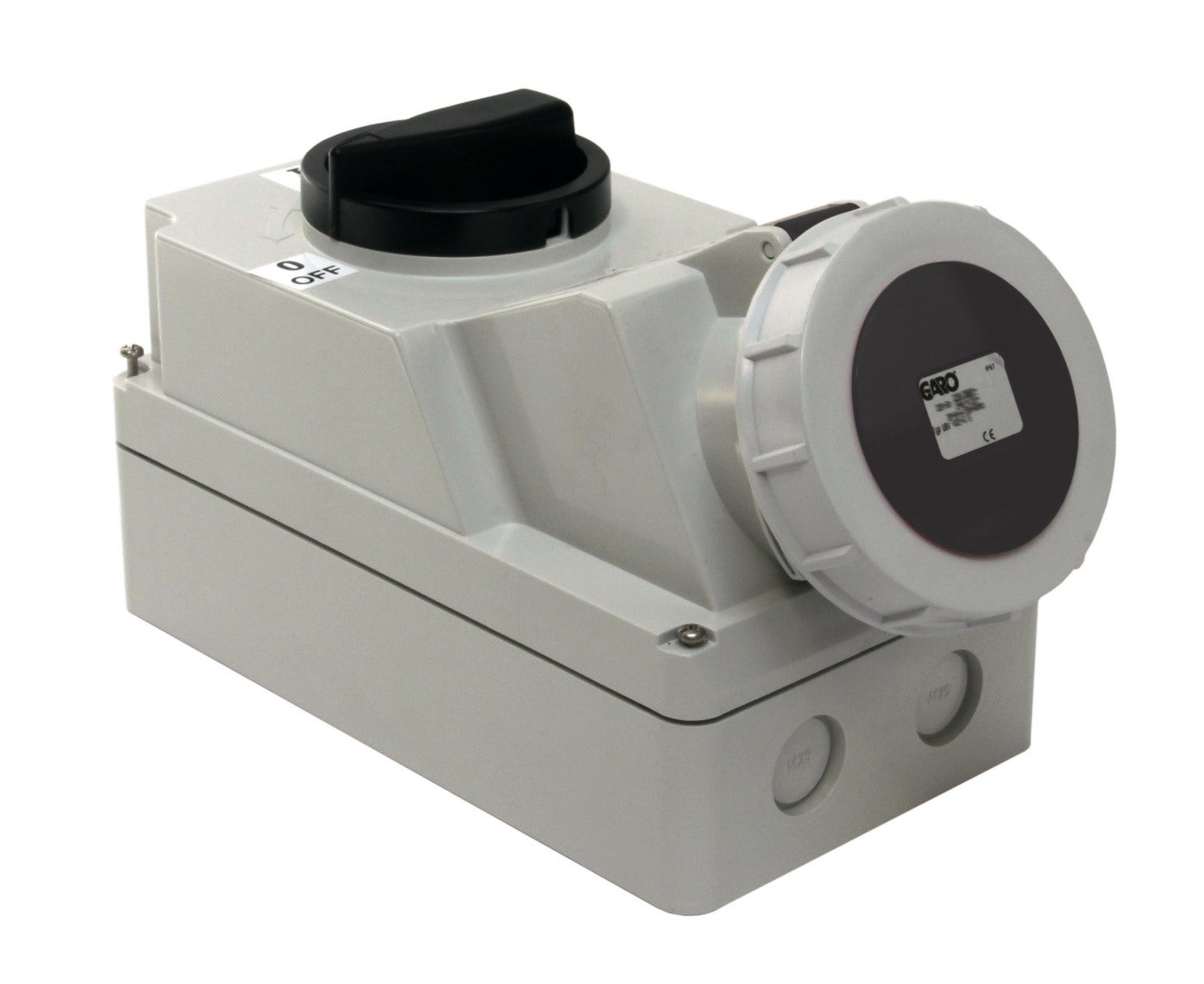

INTERLOCKED SOCKET 4P 16A 7h WT E2425800 2425800 UBV 316-7 S Black 160A 480-500V AC 4/3P+E 7h
INTERLOCKED SOCKET 5P 16A 6h WT E2425803 2425803 UBV 416-6 S Red 16A 230/400V AC 5/3P+N+E 6h
