INTERLOCKED SOCKET 3P 125A 4h WT

Interlocked socket 125A IP67

GARO’s interlocked socket in a waterproof design for wall mounting with one IEC/CEE socket on the front panel is lockable in open and closed positions, ample connection area with knockouts at the top and bottom. Supplied with glands adapted to each box. Cable entry options from both the top and bottom. Interlocked socket 3-poles 125A 4h watertight.
E-number
E2425830
Article number
2425830
Support
Standard EN61439-4
Frequency [Hz] 50/60Hz
Housing material Plastic
Rated current [A] 125A
Earthing terminal block Yes
Degree of protection [IP] IP67
Name INTERLOCKED SOCKET 3P 125A 4h WT
E-number E2425830
Article number 2425830
Type designation UBV 2125-4 S
Color Yellow
Rated voltage [V AC] 100-130V AC
Number of poles 3/2P+E
Clock hour position [h] 4h

More variants of Interlocked socket 125A IP67

E-number Article number Type designation Color Rated voltage [V AC] Number of poles Clock hour position [h]
INTERLOCKED SOCKET 3P 125A 4h WT E2425830 2425830 UBV 2125-4 S Yellow 100-130V AC 3/2P+E 4h
INTERLOCKED SOCKET 3P 125A 6h WT E2425832 2425832 UBV 2125-6 S Blue 200-250V AC 3/2P+E 6h

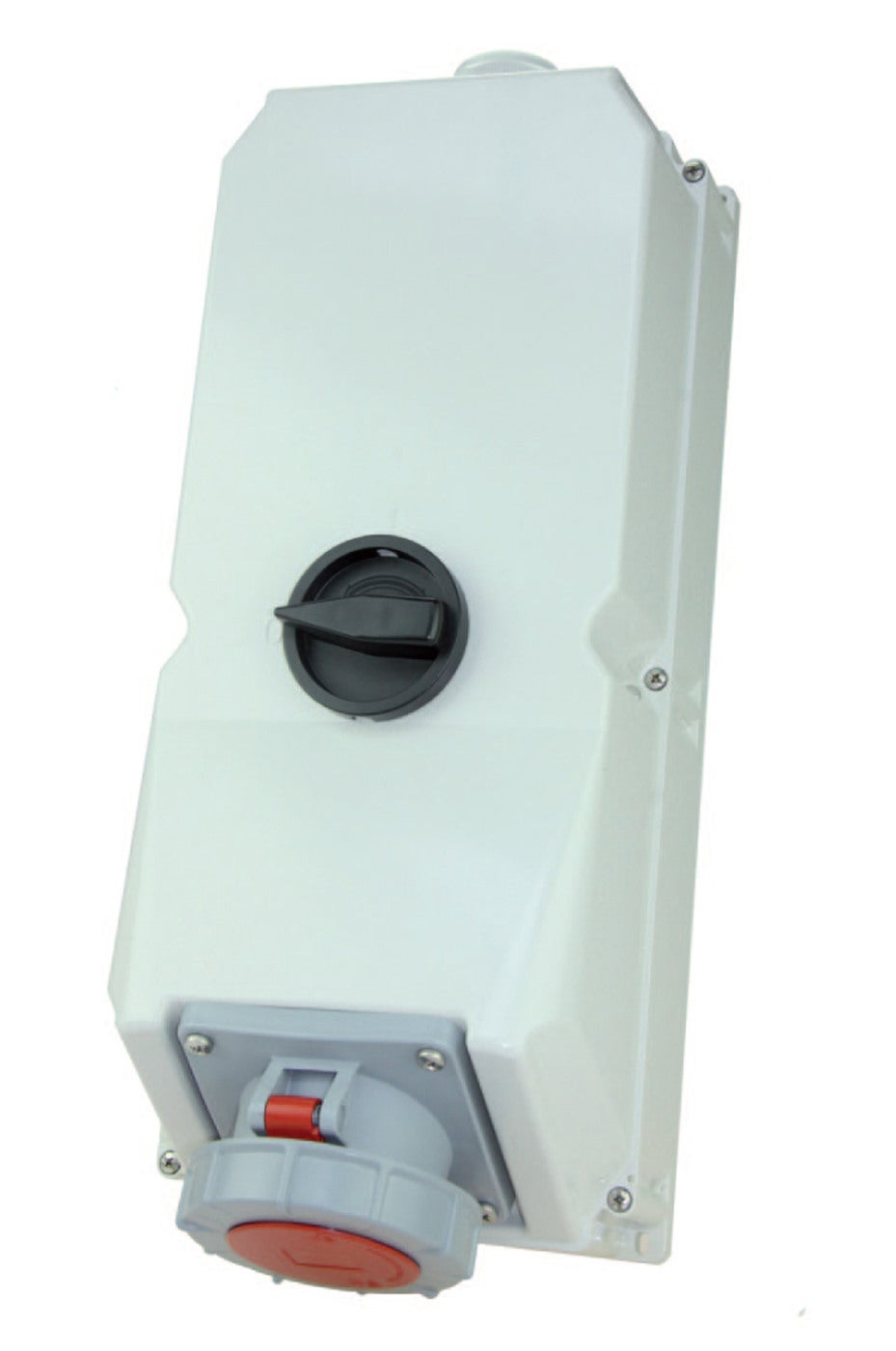

INTERLOCK SOCKET 3P 125A 9h WT E2425834 2425834 UBV 2125-9 S Red 380-415V AC 3/2P+E 9h
INTERLOCK SOCKET 4P 125A 6h WT E2425838 2425838 UBV 3125-6 S Red 400V AC 4/3P+E 6h

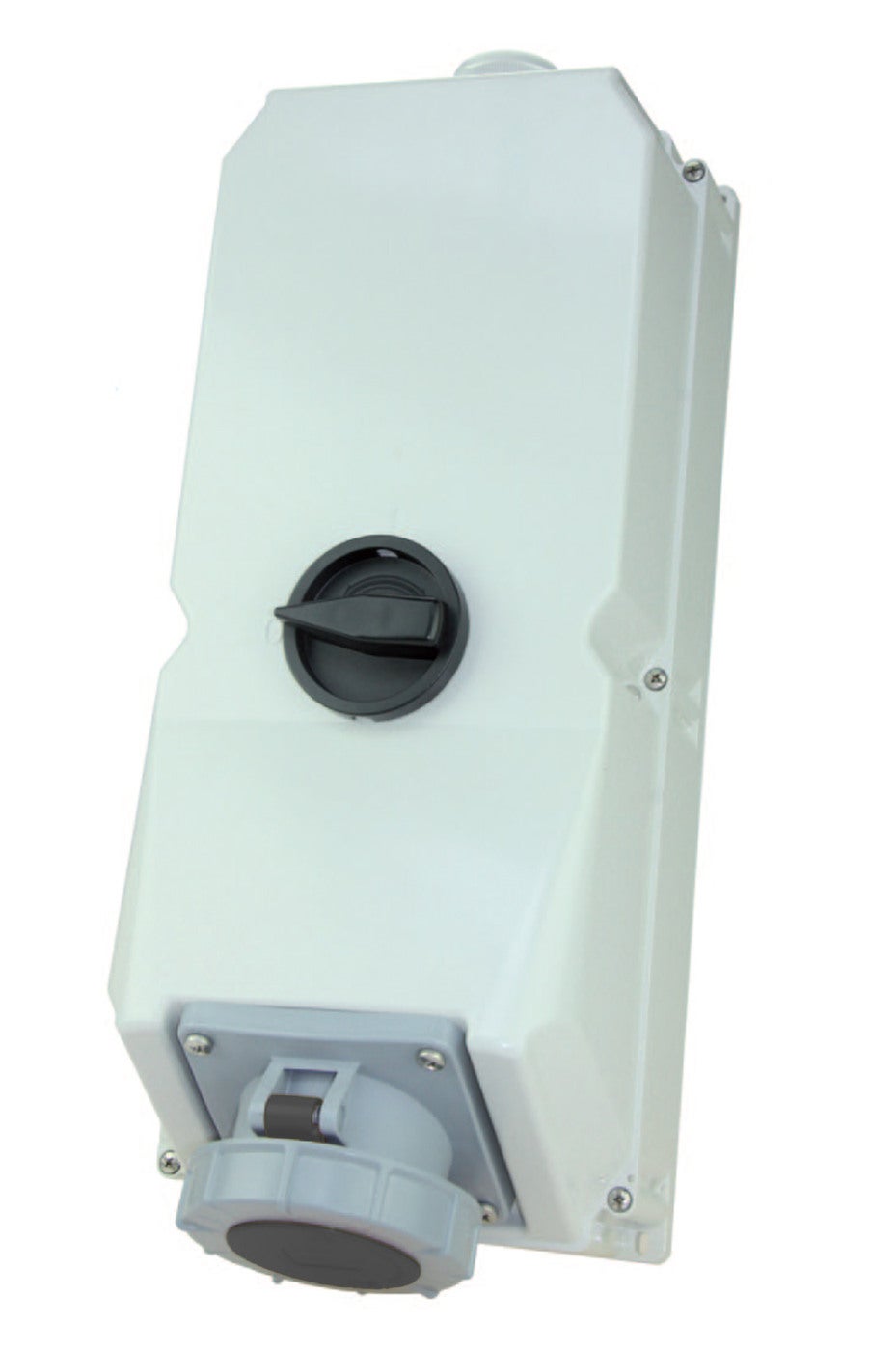

INTERLOCKED SOCKET 4P 125A 7h WT E2425840 2425840 UBV 3125-7 S Black 480-500V AC 4/3P+E 7h

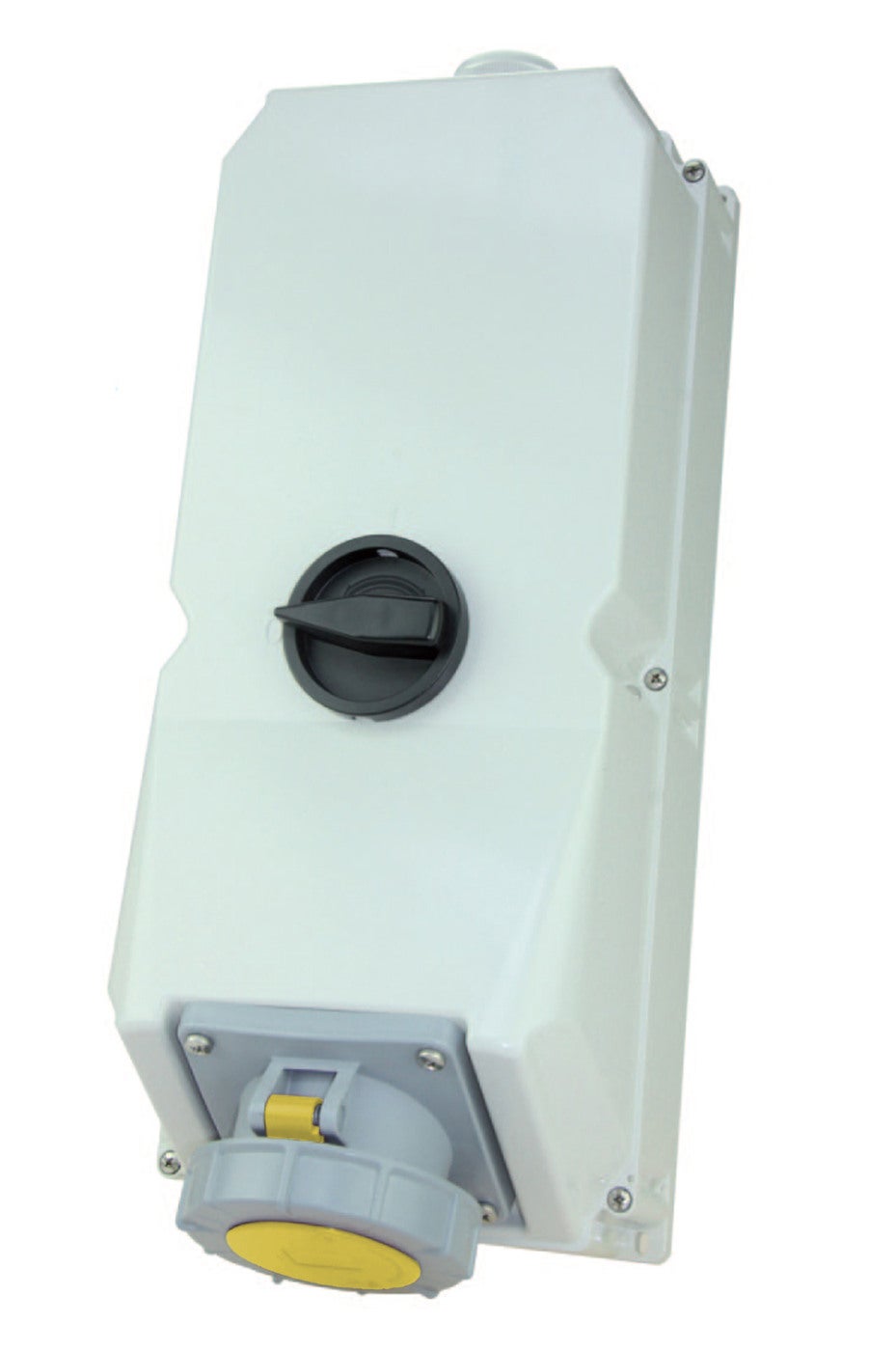

INTERLOCKED SOCKET 5P 125A 4h WT E2425844 2425844 UBV 4125-4 S Yellow 100-130V AC 5/3P+N+E 4h
INTERLOCKED SOCKET 5P 125A 6h WT E2425846 2425846 UBV 4125-6 S Red 230/400V AC 5/3P+N+E 6h
INTERLOCKED SOCKET 5P 125A 9h WT E2425848 2425848 UBV 4125-9 S Blue 208-250V AC 5/3P+N+E 9h
