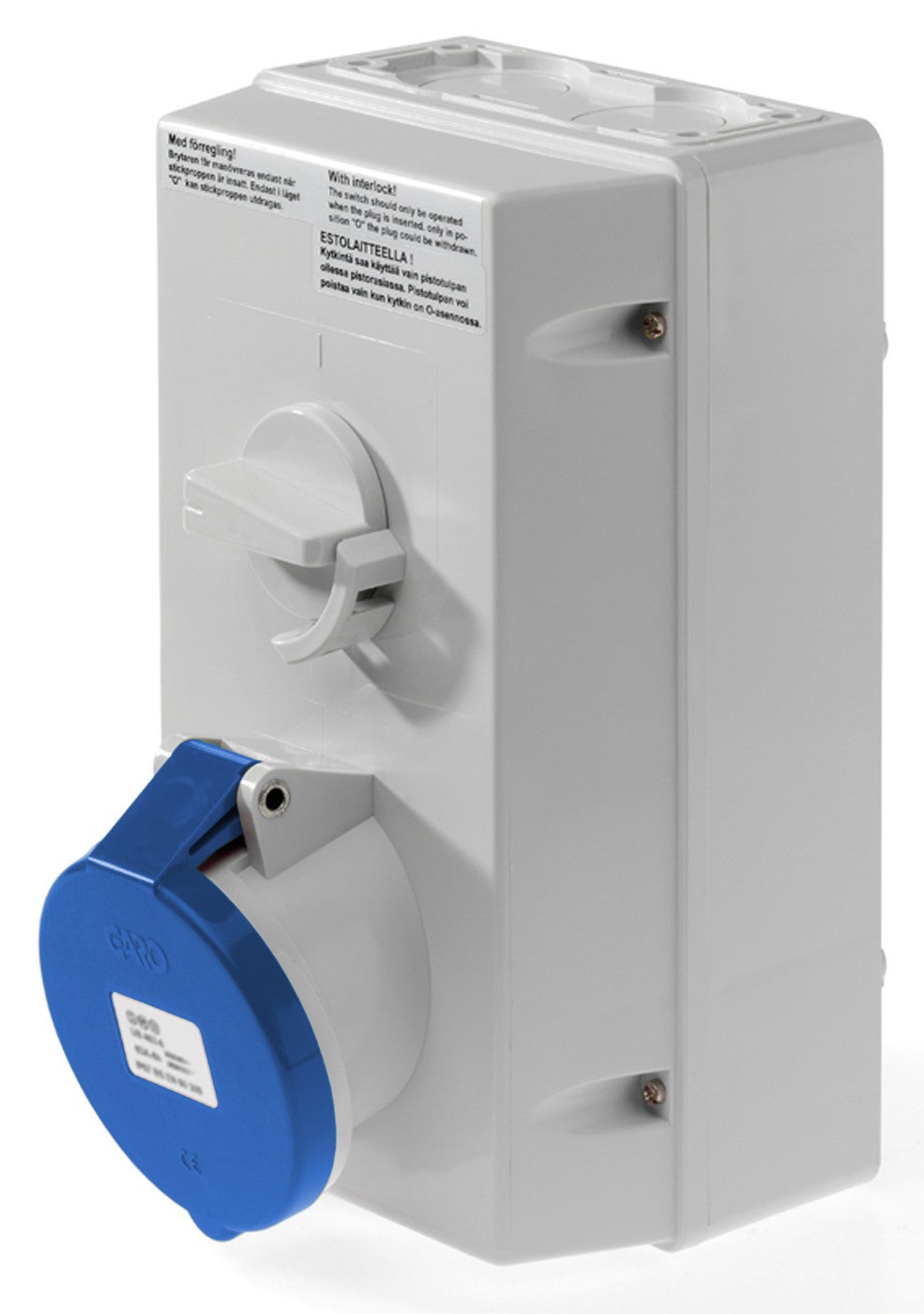

INTERLOCKED SOCKET 3P 63A 6h

Interlocked socket 63A IP44

GARO’s interlocked socket for wall mounting with one IEC/CEE socket on the front panel is lockable in open and closed positions, ample connection area with FL13 at the top and bottom combined with knockouts. Supplied with glands adapted to each box. Cable entry options from both the top and bottom. Interlocked socket 3-poles 63A 6h
E-number
E2425782
Article number
2425782
Support
Standard EN61439-4
Frequency [Hz] 50/60Hz
Housing material Plastic
Rated current [A] 63A
Clock hour position [h] 6h
Earthing terminal block Yes
Degree of protection [IP] IP44
Name INTERLOCKED SOCKET 3P 63A 6h
E-number E2425782
Article number 2425782
Type designation UB 263-6 S
Color Blue
Rated voltage [V AC] 200-250V AC
Number of poles 3/2P+E
Knockouts Ø40 Down [pcs] 2

More variants of Interlocked socket 63A IP44

E-number Article number Type designation Color Rated voltage [V AC] Number of poles Knockouts Ø40 Down [pcs]
INTERLOCKED SOCKET 3P 63A 6h E2425782 2425782 UB 263-6 S Blue 200-250V AC 3/2P+E 2

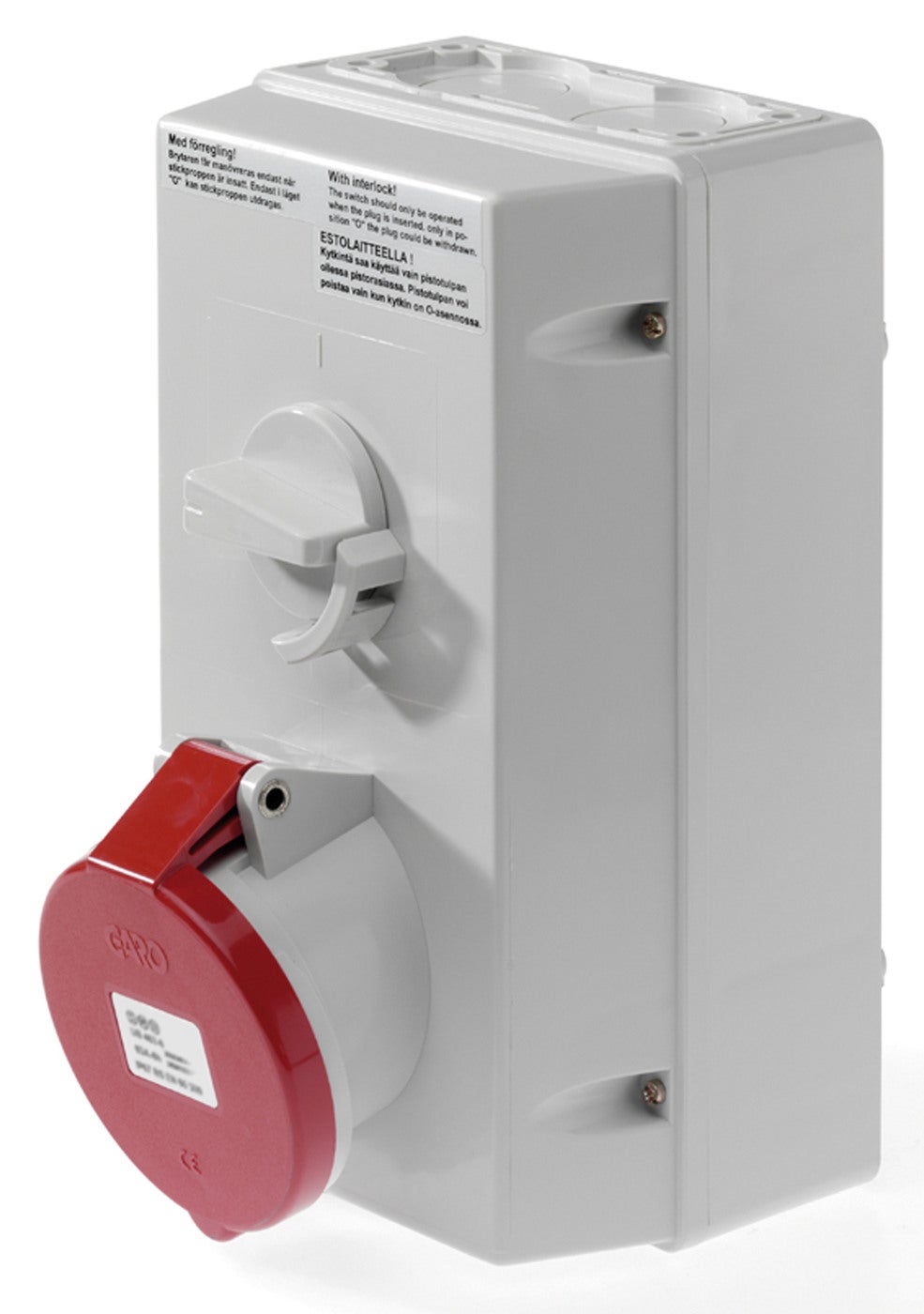

INTERLOCKED SOCKET 4P 63A 6h E2425785 2425785 UB 363-6 S Red 400V AC 4/3P+E 2
INTERLOCKED SOCKET 5P 63A 6h E2425791 2425791 UB 463-6 S Red 230/400V AC 5/3P+N+E 2x40
