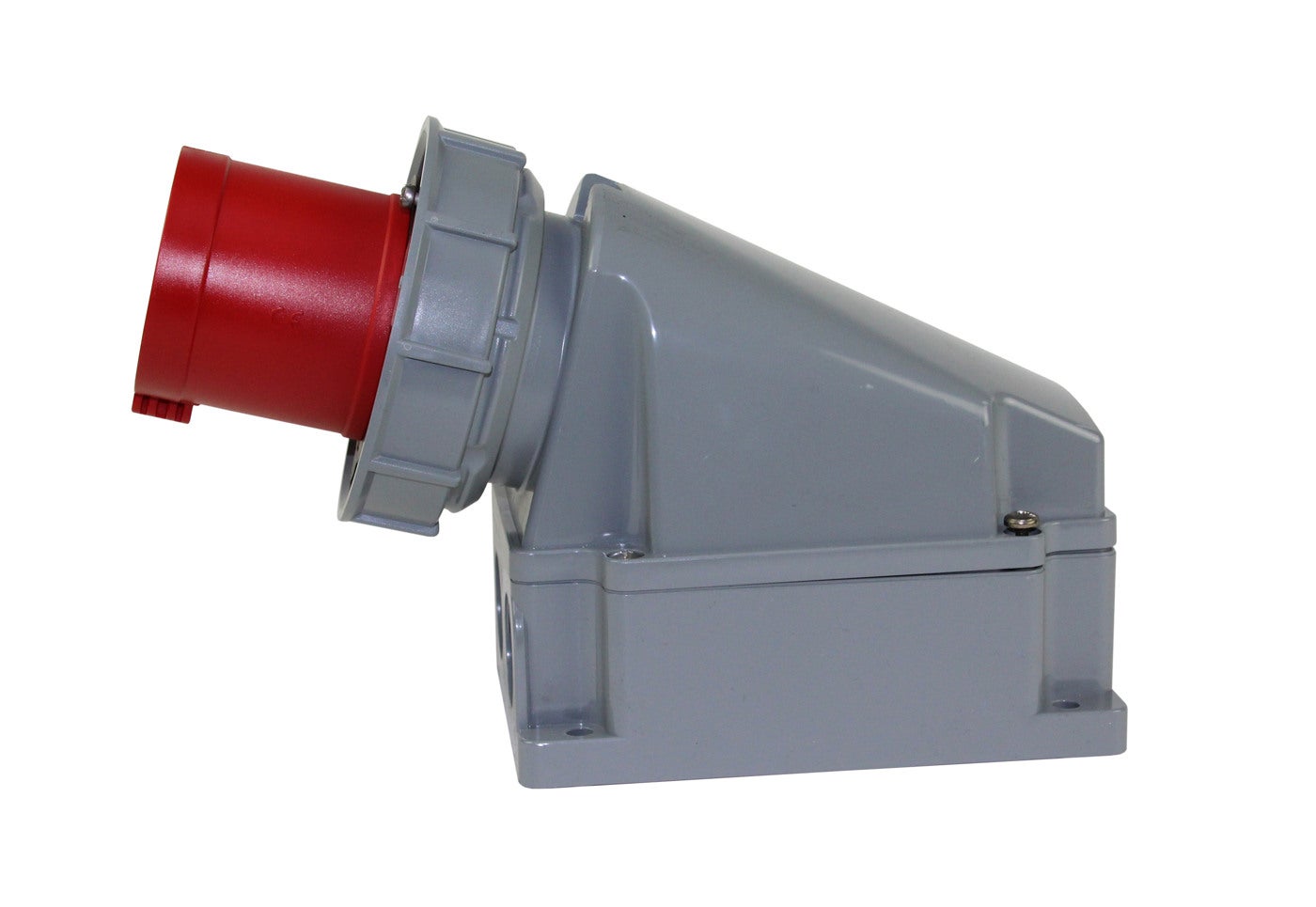

WALLINLET 5P 63A 6h WT

Inlet wallmounting 63A IP67 Basic

Inlet wallmounting Basic 63A IP67 Wall inlet basic 5-poles 63A 6h watertight
E-number
E2425219
Article number
2425219
Support
Housing material Plastic
Color Red
Rated current [A] 63A
Number of poles 5/3P+N+E
Wire flexible [mm²] 6-16mm²
Modelltype Basic
RAL-number RAL3000
Wire solid [mm²] 6-25mm²
Degree of protection [IP] IP67
Name WALLINLET 5P 63A 6h WT
E-number E2425219
Article number 2425219
Type designation IIV 463-6 S+RI
Frequency [Hz] 50/60Hz
Rated voltage [V AC] 230/400V AC
Clock hour position [h] 6h
NetProductWeight 1.04
EngineerWidth 190
EngineerHeight 140
EngineerDepth 290

More variants of Inlet wallmounting 63A IP67 Basic

E-number Article number Type designation Frequency [Hz] Rated voltage [V AC] Clock hour position [h] NetProductWeight EngineerWidth EngineerHeight EngineerDepth
WALLINLET 5P 63A 6h WT E2425219 2425219 IIV 463-6 S+RI 50/60Hz 230/400V AC 6h 1.04 190 140 290
WALLINLET 5P 63A 11h WT E2425221 2425221 IIV 463-11 S+RI 60Hz 440-460V AC 11h
