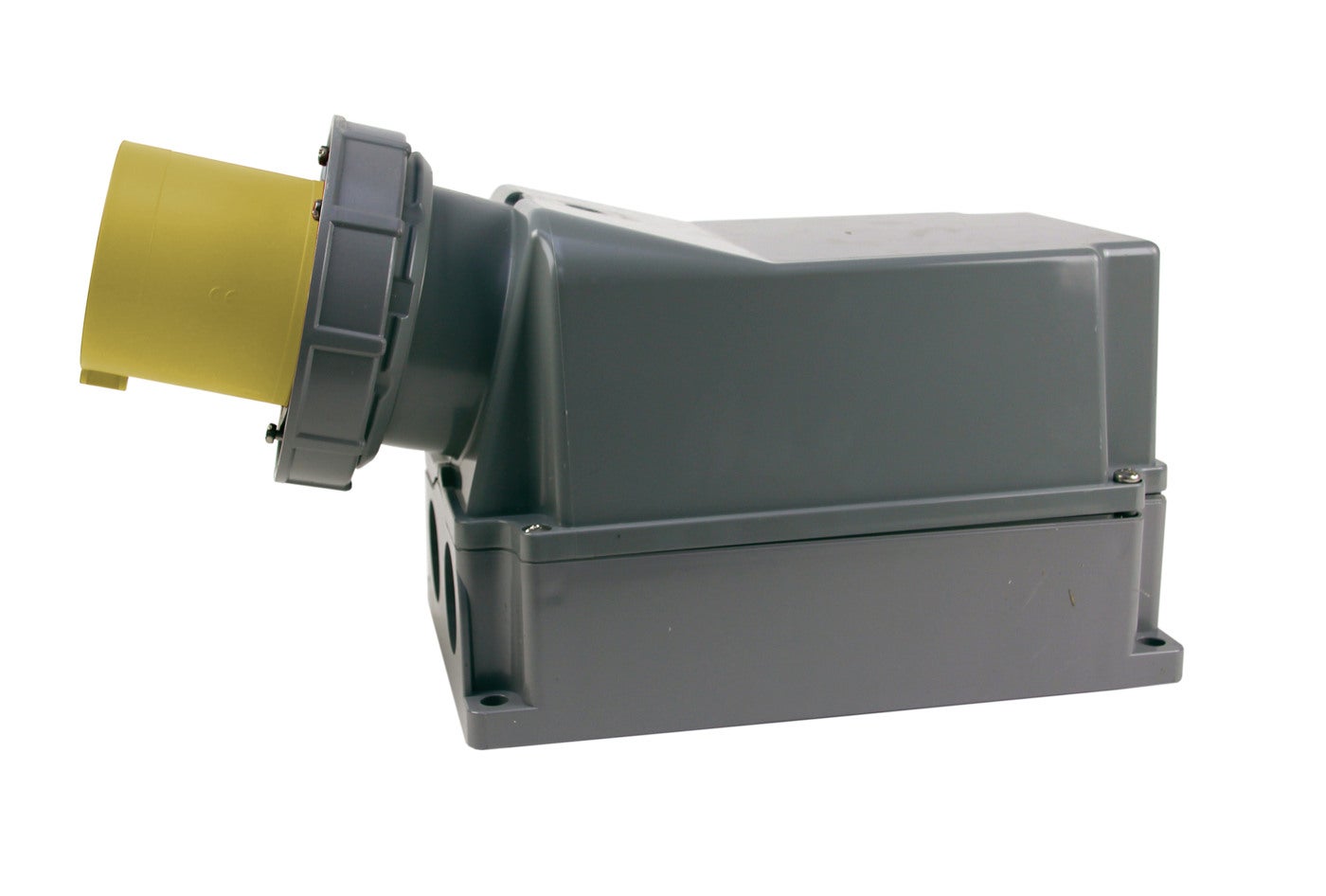

WALLINLET 3P 63A 125A 4h WT

Inlet wall mounting 125A IP67 Basic

Inlet wallmounting Basic 63A IP67 Wall inlet basic 3-poles 125A 4h with open bottom watertight
E-number
E2425222
Article number
2425222
Support
Housing material Plastic
Rated current [A] 125A
Wire flexible [mm²] 16-50mm²
Modelltype Basic
Degree of protection [IP] IP67
Name WALLINLET 3P 63A 125A 4h WT
E-number E2425222
Article number 2425222
Type designation IIV 2125-4 S+RI
Frequency [Hz] 50/60Hz
Color Yellow
Rated voltage [V AC] 100-130V AC
Number of poles 3/2P+E
RAL-number RAL1023
Clock hour position [h] 4h
Wire solid [mm²] 16-70mm²

More variants of Inlet wall mounting 125A IP67 Basic

E-number Article number Type designation Frequency [Hz] Color Rated voltage [V AC] Number of poles RAL-number Clock hour position [h] Wire solid [mm²] NetProductWeight EngineerWidth EngineerHeight EngineerDepth
WALLINLET 3P 63A 125A 4h WT E2425222 2425222 IIV 2125-4 S+RI 50/60Hz Yellow 100-130V AC 3/2P+E RAL1023 4h 16-70mm²

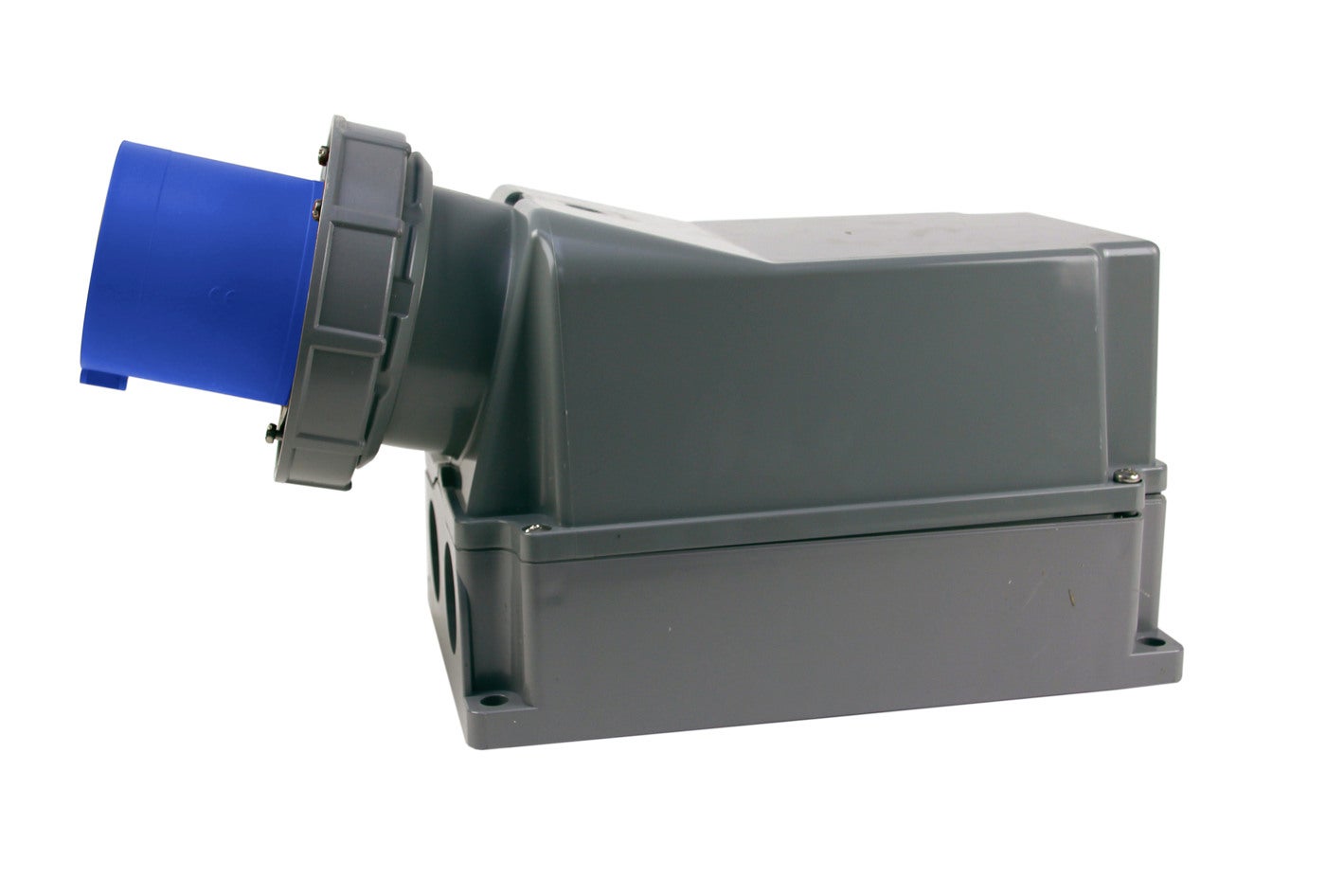

WALLINLET 3P 125A 6h WT E2425223 2425223 IIV 2125-6 S+RI 50/60Hz Blue 200-250V AC 3/2P+E RAL5017 6h 6-70mm² 1.63 162 387 209
WALLINLET 3P 125A 9h WT E2425224 2425224 IIV 2125-9 S+RI 50/60Hz Red 380-415V AC 3/2P+E RAL3000 9h 16-70mm²

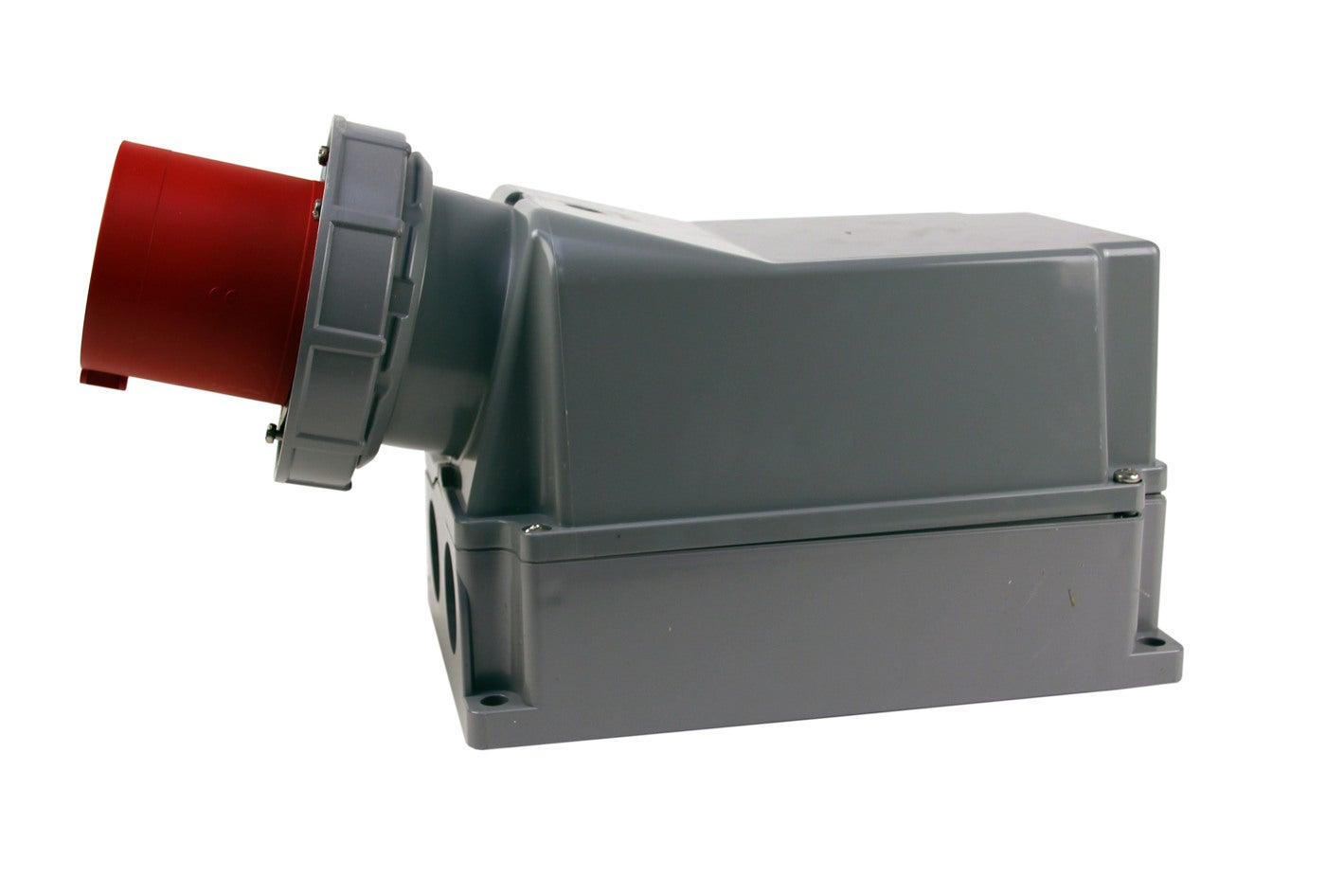

WALLINLET 4P 125A 6h WT E2425227 2425227 IIV 3125-6 S+RI 50/60Hz Red 400V AC 4/3P+E RAL3000 6h 16-70mm² 1.73 162 387 209

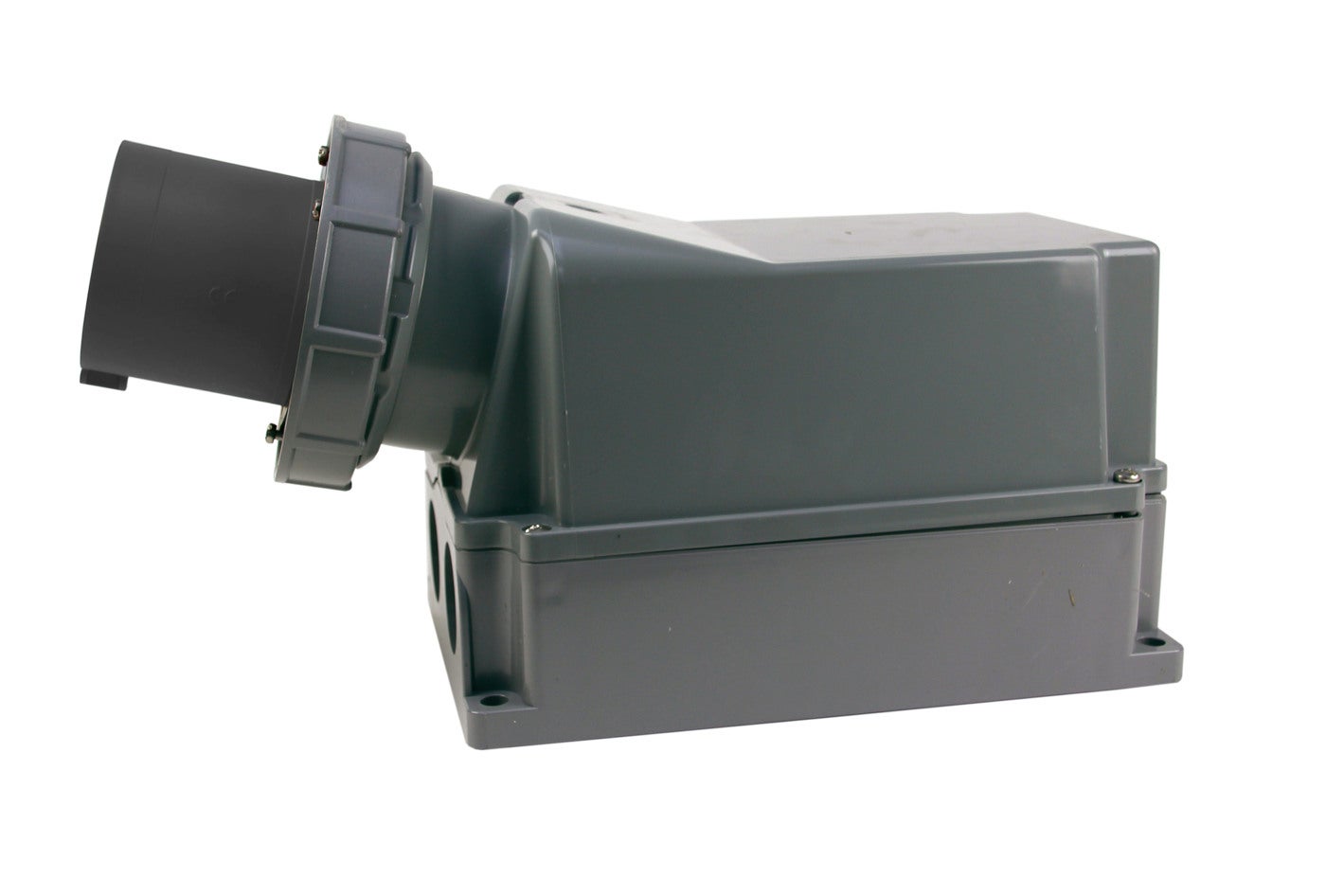

WALLINLET 4P 125A 7h WT E2425228 2425228 IIV 3125-7 S+RI 50/60Hz Black 480-500V AC 4/3P+E RAL9005 7h 6-70mm²
WALLINLET 4P 125A 11h WT E2425231 2425231 IIV 3125-11 S+RI 60Hz Red 440-460V AC 4/3P+E RAL3000 11h 16-70mm²
WALLINLET 5P 125A 6h WT E2425233 2425233 IIV 4125-6 S+RI 50/60Hz Red 230-400V AC 5/3P+N+E RAL3000 6h 16-70mm² 2.09 190 230 395
