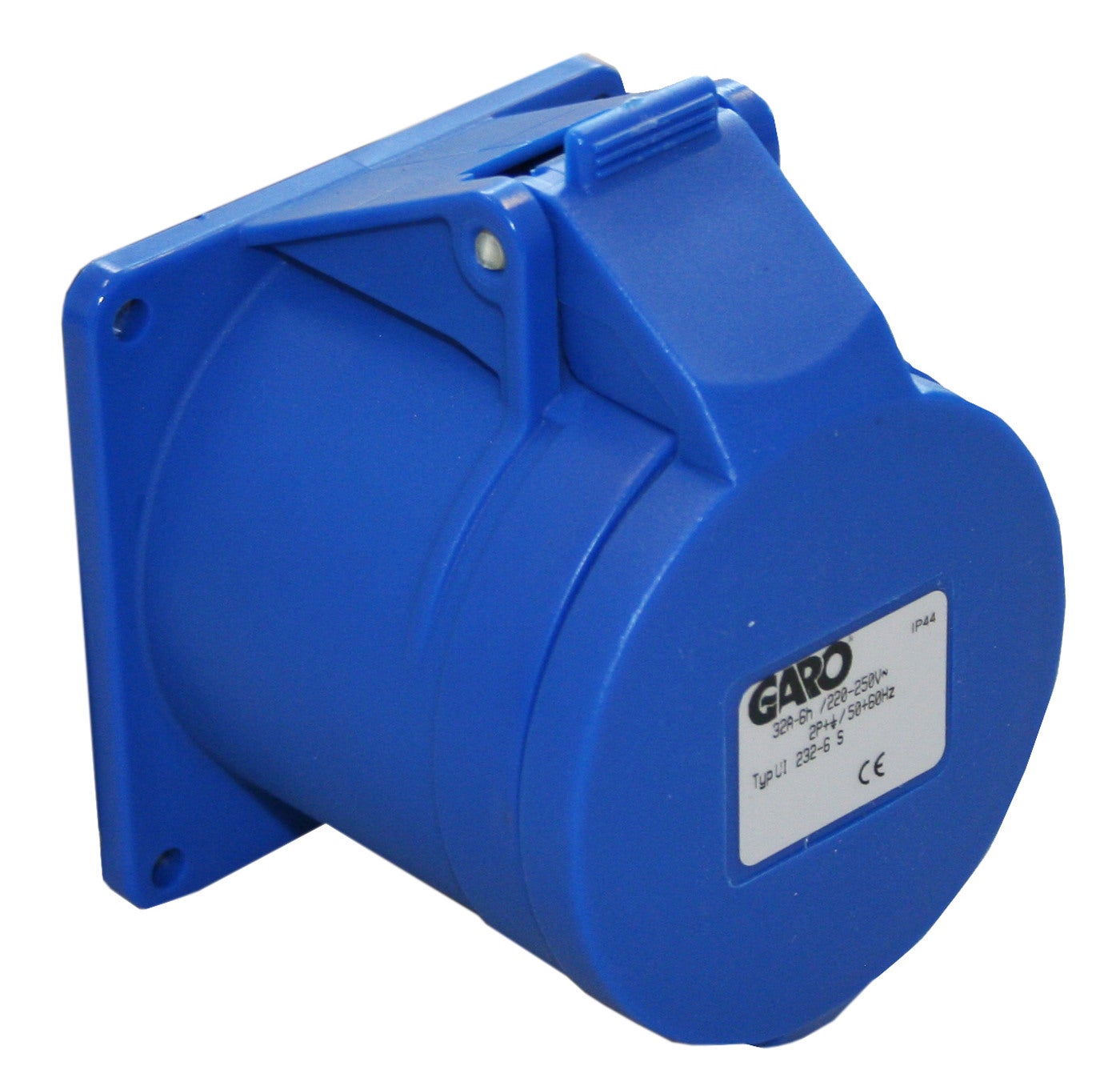

SOCKET STRAIGHT 3P 32A 6h Q

Flanged sockets Quick 32A IP44

Quick, our screwless range with snap-in connections that require no tools, just a simple push of the thumb. Socket 32A for recess mounting with straight mounting plate. Supplied including seal. Socket straight with quick connection 3-poles 32A 6h
E-number
E2425549
Article number
2425549
Support
Frequency [Hz] 50/60Hz
Housing material Plastic
Rated current [A] 32A
Wire flexible [mm²] 2,5-6mm²
Modelltype Quick
Clock hour position [h] 6h
Wire solid [mm²] 2,5-10mm²
Degree of protection [IP] IP44
Name SOCKET STRAIGHT 3P 32A 6h Q
E-number E2425549
Article number 2425549
Type designation UI 232-6 Q
Color Blue
Rated voltage [V AC] 200-250V AC
Number of poles 3/2P+E

More variants of Flanged sockets Quick 32A IP44

E-number Article number Type designation Color Rated voltage [V AC] Number of poles
SOCKET STRAIGHT 3P 32A 6h Q E2425549 2425549 UI 232-6 Q Blue 200-250V AC 3/2P+E

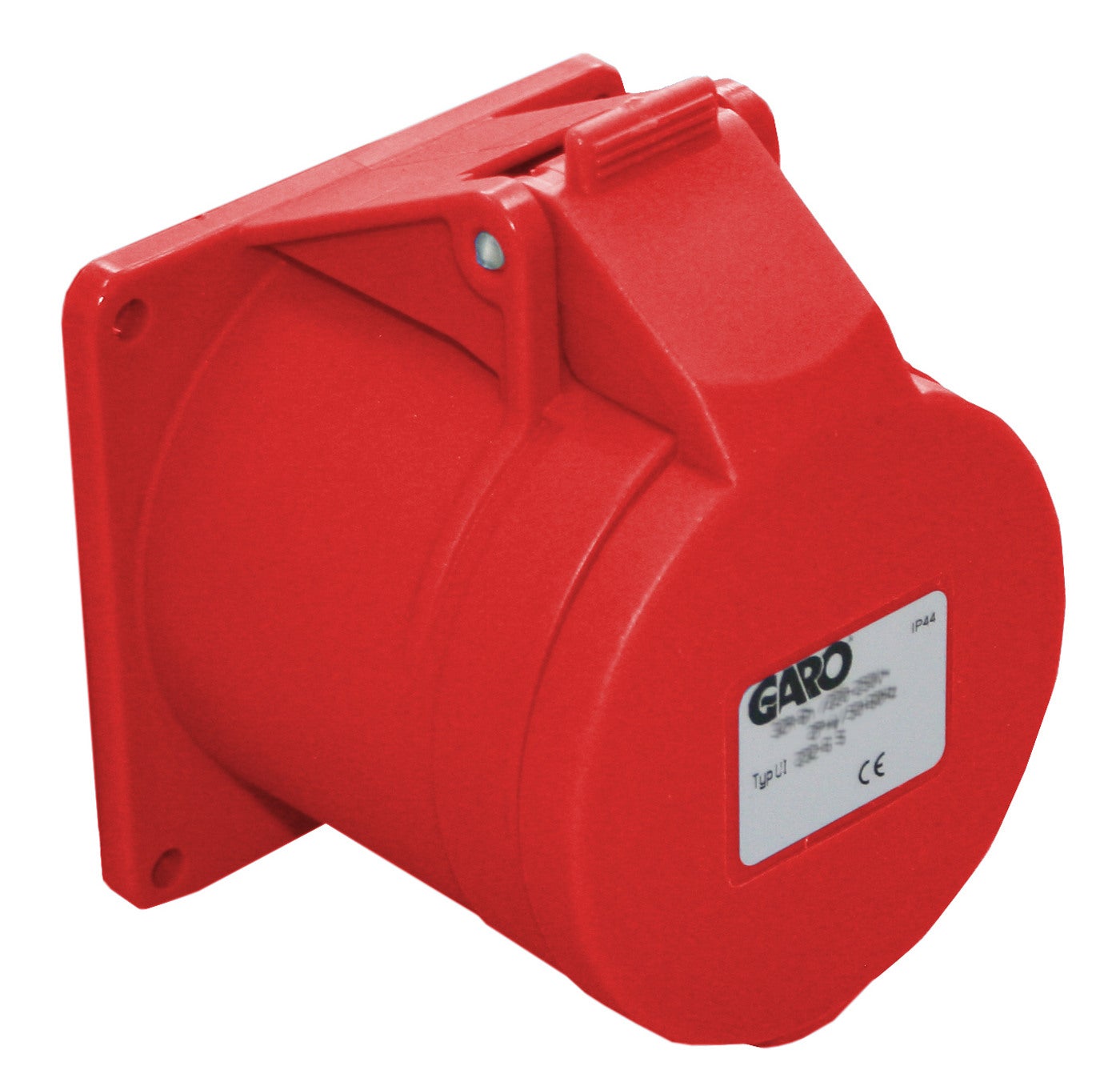

SOCKET STRAIGHT 4P 32A 6h Q E2425555 2425555 UI 332-6 Q Red 400V AC 4/3P+E
SOCKET STRAIGHT 5P 32A 6h Q E2425564 2425564 UI 432-6 Q Red 230/400V AC 5/3P+N+E
