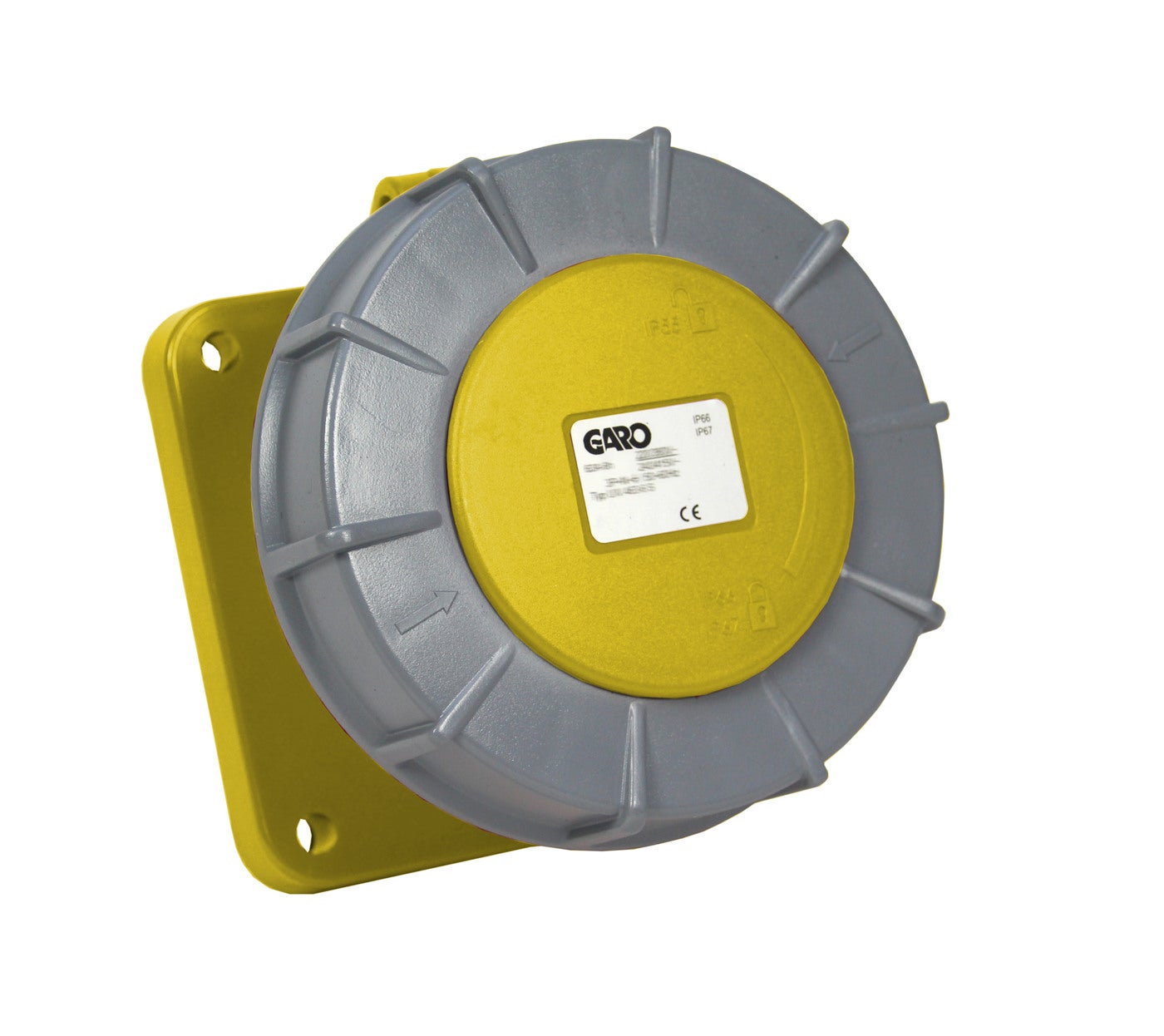

SOCKET STRAIGHT 3P 63A 4h WT

Flanged sockets Basic Straight 63A IP67

Basic, our standard range with a screw function. Socket 63A recess mounting with straight mounting plate. Supplied including seal. Socket straight basic 3-poles 63A 4h watertights
E-number
E2424982
Article number
2424982
Support
Frequency [Hz] 50/60Hz
Housing material Plastic
Rated current [A] 63A
Wire flexible [mm²] 6-16mm²
Modelltype Basic
Clock hour position [h] 6h
Wire solid [mm²] 6-25mm²
Degree of protection [IP] IP67
Name SOCKET STRAIGHT 3P 63A 4h WT
E-number E2424982
Article number 2424982
Type designation UIV 263-4 S
Color Yellow
Rated voltage [V AC] 100-130V AC
Number of poles 3/2P+E
RAL-number RAL1023

More variants of Flanged sockets Basic Straight 63A IP67

E-number Article number Type designation Color Rated voltage [V AC] Number of poles RAL-number NetProductWeight EngineerWidth EngineerHeight EngineerDepth
SOCKET STRAIGHT 3P 63A 4h WT E2424982 2424982 UIV 263-4 S Yellow 100-130V AC 3/2P+E RAL1023

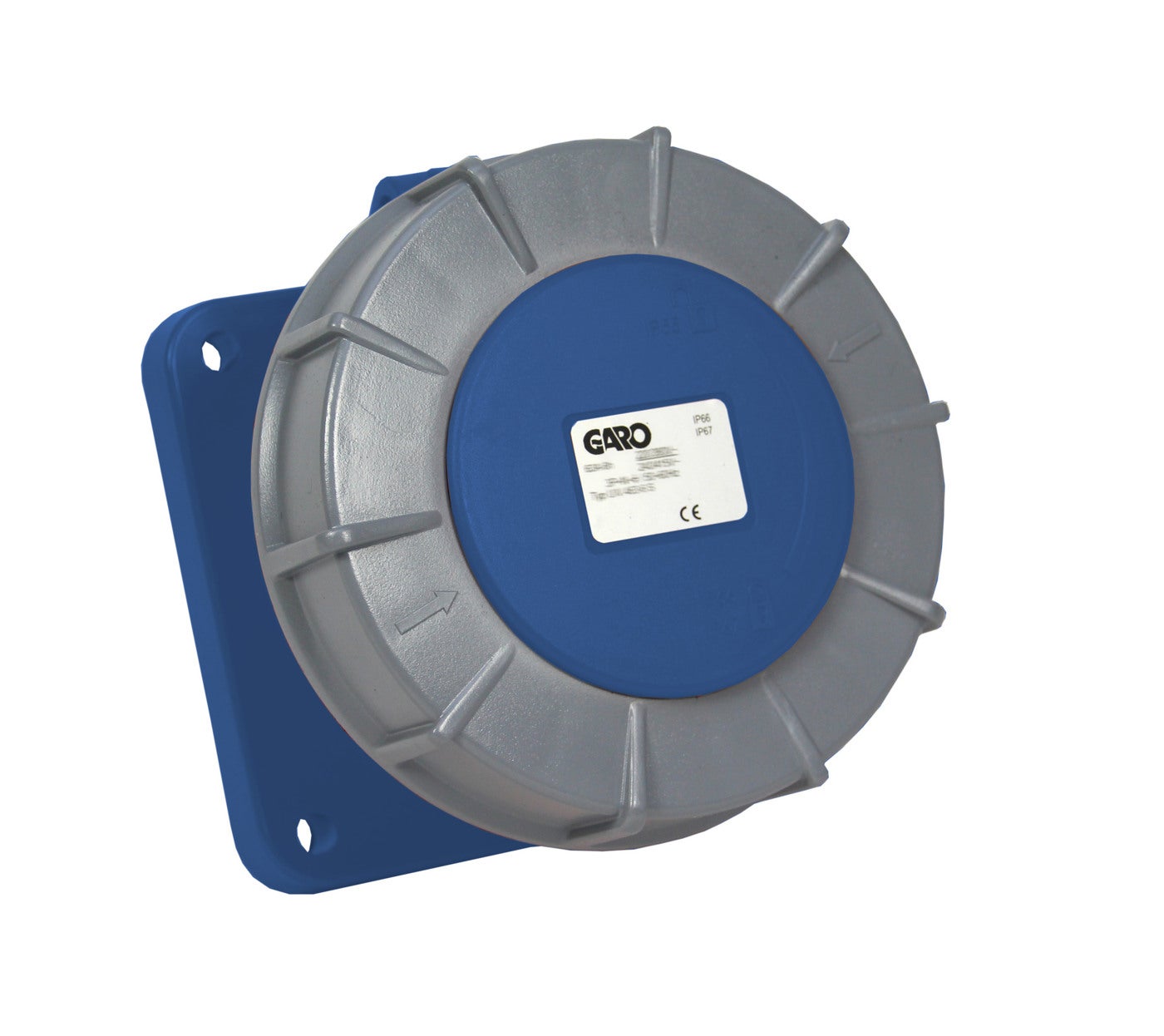

SOCKET STRAIGHT 3P 63A 6h WT E2424983 2424983 UIV 263-6 S Blue 200-250V AC 3/2P+E RAL5017 0.49 190 140 290
SOCKET STRAIGHT 4P 63A 6h WT E2424987 2424987 UIV 363-6 S Red 400V AC 4/3P+E RAL3000 0.6 190 140 290

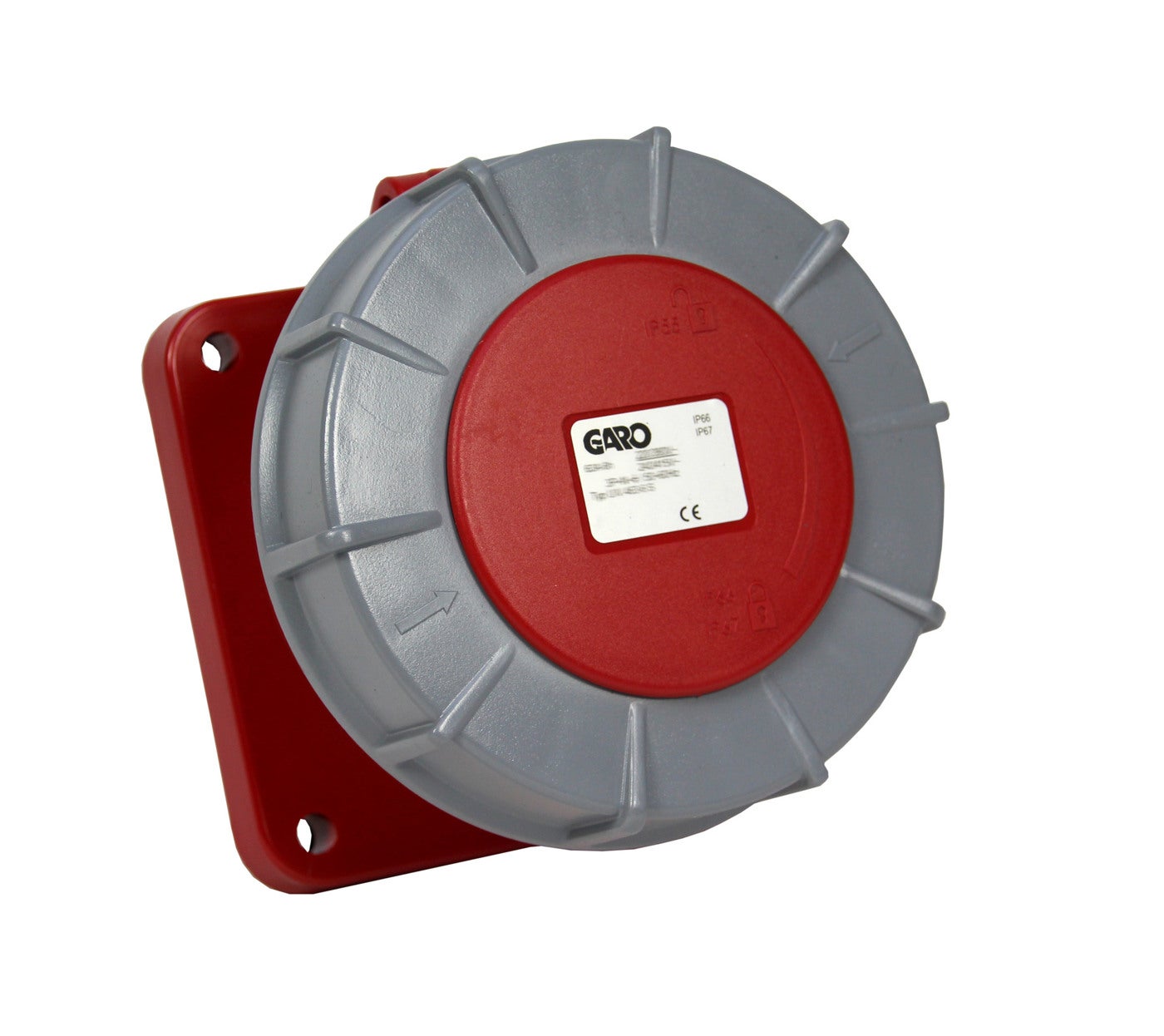

SOCKET STRAIGHT 5P 63A 6h WT E2424992 2424992 UIV 463-6 S Red 230/400V AC 5/3P+N+E RAL3000 0.65 190 140 290
