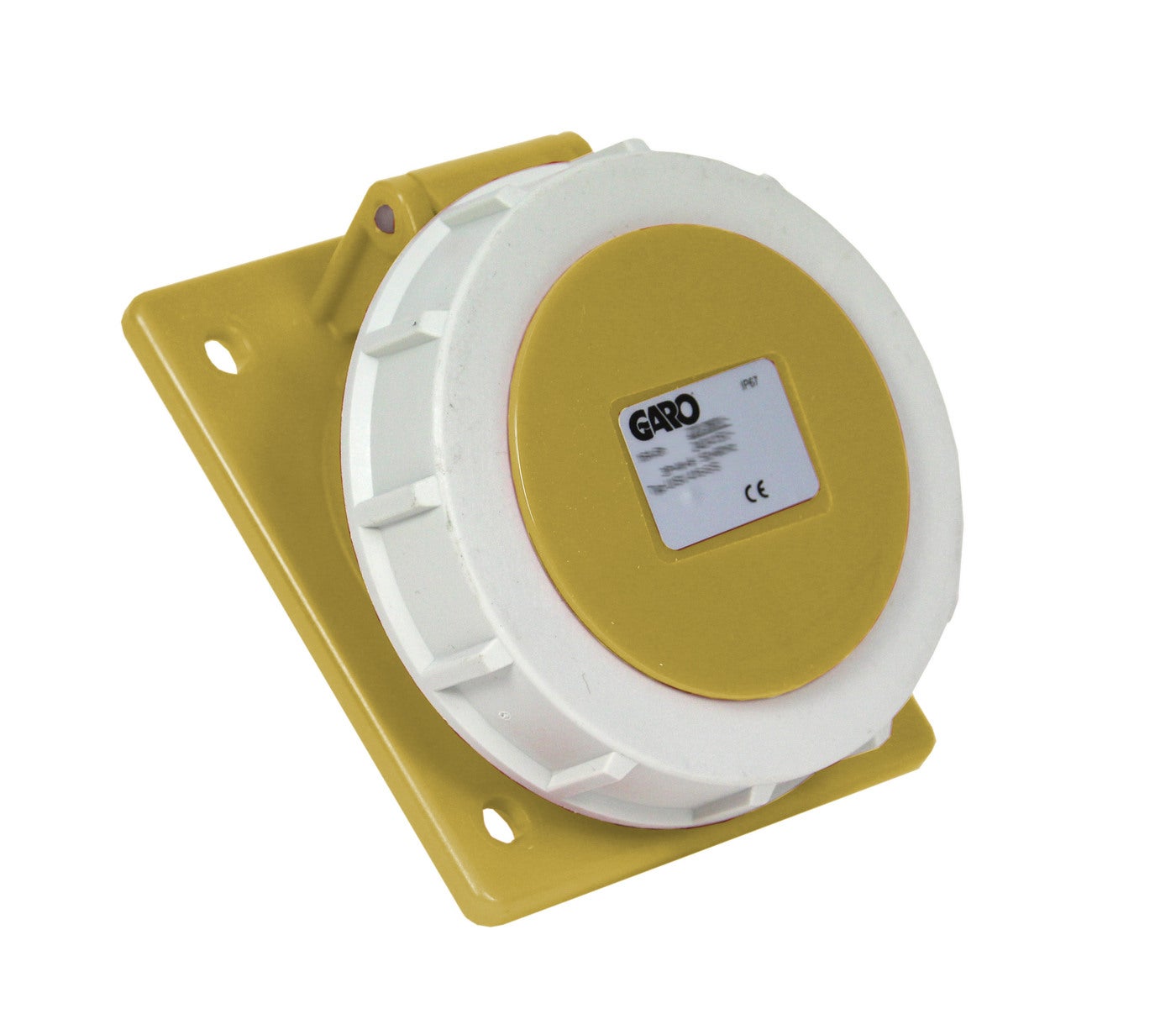

SOCKET SLOPING 3P 16A 4h WT

Flanged sockets Basic Sloping 16A IP67

Basic, our standard range with a screw function.Socket 16A recess mounting with angled mounting plate in a waterproof design. Supplied including seal. Socket sloping basic 3-poles 16A 4h watertight
E-number
E2425075
Article number
2425075
Support
Housing material Plastic
Rated current [A] 16A
Wire flexible [mm²] 1-2,5mm²
Modelltype Basic
Wire solid [mm²] 1-4mm²
Name SOCKET SLOPING 3P 16A 4h WT
E-number E2425075
Article number 2425075
Type designation UISV 216-4 S
Frequency [Hz] 50/60Hz
Color Yellow
Rated voltage [V AC] 100-130V AC
Number of poles 3/2P+E
RAL-number RAL1023
Clock hour position [h] 6h
Degree of protection [IP] IP67

More variants of Flanged sockets Basic Sloping 16A IP67

E-number Article number Type designation Frequency [Hz] Color Rated voltage [V AC] Number of poles RAL-number Clock hour position [h] Degree of protection [IP] NetProductWeight EngineerWidth EngineerHeight EngineerDepth
SOCKET SLOPING 3P 16A 4h WT E2425075 2425075 UISV 216-4 S 50/60Hz Yellow 100-130V AC 3/2P+E RAL1023 6h IP67
SOCKET SLOPING 3P 16A 6h WT E2425076 2425076 UISV 216-6 S 50/60Hz Blue 200-250V AC 3/2P+E RAL5017 6h IP67 0.13 190 140 290
SOCKET SLOPING 3P 16A 9h WT E2425077 2425077 UISV 216-9 S 50/60Hz Red 380-415V AC 3/2P+E RAL3000 9h IP67
SOCKET SLOPING 4P 16A 6h WT E2425080 2425080 UISV 316-6 S 50/60Hz Red 400V AC 4/3P+E RAL3000 6h IP67 0.15 190 140 290

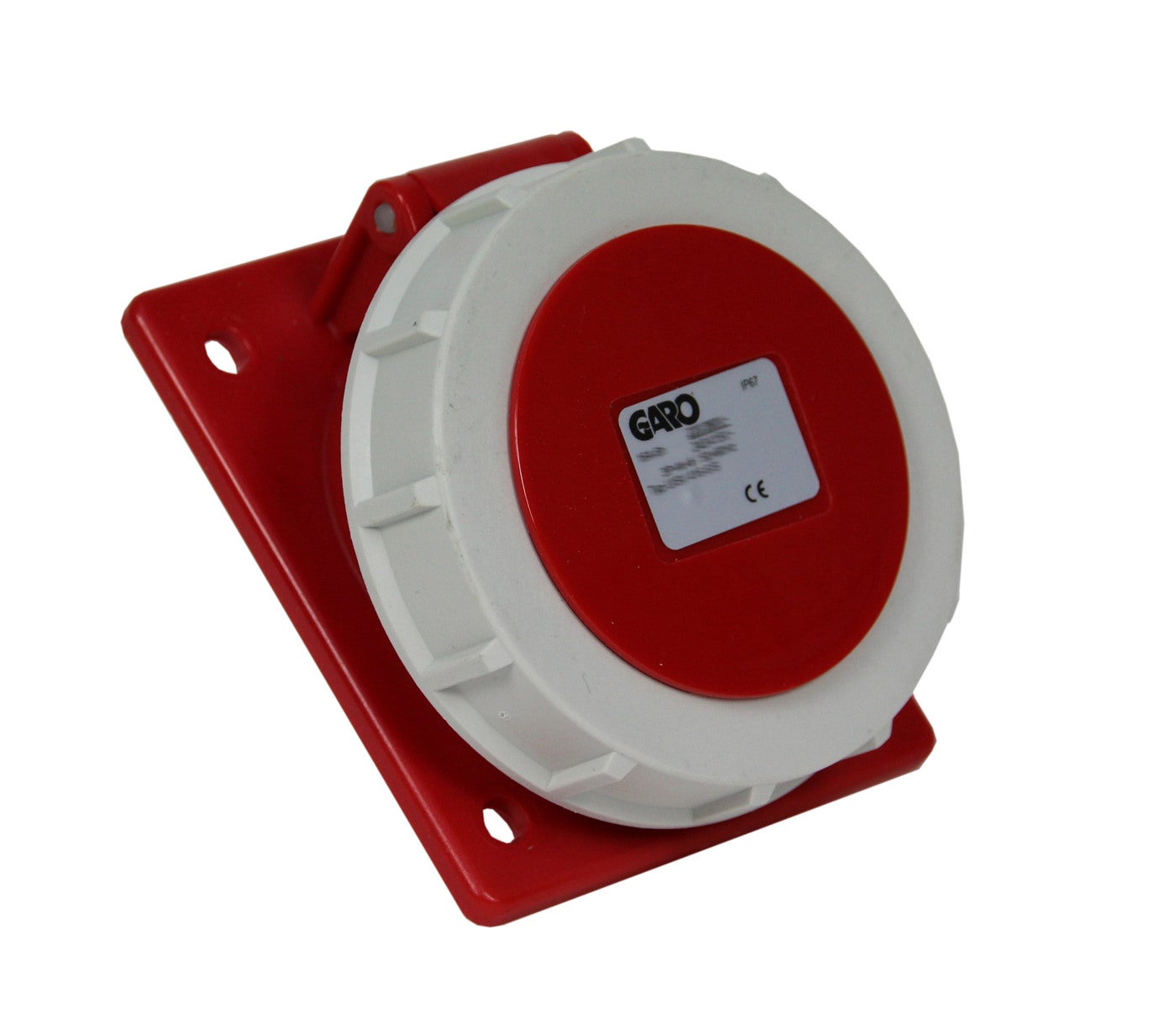

SOCKET SLOPING 5P 16A 6h WT E2425086 2425086 UISV 416-6 S 50/60Hz Red 230/400V AC 5/3P+N+E RAL3000 6h IP44 0.18 190 170 290

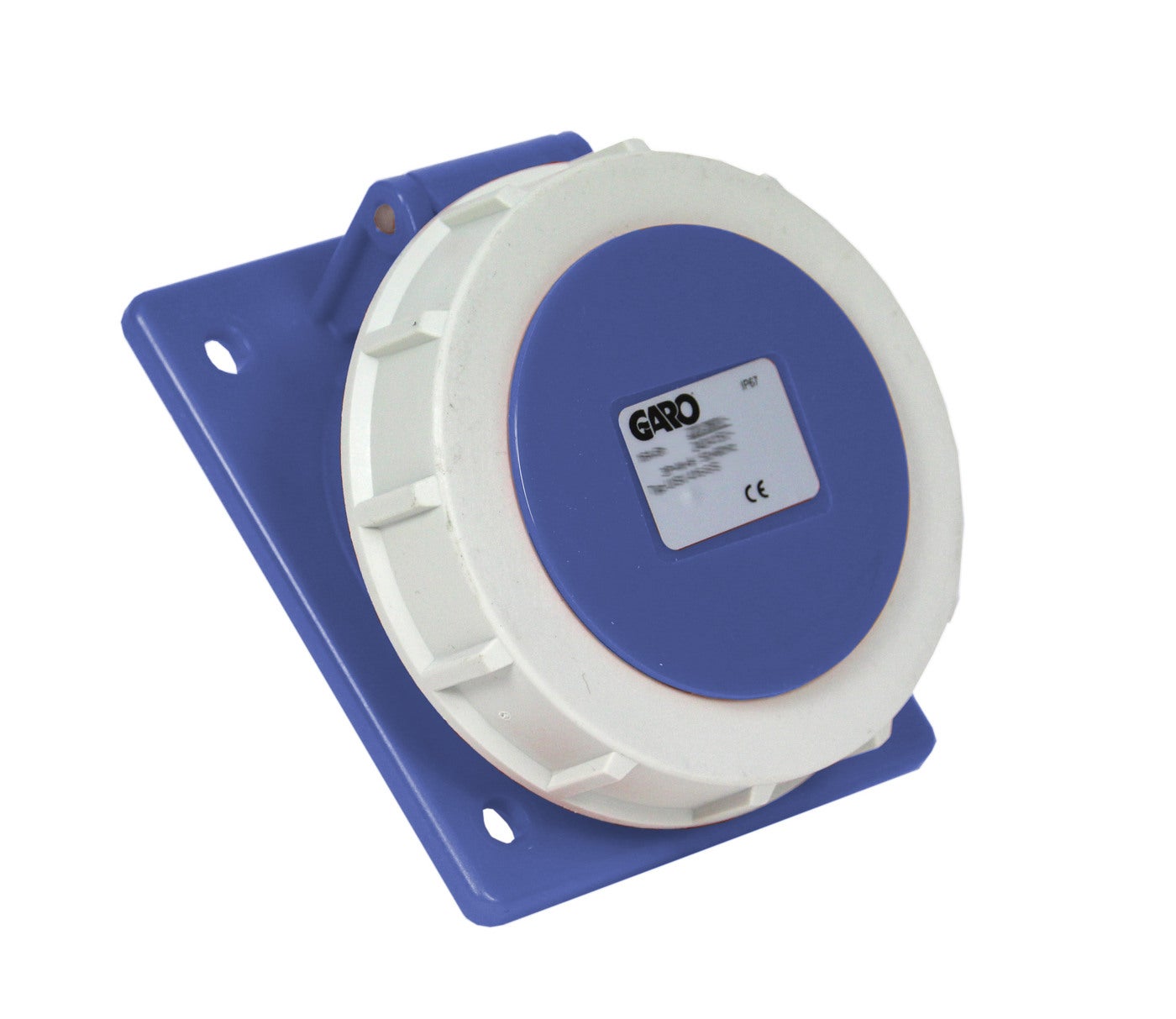

SOCKET SLOPING 5P 16A 9h WT E2425087 2425087 UISV 416-9 S 208-250V AC 5/3P+N+E RAL5017 6h IP44
SOCKET SLOPING 5P 16A 11h WT E2425088 2425088 UISV 416-11 S 50/60Hz Blue 208-250V AC 5/3P+N+E RAL5017 9h IP67
