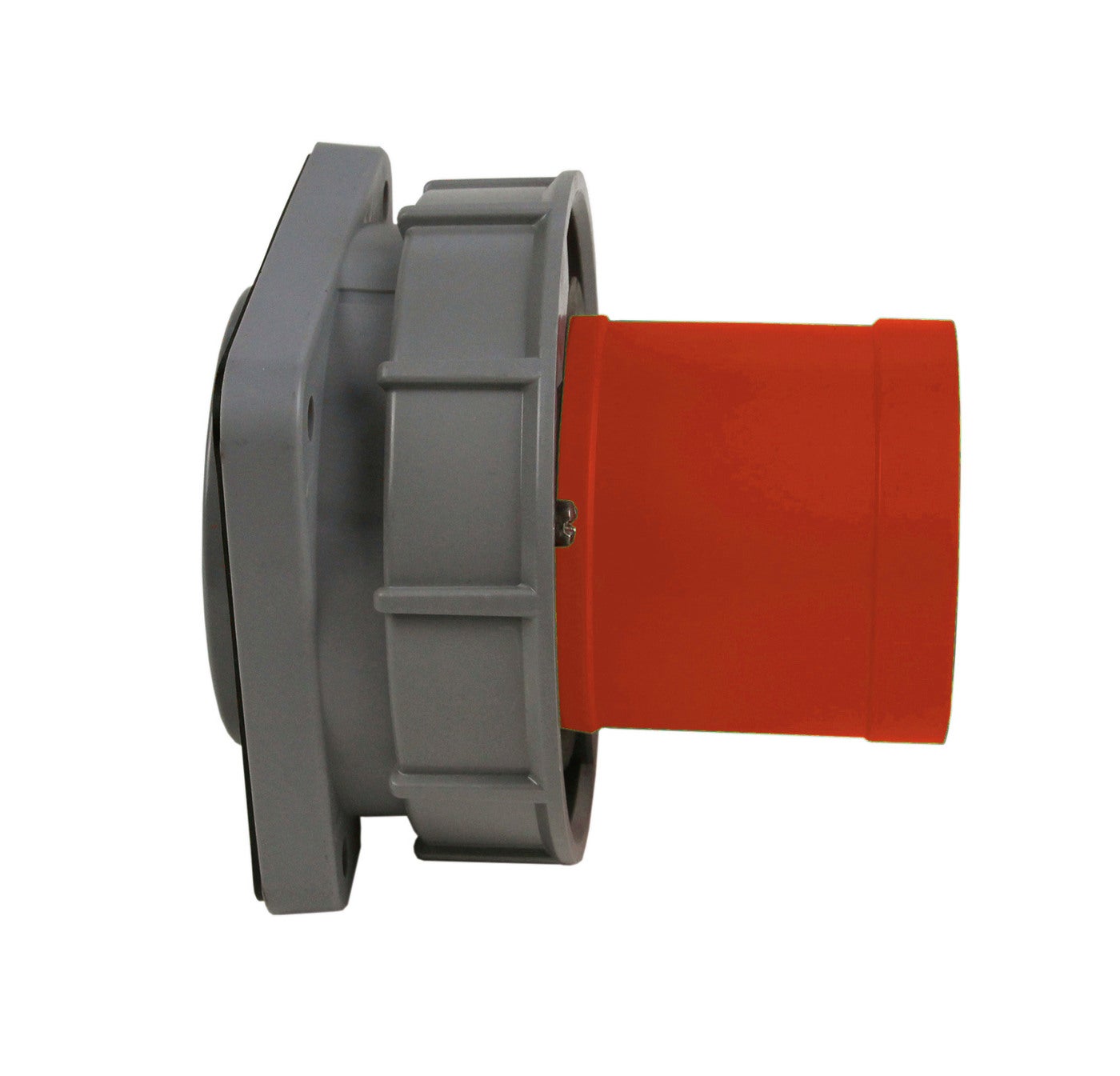

INLET STRAIGHT 3P 63A 6h WT

Flanged plugs Basic Straight 63A IP67

Basic, our standard range with a screw function. Wall socket 63A recess mounting with straight mounting plate in a waterproof design. All sockets are supplied with a seal. Inlet straight basic 3-poles 63A 6h watertight
E-number
E2425361
Article number
2425361
Support
Housing material Plastic
Rated current [A] 63A
Wire flexible [mm²] 6-16mm²
Modelltype Basic
Type of fastening Recessed mount device plug
Degree of protection [IP] IP67
Name INLET STRAIGHT 3P 63A 6h WT
E-number E2425361
Article number 2425361
Type designation IIV 263-6 S
Color Blue
Rated voltage [V AC] 200-250V AC
Number of poles 3/2P+E
RAL-number RAL5017
Clock hour position [h] 6h
Wire solid [mm²] 6-25mm²

More variants of Flanged plugs Basic Straight 63A IP67

E-number Article number Type designation Color Rated voltage [V AC] Number of poles RAL-number Clock hour position [h] Wire solid [mm²]
INLET STRAIGHT 3P 63A 6h WT E2425361 2425361 IIV 263-6 S Blue 200-250V AC 3/2P+E RAL5017 6h 6-25mm²
INLET STRAIGHT 4P 63A 6h WT E2425364 2425364 IIV 363-6 S Red 400V AC 4/3P+E RAL3000 6h 6-25mm²
INLET STRAIGHT 4P 63A 9h WT E2425365 2425365 IIV 363-9 S Red 400V AC 4/3P+E RAL3000 6h 6-25mm²
INLET STRAIGHT 5P 63A 6h WT E2425367 2425367 IIV 463-6 S Red 230/400V AC 5/3P+N+E RAL3000 6h 4-25mm²
INLET STRAIGHT 5P 63A 7h WT E2425368 2425368 IIV 463-9 S Blue 208-250V AC 5/3P+N+E RAL5017 9h 6-25mm²
