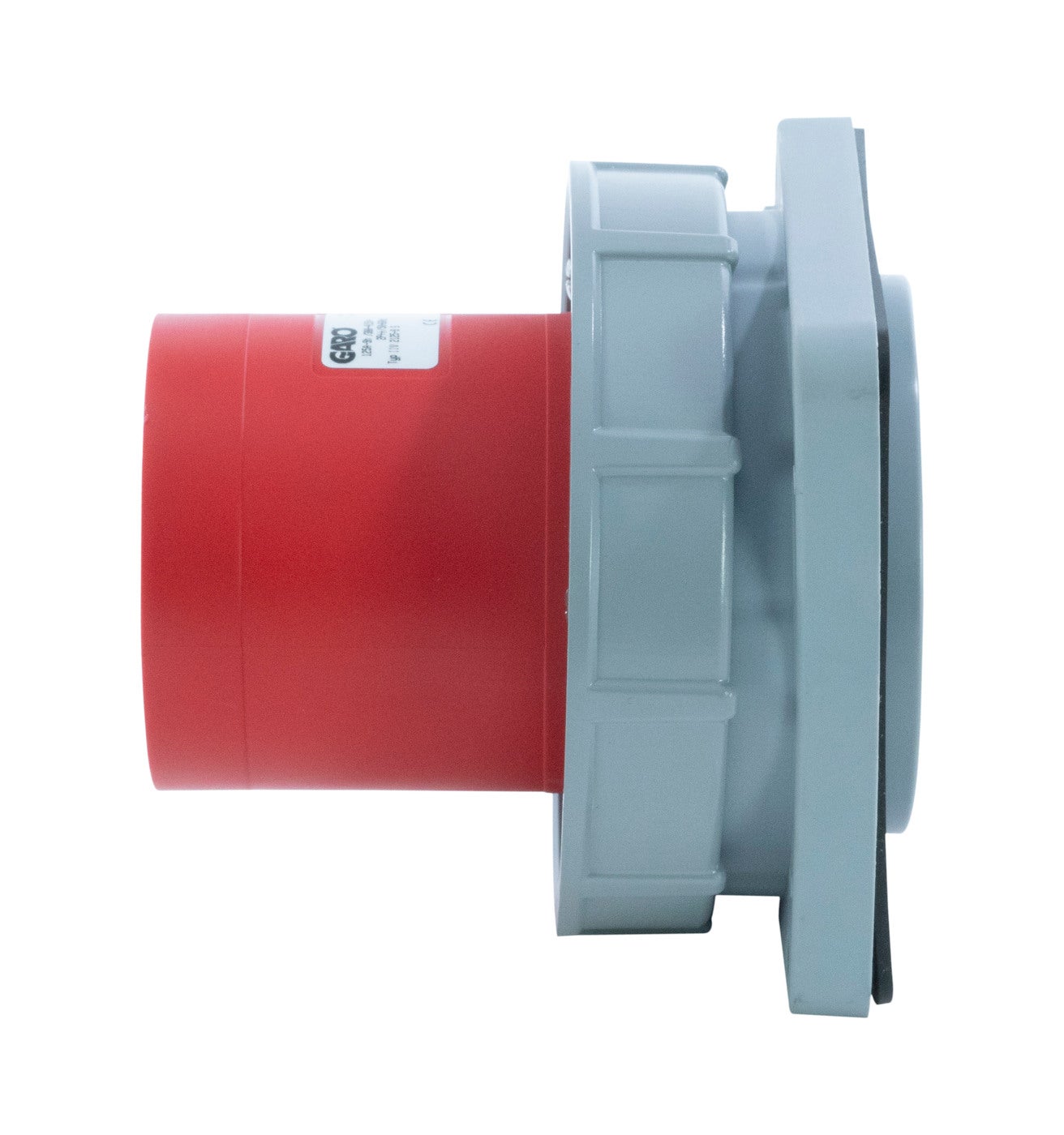

  • INLET STRAIGHT 3P 125A 9h WT - 2

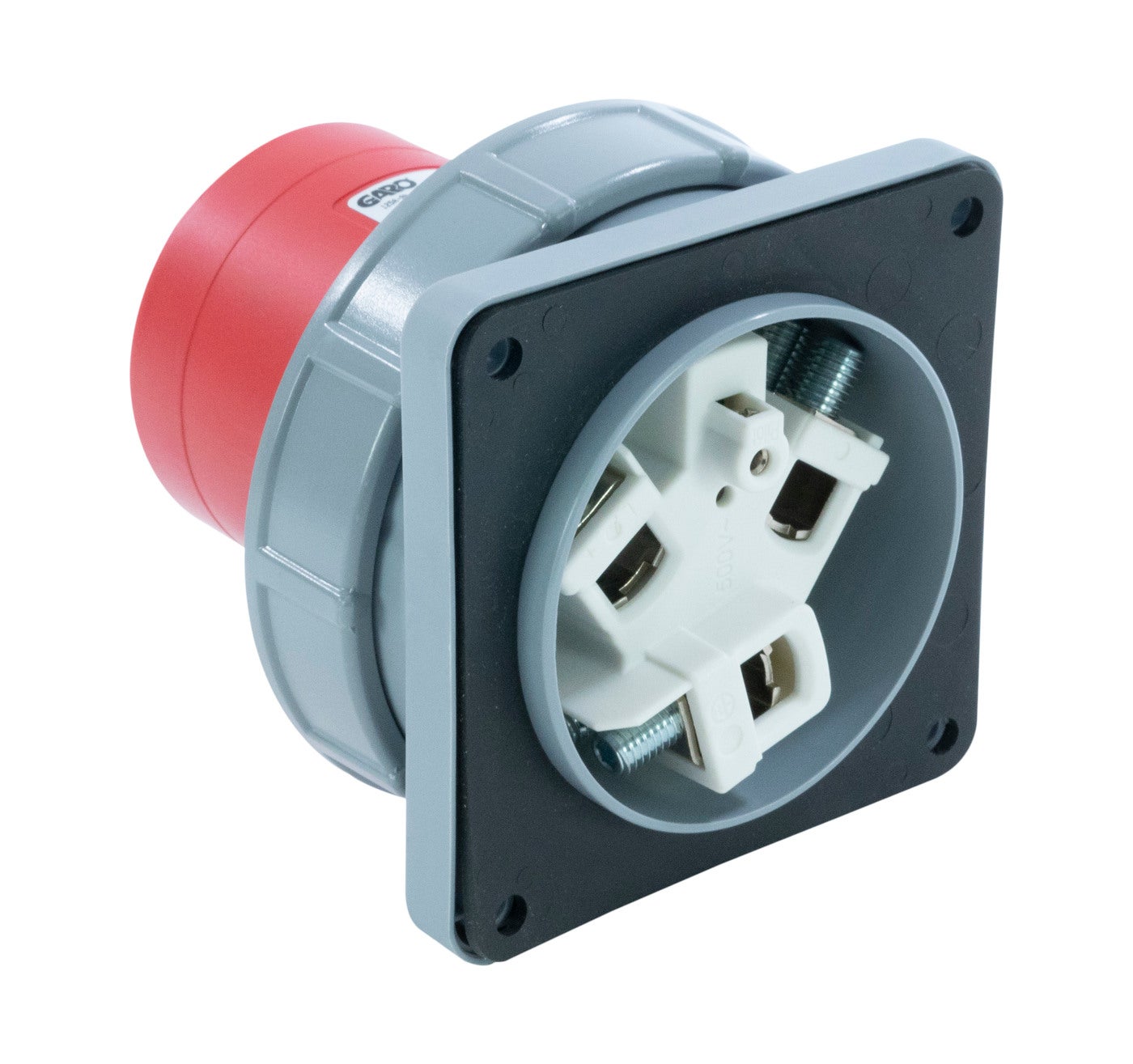

  • INLET STRAIGHT 3P 125A 9h WT - 3

Flanged plugs Basic Straight 125A IP67

Basic, our standard range with a screw function. Wall socket 125A recess mounting with straight mounting plate in a waterproof design. All sockets are supplied with a seal. Inlet straight basic 3-poles 125A 9h watertight
E-number
E2425371
Article number
2425371
Support
Housing material Plastic
Rated current [A] 125A
Wire flexible [mm²] 16-50mm²
Modelltype Basic
Wire solid [mm²] 16-70mm²
Degree of protection [IP] IP67
Name INLET STRAIGHT 3P 125A 9h WT
E-number E2425371
Article number 2425371
Type designation IIV 2125-9 S
Frequency [Hz] 50/60Hz
Color Red
Rated voltage [V AC] 380-415V AC
Number of poles 3/2P+E
RAL-number RAL3000
Clock hour position [h] 9h

More variants of Flanged plugs Basic Straight 125A IP67

E-number Article number Type designation Frequency [Hz] Color Rated voltage [V AC] Number of poles RAL-number Clock hour position [h] Type of fastening
INLET STRAIGHT 3P 125A 6h WT E2425370 2425370 IIV 2125-6 S 50/60Hz Blue 200-250V AC 3/2P+E RAL5017 6h
INLET STRAIGHT 3P 125A 9h WT E2425371 2425371 IIV 2125-9 S 50/60Hz Red 380-415V AC 3/2P+E RAL3000 9h
INLET STRAIGHT 4P 125A 6h WT E2425374 2425374 IIV 3125-6 S 50/60Hz Red 400V AC 4/3P+E RAL3000 6h Recessed mount device plug
INLET STRAIGHT 4P 125A 7h E2425375 2425375 IIV 3125-7 S 50/60Hz Black 480-500V AC 4/3P+E RAL9005 7h Recessed mount device plug
INLET STRAIGHT 5P 125A 6h WT E2425380 2425380 IIV 4125-6 S 50/60Hz Red 230/400V AC 5/3P+N+E RAL3000 6h
INLET STRAIGHT 5P 125A 11h WT E2425382 2425382 IIV 4125-11 S 60Hz Red 440-460V AC 5/3P+N+E RAL3000 11h Recessed mount device plug
