INLET STRAIGHT 3P 63A 6h

Flanged plugs Basic Straight 63A IP44

Basic, our standard range with a screw function. Wall socket 63A recess mounting with straight mounting plate. Inlet straight basic 3-poles 63A 6h
E-number
E2425332
Article number
2425332
Support
Frequency [Hz] 50/60Hz
Housing material Plastic
Rated current [A] 63A
Wire flexible [mm²] 6-25mm²
Degree of protection [IP] IP44
Name INLET STRAIGHT 3P 63A 6h
E-number E2425332
Article number 2425332
Type designation II 263-6 S
Color Blue
Rated voltage [V AC] 200-250V AC
Number of poles 3/2P+E
RAL-number RAL5017
Clock hour position [h] 6h

More variants of Flanged plugs Basic Straight 63A IP44

E-number Article number Type designation Color Rated voltage [V AC] Number of poles RAL-number Clock hour position [h] NetProductWeight EngineerWidth EngineerHeight EngineerDepth
INLET STRAIGHT 3P 63A 6h E2425332 2425332 II 263-6 S Blue 200-250V AC 3/2P+E RAL5017 6h
INLET STRAIGHT 4P 63A 6h E2425340 2425340 II 363-6 S Blue 400V AC 4/3P+E RAL3000 6h
INLET STRAIGHT 4P 63A 9h E2425344 2425344 II 363-9 S Blue 230V AC 4/3P+E RAL5017 9h

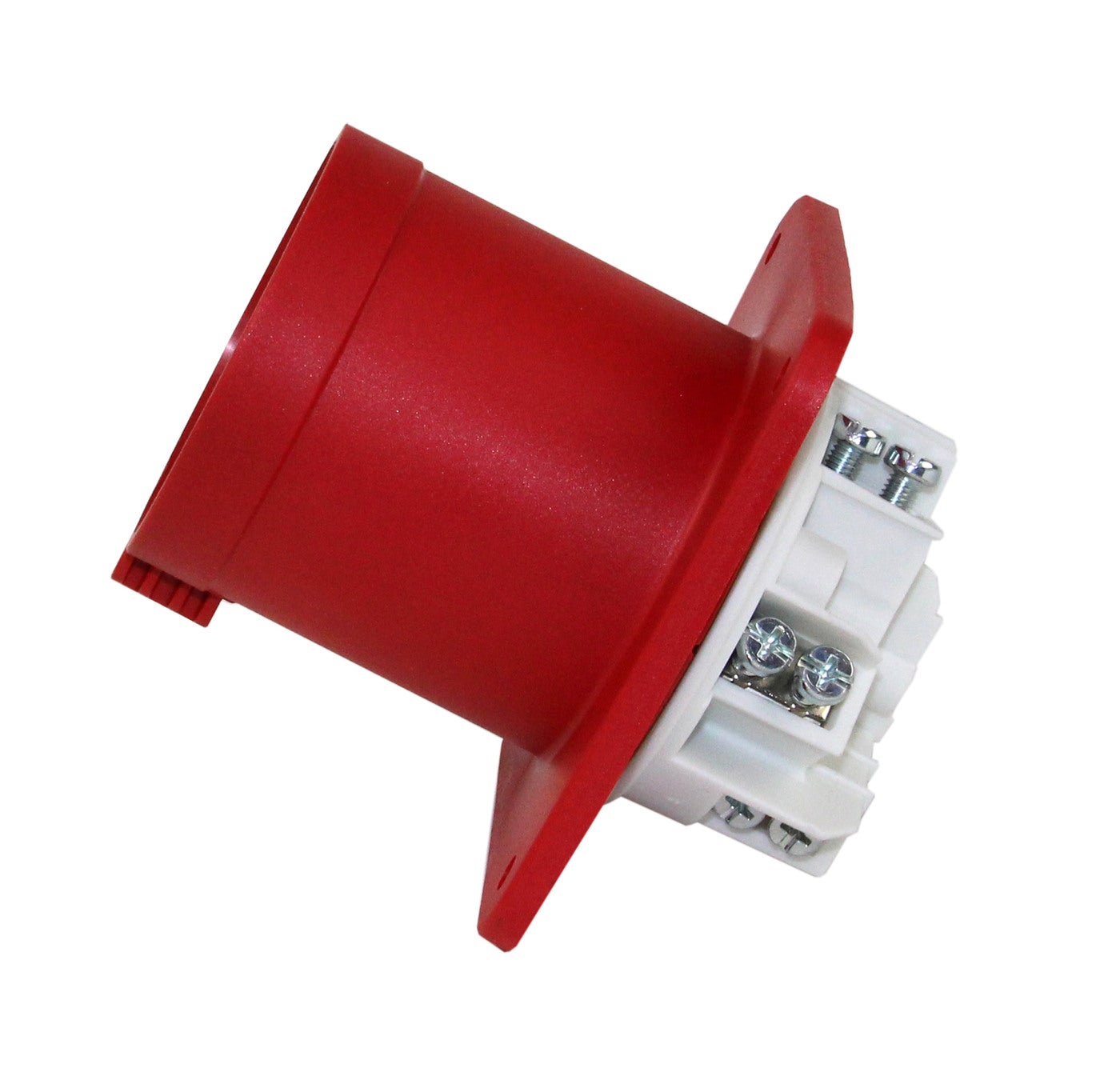

INLET STRAIGHT 5P 63A 6h E2425350 2425350 II 463-6 S Red 230/400V AC 5/3P+N+E RAL3000 6h 0.51 100 100 126
INLET STRAIGHT 5P 63A 7h E2425352 2425352 II 463-7 S Black 480-500V AC 5/3P+N+E RAL9005 7h
