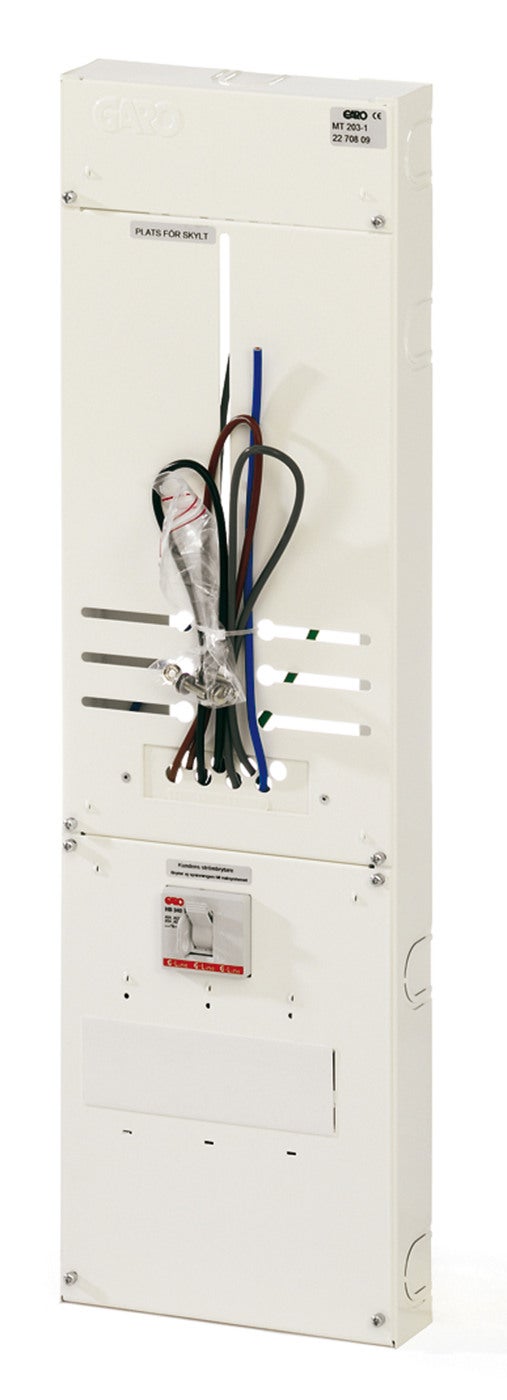

METER BOARD W SW 3P40A1PL

Meterboard w Switch 3P

Meterboard w Switch 3P Meter board with switch 1-place 1 40A 3pole.
E-number
E2272201
Article number
354640
Support
Standard SS 430 01 01
Housing material Sheet steel
Color White
Mounting method Wall mounting
RAL-number RAL9010
Degree of protection [IP] IP30C
Name METER BOARD W SW 3P40A1PL
E-number E2272201
Article number 354640
Type designation GMT 203-1
Rated current [A] 25A
Number of poles 3
Switch [pcs] 1pcs 40A
Incoming terminal [mm²] (L+N+PE) 10mm²Al/Cu
Outgoing terminal [mm²] 16mm² Al/Cu

More variants of Meterboard w Switch 3P

E-number Article number Type designation Rated current [A] Number of poles Switch [pcs] Incoming terminal [mm²] Outgoing terminal [mm²] NetProductWeight EngineerWidth EngineerHeight EngineerDepth
METERBOARD WITH SWITCH 3P 80A 1PL E2270811 2270811 MT 303-1 63A 3 80A 5x35mm² Al/Cu 35mm² 5.2 235 775 60
METER BOARD W SW 3P40A1PL E2272201 354640 GMT 203-1 25A 3 1pcs 40A (L+N+PE) 10mm²Al/Cu 16mm² Al/Cu
METER BOARD W FUSE 3P25A1PL E2272203 354642 GMT230 25A 3 5x35mm² Al/Cu 16mm² Al/Cu
METER BOARD W FUSE 1PL2 E2272205 354644 GMT 233-1 25A 1pcs 40A 5x35mm² Cu 16mm² Al/Cu
