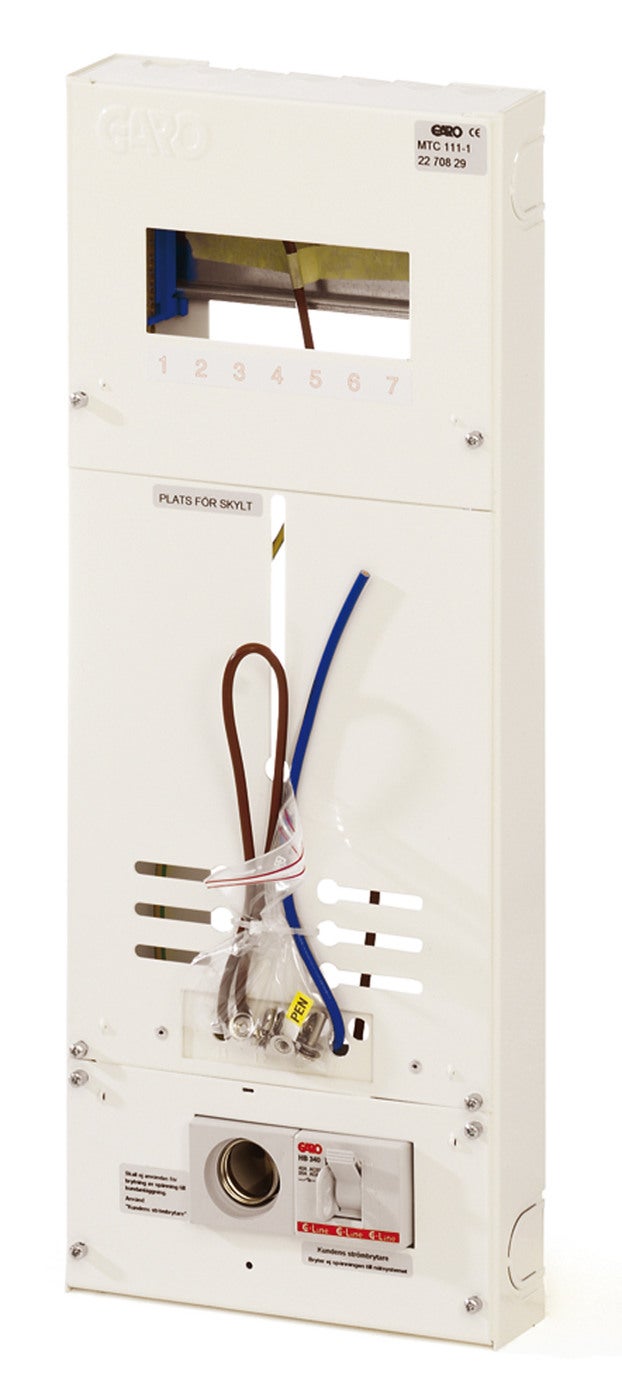

Meterboard with Consumer unit 1P
A practical meter board where customer's power switches are located under the sealable protection by the meter fuses, but break the switchgear above the meter. Meter panel combi with switch and fuse 1-place 1 40A 1phase 7modules.
E-number
E2270829
E2270829
Article number
2270829
2270829
| Type designation | MTC 111-1 |
|---|---|
| Standard | SS 430 01 01 |
| Housing material | Sheet steel |
| Color | White |
| Rated current [A] | 25A |
| Number of modules | 7 |
| Mounting method | Wall mounting |
| RAL-number | RAL9010 |
| Connection N [pcs] | 11 |
| Connection PE [pcs] | 11 |
| Switch [pcs] | 1pcs 40A |
| Incoming terminal [mm²] | (N+PE) 10mm² Al/Cu |
| Degree of protection [IP] | IP30C |
| NetProductWeight | 2.7 |
| EngineerWidth | 205 |
| EngineerHeight | 530 |
| EngineerDepth | 60 |
| Name | METERBOARD 1P 40A 1PL 7MOD |
|---|---|
| E-number | E2270829 |
| Article number | 2270829 |
