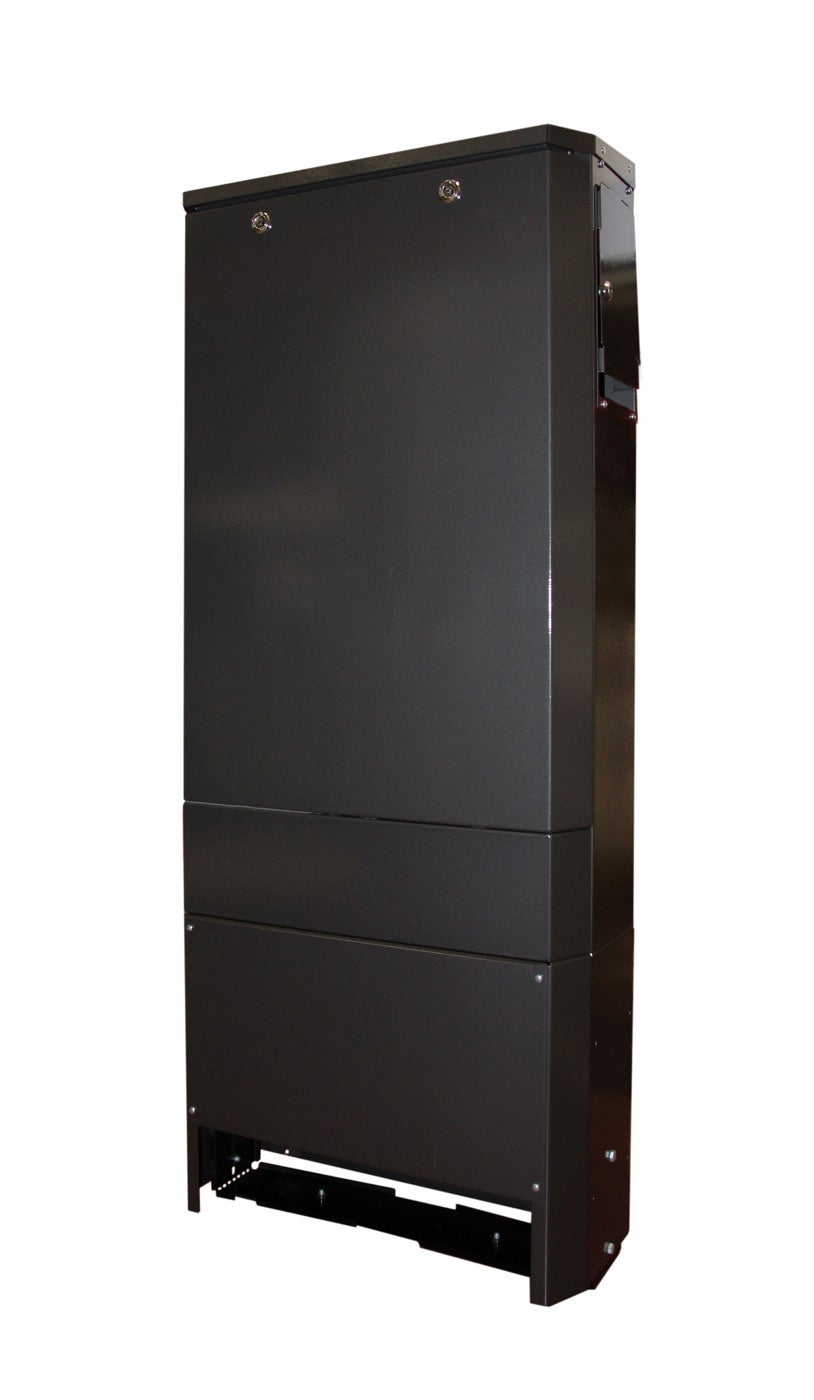

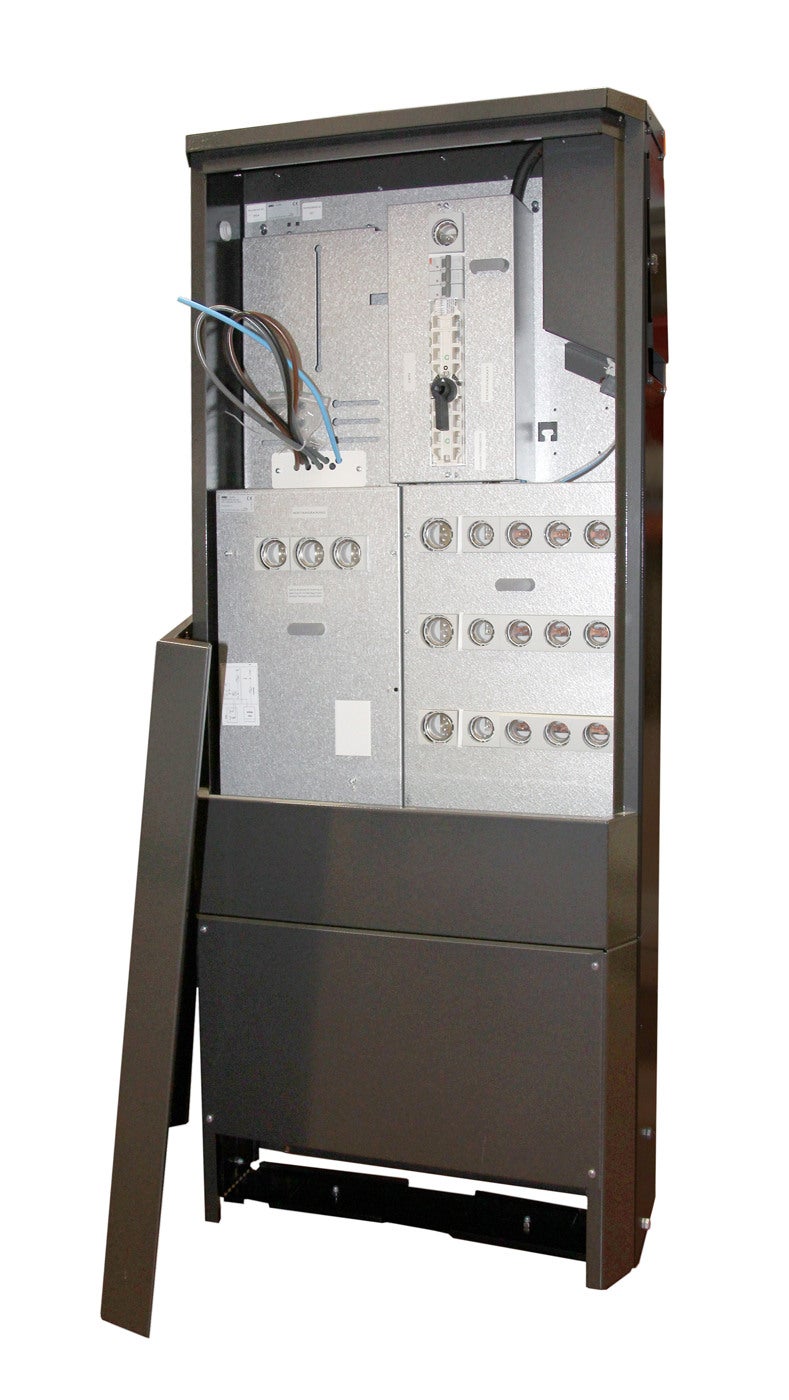

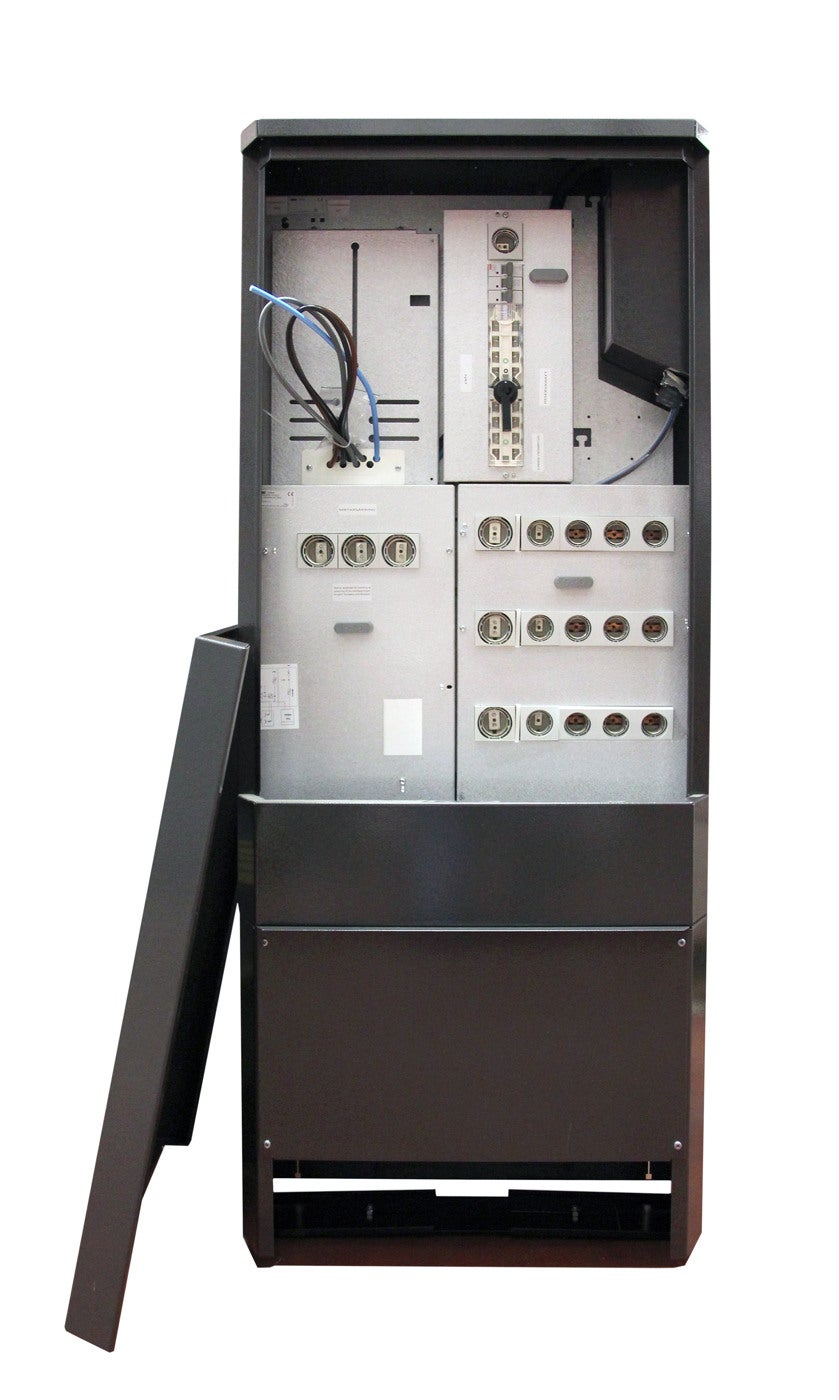

Meter cabinets with transfer switch W620

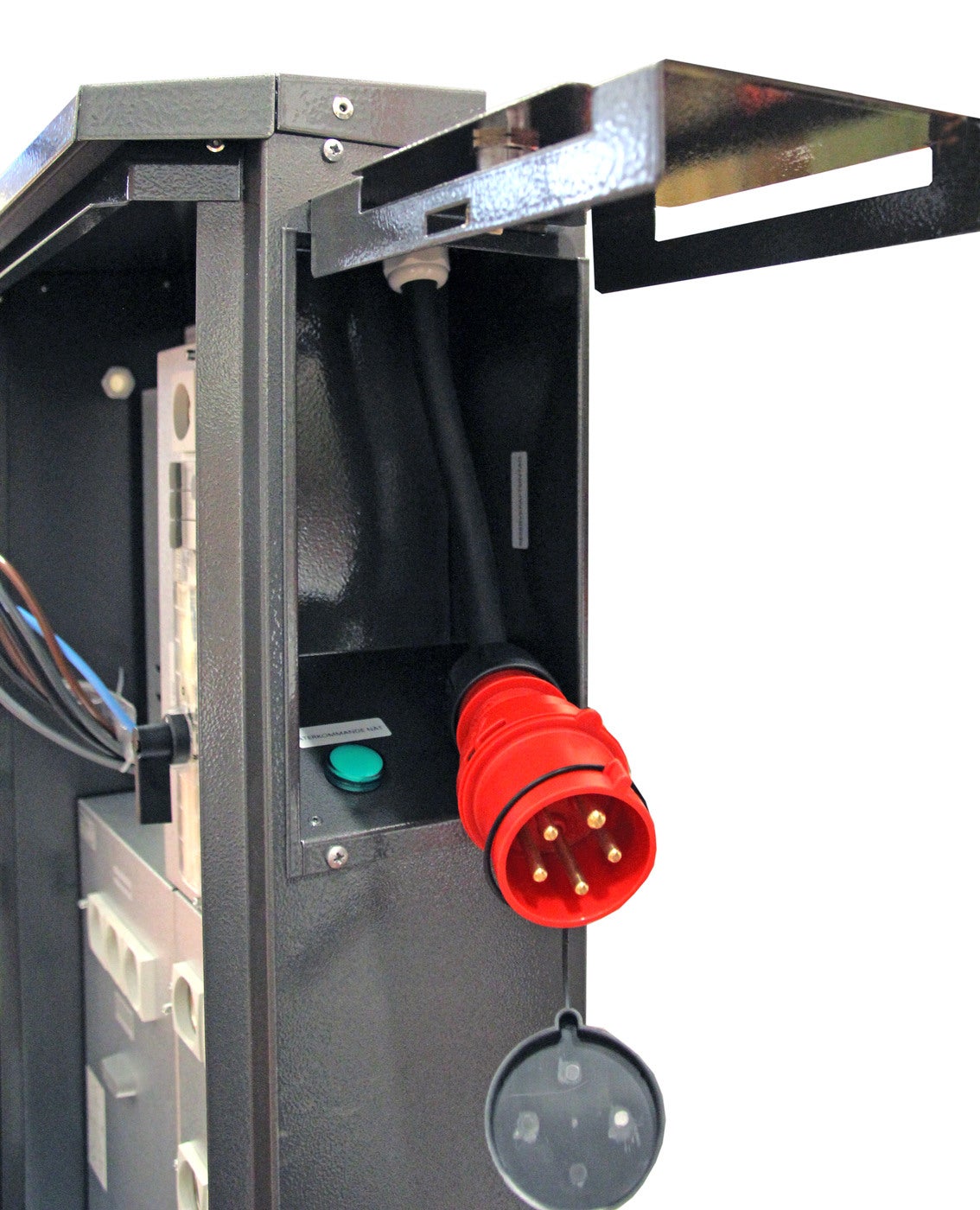

Meter cabinets with distribution in the standard version incorporates 63A incoming fuse. Transfer switch is included and inlet is 32A and placed behind a lockable door. The outgoing group consists of the 1st 63A 3-phase group and 4x 25A 3-fasgrupper. An optional kit to replace one 3-phase 25A group with 63A is available. All groups are connected to the terminals. The cabinets include cable strain relief and cable glands of rubber membrane to avoid soil moisture. Ground metal cabinet Type B with transfer switch and fuses.

E-number
E2200579

Article number
352909

Support

Type designation	MMLK-B-FR 163-425
Materials	Magnelis
Standard	SS 430 01 01
Short-circuit current [kA]	25kA
Frequency [Hz]	50Hz
Color	Anthracite
Rated current [A]	63A
Rated voltage [V AC]	230/400V AC
Module space measured	1
Lock	Yes
Incoming terminal [mm²]	50mm² Al/Cu
Module space unmeasured	4
Degree of protection [IP]	IP44
EngineerWidth	620
EngineerHeight	1460
EngineerDepth	245

Name	METERCABINET GROUND B 63 25 SP
E-number	E2200579
Article number	352909

Accessories for Meter cabinets with transfer switch W620

E-number

E2178171

Article number

108471

Type designation

NP7

E-number

E2178172

Article number

108472

Type designation

JP7

E-number

E1646612

Article number

1646612

Type designation

E-number

E1646614

Article number

1646614

Type designation

PG 51

E-number

E2270618

Article number

2270618

Type designation

E-number

E2270620

Article number

2270620

Type designation

PUS 2

E-number

E2270622

Article number

2270622

Type designation

KACL 595

E-number

E2270628

Article number

2270628

Type designation

TBS

E-number

E2270646

Article number

2270646

Type designation

OBS-F-63

E-number

E2200471

Article number

351881

Type designation

E-number

E2200472

Article number

351882

Type designation

E-number

E2200473

Article number

352150

Type designation

LS-H

E-number

E2200474

Article number

352515

Type designation

E-number

E2200475

Article number

352516

Type designation

UK-28

E-number

E2200476

Article number

352517

Type designation

UK-40

E-number

E2203004

Article number

354696

Type designation

GRT-65

Accessories for Meter cabinets with transfer switch W620

Name	E-number	Article number	Type designation	Description
TERMINAL NEUTRAL 7P	E2178171	108471	NP7	Neutral plint 7 blue for DIN mounting
TERMINAL EARTH PE7 G	E2178172	108472	JP7	Terminal earth 7-poles green for DIN-rail
KEY FOR RT65 LOCK	E1646612	1646612	RN	KEY FOR RT65 LOCK
KEY TRIANGLE TK10	E1646614	1646614	PG 51	KEY TRIANGLE TK10
TERMINALS N+PE 3X16+6	E2270618	2270618		Terminals N+PE 3X16+6
POTENT TERM MET CAB	E2270620	2270620	PUS 2	Potential terminal fits metal cabinet
TERMINAL BLOCK 5x95	E2270622	2270622	KACL 595
TBS AL/CU CONNECTION SET	E2270628	2270628	TBS	Connectionset TBS Al/Cu
CONVERSION KIT 25A TO 63A GUM-F	E2270646	2270646	OBS-F-63	Conversion kit outgoing 25A 3-phase group to a 63A 3-phase group

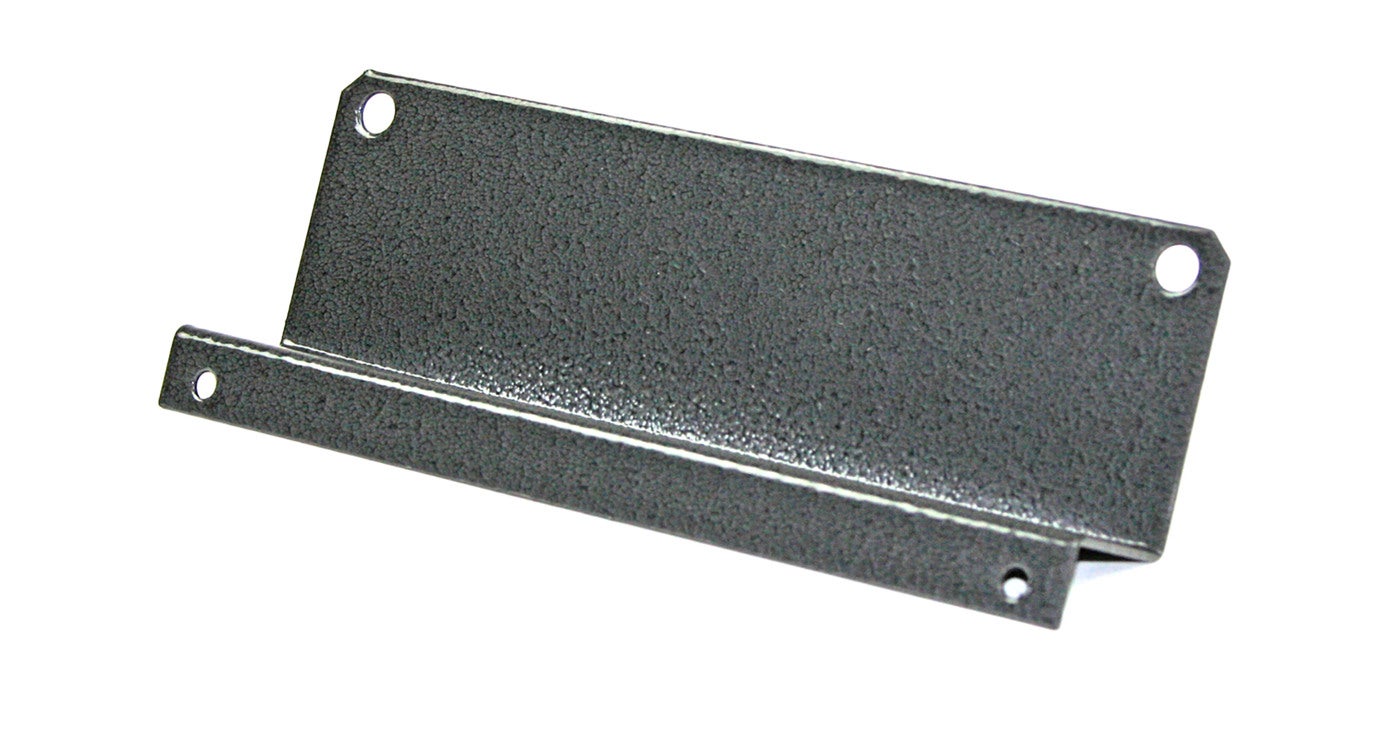

WALL BRACKET MMLK	E2200471	351881		Wall bracket for MMLK

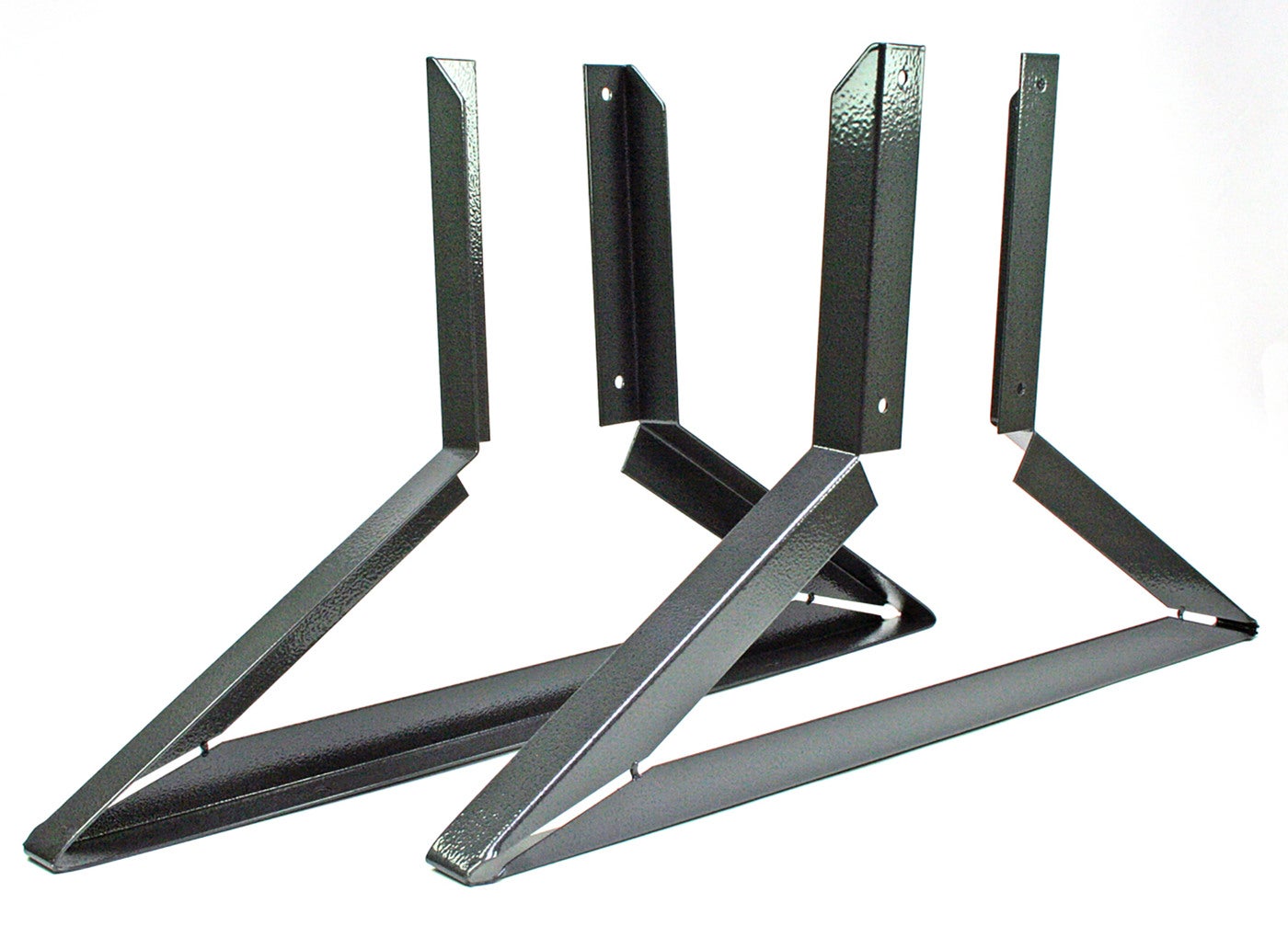

STANDS MMLK	E2200472	351882		Stands for MMLK,Black RAL9005
PADLOCK KIT FOR METERCABINET	E2200473	352150	LS-H	Lock set for padlock that fits meter cabinets (padlocks not included).

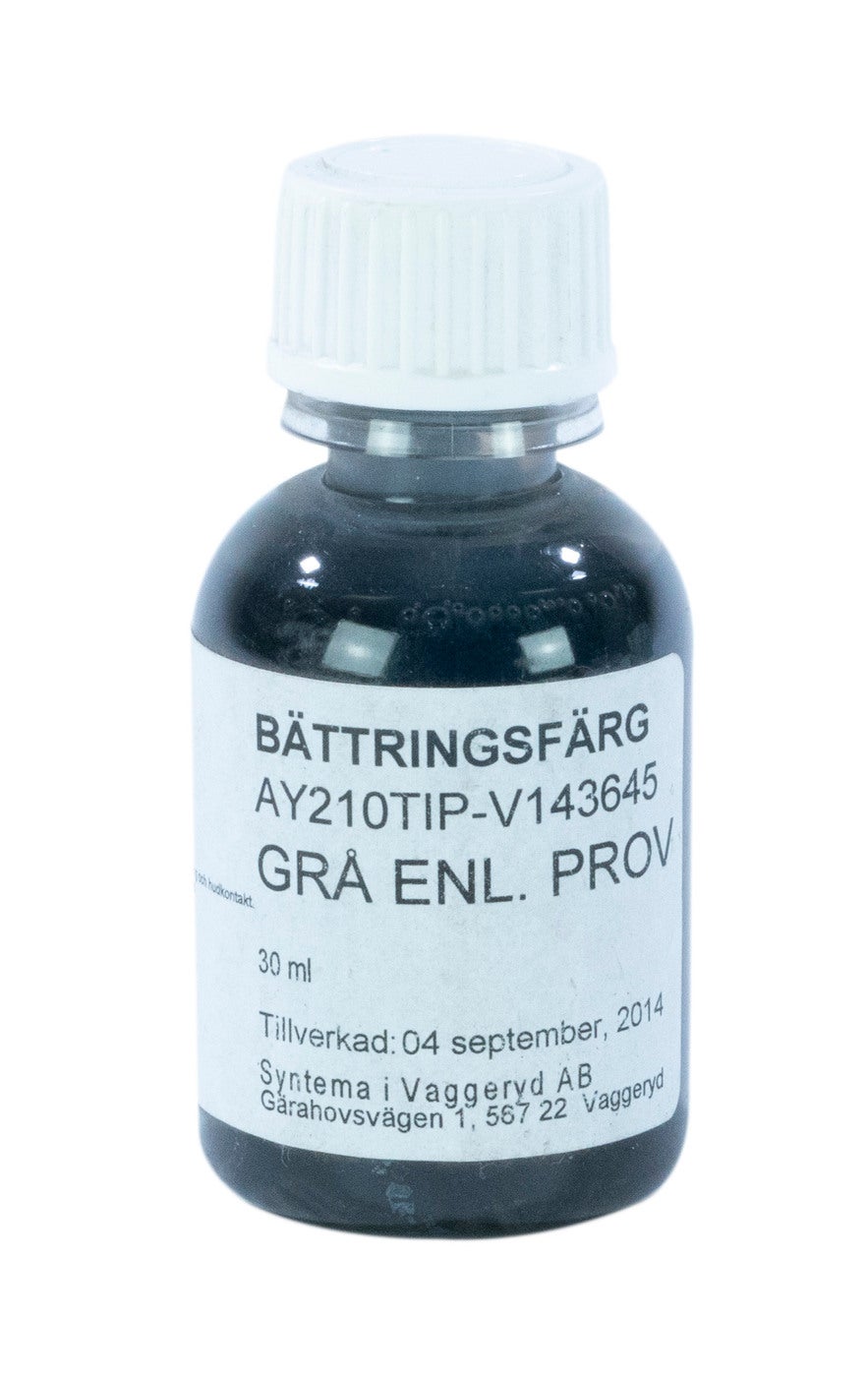

COLOR GREY ACRYL BFG	E2200474	352515		Touch up paint grey

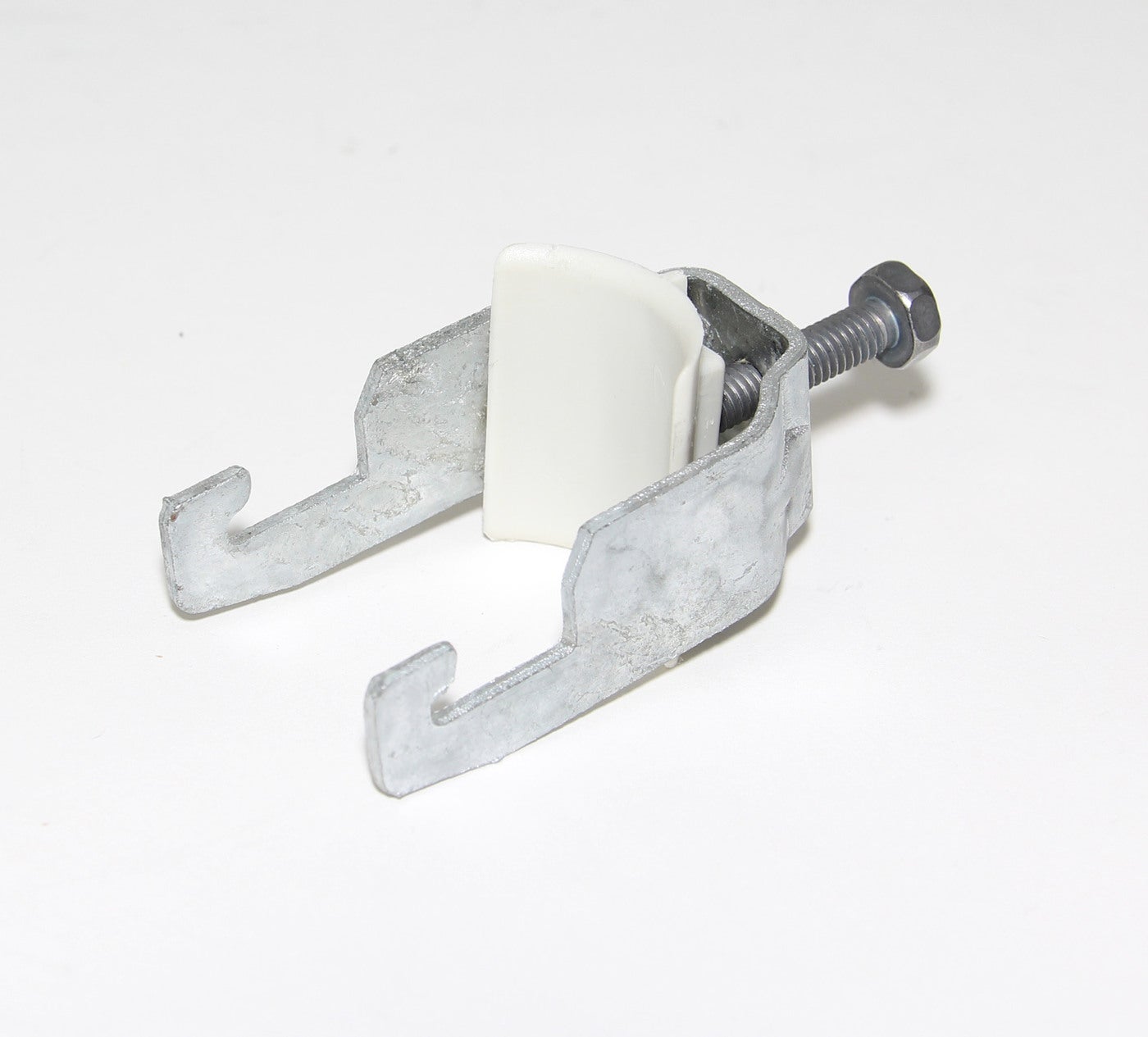

U-CLAMPS 22-28 MMLK	E2200475	352516	UK-28	U-clamps 22-28 MMLK

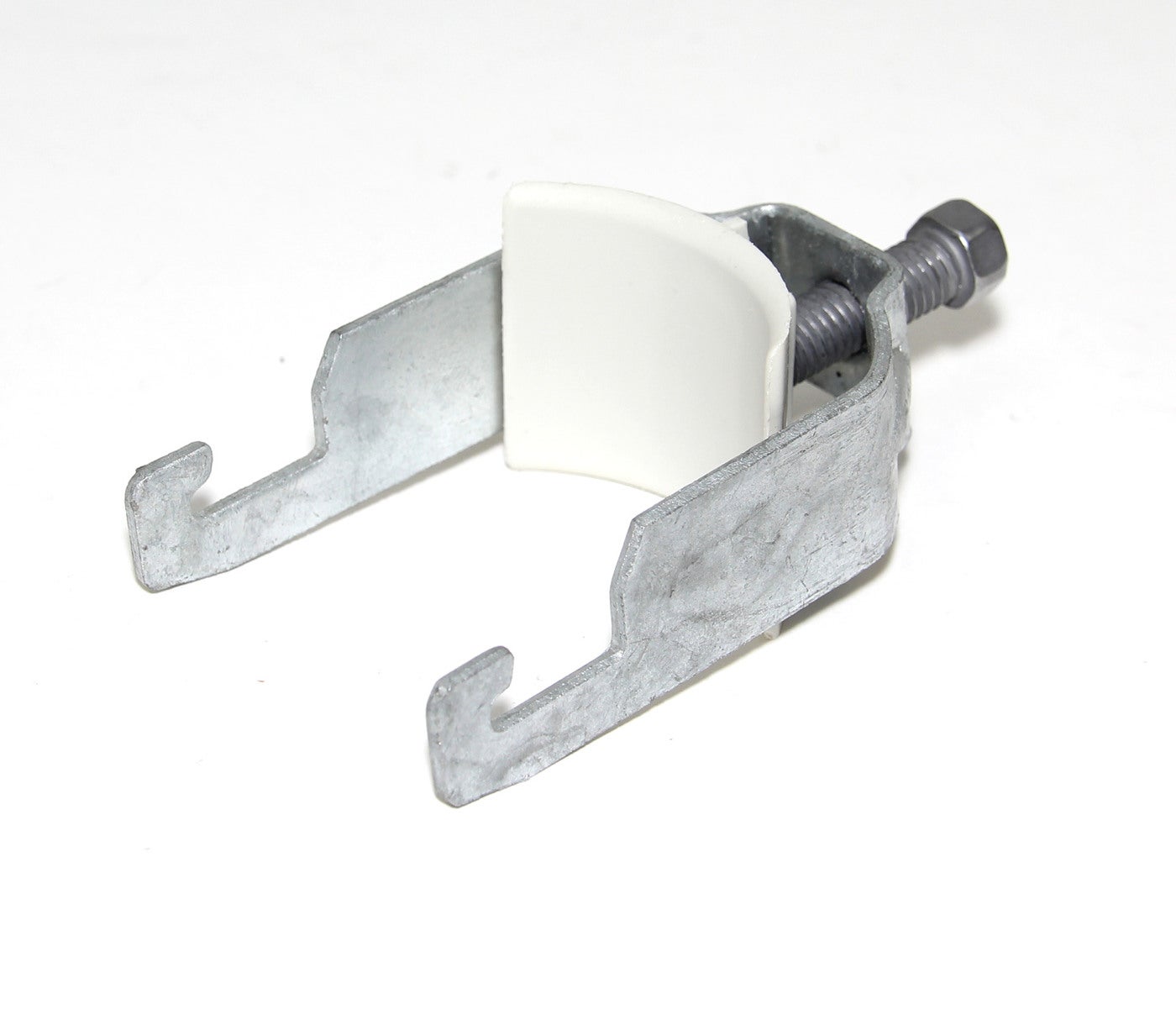

U-CLAMPS 34-40 MMLK	E2200476	352517	UK-40	U-clamps 34-40 MMLK
LOCK INCL SPRING RT 65	E2203004	354696	GRT-65	Lock incl spring RT 65
