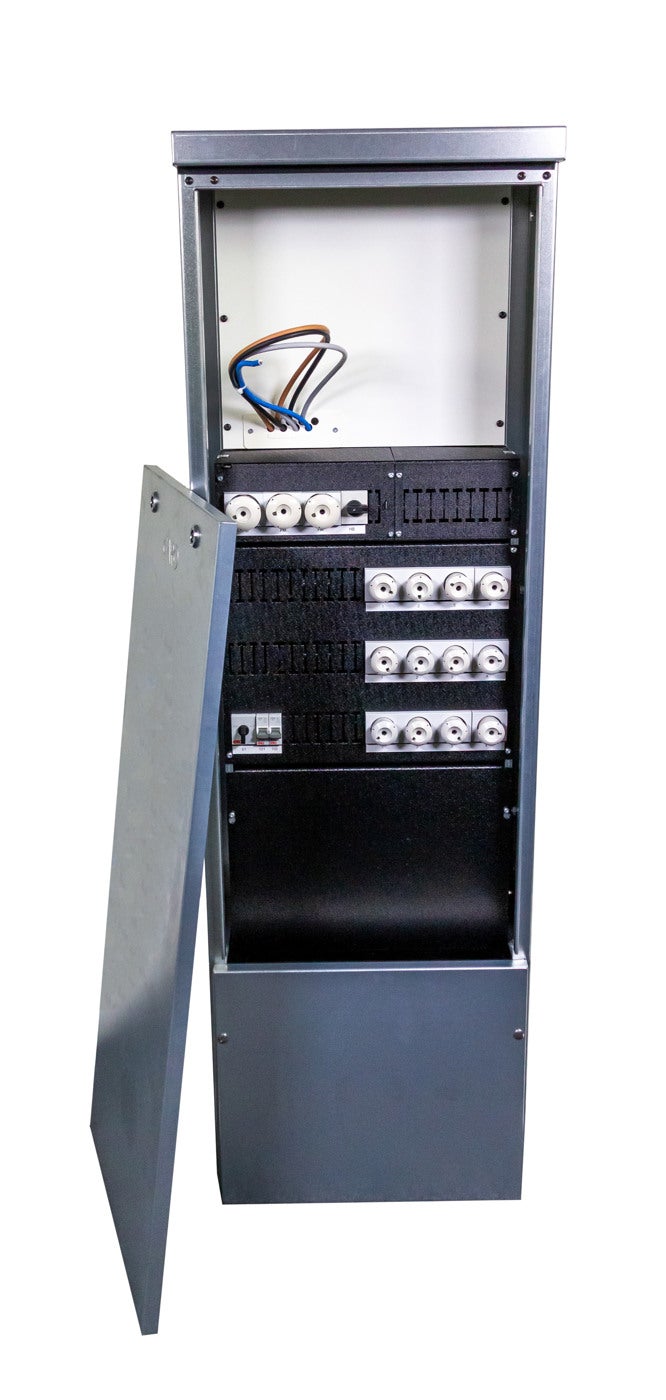

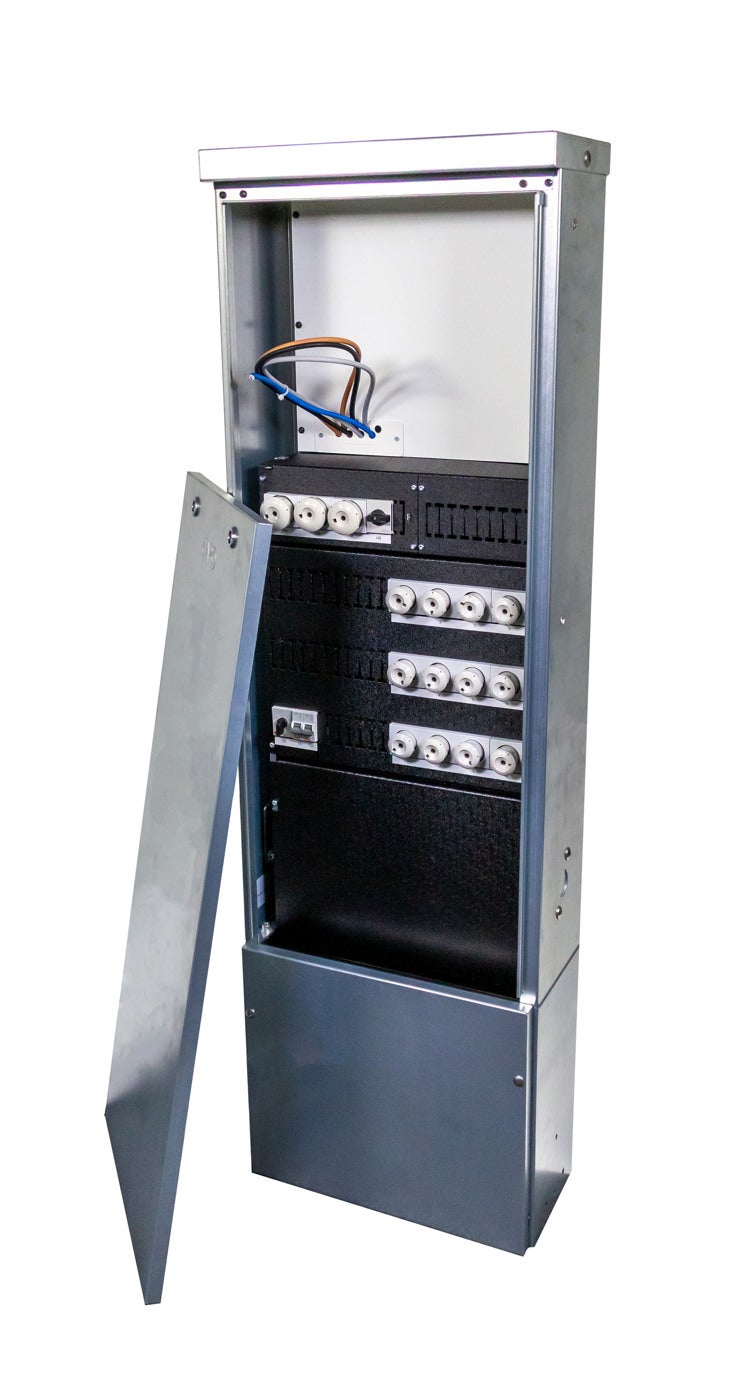

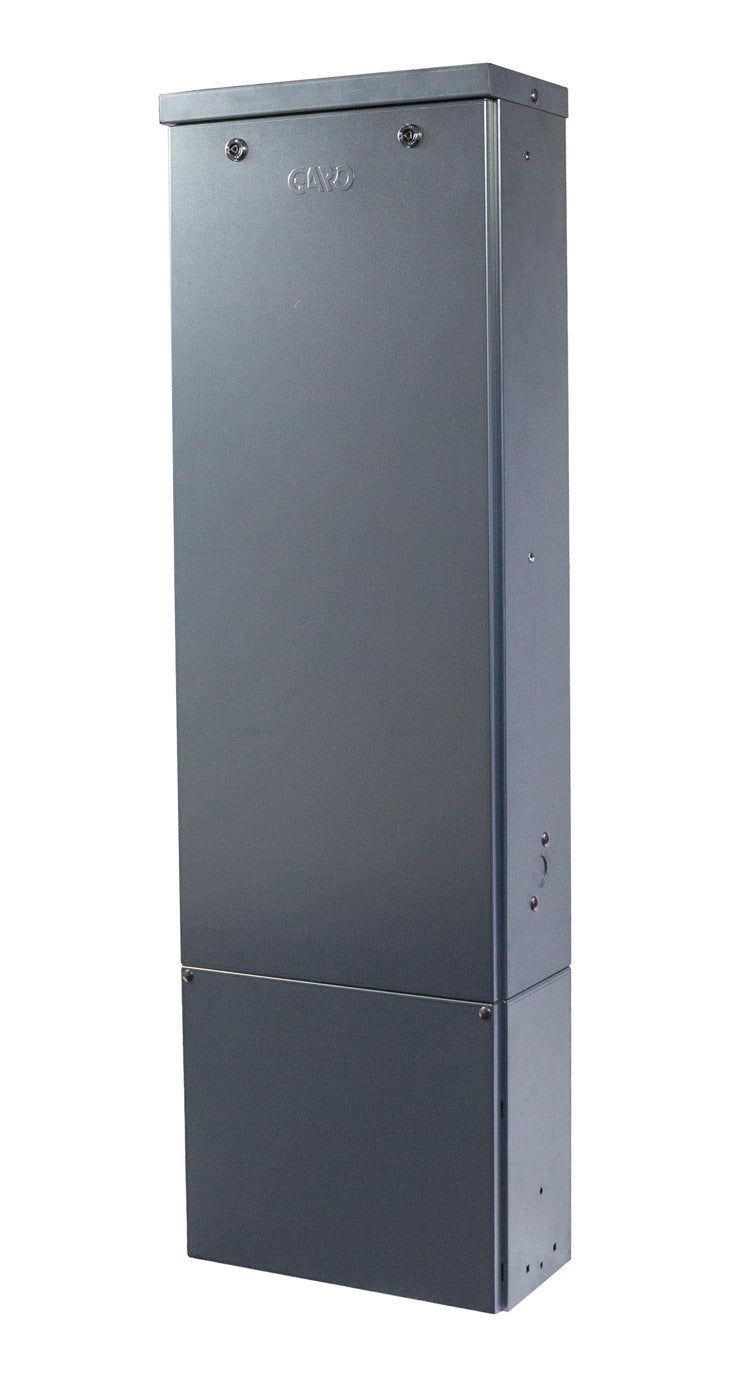

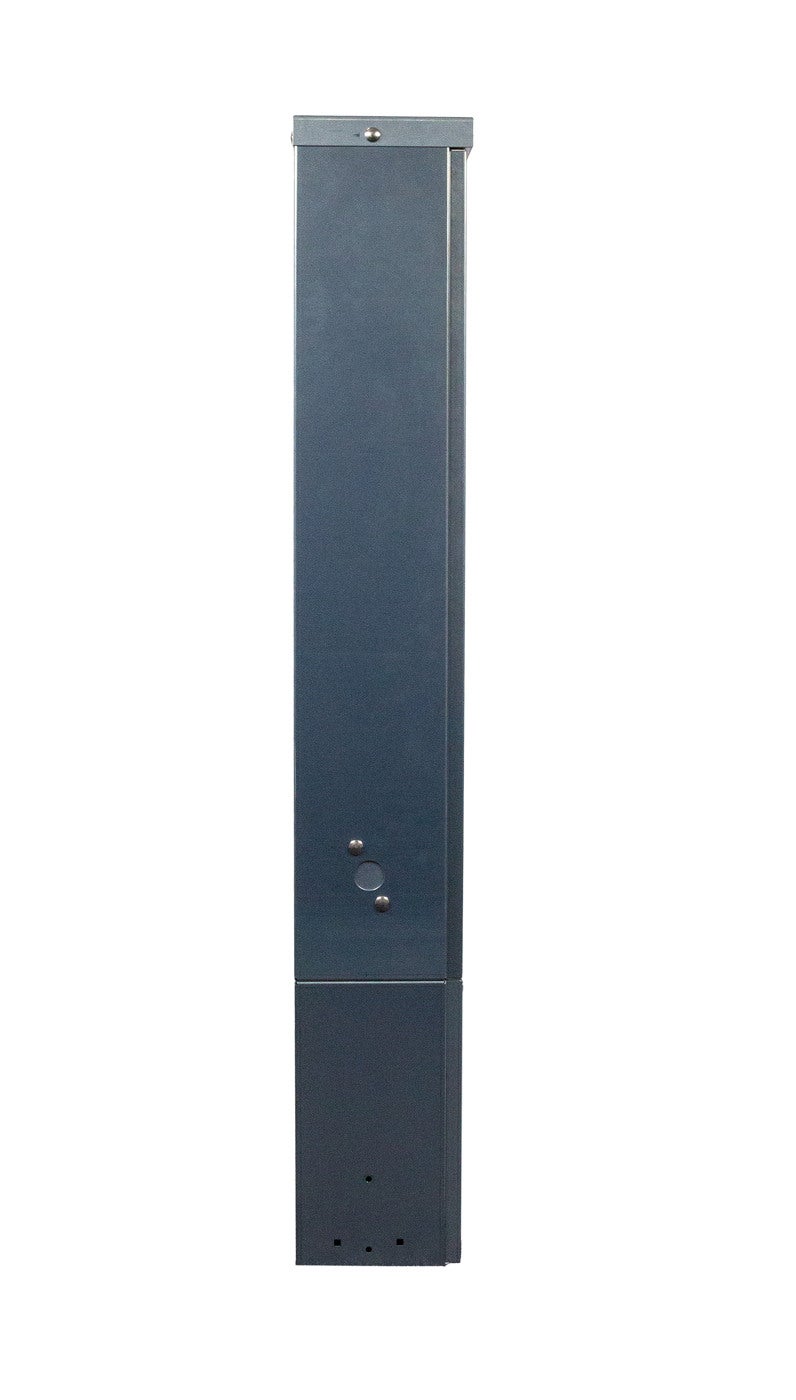

Streetlight cabinet external supply 4 groups
Complete street light cabinet for 4outgoing groups equipped with a wooden board for meters of consumption. The lighting is activated via external supply . Street lighting cabinet with 4 outgoing DII groups. External supply.
| Type designation | GCL-4D |
|---|---|
| Standard | IEC61439-1, -5 |
| Short-circuit current [kA] | 25kA |
| Frequency [Hz] | 50Hz |
| Housing material | Steel |
| Color | Grey |
| Rated current [A] | 63A |
| Rated voltage [V AC] | 400V AC |
| Number of poles | 4 |
| Mounting method | Floor fastening |
| Mountingplate | No |
| Incoming terminal [mm²] | 50mm² CU/Al |
| Fuse size | 4XDII |
| Outgoing terminal [mm²] | 16mm² CU |
| Measurement | Yes |
| Time switch | Yes |
| Degree of protection [IP] | IP34D |
| Impact strength [IK] | IK10 |
| Light relay | No |
| Degree of protection busbar (IP) | IP20 |
| Contactor [A] | 65A |
| Name | STREET LIGHT CABINET 4 GRP |
|---|---|
| E-number | E0731485 |
| Article number | 354536 |
