Distribution cabinets meter 1 group

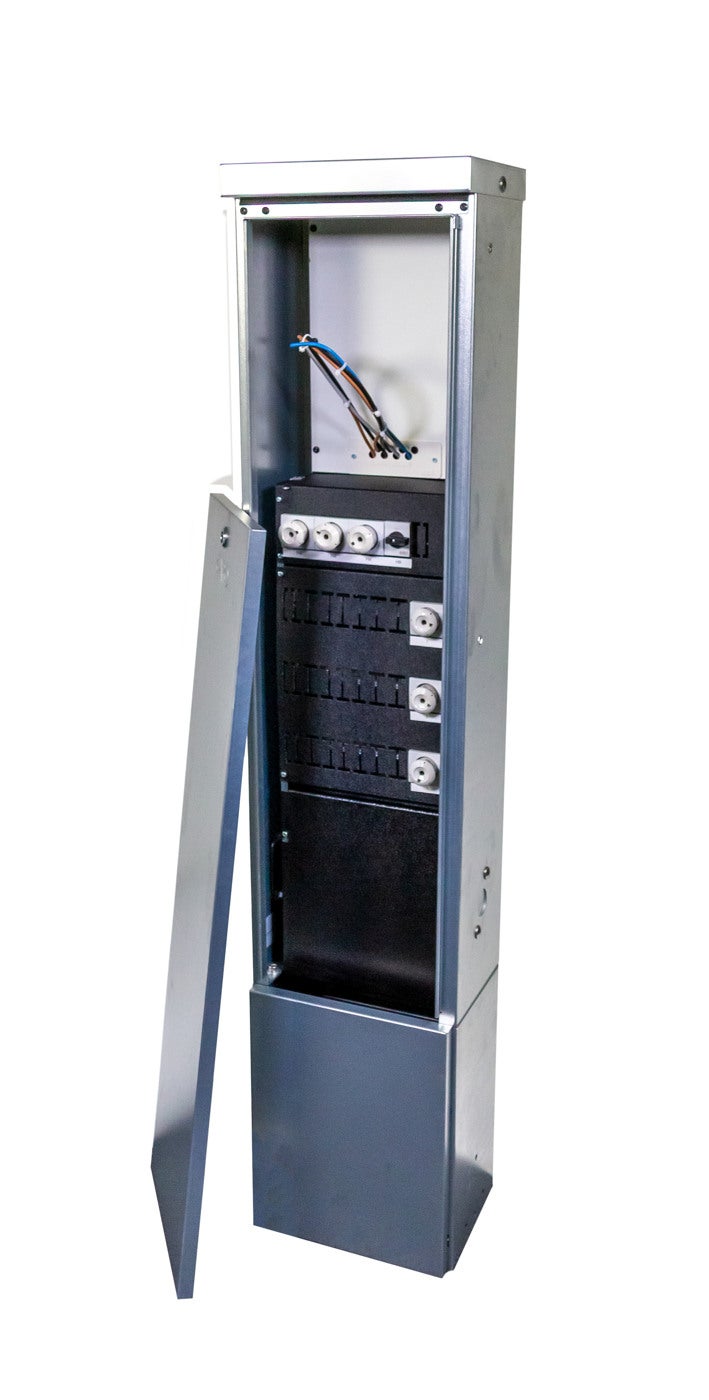

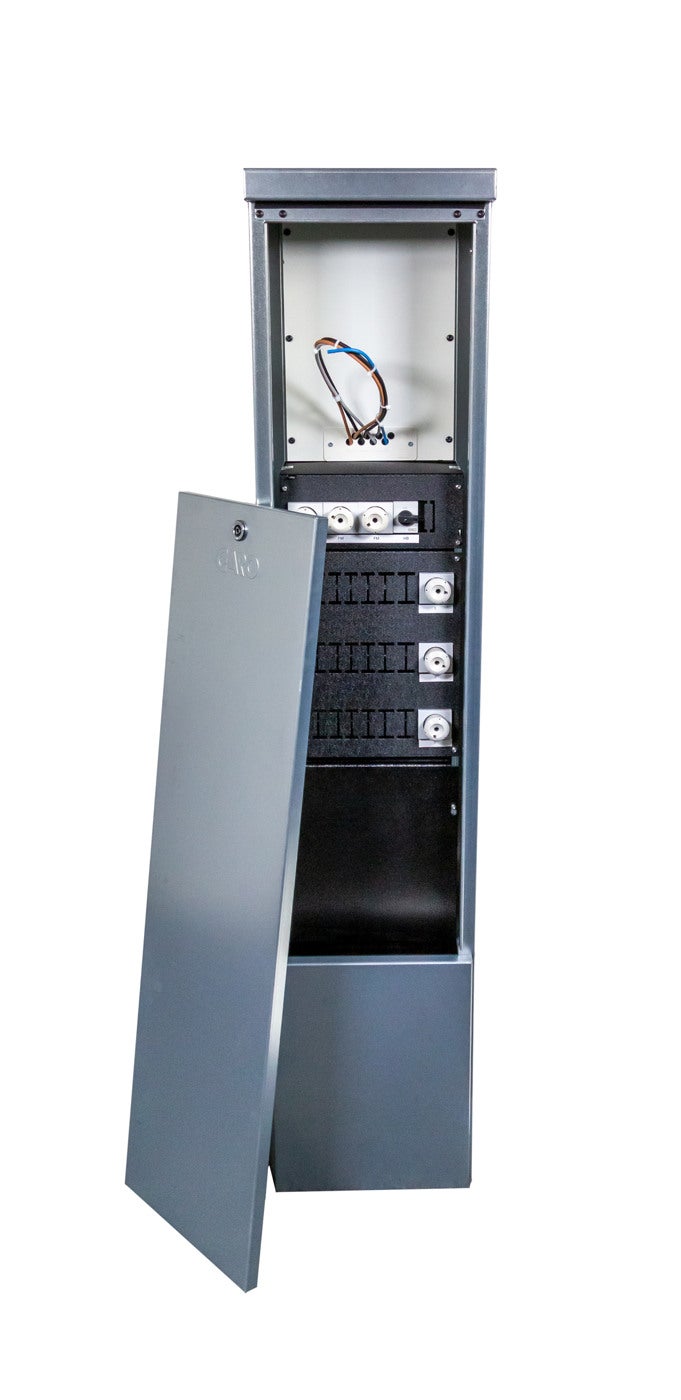

Distribution cabinet with Diazed fuses for 1 outgoing DII group. Incoming terminal 50 mm2 Al / Cu and output terminal is 16 mm2 Cu. The cabinet insert is equipped with a wooden board for mounting meters, meter fuse holders and main switches for outgoing groups. Intended for Meter fuse max 25A Distribution cabinets 1 group 25A meter
| Type designation | GDCM-1D25 |
|---|---|
| Standard | IEC61439-1, -5 |
| Short-circuit current [kA] | 25kA |
| Frequency [Hz] | 50Hz |
| Housing material | Steel |
| Color | Grey |
| Rated current [A] | 25A |
| Rated voltage [V AC] | 400V AC |
| Mounting method | Floor fastening |
| Incoming terminal [mm²] | 50mm² Al/Cu |
| Fuse size | DII |
| Outgoing terminal [mm²] | 16mm² Cu |
| Measurement | Yes |
| Degree of protection [IP] | IP34D |
| Impact strength [IK] | IK10 |
| Name | DISTR CABINET 1 GROUP 25A MEA |
|---|---|
| E-number | E0731662 |
| Article number | 354596 |
