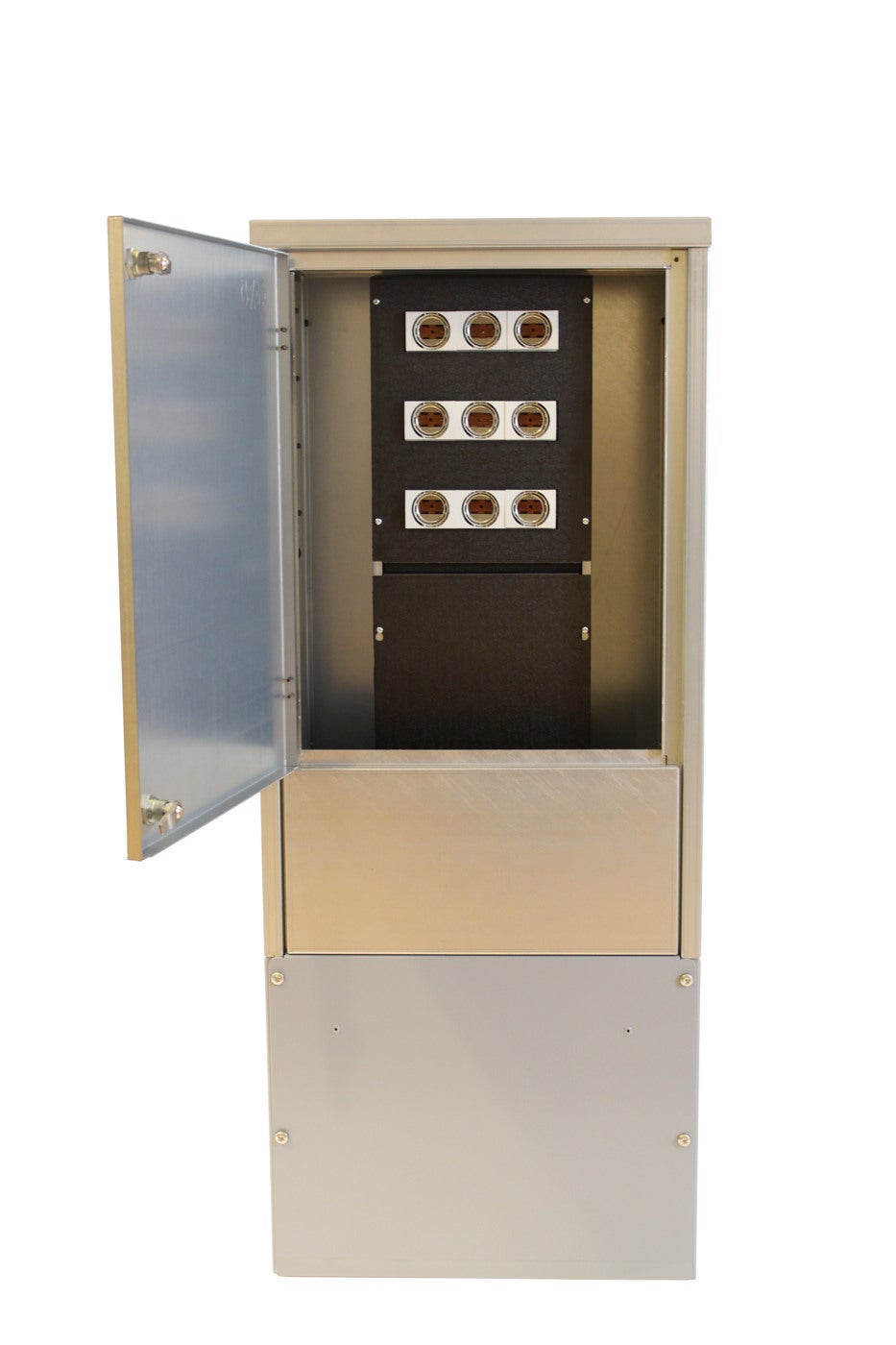

Cable cabinet without measurment 3-groups
E-number
E0736030
E0736030
Article number
353770
353770
| Type designation | GFS 253-3D63 |
|---|---|
| Standard | EN61439-5 |
| Short-circuit current [kA] | 25kA |
| Frequency [Hz] | 50Hz |
| Housing material | Magnelis |
| Color | Grey |
| Rated current [A] | 63A |
| Rated voltage [V AC] | 400V AC |
| Incoming terminal [mm²] | 2x95 Al/Cu |
| Fuse size | 3XDIII |
| Outgoing terminal [mm²] | 50mm² Al/Cu |
| Measurement | No |
| Time switch | No |
| Degree of protection [IP] | IP34D |
| Impact strength [IK] | IK10 |
| Light relay | No |
| Name | DISTR CABINET 253 3ROW 63A |
|---|---|
| E-number | E0736030 |
| Article number | 353770 |
