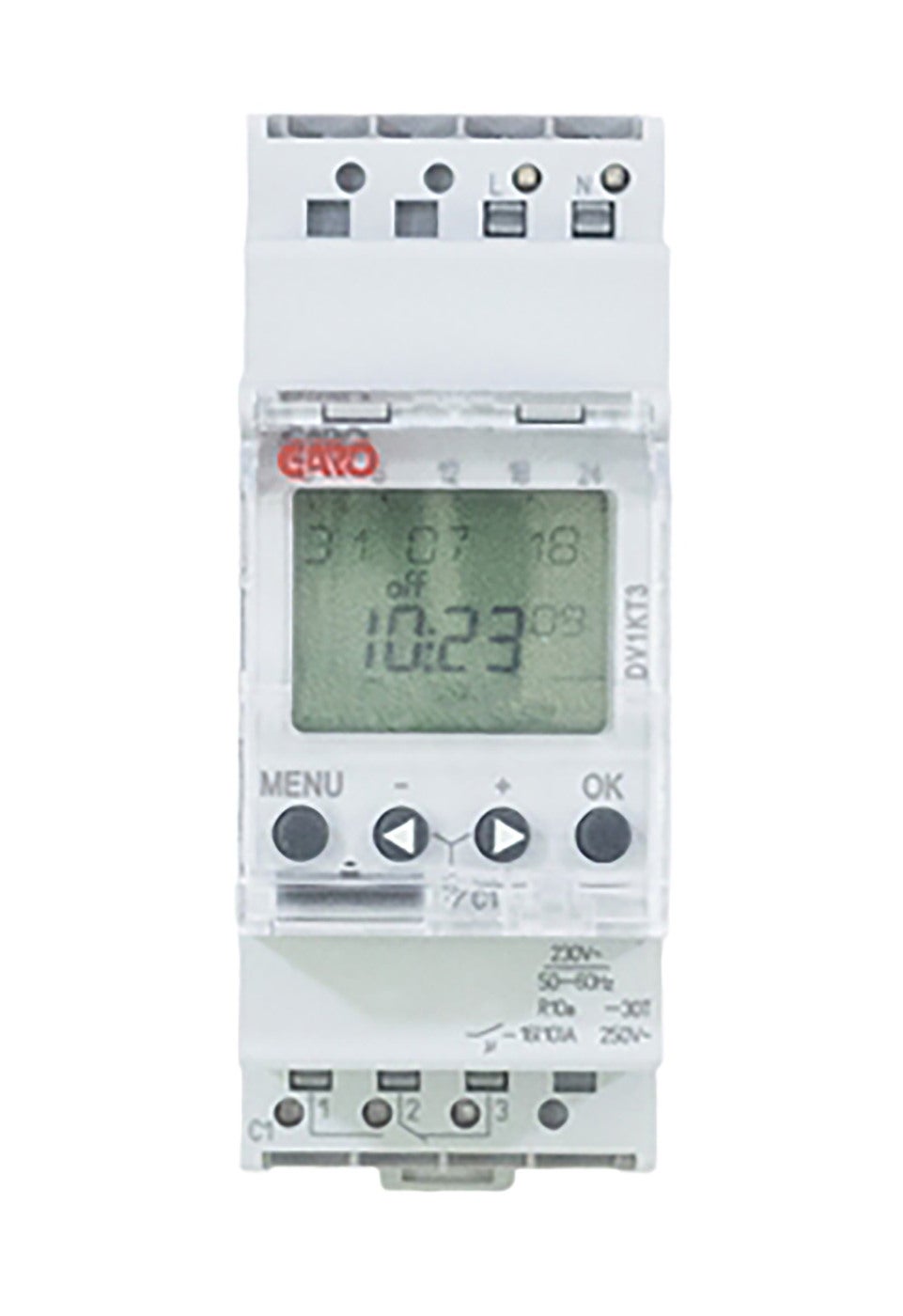

Timer day/week 1 channel

GARO day/week is easy to set. Switching on and off is then repeated daily or weekly, depending on how the timer has been programmed. The timers is available in 1-channel or 2-channel variants. Time switch 1channel week
E-number
E1330550
Article number
108751
Support
Standard EN60730-1
Frequency [Hz] 50-60Hz
Color Grey
Connection type Quick
Wire flexible [mm²] 0,5-2,5mm²
Mounting method Floor fastening
Degree of protection [IP] IP20
Manual control Yes
Channels 1
Name TIME SWITCH 1CHANNEL WEEK
E-number E1330550
Article number 108751
Type designation DV1KT3
Operation Temperature [C] -20C...+40C
Rated current [A] 10A
Rated voltage [V AC] 230V AC
Number of modules 2
Power reserve [year] 3h
NetProductWeight 0.14
EngineerWidth 36
EngineerHeight 45
EngineerDepth 105

More variants of Timer day/week 1 channel

E-number Article number Type designation Operation Temperature [C] Rated current [A] Rated voltage [V AC] Number of modules Power loss Contacts Power reserve [year] Operation time meter External input NetProductWeight EngineerWidth EngineerHeight EngineerDepth
TIME SWITCH 1CH 1MOD WEEKLY E1330396 108276 DV1K1M -25C...+55C 16A 230-240V AC 1 1,3W Change-over contacts 10h Yes No 0.08 18 90 60
TIME SWITCH 1CHANNEL WEEK E1330550 108751 DV1KT3 -20C...+40C 10A 230V AC 2 3h 0.14 36 45 105
