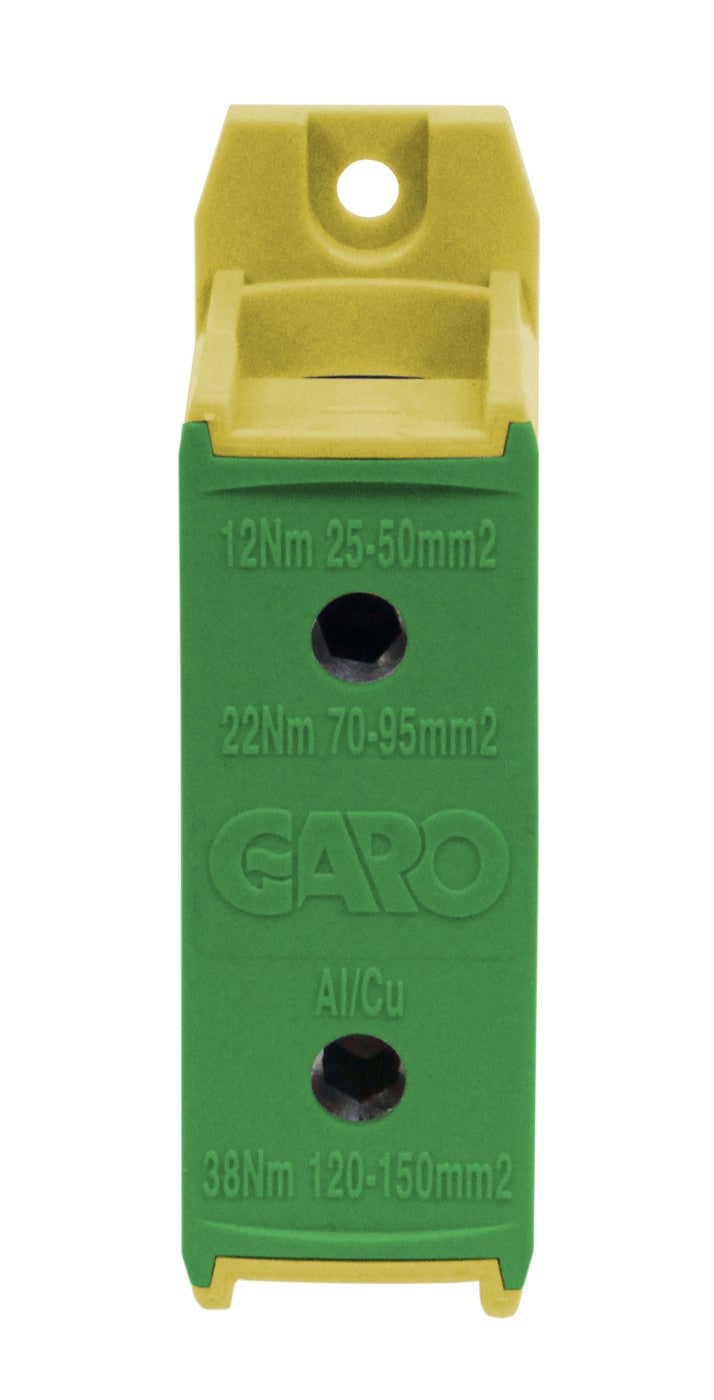

  • TERMINAL 1P YELLOW/GREEN 150MM2 AL/CU - 2

Terminals installation 1pole

GARO GKL is a series of terminals for cable from 2.5mm² up to 240mm² copper and aluminum for DIN rail assembly or screw mount. Available for single or double mounting and in three colors: Grey, Blue; Yellow / Green. The products are approved according to IEC 61238-1: 2003, Class A and equipped with a QR code for easy access to the installation manual. Terminal block yellow/green 1-poles for cable from 25mm² up to 150mm² copper and aluminum.
E-number
E2670469
Article number
108615
Support
Name TERMINAL 1P YELLOW/GREEN 150MM2 AL/CU
E-number E2670469
Article number 108615
Type designation GKL 1x150 G/G
Rated current [A] Al: 250A / Cu 320A
Number of poles 1
Tightening torque [Nm] 12-38Nm
Mounting method Floor fastening
NetProductWeight 0.15
EngineerWidth 30
EngineerHeight 106
EngineerDepth 57

More variants of Terminals installation 1pole

E-number Article number Type designation Standard Operation Temperature [C] Housing material Color Rated current [A] Rated voltage [V AC] Number of poles Tightening torque [Nm] Connection type Mounting method Connectable conductor cross sect NetProductWeight EngineerWidth EngineerHeight EngineerDepth
TERMINAL 1P GREY 50mm² Al/CU E2670453 108599 GKL 1x50 GRÅ IEC61238-1:2003,Class A -25C...+80C Plastic Grey Al:160A / Cu:160A 1000V AC 5-10Nm Screw Floor fastening 50mm² 0.044 18 42 82
TERMINAL BLUE 50mm² Al/CU 1P E2670455 108601 GKL 1x50 BLÅ IEC61238-1:2003,Class A -25C...+80C Plastic Blue Al:160A / Cu:160A 1000V AC 1 5-10Nm Screw Floor fastening 50mm² 0.044 18 82 42
TERMINAL YELLOW/GREEN 50mm² Al/CU 1P E2670457 108603 GKL 1x50 G/G Plastic Al:160A / Cu:160A 1 5-10Nm Floor fastening 0.044 18 82 42
TERMINAL 1P GREY 95mm² Al/CU E2670459 108605 GKL 1x95 GRÅ IEC61238-1:2003,Class A Plastic Grey Al: 200A / Cu 245A 1000V AC 1 12-22Nm Floor fastening 95mm² 0.07 24 82 49
TERMINAL BL BLUE 95mm² 1P E2670461 108607 GKL 1x95 BLÅ IEC61238-1:2003,Class A Plastic Blue Al: 200A / Cu 245A 1000V AC 1 12-22Nm Screw Floor fastening 95mm²
TERMINAL BL Y/G 95mm² 1P E2670463 108609 GKL 1x95 G/G IEC61238-1:2003,Class A Plastic Yellow/Green Al: 200A / Cu 245A 1000V AC 1 12-22Nm Screw Floor fastening 95mm²
TERMINAL GREY 150mm² Al/CU 1P E2670465 108611 GKL 1x150 GRÅ IEC61238-1:2003,Class A Plastic Grey Al: 250A / Cu 320A 1000V AC 1 12-38Nm Screw Floor fastening 150mm² 0.147 30 106 57
TERMINAL 1P BLUE 150MM2 AL/CU E2670467 108613 GKL 1x150 BLÅ IEC61238-1:2003,Class A -25C...+80C Plastic Blue Al: 250A / Cu 320A 1000V AC 1 12-38Nm Screw Floor fastening 150mm² 0.15 30 106 57
TERMINAL 1P YELLOW/GREEN 150MM2 AL/CU E2670469 108615 GKL 1x150 G/G Al: 250A / Cu 320A 1 12-38Nm Floor fastening 0.15 30 106 57
PLINT GRÅ 240mm² Al/CU 1P E2670471 108617 GKL 1x240 GRÅ 0.27 37 118 67
PLINT BLÅ 240mm² Al/CU 1P E2670473 108619 GKL 1x240 BLÅ 0.27 37 118 67
PLINT GUL/GRÖN 240mm² Al/CU 1P E2670475 108621 GKL 1x240 G/G 0.27 37 118 67
TERMINAL BL GREY 16mm² 1P E2670681 110227 GKL 1x16 GRÅ
TERMINAL BL BLUE 16mm² 1P E2670682 110228 GKL 1x16 BLÅ
TERMINAL BL Y/G 16mm² 1P E2670683 110229 GKL 1x16 G/G IEC61238-1:2003,Class A -25C...+80C Plastic Yellow/Green Al: 75A / Cu: 76A 1000V AC 1 5-10Nm Floor fastening 16mm²
