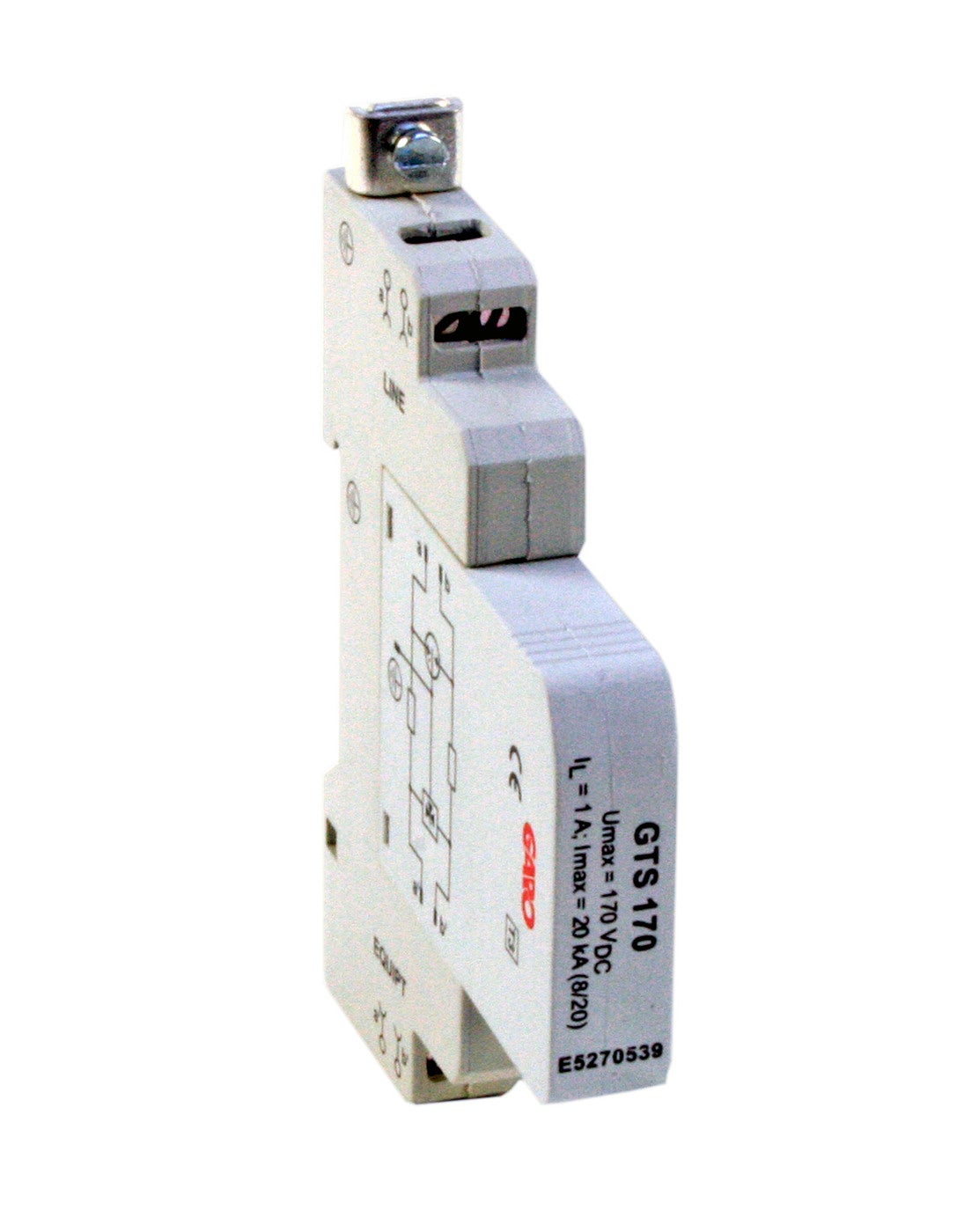

Telecommunication protections 0,75modules
E-number
E5270539
E5270539
Article number
351965
351965
| Type designation | GTS170 |
|---|---|
| Standard | EN61643-11 |
| Operation Temperature [C] | -40C...+80C |
| Housing material | Plastic |
| Color | Grey |
| Rated voltage [V AC] | 230V AC |
| Number of modules | 0,75 |
| Connection type | Screw |
| Wire flexible [mm²] | 0,5-1,5mm² |
| Mounting method | DIN-rail |
| Wire solid [mm²] | 1-10mm² |
| Degree of protection [IP] | IP20 |
| Claim prefuse [A] | 100A |
| Class | I |
| Max rated voltage [V] | 170V |
| Max shock current (8/20us) [kA] | 30kA |
| Name | TELEPROTECTION |
|---|---|
| E-number | E5270539 |
| Article number | 351965 |
