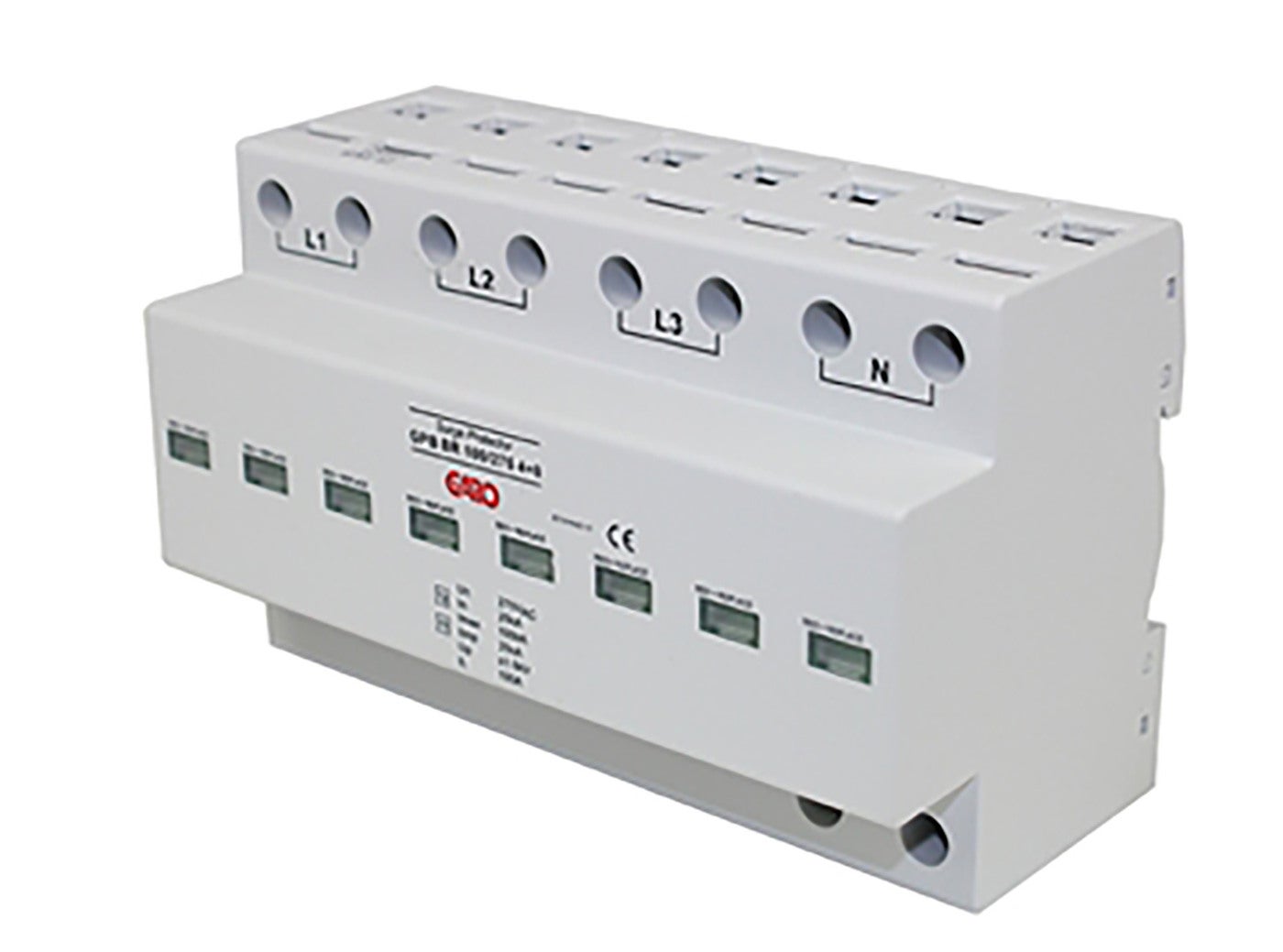

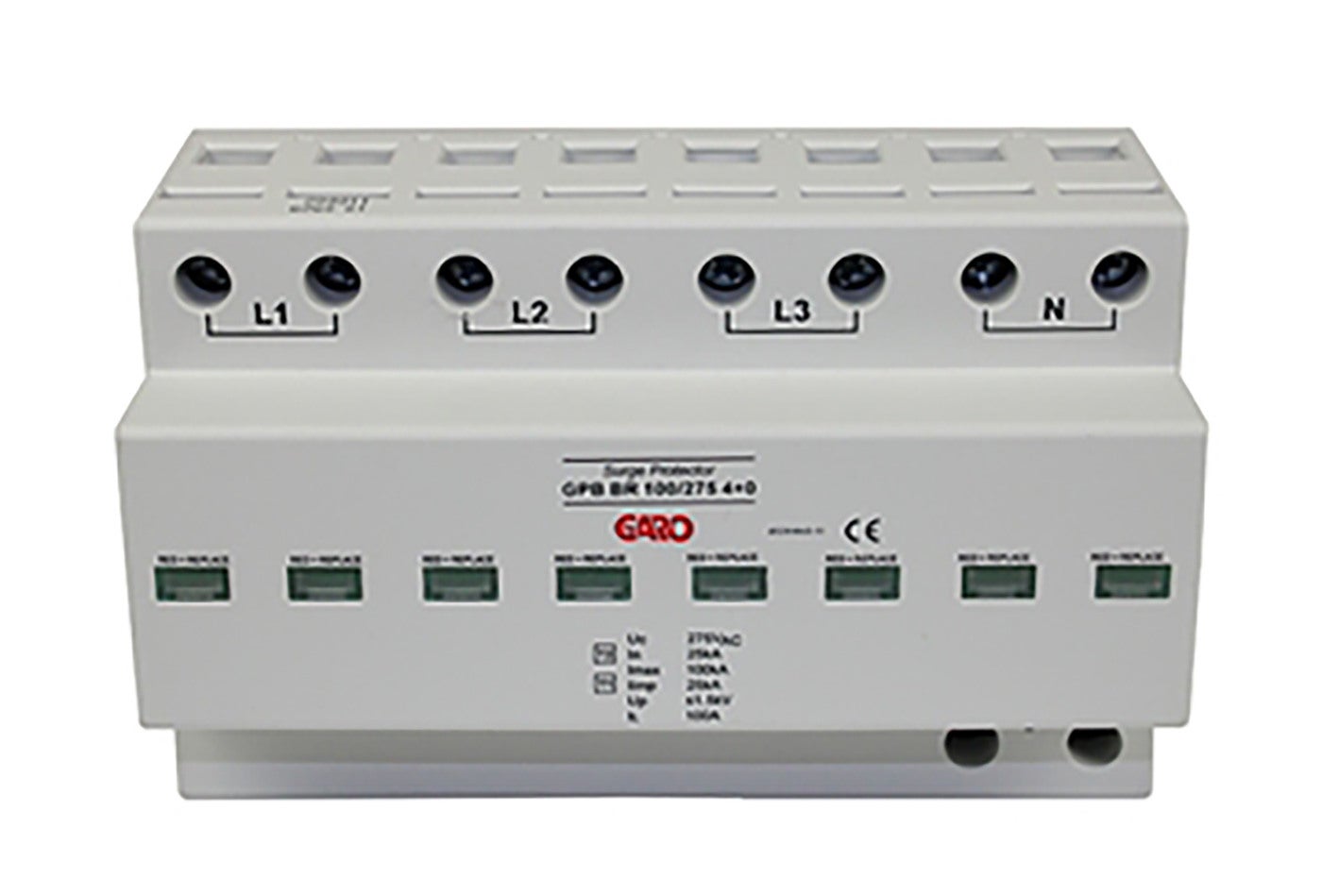

Combi protection 4-poles
Garo Combination protection provides complete protection to your system as it is a Class I and II protection in a single product. It is also extremely durable, which means that it very rarely triggers and needs to be replaced. Rough/fine protection class I+II 230V 4-pole alarm
E-number
E5275001
E5275001
Article number
109141
109141
| Type designation | GPB BR 1000/275 4+0 |
|---|---|
| Standard | EN61643-11 |
| Operation Temperature [C] | -40C...+80C |
| Housing material | Plastic |
| Color | Grey |
| Rated voltage [V AC] | 230V AC |
| Number of modules | 8 |
| Number of poles | 4 |
| Connection type | Screw |
| Wire flexible [mm²] | 25mm² |
| Mounting method | DIN-rail |
| Wire solid [mm²] | 35mm² |
| Degree of protection [IP] | IP20 |
| Claim prefuse [A] | 250A |
| NetProductWeight | 1.2 |
| EngineerWidth | 145 |
| EngineerHeight | 110 |
| EngineerDepth | 75 |
| Class | I,II |
| Max rated voltage [V] | 275V |
| Residual stress 15kA, 8/20u [kV | <0,9kV |
| Max shock current (8/20us) [kA] | 25kA |
| Alarm contact | 1VX |
| Name | SURGE PROTECTION ROUGH-FINE ALARM 230V 4P |
|---|---|
| E-number | E5275001 |
| Article number | 109141 |
