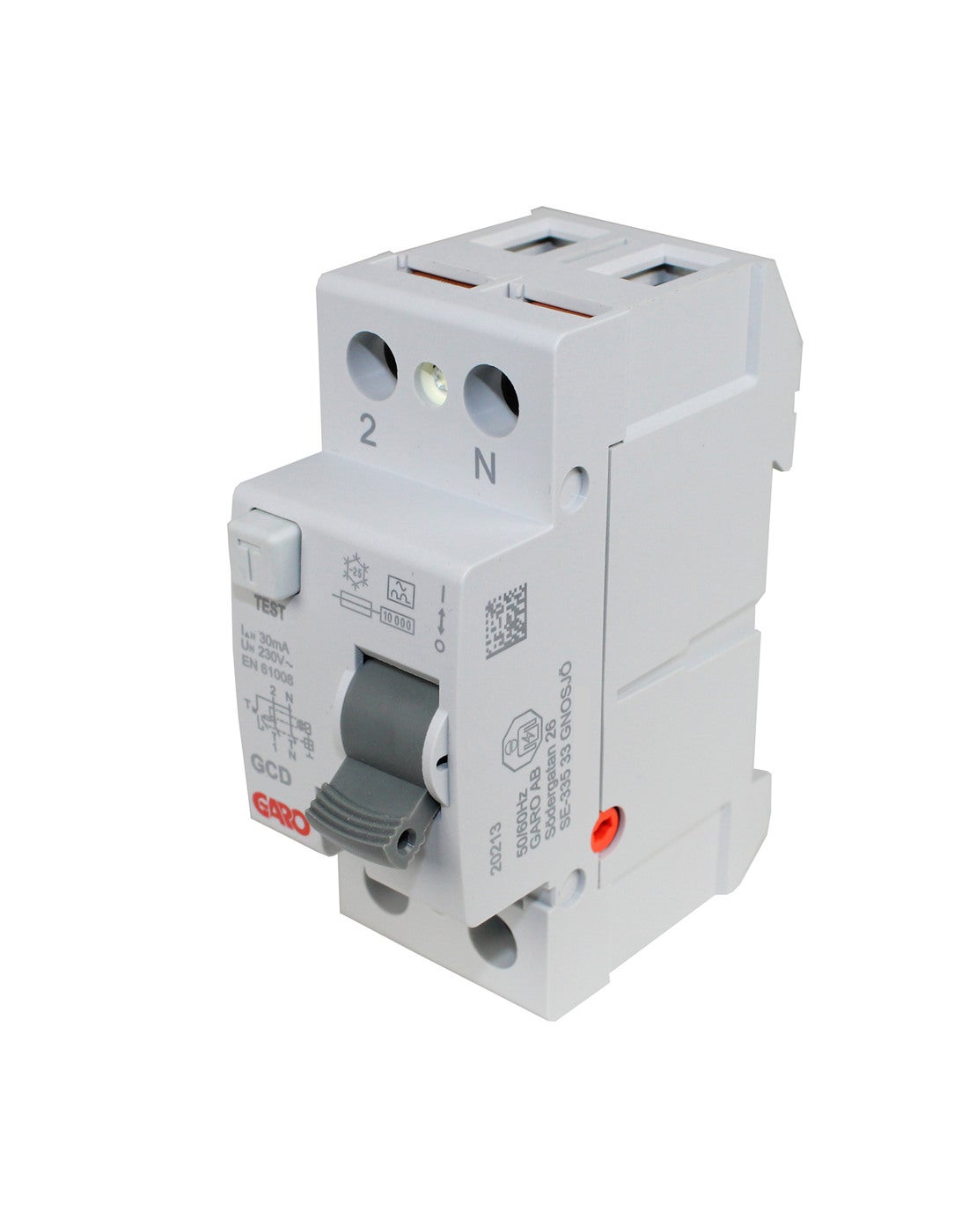

  • RCCB 2P 40A 6kA 30mA - 2

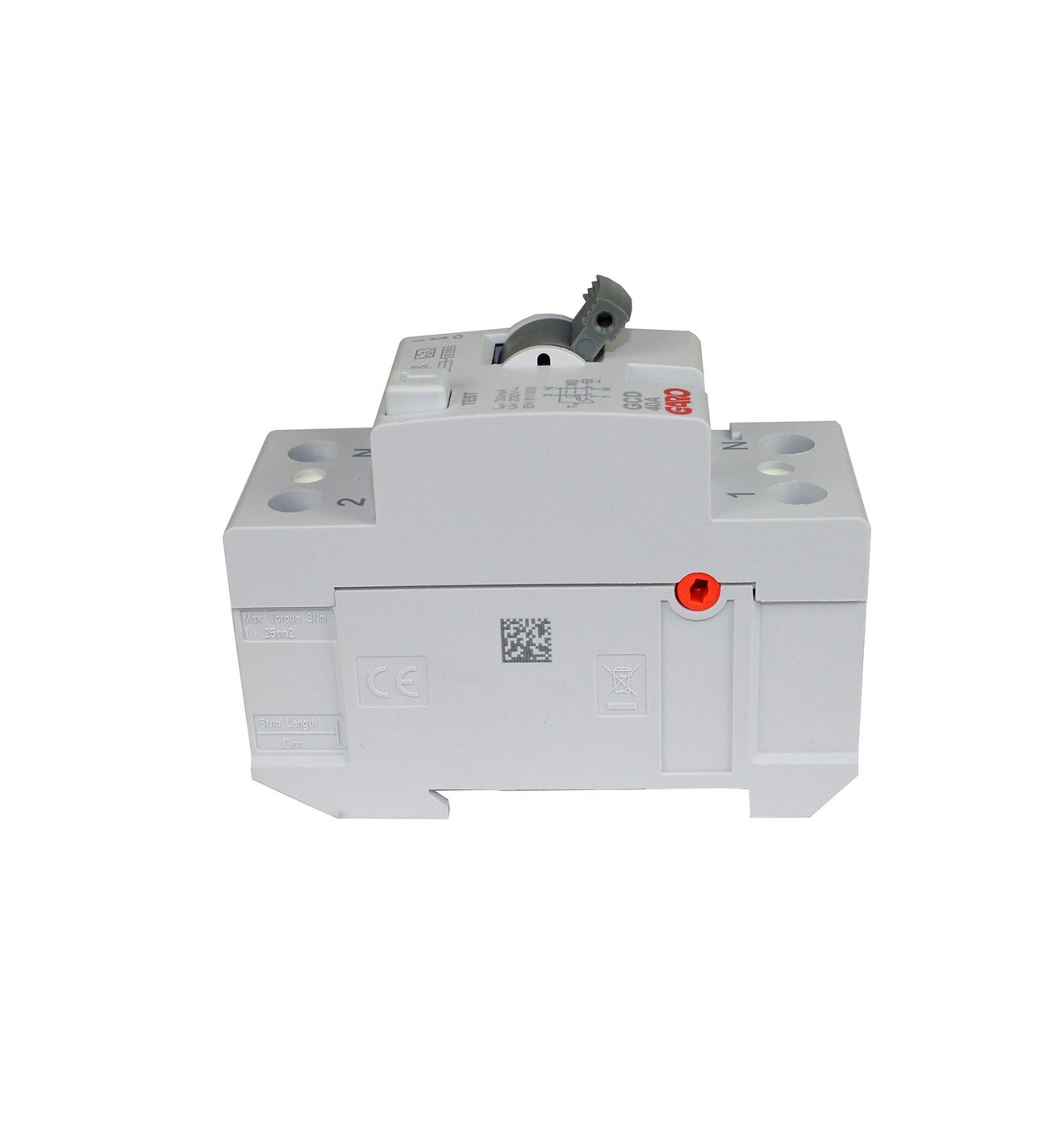

  • RCCB 2P 40A 6kA 30mA - 3

Residual current circuit breaker (RCCB) 6kA 2P

Residual current circuit breaker (RCCB) 6kA 2-poles Residual current circuit breaker 2-poles 40A 6kA 30mA
E-number
E2163317
Article number
110087
Support
Standard EN61008-1
Storage temperature [C] -35C...+60C
Operation Temperature [C] -25C...+35C
Frequency [Hz] 50-60Hz
Housing material Plastic
Color Grey
Number of modules 2
Number of poles 2
Connection type Screw
Wire flexible [mm²] 1,5-25mm²
Mounting method DIN-rail
Degree of protection [IP] IP20
Sensitivity[mA] 30mA
Leakage current type A
Claim prefuse [A] 100A
NetProductWeight 0.2
EngineerWidth 36
EngineerHeight 88
EngineerDepth 72
Name RCCB 2P 40A 6kA 30mA
E-number E2163317
Article number 110087
Type designation RCCB 2P 40A 6kA 30mA GS
Short-circuit current [kA] 6kA
Rated current [A] 25A
Rated voltage [V AC] 230/400V AC

More variants of Residual current circuit breaker (RCCB) 6kA 2P

E-number Article number Type designation Short-circuit current [kA] Rated current [A] Rated voltage [V AC]

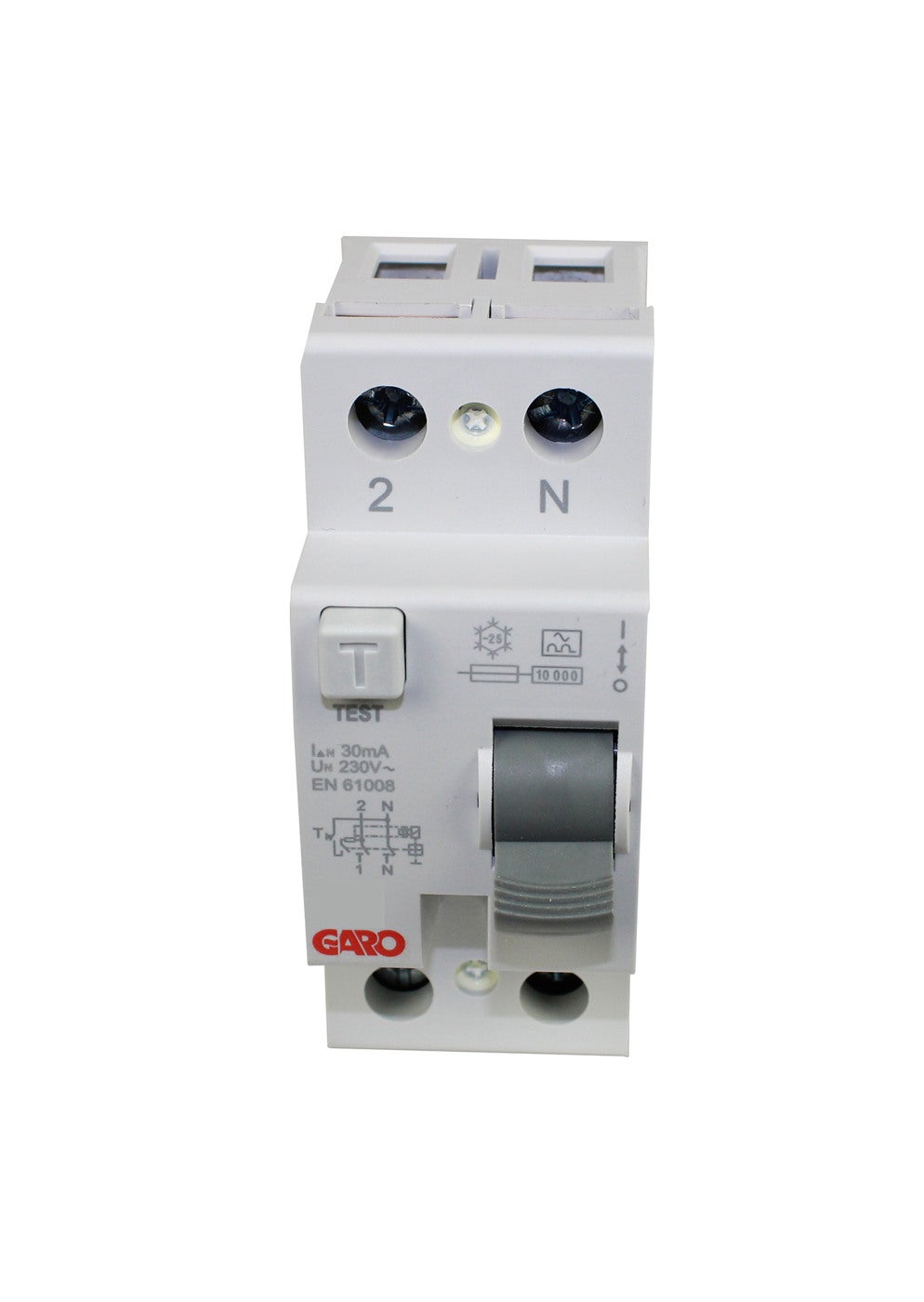

RCCB 2P 25A 6kA 30mA E2163316 110086 RCCB 2P 25A 6kA 30mA GS 25A 230V AC
RCCB 2P 40A 6kA 30mA E2163317 110087 RCCB 2P 40A 6kA 30mA GS 6kA 25A 230/400V AC
RCCB 2P 63A 6kA 30mA E2163320 110091 RCCB 2P 63A 6kA 30mA GS 6kA 63A 230V AC
