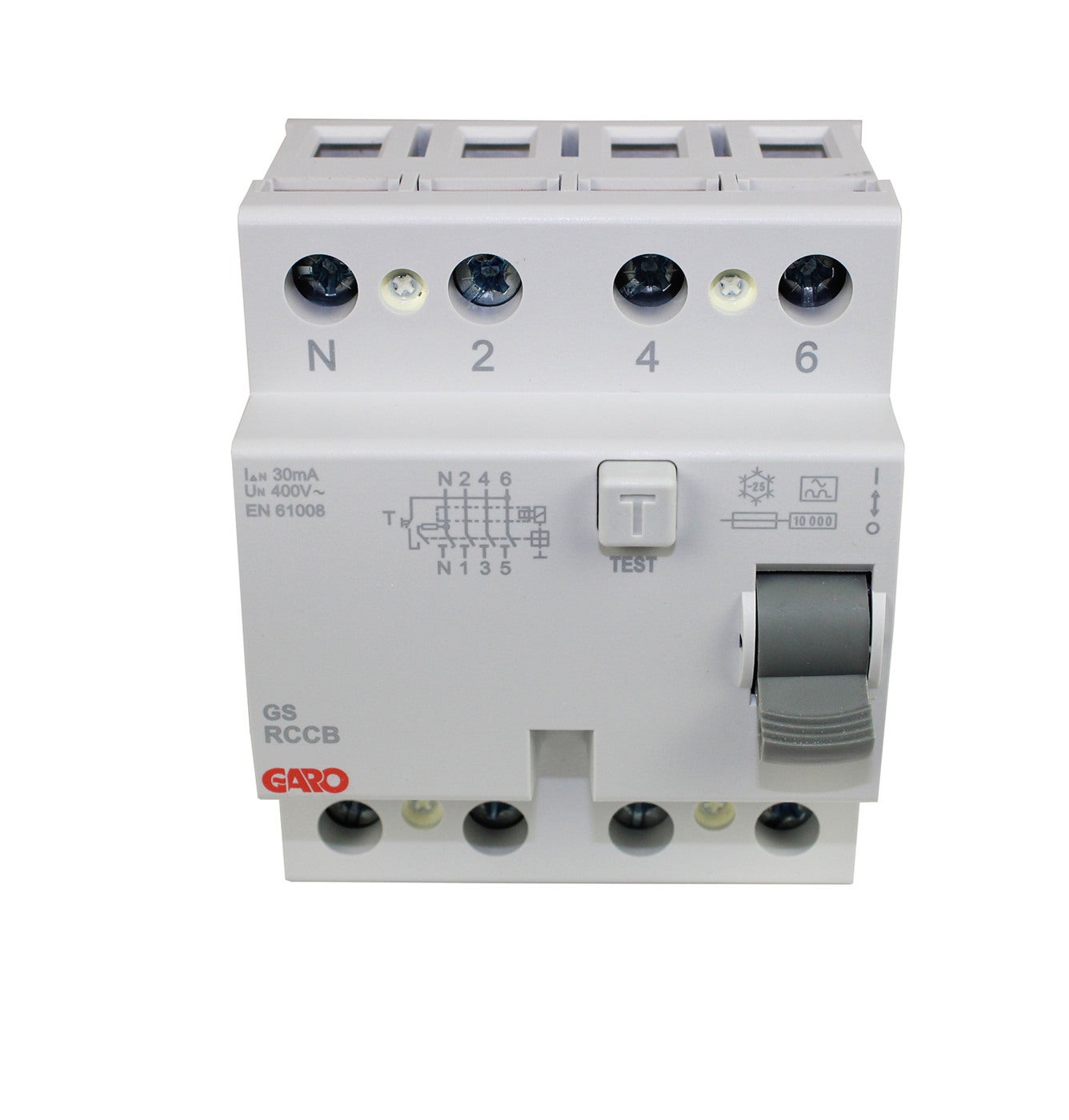

• RCCB 25A 30mA 6kA 4P - 1

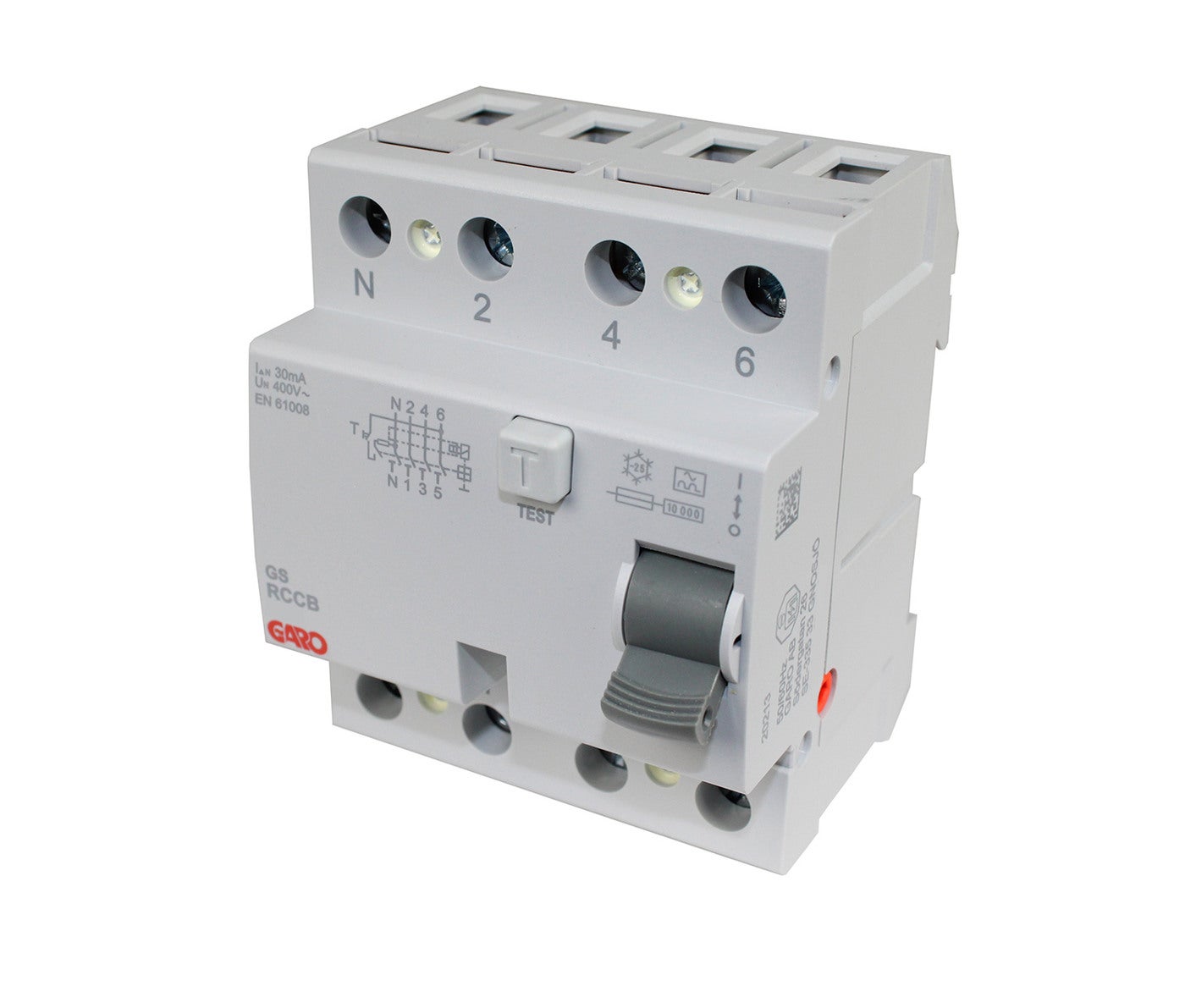

  • RCCB 25A 30mA 6kA 4P - 2

Residual current circuit breaker (RCCB) 6kA 4-poles

Residual current circuit breaker (RCCB) 6kA 4-poles RCCB type RCD 25A 4-pole 30mA 6kA
E-number
E2163318
Article number
110088
Support
Standard EN61008-1
Storage temperature [C] -35C...+60C
Operation Temperature [C] -25C...+35C
Frequency [Hz] 50-60Hz
Housing material Plastic
Color Grey
Rated voltage [V AC] 400V AC
Number of modules 4
Number of poles 4
Connection type Screw
Wire flexible [mm²] 1,5-25mm²
Mounting method DIN-rail
Degree of protection [IP] IP20
Sensitivity[mA] 30mA
Leakage current type A
Claim prefuse [A] 100A
EngineerWidth 75
EngineerDepth 95
Name RCCB 25A 30mA 6kA 4P
E-number E2163318
Article number 110088
Type designation RCCB 4P 25A 6kA 30mA GS
Short-circuit current [kA] 6kA
Rated current [A] 25A
NetProductWeight 0.33
EngineerHeight 90

More variants of Residual current circuit breaker (RCCB) 6kA 4-poles

E-number Article number Type designation Short-circuit current [kA] Rated current [A] NetProductWeight EngineerHeight
RCCB 25A 30mA 6kA 4P E2163318 110088 RCCB 4P 25A 6kA 30mA GS 6kA 25A 0.33 90
RCCB 40A 30mA 6kA 4P E2163315 110089 RCCB 4P 40A 6kA 30mA GS 40A 0.33 80
RCCB 63A 30mA 6kA 4P E2163319 110090 RCCB 4P 63A 6kA 30mA GS 63A 0.35 80
