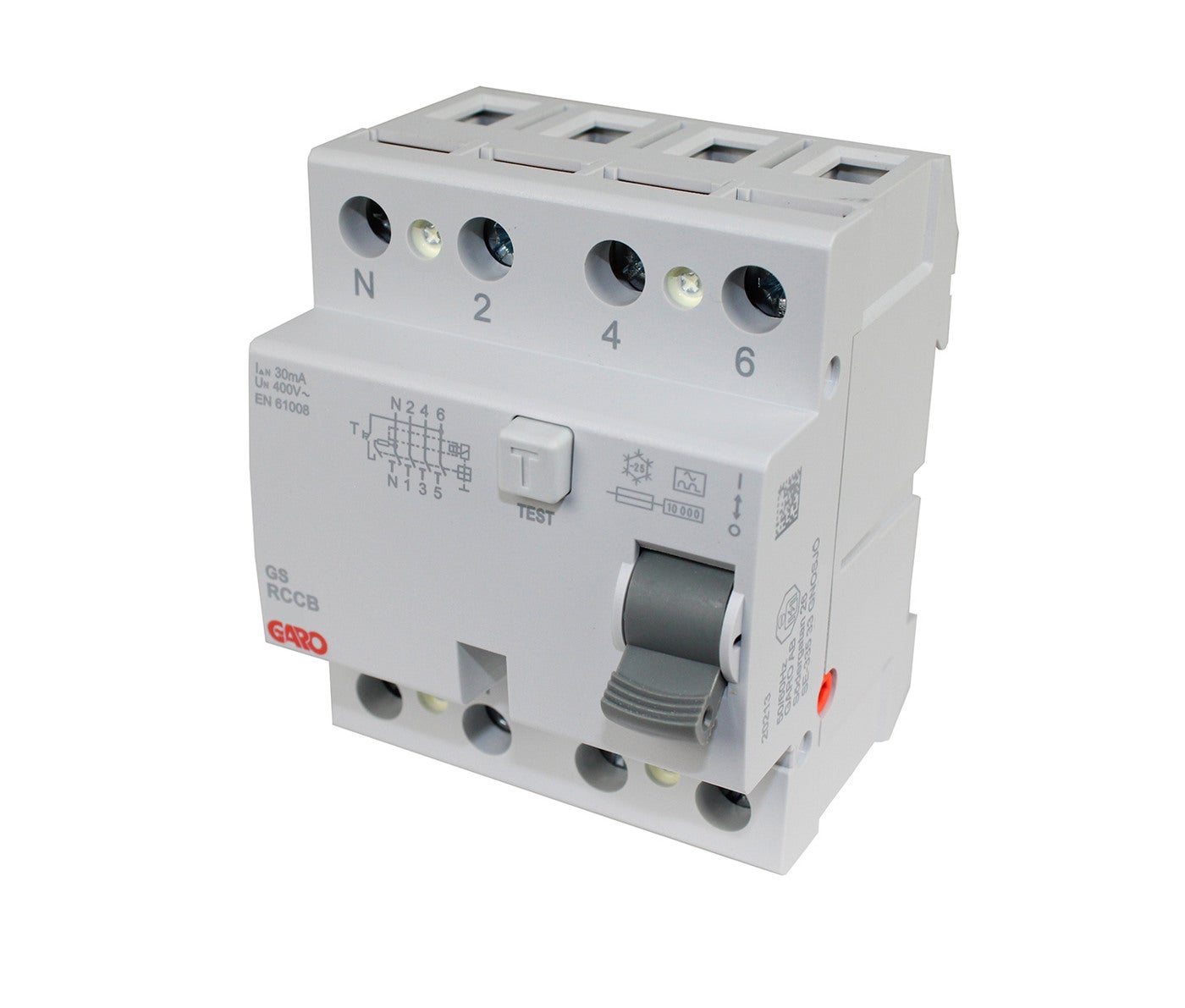

  • RCCB 40A 300mA 10kA 4P - 2

Residual current circuit breaker (RCCB) 10kA 4P

Residual current circuit breaker (RCCB) 10kA 4-poles RCCB type GS 40A 4-pole 300mA
E-number
E2163328
Article number
110099
Support
Standard EN61008-1
Storage temperature [C] -35C...+60C
Operation Temperature [C] -25C...+35C
Frequency [Hz] 50-60Hz
Housing material Plastic
Color Grey
Rated voltage [V AC] 400V AC
Connection type Screw
Mounting method DIN-rail
Degree of protection [IP] IP20
Leakage current type A
Claim prefuse [A] 100A
Name RCCB 40A 300mA 10kA 4P
E-number E2163328
Article number 110099
Type designation RCCB 4P 40A 10kA 300mA GS
Short-circuit current [kA] 10kA
Rated current [A] 40A
Number of modules 4
Number of poles 4
Wire flexible [mm²] 1,5-25mm²
Sensitivity[mA] 30mA
NetProductWeight 0.31
EngineerWidth 73
EngineerHeight 90
EngineerDepth 95

More variants of Residual current circuit breaker (RCCB) 10kA 4P

E-number Article number Type designation Short-circuit current [kA] Rated current [A] Number of modules Number of poles Wire flexible [mm²] Sensitivity[mA] NetProductWeight EngineerWidth EngineerHeight EngineerDepth
RCCB 25A 30mA 10kA 4P E2163325 110096 RCCB 4P 25A 10kA 30mA GS 10kA 25A 4 4 1,5-25mm² 30mA 0.35 73 80 95
RCCB 4P 40A 30mA 10kA GS E2163326 110097 RCCB 4P 40A 10kA 30mA GS 10kA 40A 4 4 1,5-25mm² 30mA 0.32 72 88 72
RCCB 63A 30mA 10kA 4P E2163327 110098 RCCB 4P 63A 10kA 30mA GS 10kA 63A 4 4 1,5-25mm² 30mA 0.35 73 80 95
RCCB 40A 300mA 10kA 4P E2163328 110099 RCCB 4P 40A 10kA 300mA GS 10kA 40A 4 4 1,5-25mm² 30mA 0.31 73 90 95
RCCB 63A 300mA 10kA 4P E2163329 110100 RCCB 4P 63A 10kA 300mA GS 10kA 63A 4 4 1,5-25mm² 30mA 0.33 75 80 95
RCCB GS 63A 4P 500mA E2163330 110101 RCCB GS 63A 500mA 10kA 4P 10kA 63A 4 4 1,5-25mm² 500mA 0.3 72 88 72
RCCB STD 40A 30mA 4P E2163195 2163195 RCD.STD 40A 30mA 4P 10kA 40A 4 4 1,5-25mm² 30mA 0.44 95 85 75
RCCB GS 80A 30mA 4P E2163211 2163211 RCCB 4P 80A 10kA 30mA GS 10kA 80A 4 4 1,5-25mm² 30mA 0.35 73 80 95
RCCB 4P 80A 10kA 300mA E2163214 2163214 RCCB 4P 80A 10kA 300mA GS 10kA 80A 8 4 1,5-25mm² 30mA 0.33 72 88 72
