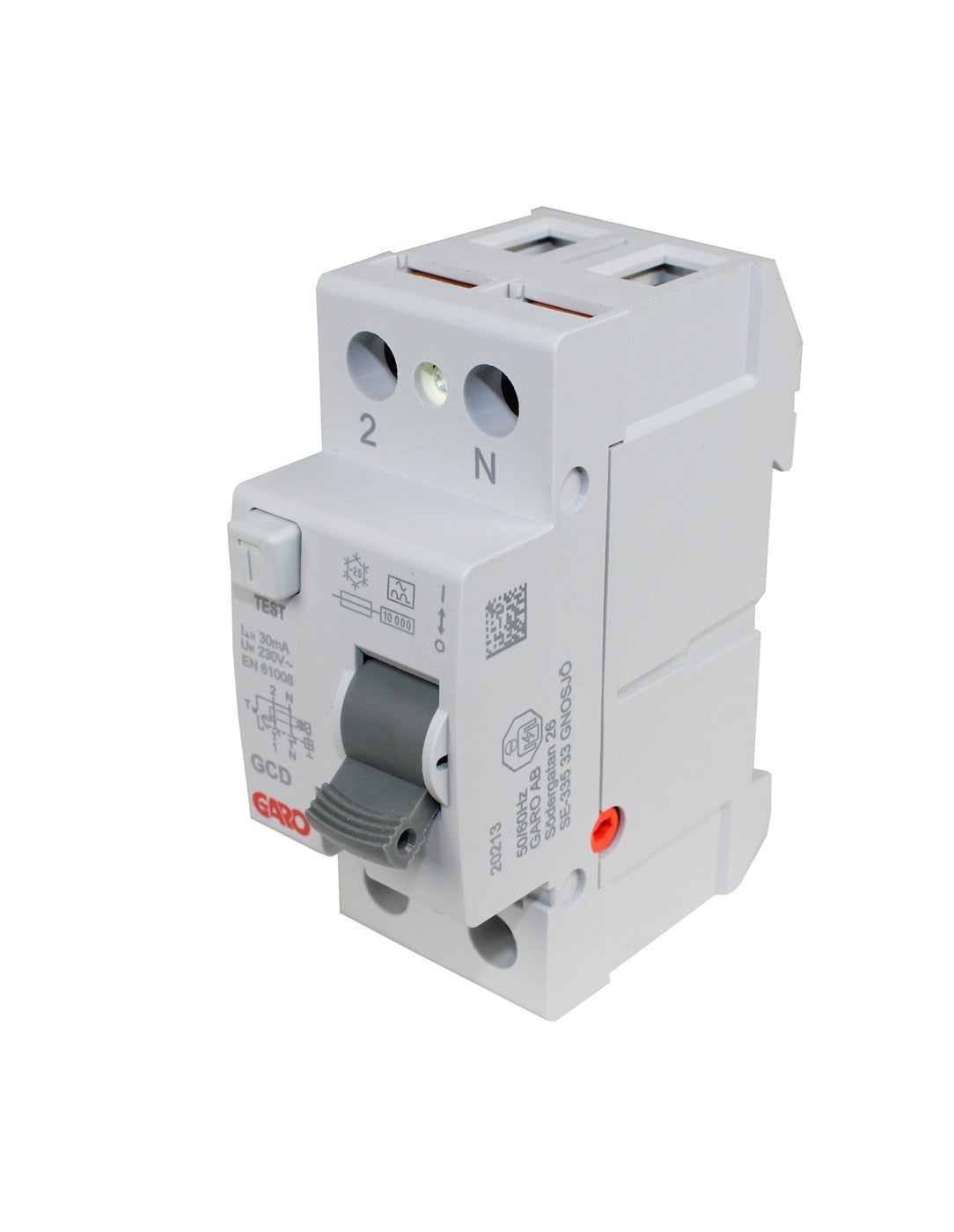

  • RCCB 2P 80A 10kA 30mA - 2

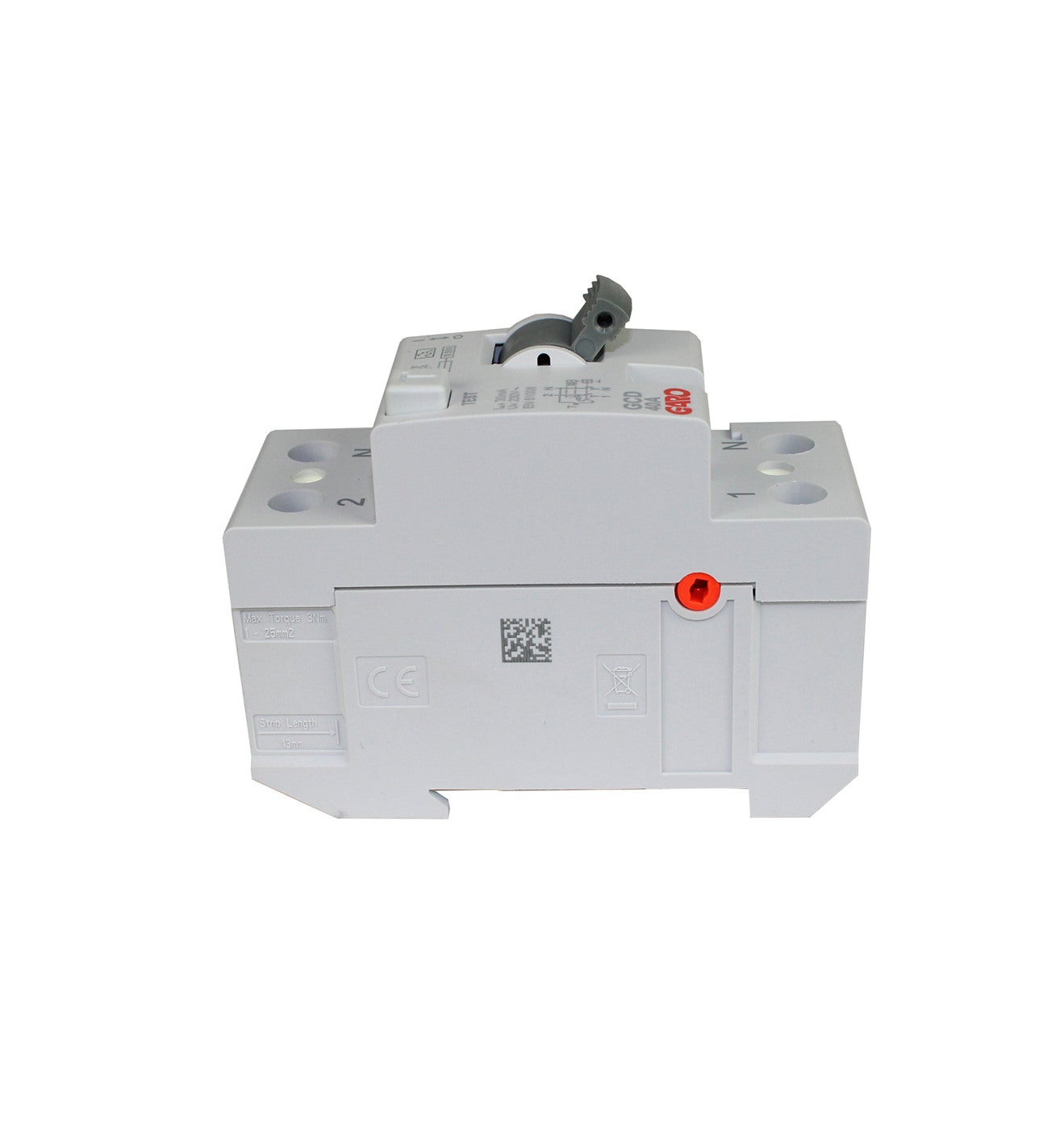

  • RCCB 2P 80A 10kA 30mA - 3

Residual current circuit breaker (RCCB) 10kA 2P

Residual current circuit breaker (RCCB) 10kA 2-poles Residual current circuit breaker 2-poles 80A 10kA 30mA
E-number
E2163324
Article number
110095
Support
Standard EN61008-1
Short-circuit current [kA] 10kA
Storage temperature [C] -35C...+60C
Operation Temperature [C] -25C...+35C
Frequency [Hz] 50-60Hz
Housing material Plastic
Color Grey
Number of modules 2
Number of poles 2
Connection type Screw
Wire flexible [mm²] 1,5-25mm²
Mounting method DIN-rail
Degree of protection [IP] IP20
Sensitivity[mA] 30mA
Leakage current type A
Claim prefuse [A] 100A
Name RCCB 2P 80A 10kA 30mA
E-number E2163324
Article number 110095
Type designation RCCB 2P 80A 10kA 30mA GS
Rated current [A] 80A
Rated voltage [V AC] 230/400V AC
NetProductWeight 0.18
EngineerWidth 36
EngineerHeight 88
EngineerDepth 72

More variants of Residual current circuit breaker (RCCB) 10kA 2P

E-number Article number Type designation Rated current [A] Rated voltage [V AC] NetProductWeight EngineerWidth EngineerHeight EngineerDepth ProductWidth ProductHeight ProductDepth
RCCB 25A 30mA 10kA 2P E2163321 110092 RCCB 2P 25A 10kA 30mA GS 25A 230V AC 0.2 40 80 95
RCCB 2P 40A 10kA 30mA E2163322 110093 RCCB 2P 40A 10kA 30mA GS 40A 230V AC 0.18 36 88 72 95 80 40
RCCB 2P 63A 10kA 30mA E2163323 110094 RCCB 2P 63A 10kA 30mA GS 63A 230V AC 0.18 36 88 72
RCCB 2P 80A 10kA 30mA E2163324 110095 RCCB 2P 80A 10kA 30mA GS 80A 230/400V AC 0.18 36 88 72
