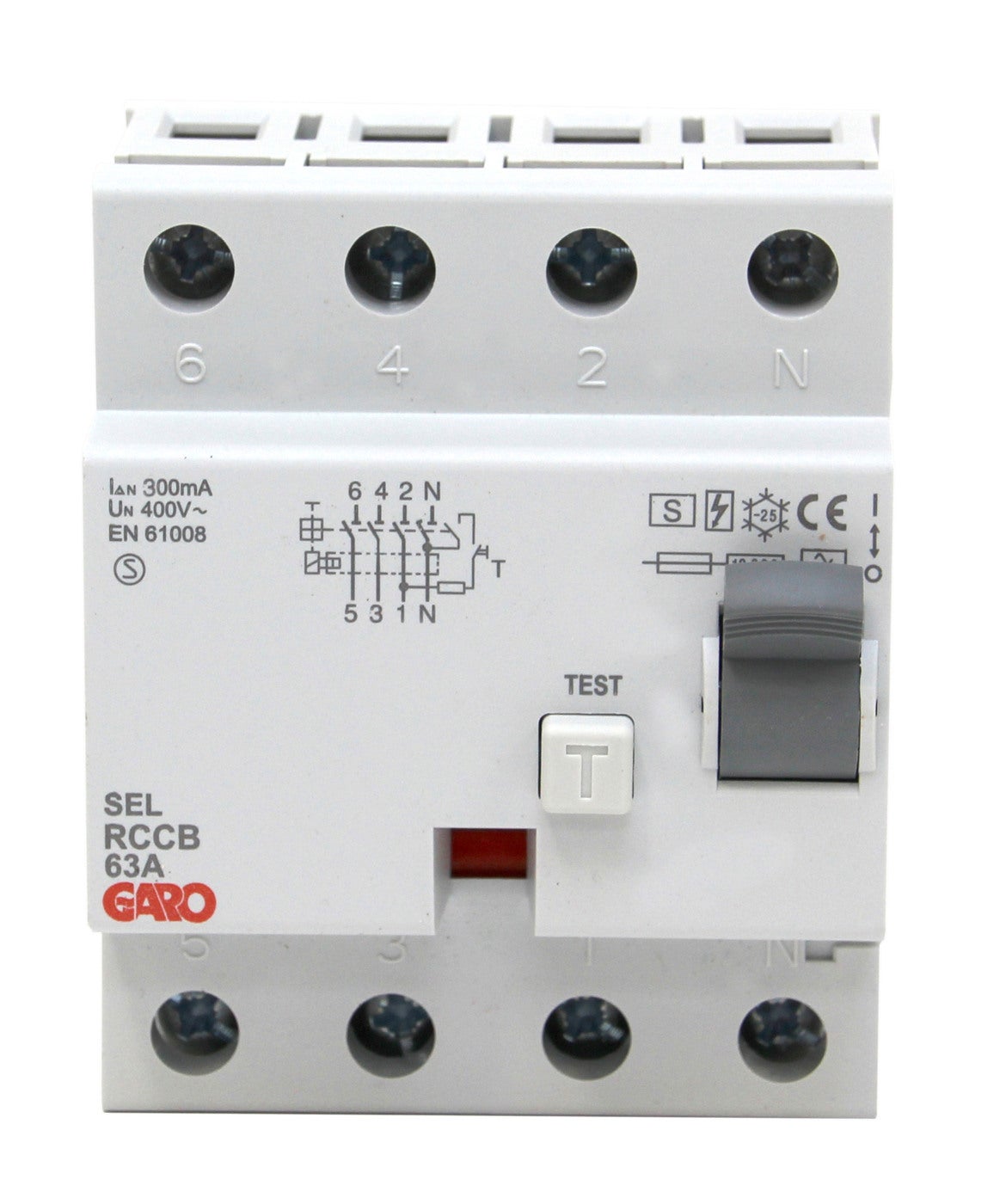

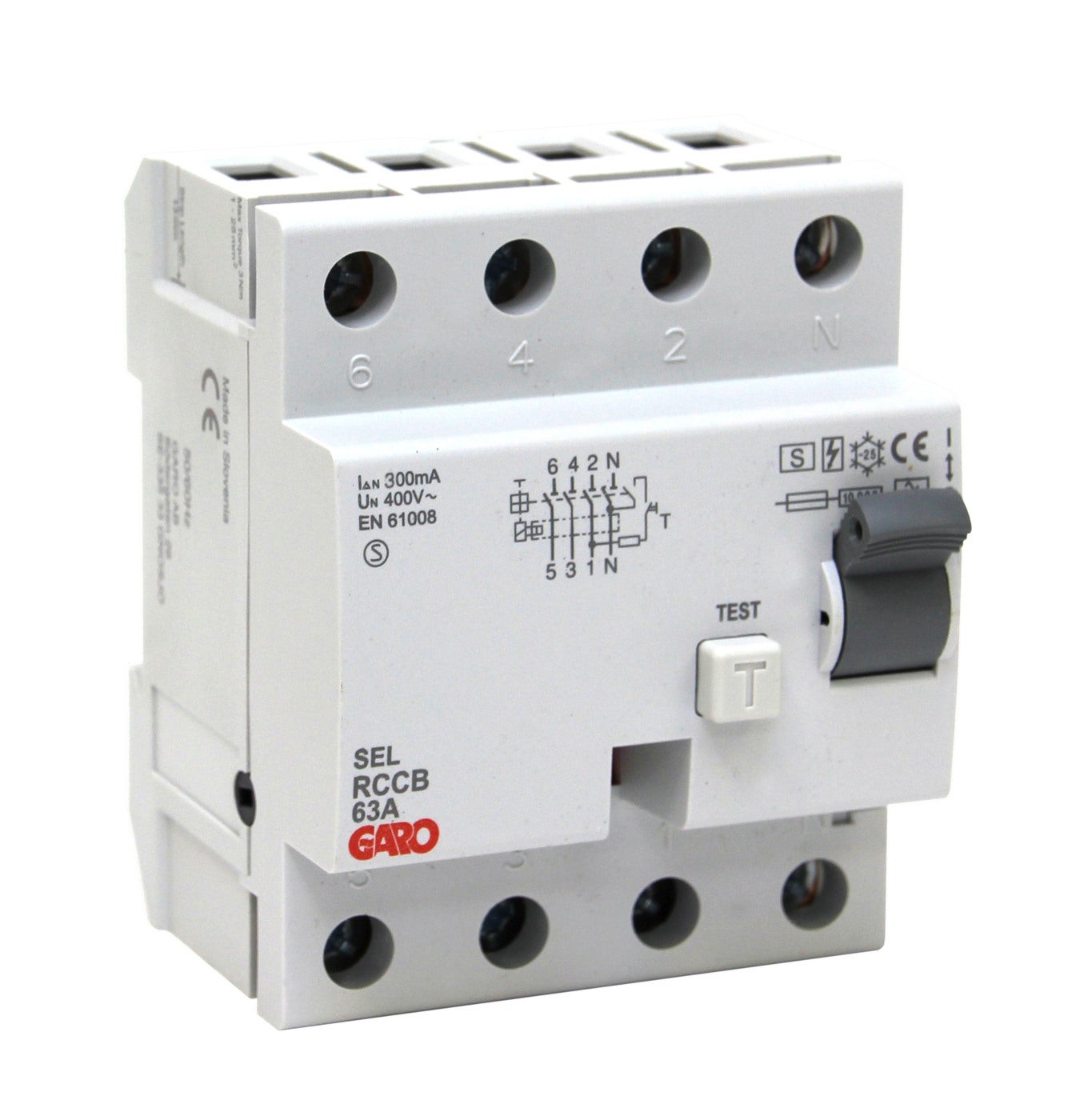

Residual current circuit breaker (RCCB) 10kA 4-poles selektiv

Residual current circuit breaker (RCCB) 10kA 4-poles selektiv RCCB selectiv 63A 4-poles 300mA
E-number
E2163309
Article number
108057
Support
Standard EN61008-1
Storage temperature [C] -35C...+60C
Operation Temperature [C] -25C...+55C
Frequency [Hz] 50-60Hz
Housing material Plastic
Color Grey
Rated current [A] 63A
Rated voltage [V AC] 400V AC
Number of modules 4
Number of poles 4
Connection type Screw
Wire flexible [mm²] 1,5-25mm²
Mounting method DIN-rail
Degree of protection [IP] IP20
Sensitivity[mA] 30mA
Leakage current type A
Claim prefuse [A] 100A
NetProductWeight 0.34
EngineerWidth 75
EngineerHeight 80
EngineerDepth 95
Name RCCB SELECTIVE 63A 300mA 4P
E-number E2163309
Article number 108057
Type designation RCCB 4P 63A 300mA SEL

More variants of Residual current circuit breaker (RCCB) 10kA 4-poles selektiv

E-number Article number Type designation
RCCB SELECTIVE 63A 100mA 4P E2163308 108056 RCCB 4P 63A 100mA SEL
RCCB SELECTIVE 63A 300mA 4P E2163309 108057 RCCB 4P 63A 300mA SEL
