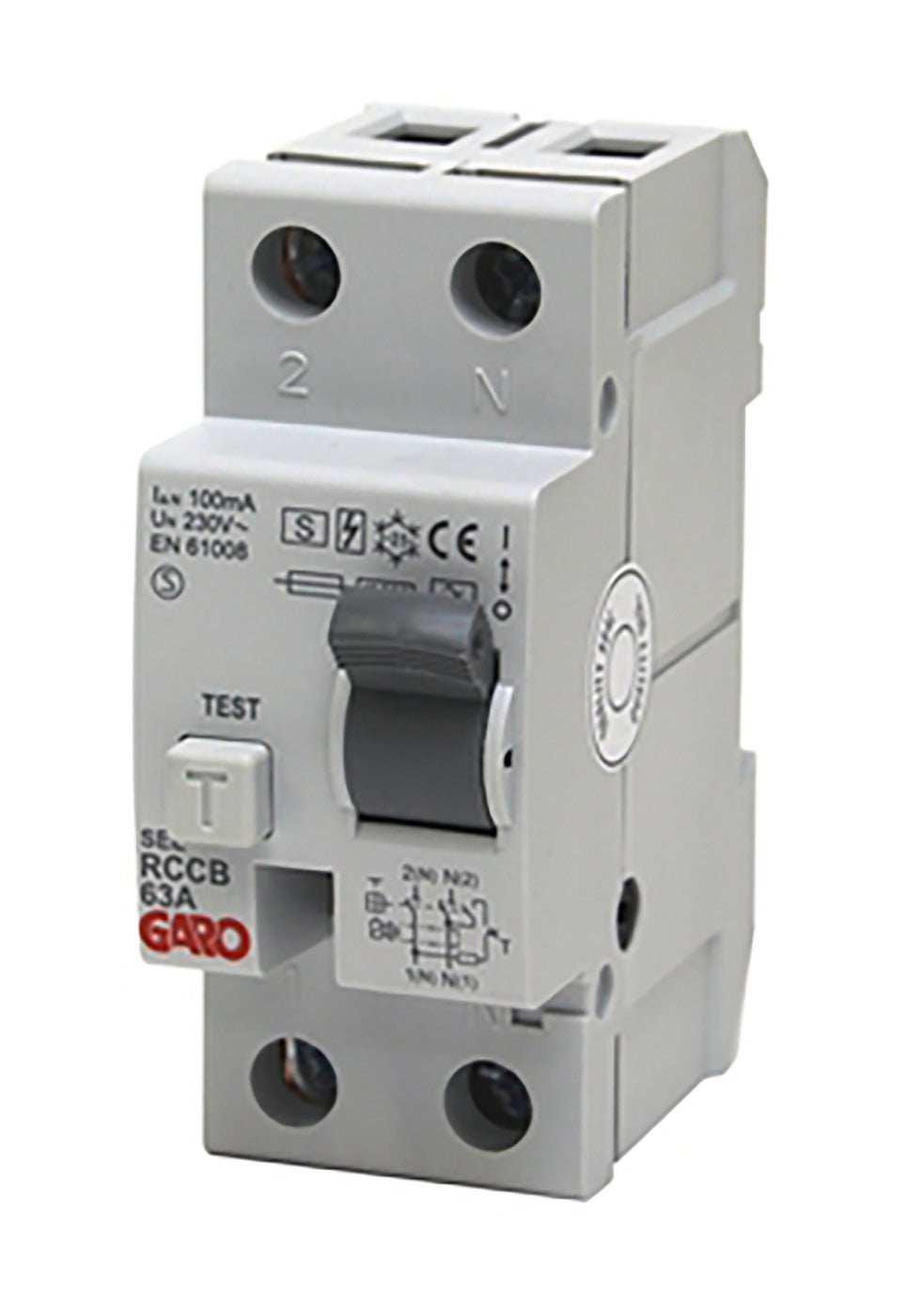

• RCCB 2P 63A 100mA SEL - 1

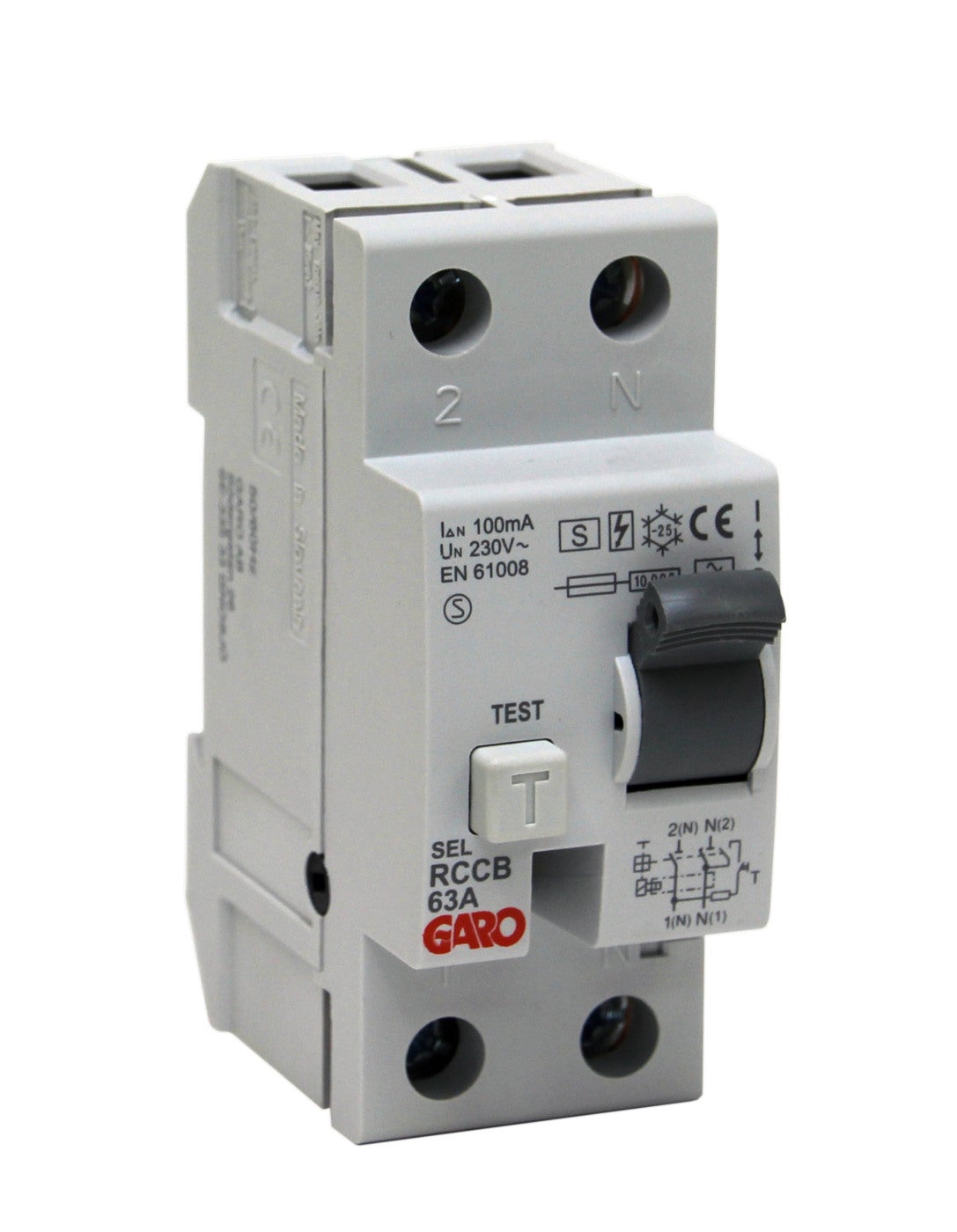

  • RCCB 2P 63A 100mA SEL - 2

Residual current circuit breaker (RCCB) 10kA 2-poles selektiv

Residual current circuit breaker (RCCB) 10kA 2-poles selektiv Residual current circuit breaker 2-poles 63A 100mA selektiv
E-number
E2163306
Article number
108054
Support
Standard EN61008-1
Storage temperature [C] -35C...+60C
Operation Temperature [C] -25C...+55C
Frequency [Hz] 50/60Hz
Housing material Plastic
Color Grey
Rated current [A] 63A
Number of modules 2
Number of poles 2
Connection type Screw
Mounting method DIN-rail
Degree of protection [IP] IP20
Sensitivity[mA] 30mA
Leakage current type A
Claim prefuse [A] 100A
NetProductWeight 0.18
EngineerWidth 36
EngineerHeight 45
Name RCCB 2P 63A 100mA SEL
E-number E2163306
Article number 108054
Type designation RCCB 2P 63A 100mA SEL
Rated voltage [V AC] 230V AC
Wire flexible [mm²] 1,5-25mm²

More variants of Residual current circuit breaker (RCCB) 10kA 2-poles selektiv

E-number Article number Type designation Rated voltage [V AC] Wire flexible [mm²]
RCCB 2P 63A 100mA SEL E2163306 108054 RCCB 2P 63A 100mA SEL 230V AC 1,5-25mm²

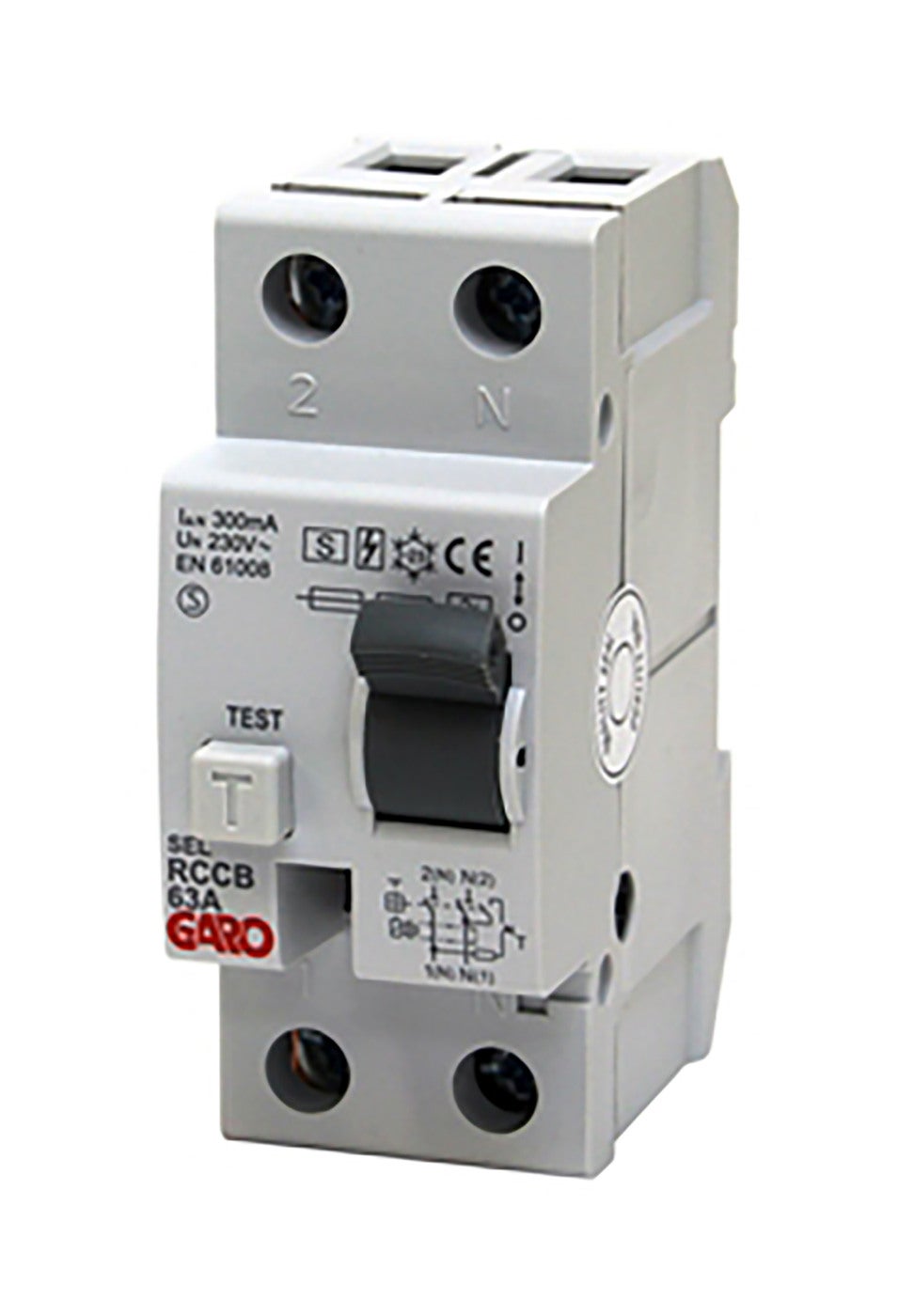

RCCB 2P 63A 300mA SEL E2163307 108055 RCCB 2P 63A 300mA SEL 230/400V AC 1-25mm²
