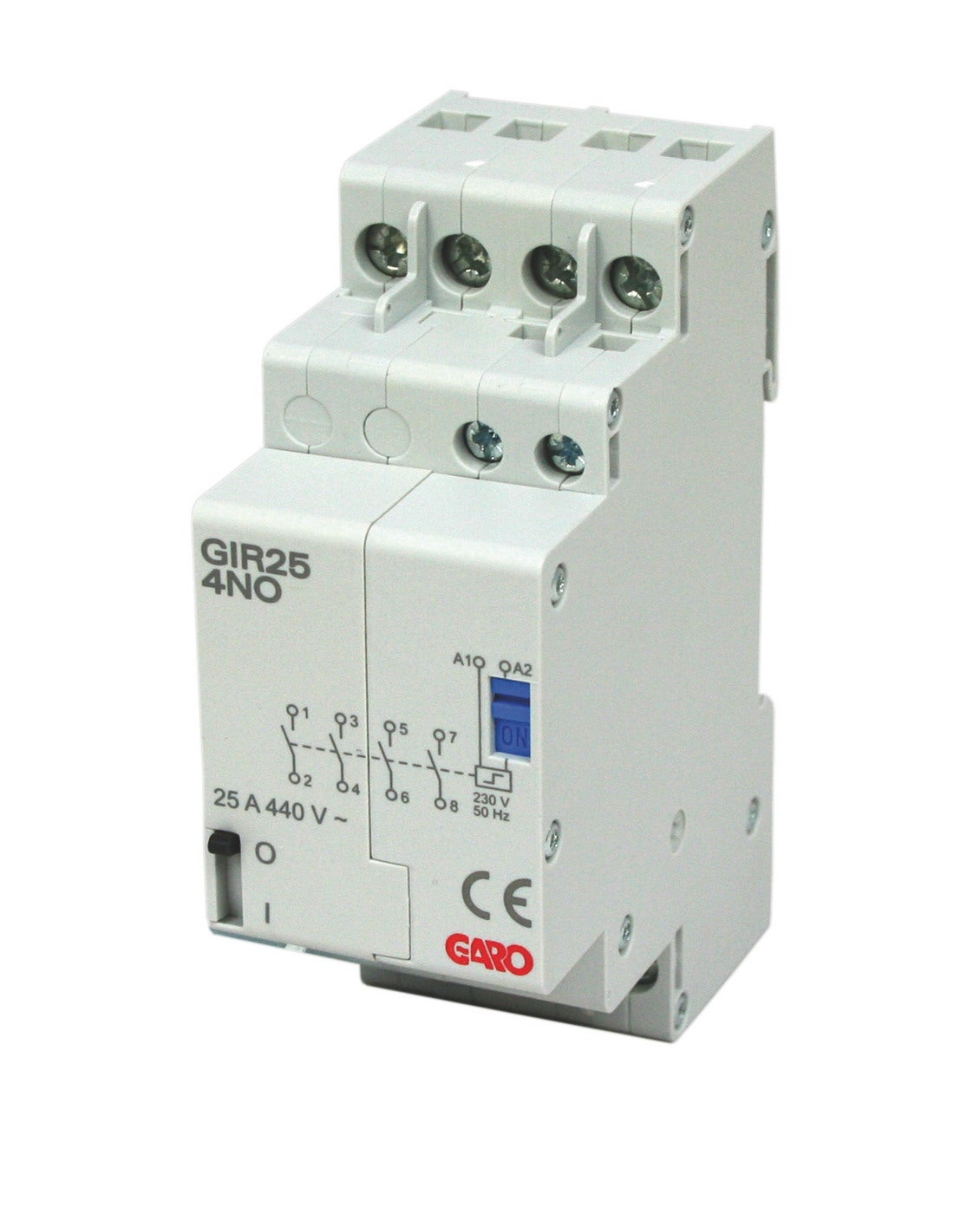

Impulse relays 4-poles
Impulse relays normally switch with each voltage pulse. Using two different flip-flops on the product the control circuit can be disconnected and manually control the product to different positions. Impulse relay with 4 poles 230V
E-number
E4025065
E4025065
Article number
351972
351972
| Type designation | GIR25 4P 4NO 230V AC |
|---|---|
| Storage temperature [C] | -30C...+80C |
| Operation Temperature [C] | -25C...+55C |
| Frequency [Hz] | 50/60Hz |
| Housing material | Plastic |
| Color | Grey |
| Number of modules | 2 |
| Number of poles | 4 |
| Tightening torque [Nm] | 2,6Nm |
| Connection type | Screw |
| Wire flexible [mm²] | 2,5-25mm² |
| Mounting method | DIN-rail |
| Wire solid [mm²] | 2,5-25mm² |
| Contacts | 4pcs |
| Control line voltage | 230V AC |
| Voltage type | AC/DC |
| Degree of protection [IP] | IP20 |
| NetProductWeight | 0.2 |
| EngineerWidth | 39 |
| EngineerHeight | 69 |
| EngineerDepth | 93 |
| Rated current AC1 400V [A] | 25A |
| Rated current AC3 400V [A] | 8,5A |
| Name | RELAY IMPULSE 4NO 230V AC 4P |
|---|---|
| E-number | E4025065 |
| Article number | 351972 |
