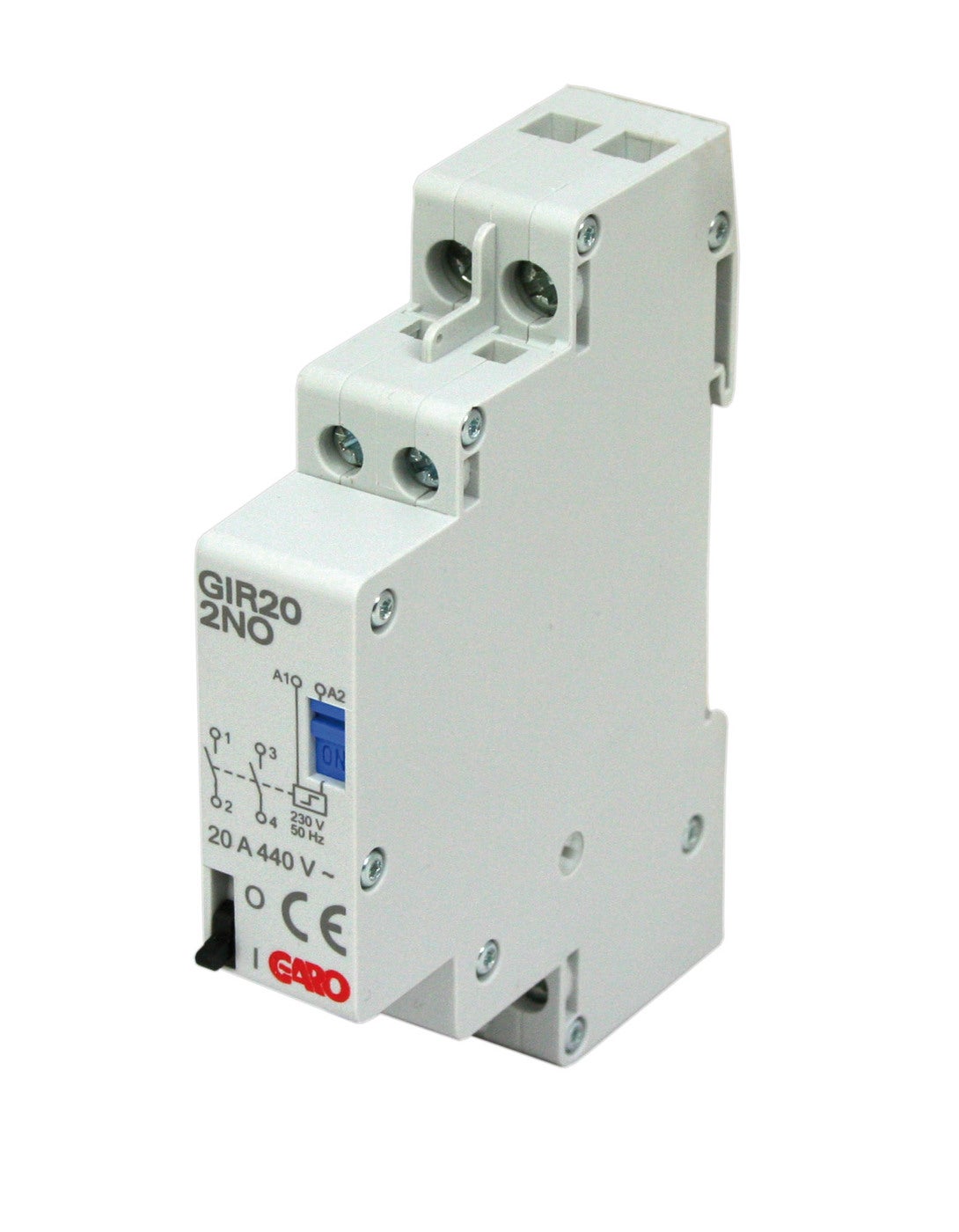

Impulse relays 2-poles
Impulse relays normally switch with each voltage pulse. Using two different flip-flops on the product the control circuit can be disconnected and manually control the product to different positions. Impulse relay 2 poles 230V
E-number
E4025064
E4025064
Article number
351971
351971
| Type designation | GIR20 2P 2NO 230V AC |
|---|---|
| Storage temperature [C] | -30C...+80C |
| Operation Temperature [C] | -25C...+55C |
| Frequency [Hz] | 50/60Hz |
| Housing material | Plastic |
| Color | Grey |
| Rated voltage [V AC] | 400V AC |
| Number of modules | 1 |
| Number of poles | 2 |
| Tightening torque [Nm] | 2,6Nm |
| Connection type | Screw |
| Wire flexible [mm²] | 2,5-25mm² |
| Mounting method | DIN-rail |
| Wire solid [mm²] | 2,5-25mm² |
| Contacts | 2pcs |
| Control line voltage | 230V AC |
| Voltage type | AC/DC |
| Degree of protection [IP] | IP20 |
| NetProductWeight | 0.75 |
| EngineerWidth | 22 |
| EngineerHeight | 70 |
| EngineerDepth | 93 |
| Rated current AC1 230V [A] | 20A |
| Rated current AC3 230V [A] | 7A |
| Name | RELAY IMPULSE 2NO 230V AC 2P |
|---|---|
| E-number | E4025064 |
| Article number | 351971 |
