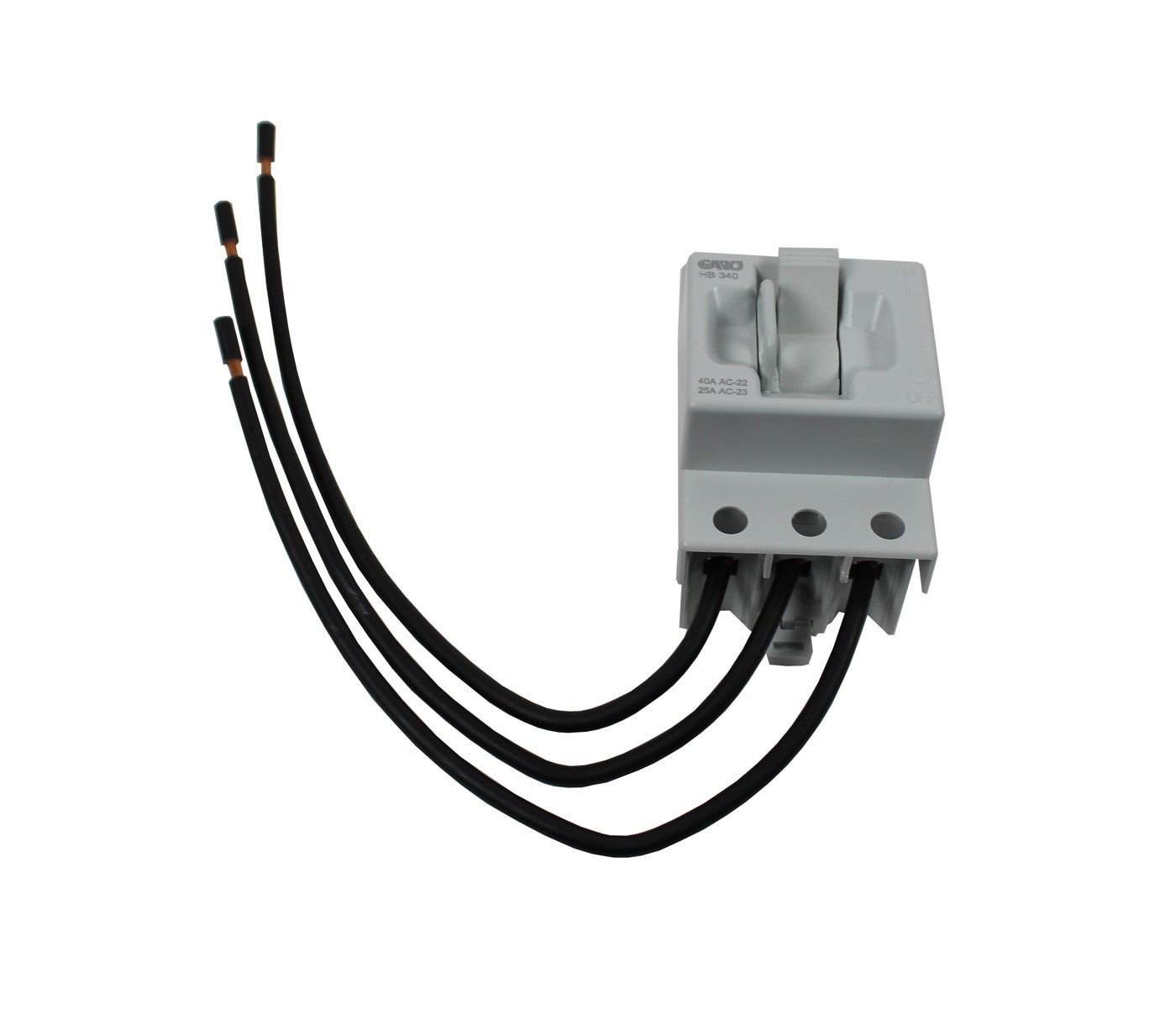

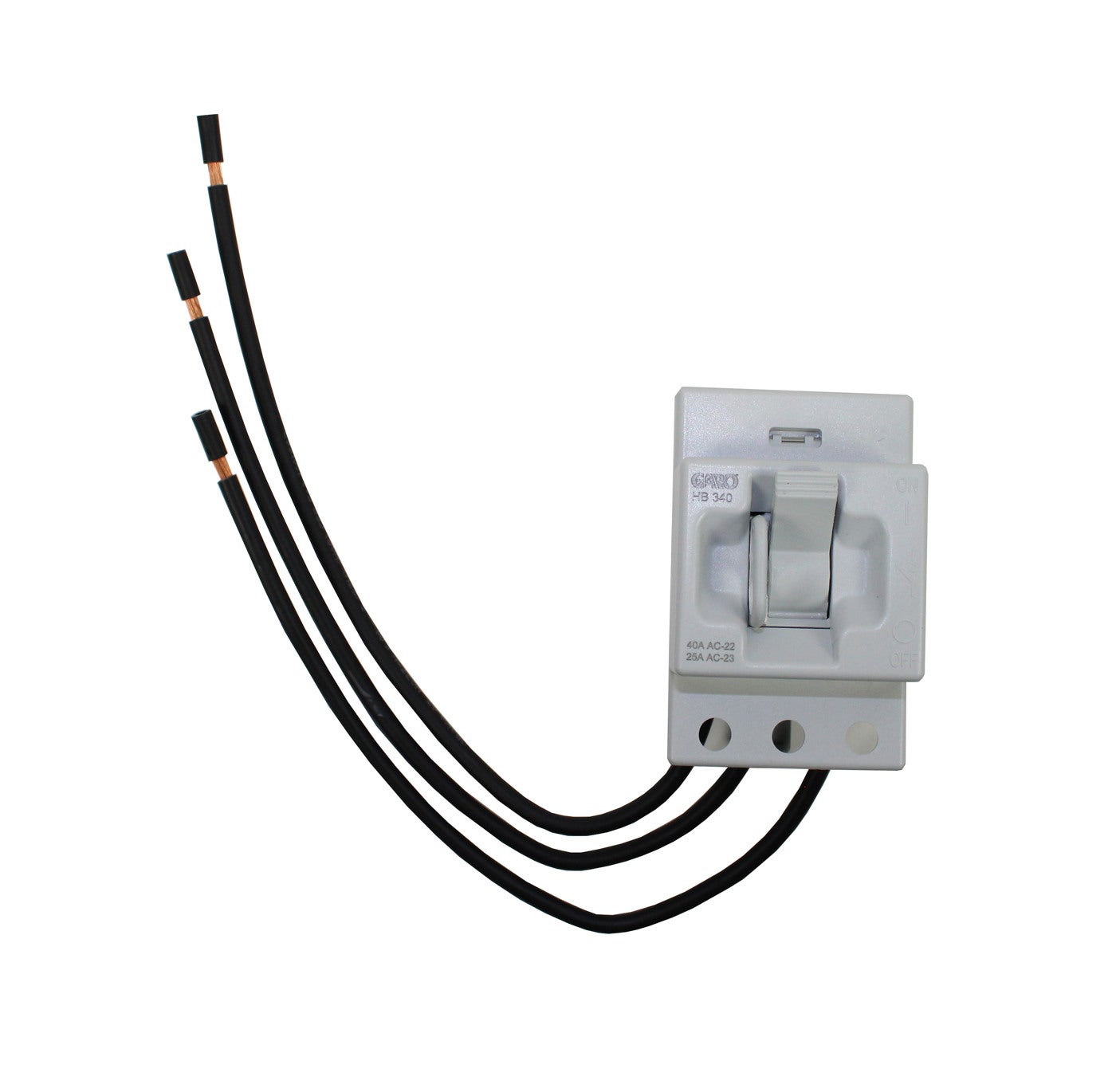

Main switches 3-poles incl cable
The switches are approved according to the standard SS EN 60947-3. They conform to the requirements as a main switch with isolation properties to be placed in enclosures with miniature circuit breakers. Main switch modular 40A 3-pole with cable
E-number
E2142853
E2142853
Article number
2142853
2142853
| Standard | EN60947-3 |
|---|---|
| Short-circuit current [kA] | 50kA |
| Operation Temperature [C] | -20C...+40C |
| Frequency [Hz] | 50/60Hz |
| Color | Grey |
| Rated current [A] | 40A |
| Rated voltage [V AC] | 400V |
| Number of poles | 3 |
| Wire flexible [mm²] | 1,5-16mm² |
| Length of cable [m] | Included |
| Isolation voltage [V] | 690V |
| Rated current AC22 400V [A] | 40A |
| Degree of protection [IP] | IP20 |
| Rated current AC21 400V [A] | 63A |
| Name | MAIN SWITCH 3P 40A W CABLE |
|---|---|
| E-number | E2142853 |
| Article number | 2142853 |
| Type designation | HBK 340, INKL KABEL |
| Storage temperature [C] | -40C...+80C |
| Number of modules | 3 |
| Tightening torque [Nm] | 1,8Nm |
| NetProductWeight | 0.24 |
| EngineerWidth | 50 |
| EngineerHeight | 85 |
| EngineerDepth | 61 |
| Rated operation power at AC-23, | 15kW |
