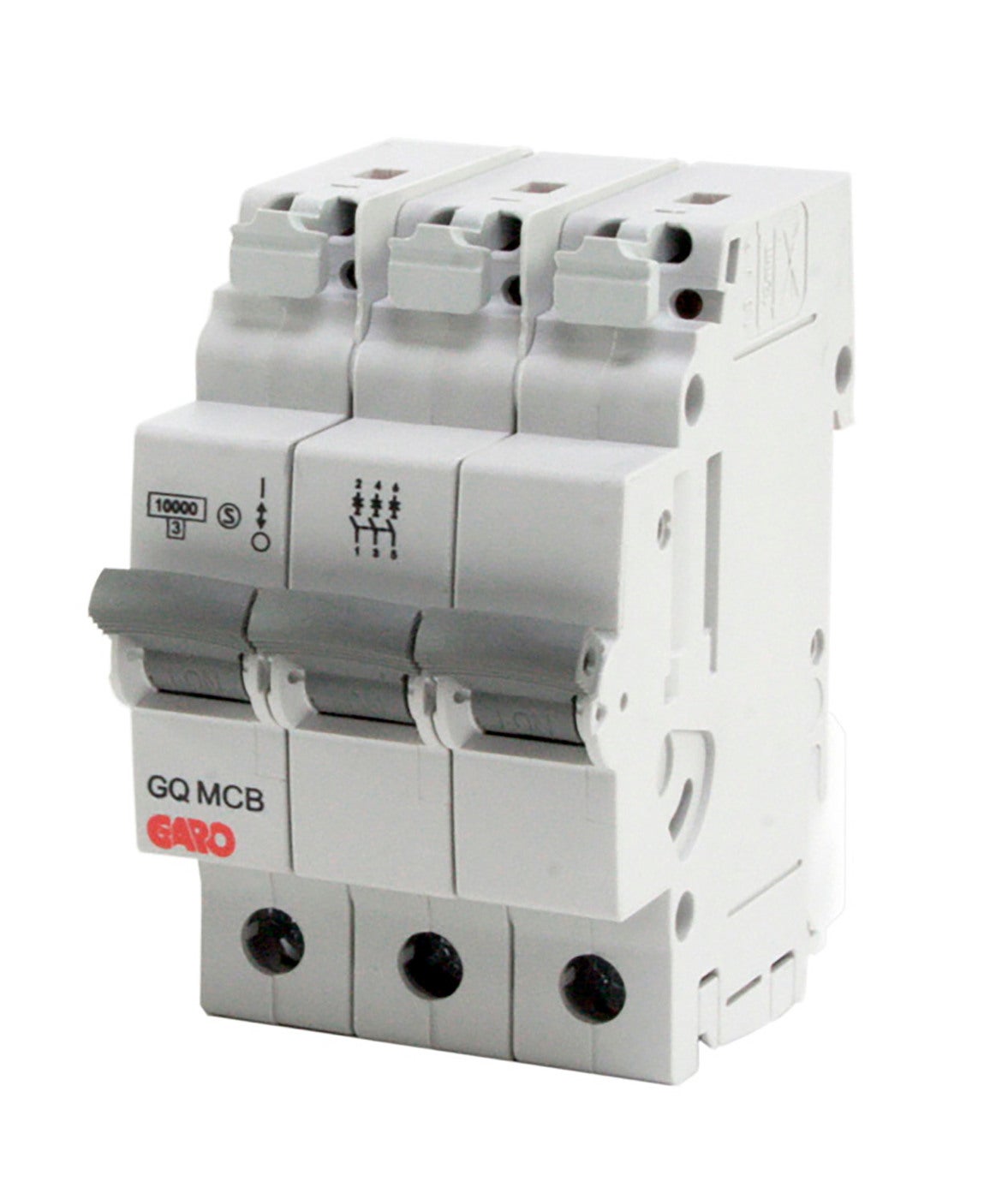

MCB 10kA 3P C-char GQ
Miniature circuit breaker 10kA with quick connection ideal for industrial and residential applications. It is capable of protecting the system against short-circuit currents up to 10,000 Ampere. It is equipped with a mounting bracket that allows you to remove or install a miniature circuit-breaker even when the phase busbar is installed and is compatible with all GARO busbars for miniature circuit-breakers. MCB GQ C-Characteristic 13A 10kA 3-pole
E-number
E2142989
E2142989
Article number
352093
352093
| Standard | EN60898-1 |
|---|---|
| Short-circuit current [kA] | 10kA |
| Storage temperature [C] | -35C...+55C |
| Operation Temperature [C] | -25C...+55C |
| Frequency [Hz] | 50/60Hz |
| Housing material | Plastic |
| Color | Grey |
| Rated voltage [V AC] | 415 V AC |
| Number of modules | 3 |
| Number of poles | 3 |
| Tripping characteristics | B |
| Wire flexible [mm²] | 1,5-4mm² |
| Degree of protection [IP] | IP20 |
| NetProductWeight | 0.277 |
| EngineerWidth | 54 |
| EngineerHeight | 90 |
| EngineerDepth | 75 |
| Name | MCB C 3P 13A 10kA GQ |
|---|---|
| E-number | E2142989 |
| Article number | 352093 |
| Type designation | MCB GQ C313 |
| Rated current [A] | 13A |
| Connection type | Direct |
