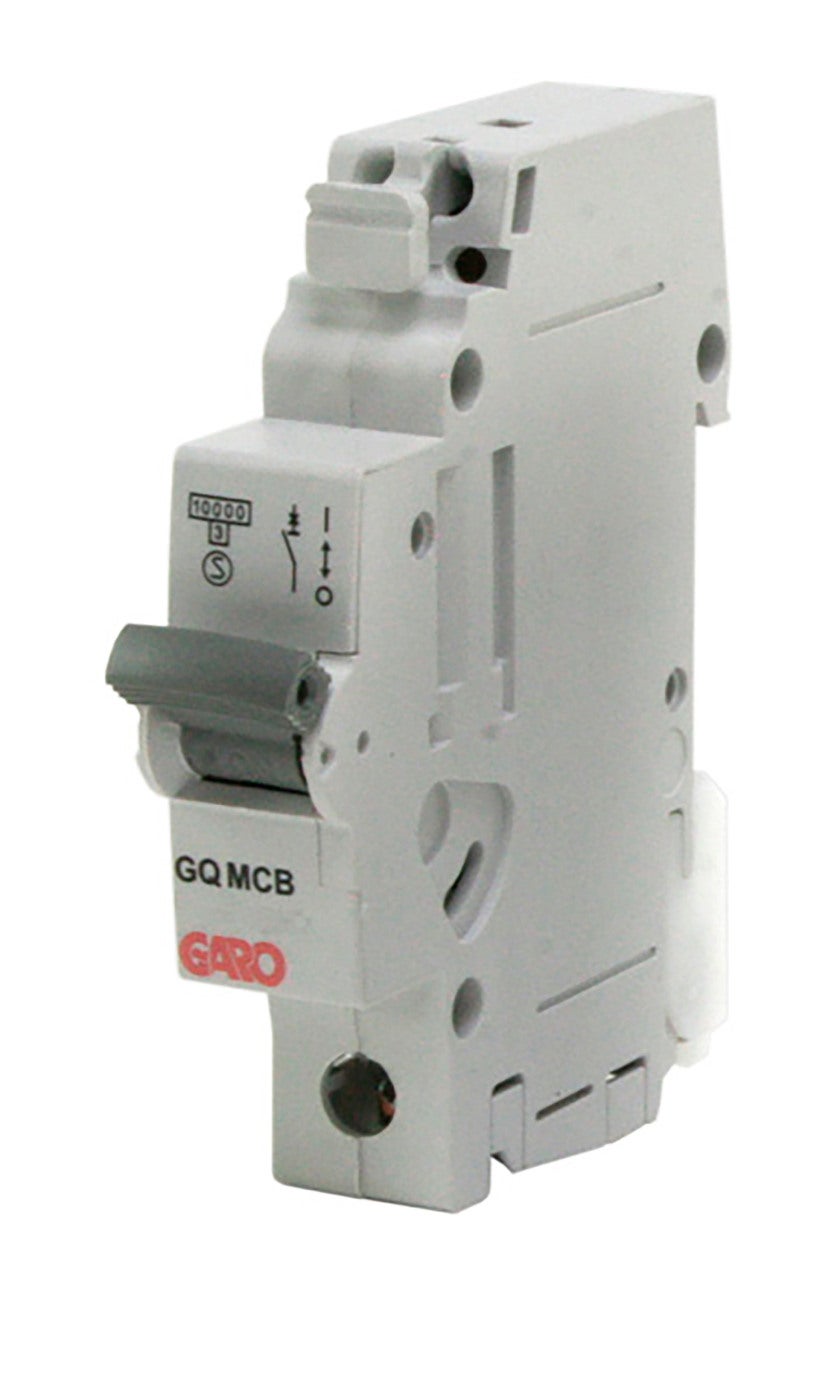

MCB 10kA 1P C-char GQ
Miniature circuit breaker 10kA with quick connection ideal for industrial and residential applications. It is capable of protecting the system against short-circuit currents up to 10,000 Ampere. It is equipped with a mounting bracket that allows you to remove or install a miniature circuit-breaker even when the phase busbar is installed and is compatible with all GARO busbars for miniature circuit-breakers. MCB GQ C-Characteristic 10A 10kA 1-pole
E-number
E2142984
E2142984
Article number
352088
352088
| Standard | EN60898-1 |
|---|---|
| Short-circuit current [kA] | 10kA |
| Storage temperature [C] | -35C...+55C |
| Frequency [Hz] | 50/60Hz |
| Housing material | Plastic |
| Color | Grey |
| Rated voltage [V AC] | 240-415V AC |
| Number of modules | 1 |
| Number of poles | 1 |
| Tripping characteristics | C |
| Connection type | Quick |
| Wire flexible [mm²] | 1,5-4mm² |
| Degree of protection [IP] | IP20 |
| NetProductWeight | 0.092 |
| EngineerWidth | 18 |
| EngineerHeight | 90 |
| EngineerDepth | 75 |
| Name | MCB C 1P 10A 10kA GQ |
|---|---|
| E-number | E2142984 |
| Article number | 352088 |
| Type designation | MCB GQ C110 |
| Operation Temperature [C] | -25C...+55C |
| Rated current [A] | 10A |
