RCBO B 2P 6A 10kA 30mA 2M GS

Earth leakage circuit breaker (RCBO) 10kA 2P B-char

Earth leakage circuit breaker (RCBO) 10kA 2-poles B-characteristic RCBO GS B-characteristic 6A 2-poles 10kA
E-number
E2163225
Article number
2163225
Support
Standard EN61009-1
Short-circuit current [kA] 10kA
Housing material Plastic
Color Grey
Number of poles 2
Tripping characteristics C
Connection type Screw
Mounting method DIN-rail
Degree of protection [IP] IP20
Sensitivity[mA] 30mA
Leakage current type A
NetProductWeight 0.23
EngineerWidth 36
EngineerDepth 72
Name RCBO B 2P 6A 10kA 30mA 2M GS
E-number E2163225
Article number 2163225
Type designation RCBO B2P 6A 6kA GS
Storage temperature [C] -35C...+55C
Operation Temperature [C] -25C...+55C
Frequency [Hz] 50/60Hz
Rated current [A] 6A
Rated voltage [V AC] 230/400V AC
Tightening torque [Nm] 2,5Nm
Wire flexible [mm²] 1,5-25mm²
Claim prefuse [A] 125A
EngineerHeight 90

More variants of Earth leakage circuit breaker (RCBO) 10kA 2P B-char

E-number Article number Type designation Storage temperature [C] Operation Temperature [C] Frequency [Hz] Rated current [A] Rated voltage [V AC] Number of modules Tightening torque [Nm] Wire flexible [mm²] Claim prefuse [A] EngineerHeight
RCBO B 2P 6A 10kA 30mA 2M GS E2163225 2163225 RCBO B2P 6A 6kA GS -35C...+55C -25C...+55C 50/60Hz 6A 230/400V AC 2,5Nm 1,5-25mm² 125A 90
RCBO B 2P 10A 10kA 30mA 2M GS E2163226 2163226 RCBO B2P 10A 6kA GS -25C...+55C 50Hz 10A 230/400V AC 2 2,5Nm 1-2,5mm² 100A 90

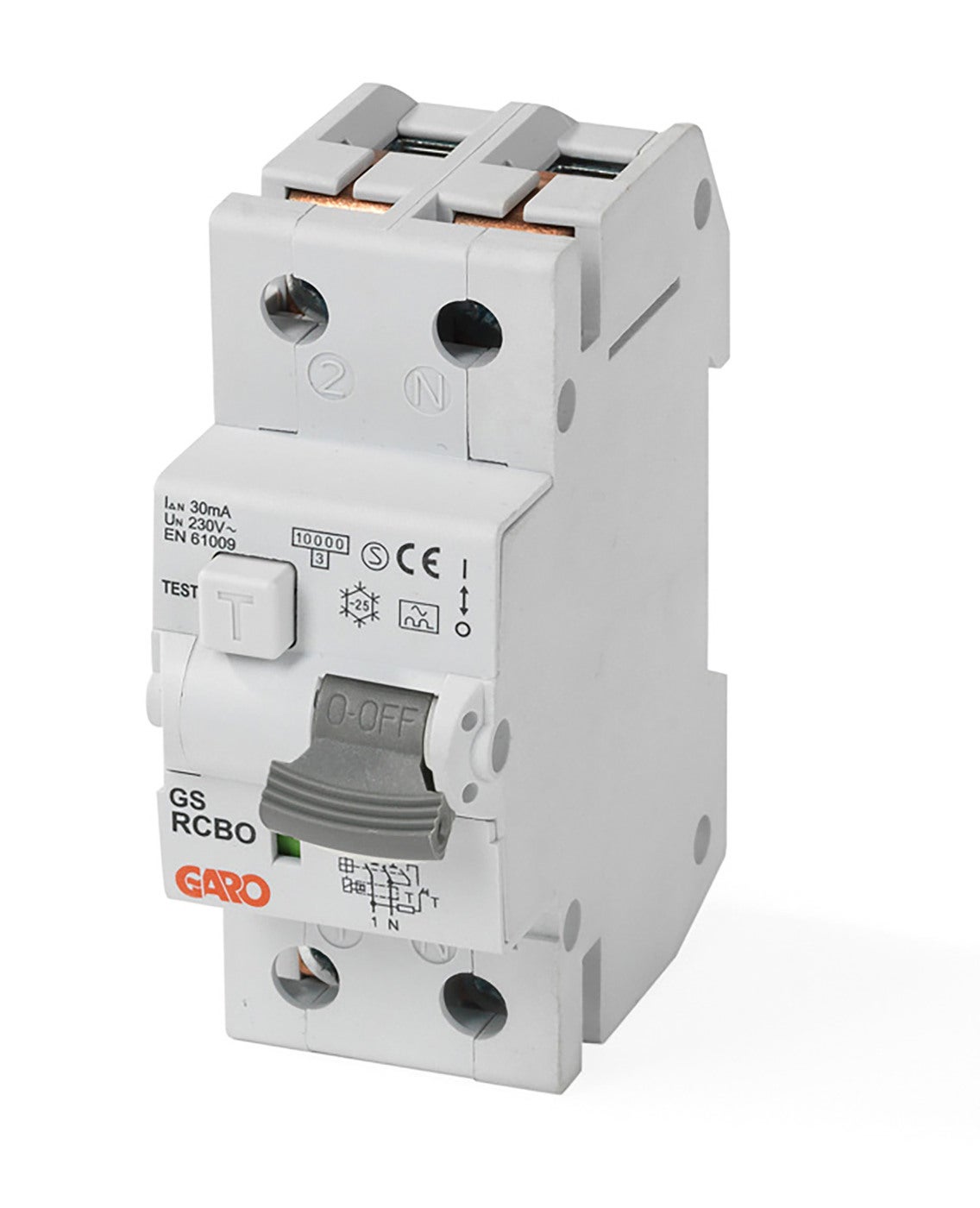

RCBO B 2P 13A 10kA 30mA 2M GS E2163227 2163227 RCBO B2P 13A 6kA GS -35C...+55C -25C...+55C 50Hz 13A 230/400V AC 2 3Nm 1-2,5mm² 100A 90
RCBO B 2P 16A 10kA 30mA 2M GS E2163228 2163228 RCBO B2P 16A 6kA GS -35C...+55C -25C...+55C 50/60Hz 13A 230V AC 2 3Nm 1,5-25mm² 125A 90

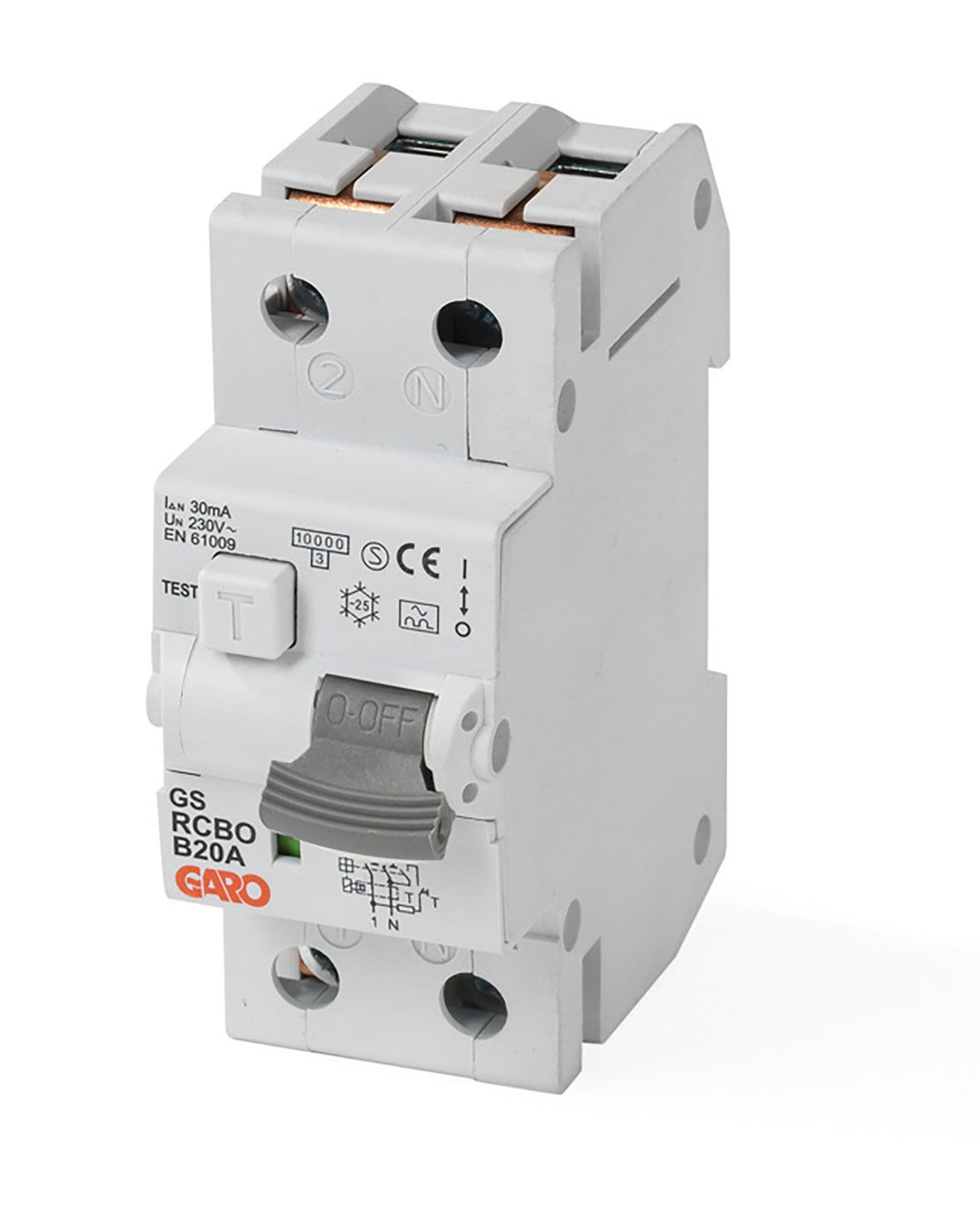

RCBO GS B-CHAR 20A 2P E2163229 2163229 RCBO B2P 20A 6kA GS -35C...+55C 50/60Hz 20A 230/400V AC 2,5Nm 1,5-25mm² 100A 88
RCBO GS B-CHAR 25A 2P E2163230 2163230 RCBO B2P 25A 6kA GS -35C...+55C -35C...+55C 50/60Hz 25A 230/400V AC 2 2,5Nm 1,5-25mm² 100A 88
RCBO GS B-CHAR 32A 2P E2163231 2163231 RCBO B2P 32A 6kA GS -35C...+55C -25C...+55C 50/60Hz 32A 230/400V AC 3Nm 1,5-25mm² 100A 88
RCBO GS B-CHAR 40A 2P E2163232 2163232 RCBO B2P 40A 6kA GS -35C...+55C -25C...+55C 50/60Hz 40A 230/400V AC 2 2,5Nm 1,5-25mm² 100A 88
