RCBO AFDD 10kA 2P C6A

Earth leakage circuit breaker (RCBO) 10kA 2P C-char AFDD

Earth leakage circuit breaker (RCBO) 10kA 2-poles C-characteristic art fault detection device (AFDD) RCBO arc fault detection device(AFDD) C-characteristic 10kA 2-poles 3modules 6A
E-number
E2163310
Article number
109782
Support
NetProductWeight 0.38
EngineerWidth 54
EngineerHeight 88
EngineerDepth 74
Name RCBO AFDD 10kA 2P C6A
E-number E2163310
Article number 109782
Type designation RCBO C2P 6A 10kA AFDD
Standard EN61009-1
Short-circuit current [kA] 10kA
Operation Temperature [C] -25C...+50C
Frequency [Hz] 50Hz
Housing material Plastic
Color Grey
Rated current [A] 6A
Rated voltage [V AC] 230V AC
Number of poles 2
Tightening torque [Nm] 3Nm
Tripping characteristics C
Connection type Screw
Wire flexible [mm²] 1,5-25mm²
Mounting method Floor fastening
Degree of protection [IP] IP20
Leakage current type A
Claim prefuse [A] 100A

More variants of Earth leakage circuit breaker (RCBO) 10kA 2P C-char AFDD

E-number Article number Type designation Standard Short-circuit current [kA] Operation Temperature [C] Frequency [Hz] Housing material Color Rated current [A] Rated voltage [V AC] Number of poles Tightening torque [Nm] Tripping characteristics Connection type Wire flexible [mm²] Mounting method Degree of protection [IP] Leakage current type Claim prefuse [A]
RCBO AFDD 10kA 2P C6A E2163310 109782 RCBO C2P 6A 10kA AFDD EN61009-1 10kA -25C...+50C 50Hz Plastic Grey 6A 230V AC 2 3Nm C Screw 1,5-25mm² Floor fastening IP20 A 100A

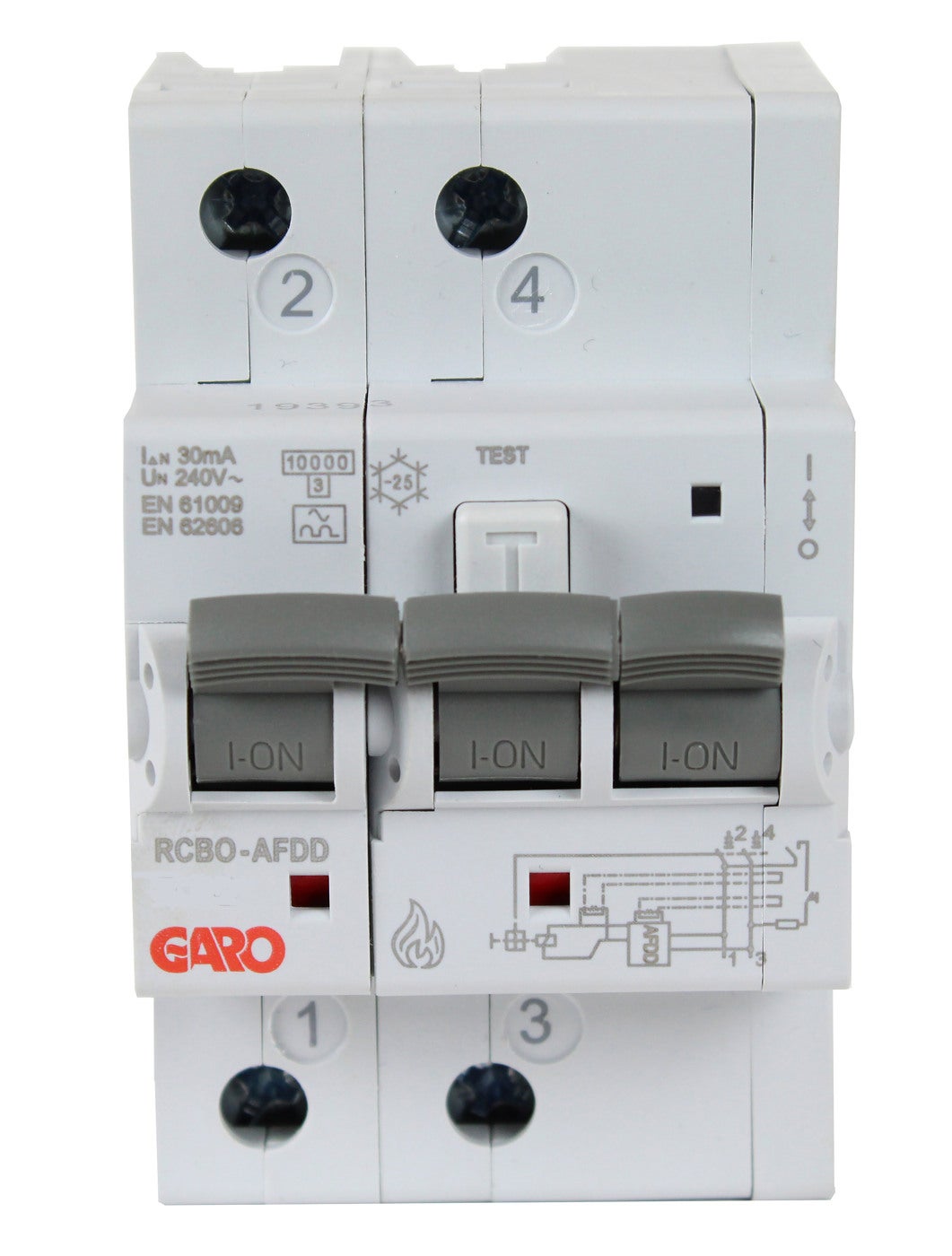

RCBO AFDD 10kA 2P C10A E2163311 109783 RCBO C2P 10A 10kA AFDD 100A
RCBO AFDD 10kA 2P C13A E2163312 109784 RCBO C2P 13A 10kA AFDD
RCBO AFDD 10kA 2P C16A E2163313 109785 RCBO C2P 16A 10kA AFDD
