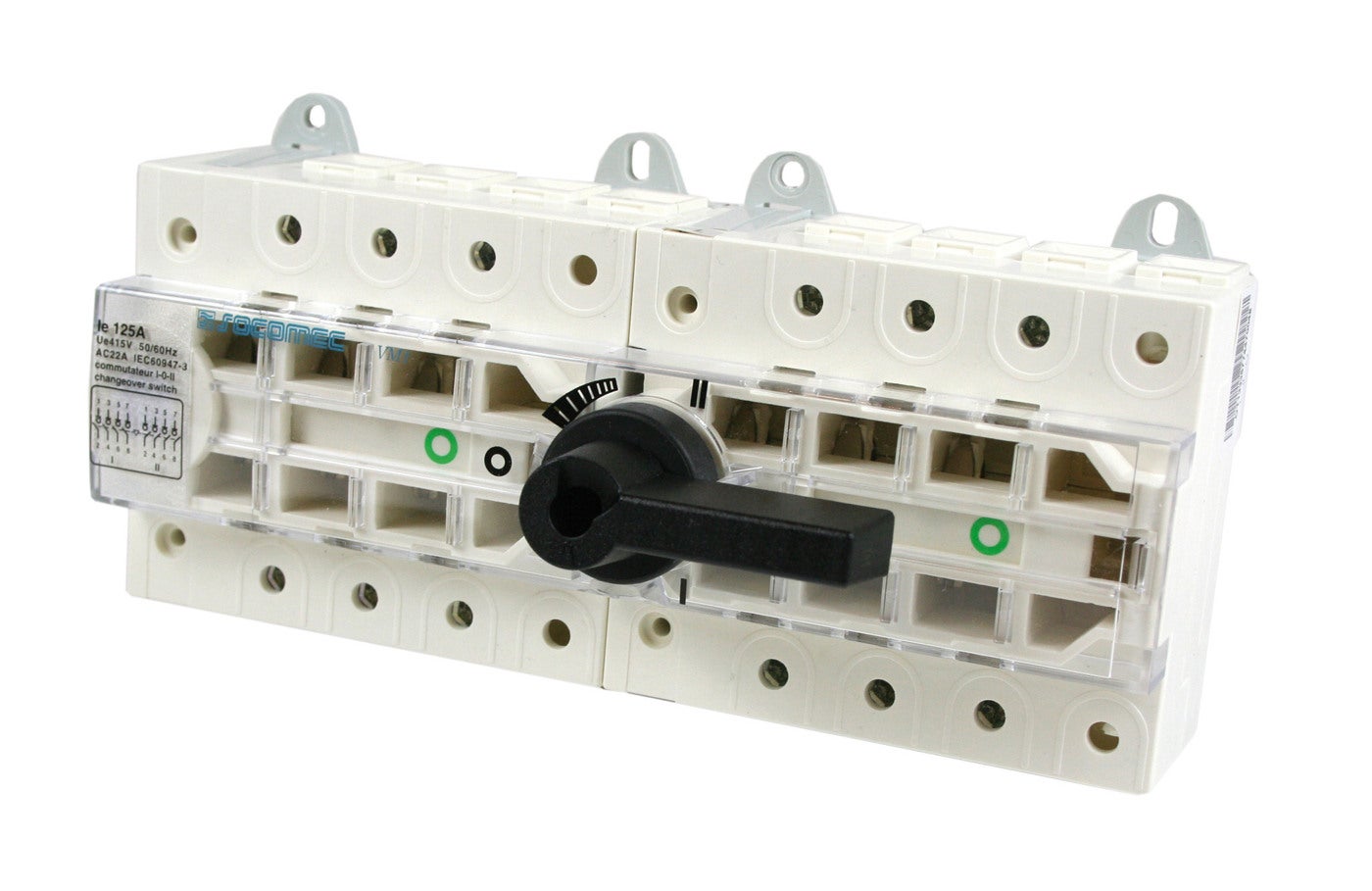

Change-over switches DIN-slot 3-poles
Changeover switch for DIN slots type VM1 with visible break, I-O-II. Changeover I-O-II 3poles 125A
E-number
E2142880
E2142880
Article number
2142880
2142880
| Type designation | OMK 3P 125A |
|---|---|
| Frequency [Hz] | 50/60Hz |
| Housing material | Plastic |
| Color | Grey |
| Rated current [A] | 125A |
| Number of modules | 12 |
| Number of poles | 3 |
| Wire flexible [mm²] | 50mm² Cu |
| Incoming [mm²] | 50mm² Cu |
| Degree of protection [IP] | IP20 |
| NetProductWeight | 1.29 |
| EngineerWidth | 250 |
| EngineerHeight | 110 |
| EngineerDepth | 145 |
| Name | SWITCH CHANGEOVER 125A 3P VMI |
|---|---|
| E-number | E2142880 |
| Article number | 2142880 |
