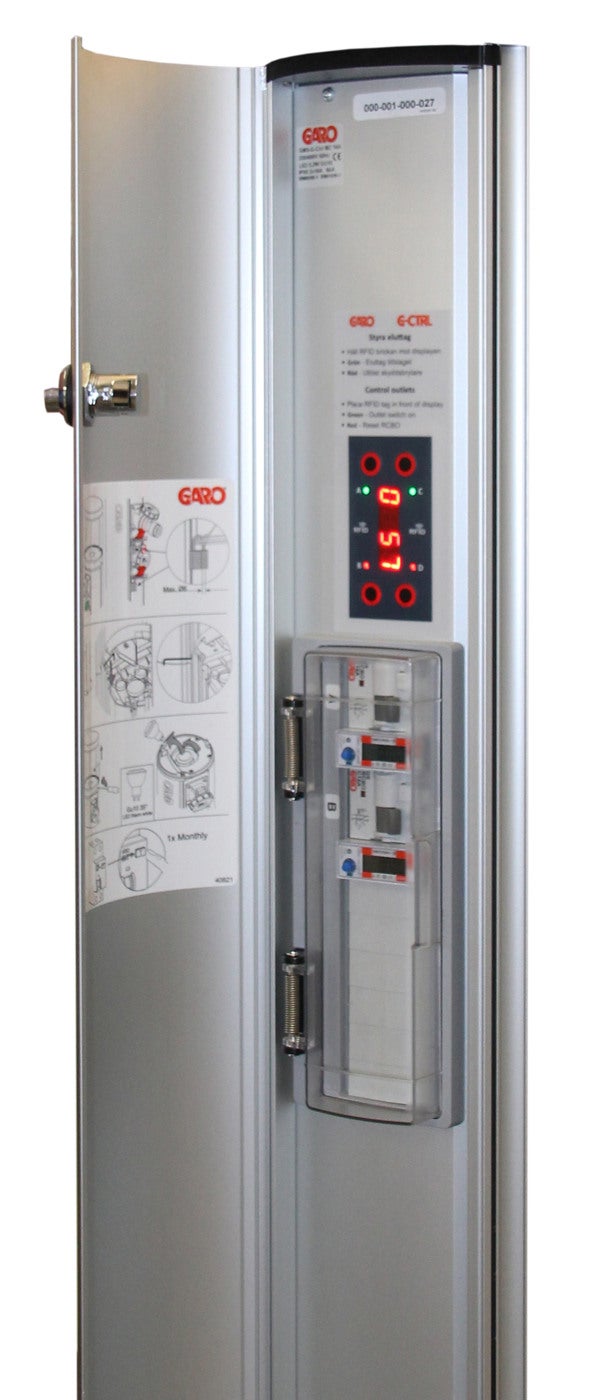

Koster with two 1-phase socket with meter
Koster marina posts with the designation GMS E2 or GMS M2 are ideal for private jetties or for small boat club. The pedestal is equipped with two 230V electrical outlet sockets, type IEC216. The outlet sockets are equipped with hardware for a standard padlock and the outlet sockets can be locked with or without the plug inserted. The posts are supplied with 6, 10 or 16A residual current breaker with overload protection. All posts are prepared to be equipped with water tap and hose reel, which are sold as ac Marinpole G-ctrl 2 outlets with measuring 16A.
| Standard | EN61439-3 |
|---|---|
| Housing material | Aluminium |
| Color | Grey |
| Mounting method | Floor fastening |
| Lock | Yes |
| Degree of protection [IP] | IPX6 |
| Name | MARINAPOLE 16A 2XIEC WM GCTRL |
|---|---|
| E-number | E2449831 |
| Article number | 352523 |
| Type designation | GMS GC M2 16A |
| Rated current [A] | 16A |
| Wire flexible [mm²] | 25mm² |
| Modelltype | Koster |
| Energymeter | Debit approved MID |
| Type of door | Self closing door |
| RCBO | 2pcs C2P 16A |
| Number of RCBO | 2pcs C2P 16A |
| Control through smartphone | Yes |
| Control through RFID | Yes |
| Control through WEB | Yes |
| Partpayment seasonguest | Yes |
| Intergrated in Turbo | Yes |
| EngineerWidth | 253 |
| EngineerHeight | 1300 |
| EngineerDepth | 250 |
