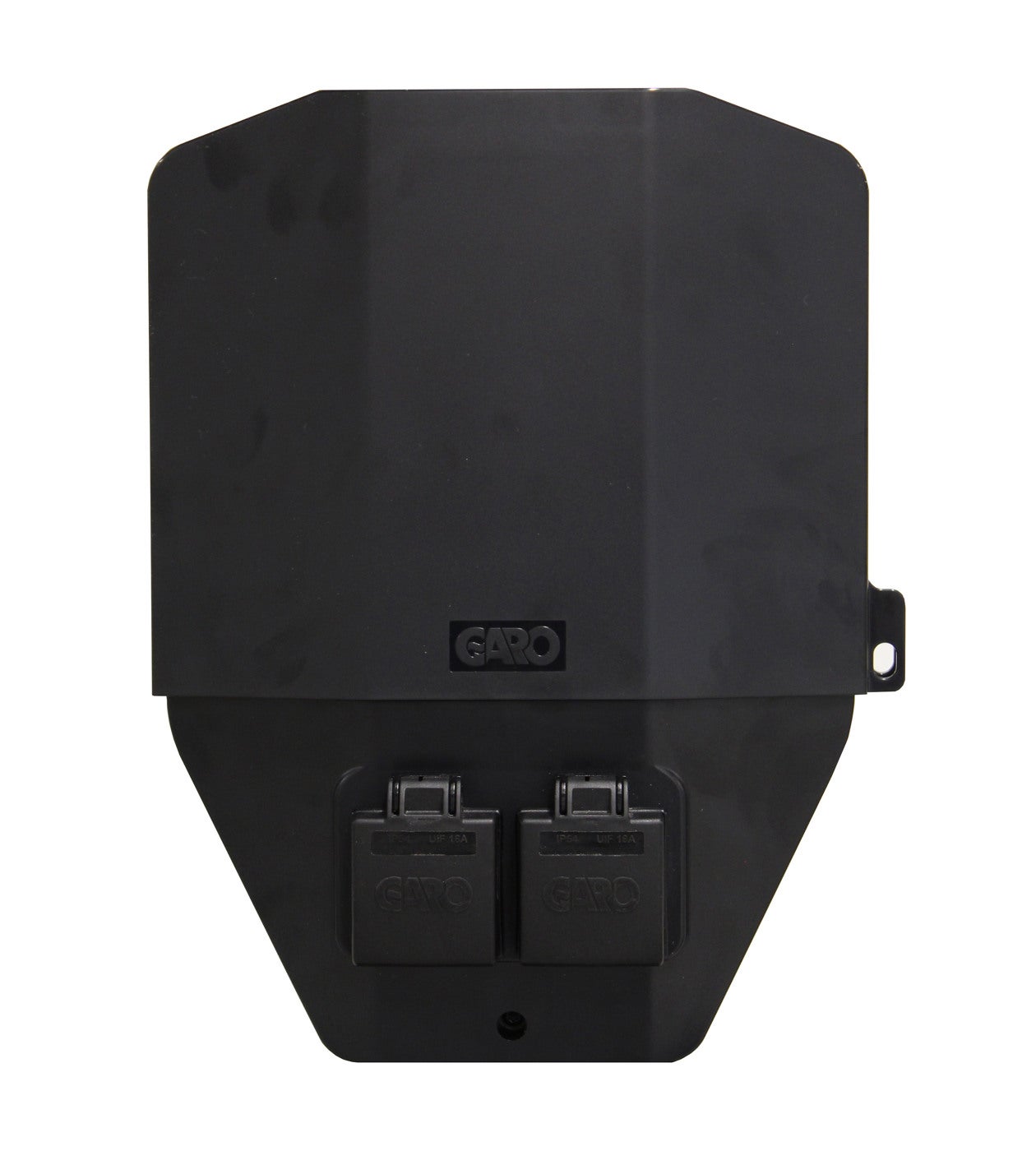

Entity Heat time and temperature controlled without meter(EH)
Entity Heat time and temperature controlled without meter
Engine heater time and temperature control 10A with RCCB without meter
| Standard | IEC61439-7 |
|---|---|
| WIFI | No |
| Short-circuit current [kA] | 10kA |
| Operation Temperature [C] | -25C...+40C |
| Frequency [Hz] | 50Hz |
| Color | Black |
| Rated voltage [V AC] | 230/400V AC |
| Mounting method | Wall mounting |
| Modelltype | Entity Heat |
| Energymeter | No |
| Lock | Yes |
| RAL-number | RAL9011 |
| Number of Schuko[pcs] | 2pcs |
| Complete device in housing | Yes |
| Timeprogram | Day |
| With lighting | Illuminated display |
| Time switch | Yes |
| Degree of protection [IP] | IP44 |
| Impact strength [IK] | IK10 |
| NetProductWeight | 2.4 |
| EngineerWidth | 240 |
| EngineerHeight | 340 |
| EngineerDepth | 135 |
| Name | ENGINE HEATER ENTITY HEAT 10A |
|---|---|
| E-number | E2445645 |
| Article number | 354339 |
| Type designation | EH 210-2 |
| Rated current [A] | 10A |
| RCBO | 2pcs C2P 10A |
