Inserts with schuko and outlets with meter
The inserts is designed e.g. for squares, cemeteries and other places where temporary access to 230/400V is needed. Equipped with quick coupling. AEUM is also equipped with a kWh meter. The ACU insert is an insert that makes it possible to replace the UI 416-6 with a Schuko socket. To do this requires adapter 41155 and wall socket 18 968 80. Not connected. For fuse protection complete with ACS416. Insert with measuring 3x16A fits P100 system, RCBO,1xschuko and 1xUI416-6
E-number
E2449459
E2449459
Article number
2449459
2449459
| Type designation | AEUM |
|---|---|
| Standard | EN61439-3 |
| Short-circuit current [kA] | 6kA |
| Frequency [Hz] | 50Hz |
| Housing material | Plastic |
| Color | Grey |
| Rated current [A] | 16A |
| Rated voltage [V AC] | 230V AC |
| Modelltype | PN100 Insert |
| Energymeter | Yes |
| CEE socket outlet 16A | 1pcs 5P 16A 230/400V |
| Number of MCB 1P (1) | No |
| Number of Schuko[pcs] | 2pcs |
| Number of RCCB [pcs] 1 | No |
| Number of RCBO [pcs] | 1pcs C4P 16A |
| Degree of protection [IP] | IP44 |
| NetProductWeight | 1.5 |
| EngineerWidth | 175 |
| EngineerHeight | 220 |
| EngineerDepth | 130 |
| Further feeding polebracket | Yes |
| Further feeding wallbracket | No |

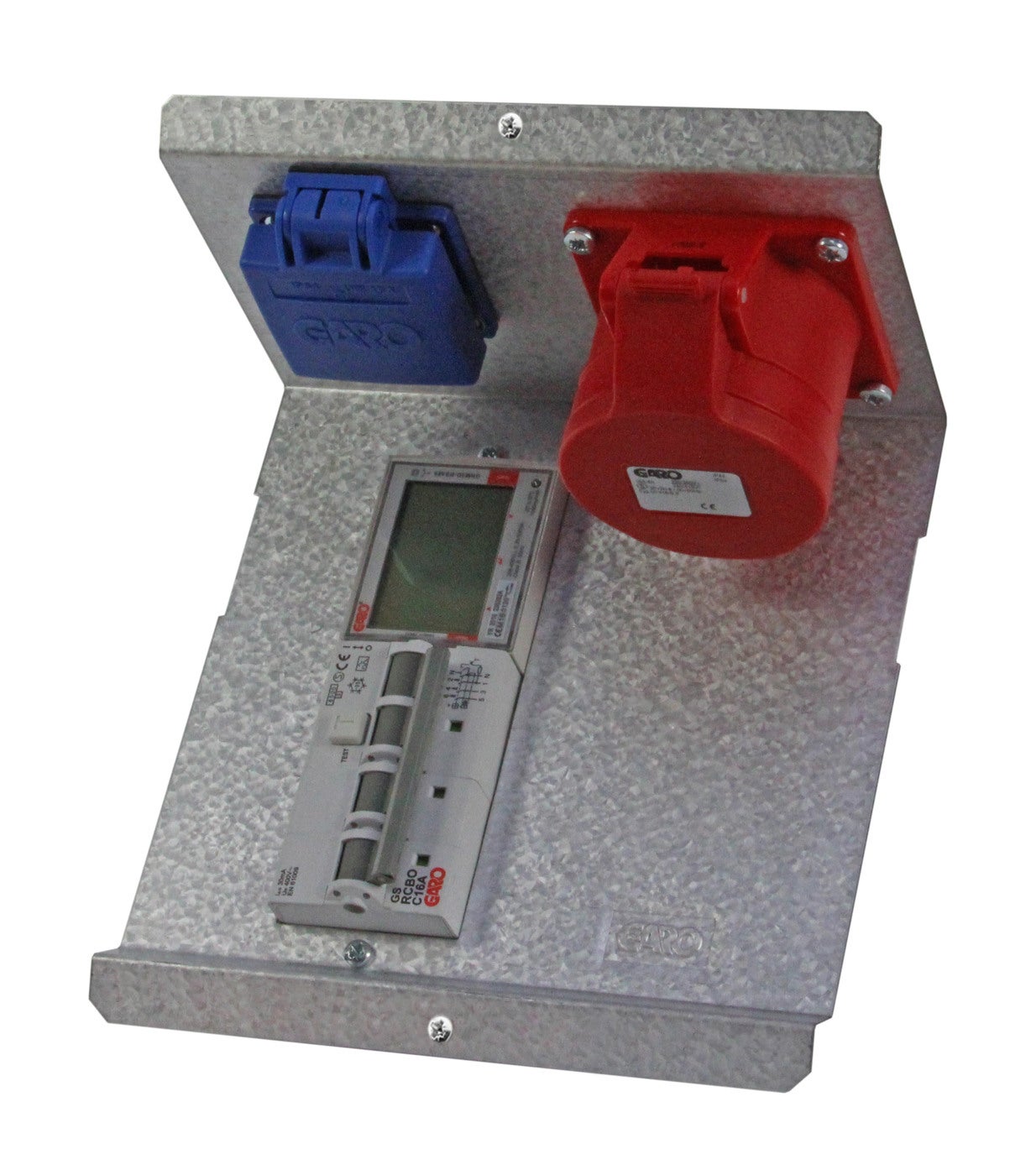

| Name | INSERT SCHUKO-IEC WM P |
|---|---|
| E-number | E2449459 |
| Article number | 2449459 |
