Inserts 24h/day 3 outlet without meter

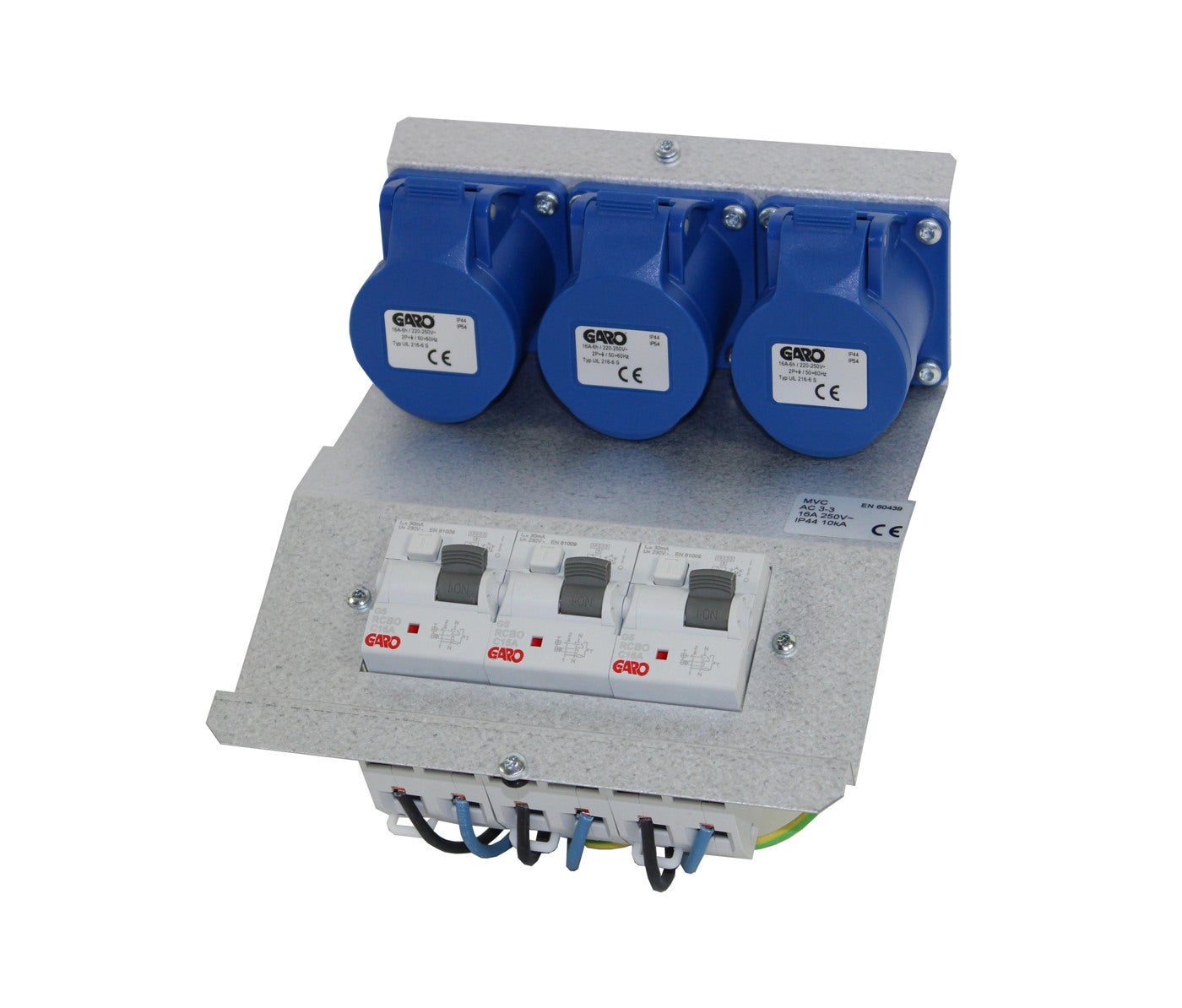

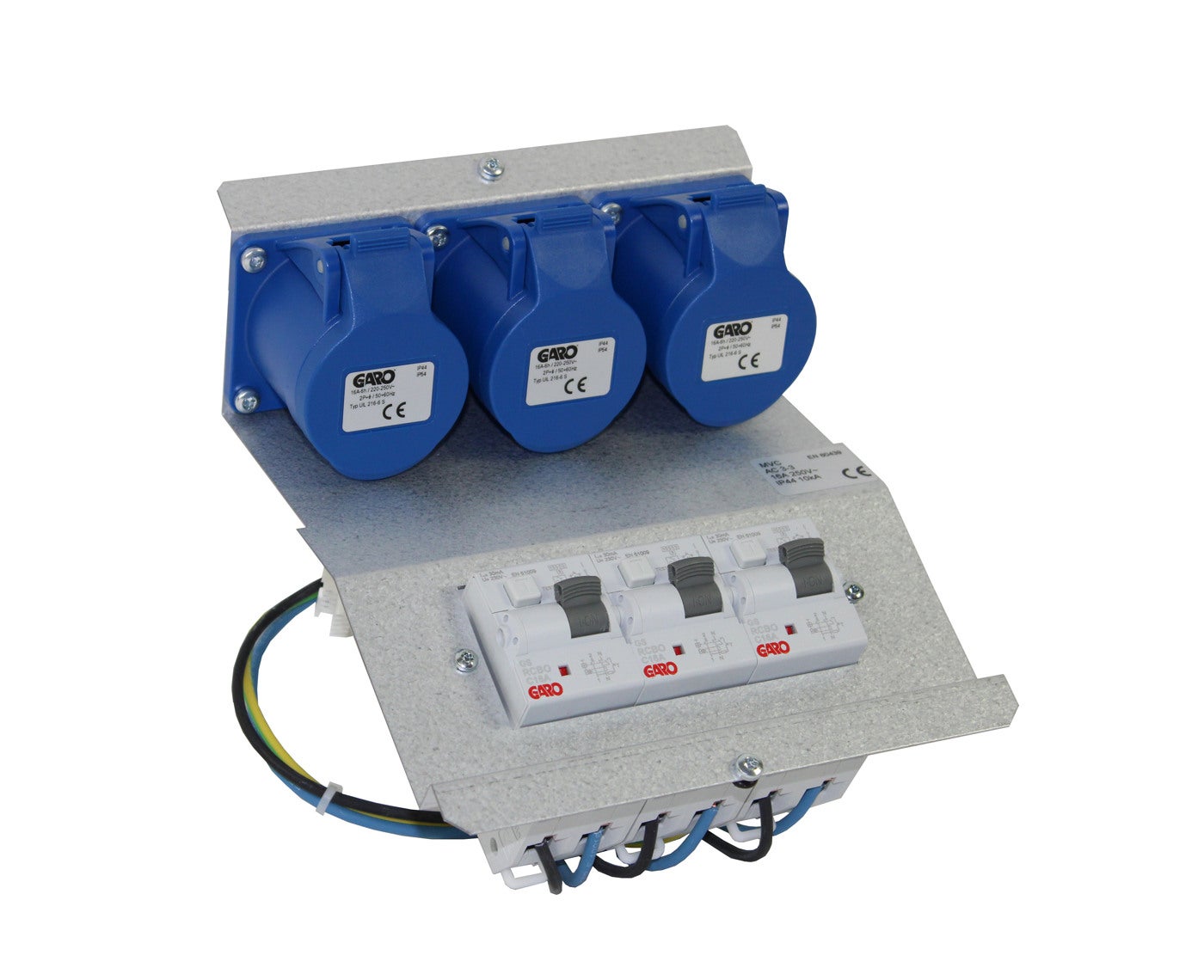

Using this insert you always have access to electricity 24 hours/day. The insert is equipped with 3 RCBOs and 3 IEC sockets without measurement. Insert camping without measuring 10A fits P100 system, 3 outlet connected 24h/day.
E-number
E2449445
Article number
2449445
Support
NetProductWeight 1.5
EngineerWidth 175
EngineerHeight 220
EngineerDepth 100
Name INSERT CAMP 10A WOM 24T/D P3
E-number E2449445
Article number 2449445
Type designation AC 310-3
Standard EN61439-3
Short-circuit current [kA] 10kA
Frequency [Hz] 50Hz
Housing material Plastic
Color Grey
Rated current [A] 16A
Rated voltage [V AC] 230V AC
Modelltype PN100 Insert
Energymeter No
CEE socket outlet 16A 2pcs 3P 16A 230V
Number of RCBO [pcs] 2pcs C2P 16A
Response time [h] Continuous
Degree of protection [IP] IP44

More variants of Inserts 24h/day 3 outlet without meter

E-number Article number Type designation Standard Short-circuit current [kA] Frequency [Hz] Housing material Color Rated current [A] Rated voltage [V AC] Modelltype Energymeter CEE socket outlet 16A Number of RCBO [pcs] Response time [h] Degree of protection [IP]
INSERT CAMP 10A WOM 24T/D P3 E2449445 2449445 AC 310-3 EN61439-3 10kA 50Hz Plastic Grey 16A 230V AC PN100 Insert No 2pcs 3P 16A 230V 2pcs C2P 16A Continuous IP44
INSERT CAMP 16A WOM 24T/D P3 E2449446 2449446 AC 316-3
