Inserts 24h/day 2 outlet with meter

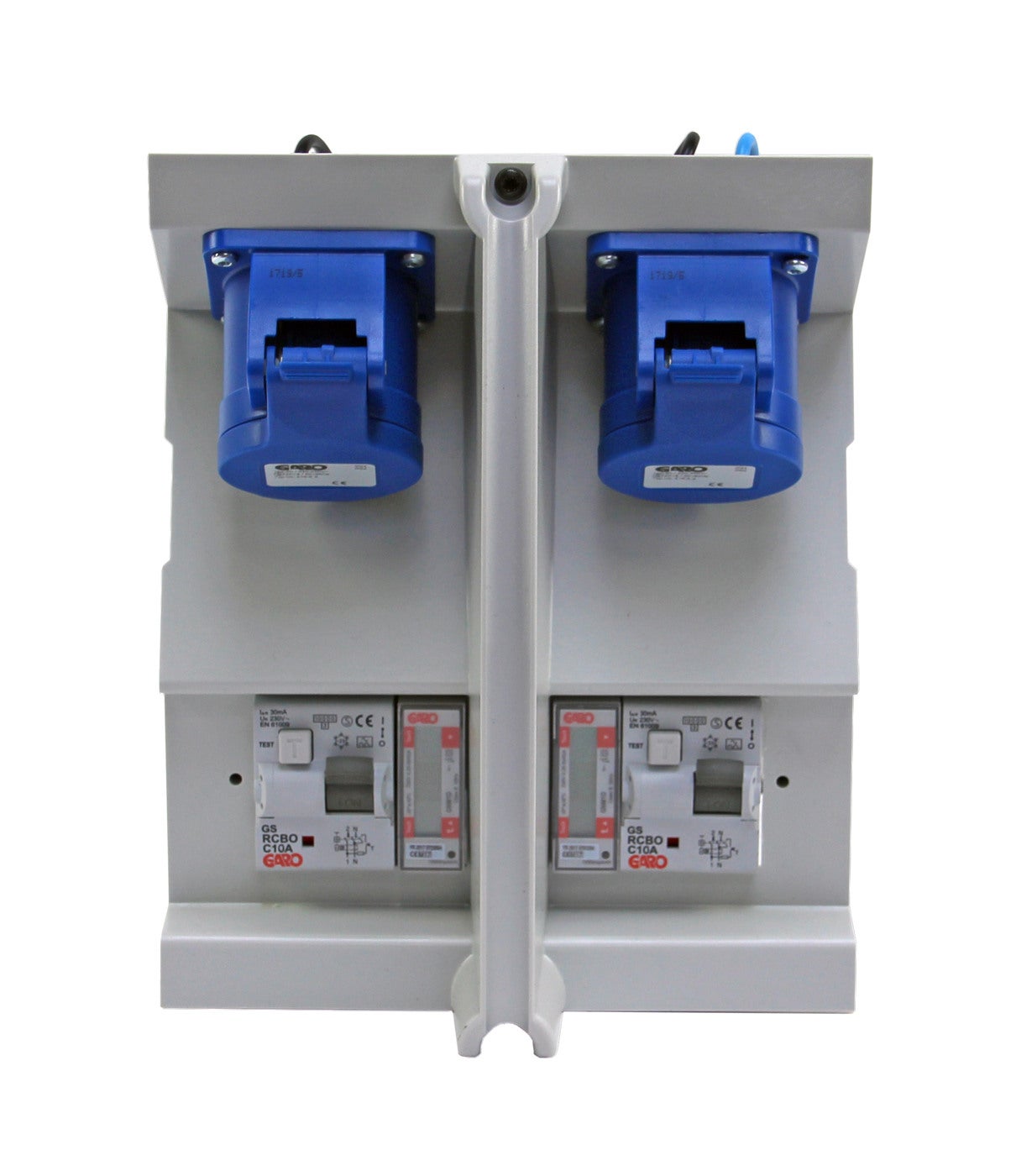

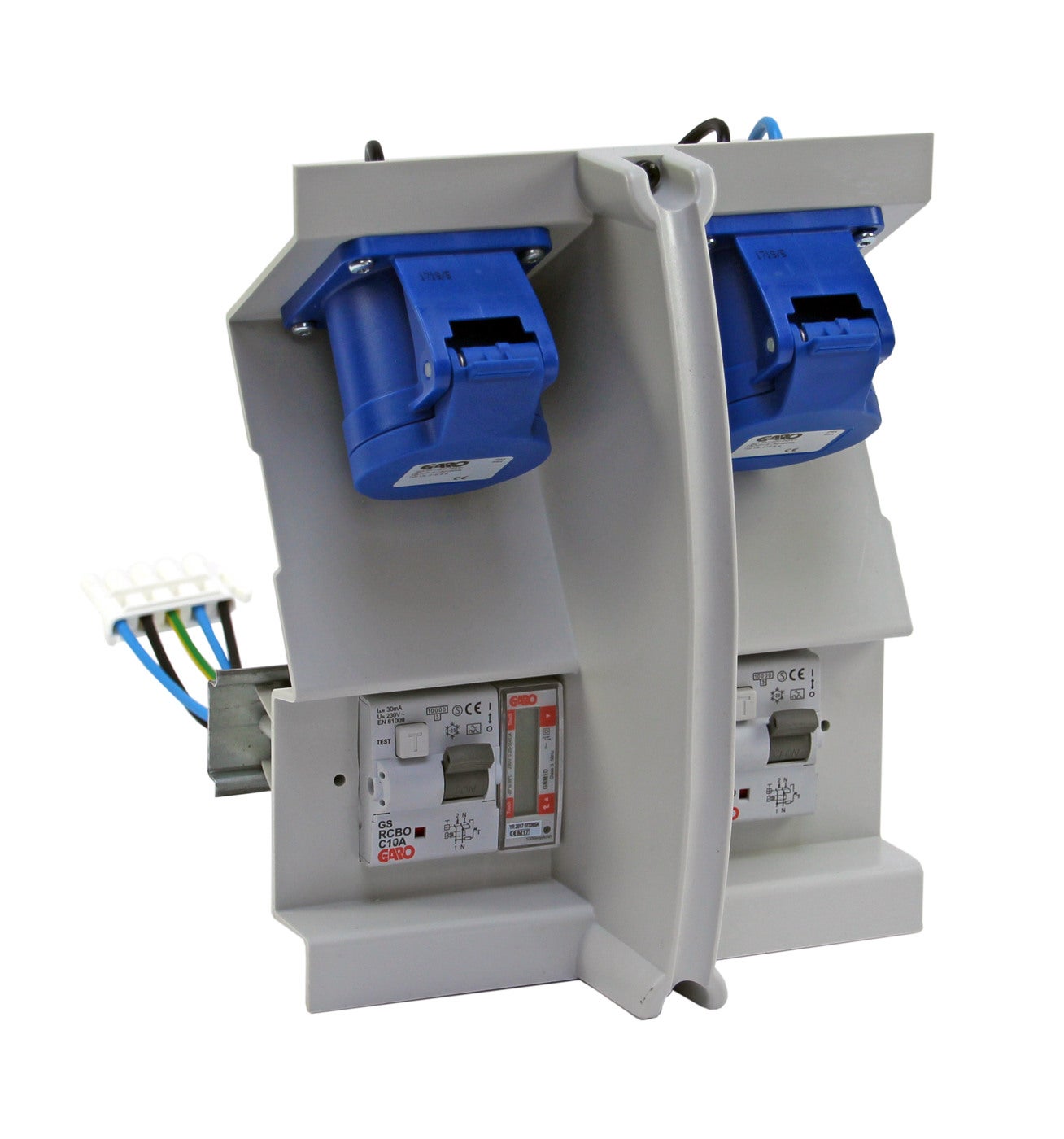

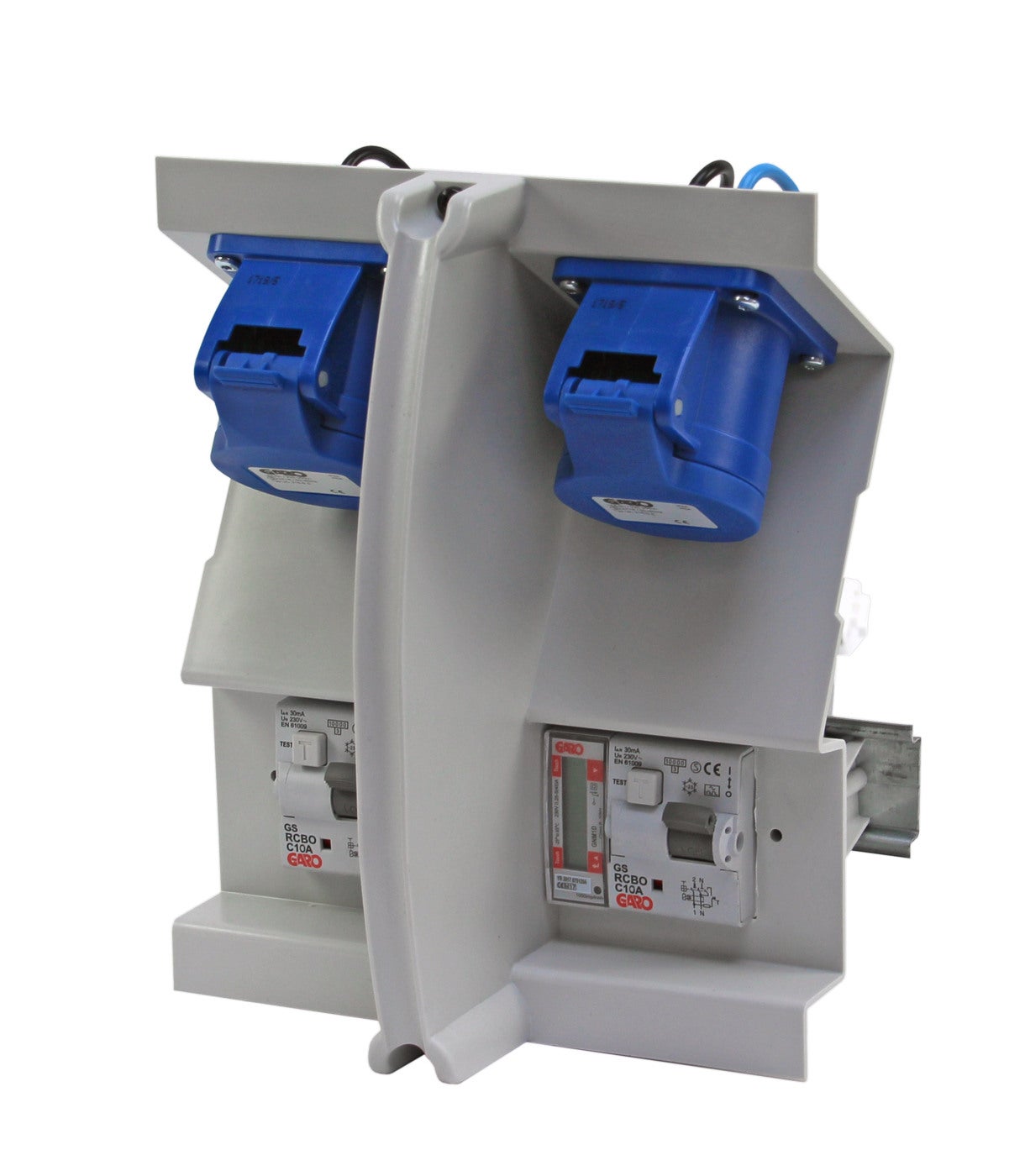

Using this insert you always have access to electricity 24 hours/day. The insert has a digital energy meter, which makes it possible to read the exact consumption. The insert is fitted with 2 RCBOs and 2 IEC sockets and with measurement on the socket. The components are mounted on a DIN rail, making replacement very easy. The insert is compatible and can be used with old series of P100 enclosure. Insert camping with measuring 10A connected 24h/day,RCBO
E-number
E2449211
E2449211
Article number
353015
353015
| Standard | EN61439-3 |
|---|---|
| Short-circuit current [kA] | 10kA |
| Frequency [Hz] | 50Hz |
| Housing material | Plastic |
| Color | Grey |
| Rated current [A] | 16A |
| Rated voltage [V AC] | 230V AC |
| Modelltype | PN100 Insert |
| Energymeter | Yes |
| CEE socket outlet 16A | 2pcs 3P 16A 230V |
| Number of RCBO [pcs] | 2pcs C2P 10A |
| Response time [h] | 24h |
| Degree of protection [IP] | IP44 |
| NetProductWeight | 1.5 |
| EngineerWidth | 175 |
| EngineerHeight | 220 |
| EngineerDepth | 100 |
| Name | INSERT CAMP 10A WM 24H/D |
|---|---|
| E-number | E2449211 |
| Article number | 353015 |
| Type designation | ACMN 210-2 |
