Safety switches polycarbonate

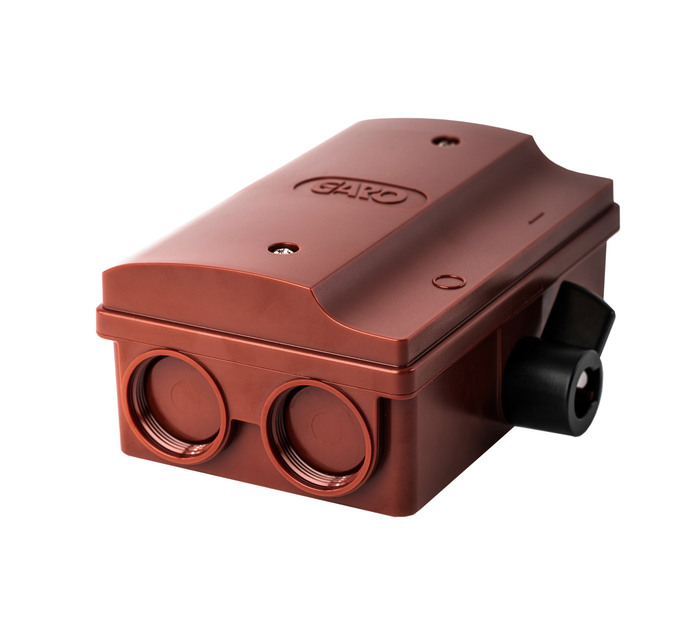

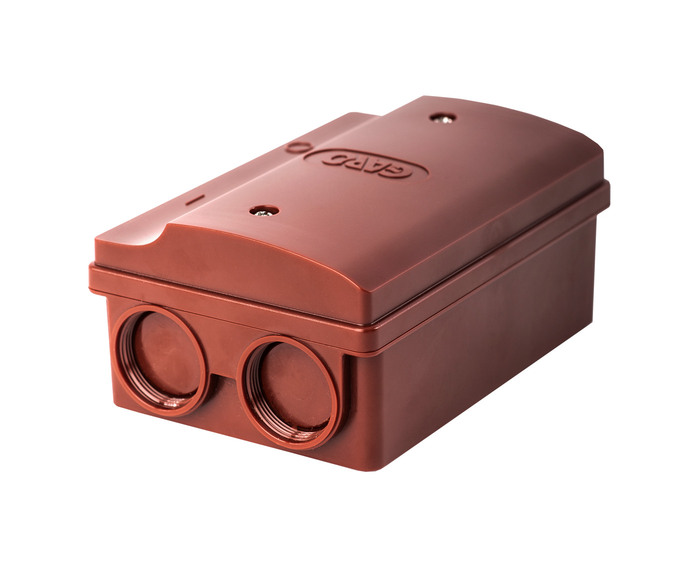

Safety switches polycarbonate Safety switch red 3 poles 25A with auxilliary switch
E-number
3135628
Article number
354189
Standard EN 60947-3
Package size [pcs] 1
Connection PE [pcs] [mm²] 12+11
Name SAFETY SW RED 3P 25A H
E-number 3135628
Article number 354189
Type designation SBGR 325H
Rated current AC23 400V [A] 25
No.of Poles [pcs] 3P
Degree of protection [IP] 65
Colour RAL3009 Falu red
Width [mm] 127
Height [mm] 157
Depth [mm] 71
Materials Polycarbonate
Max connection area 16
kW 11
Auxiliary contact Yes
Isolation voltage [V] 690
Connection phase Cu [mm²] 240
Connection N/PE Cu [mm²] 6

More variants of Safety switches polycarbonate

E-number Article number Type designation Rated current AC23 400V [A] No.of Poles [pcs] Degree of protection [IP] Colour Width [mm] Height [mm] Depth [mm] Netweight [kg] Materials Connection N & phase Cu [mm²] Connection PE [pcs] [mm²] Glands Max connection area kW Connection Al [mm²] Auxiliary contact Isolation voltage [V] Connection phase Cu [mm²] Connection N/PE Cu [mm²]
SAFETY SW PC 3P 200A 3134179 107603 SBG3200 200 3 65 RAL7035 Grey 380 560 240 12.26 Polycarbonate 12+11 1xEPA2260+M20 70-185 110 240 Ja/Yes 1000 240
SAFETY SW PC 6P 200A 3134180 107604 SBG6200 200 6 65 RAL7035 Grey 560 760 310 24.70 Polycarbonate 12+11 2xEPA2260+M20 70-185 110 240 Ja/Yes 1000
SAFETY SW 3P 160A PC 3134181 107605 GKUM3160T1V 135 3 65 RAL7035 Grey 280 560 171 4.50 Polycarbonate 12+11 2xM63+M16 70 75 120 Ja/Yes 690
SAFETY SW 3P 250A PC 3134182 107606 GKUM3250AVT1V 250 3 65 RAL7035 Grey 380 560 240 12.50 Polycarbonate 1xEPA2260+M20 70-185 132 240 Ja/Yes 1000
SAFETY SW 6P 250A PC 3134183 107607 GKUM6250AVT1V 250 6 65 RAL7035 Grey 560 760 310 24.70 Polycarbonate 12+11 2xEPA2260+M20 70-185 132 240 Ja/Yes 1000
SAFETY SW 3P 400A PC
3134184 107608 GKUM3400VT1V 400 3 65 RAL7035 Grey 560 760 310 22.20 Polycarbonate 12+11 2xEPA2260+M20 70-185 200 2x240 Ja/Yes 1000
SAFETY SW 3P 630A PC
3134185 107609 GKUM3630VT1V 630 3 65 RAL7035 Grey 560 760 310 22.80 Polycarbonate 12+11 2xEPA2260+M20 70-185 355 2x240 Ja/Yes 1000
SAFETY SWITCH 3-POL 80A AUX 3135756 110125 SBGH380H 80 3 65 RAL7035 Grey 280 380 171 3.10 Polycarbonate 12+11 2xM40+M16 70 45 Yes 690 70
Safety switch grey 3-poles 80A with auxilliary 3135757 110126 SBG3125H 125 3 65 RAL7035 Grey 280 560 171 5.30 Polycarbonate 70 12+11 1xEPA2260+M20 70 55 120 Ja/Yes 690
SAFETY SW GREY 6P 80A H 3135758 110127 SBG680H 80 6 65 RAL7035 Grey 280 380 171 3.82 Polycarbonate 70 12+11 4xM40+M16 70 45 Ja/Yes 690
SAFETY SW GREY 6P 125A H 3135759 110128 SBG6125H 125 6 65 RAL7035 Grey 380 560 240 10.23 Polycarbonate 70 12+11 4xM63+M16 70 55 Ja/Yes 690
SAFETY SW GREY 3P 16A 3155201 3155201 SBG 316G 16 3P 65 RAL7035 Grey 117 137 62 0.29 Polycarbonate 16 7,5 No 690 240 6
SAFETY SW GREY 4P 16A 3155203 3155203 SBG 416G 16 4P 65 RAL7035 Grey 117 137 62 0.32 Polycarbonate 16 7,5 No 690 240 6
SAFETY SW GREY 3P 16A AUX 3155204 3155204 SBG 316GH 16 3P 65 RAL7035 Grey 117 137 62 0.33 Polycarbonate 16 7,5 Yes 690 240 6
SAFETY SW GREY 4P 16A AUX 3155205 3155205 SBG 416GH 16 4P 65 RAL7035 Grey 117 137 62 0.36 Polycarbonate 16 7,5 Yes 690 240 6
SAFETY SW GREY 3P 25A H 3155206 3155206 SBG 325GH 25 3P 65 RAL7035 Grey 127 157 71 0.37 Polycarbonate 16 11 Yes 690 240 6
SAFETY SW GREY 4P 25A H 3155207 3155207 SBG 425GH 25 4P 65 RAL7035 Grey 127 157 71 0.40 Polycarbonate 16 11 Yes 690 240 6
SAFETY SW GREY 6P 25A H 3155214 3155214 SBG 625H 25 6P 66 RAL7035 Grey 144 190 131 1.04 Polycarbonate 16 12+11 4xM25+M16 16 11 Yes 690
SAFETY SW GREY 3P 32A H 3155215 3155215 SBG 332H 32 3P 66 RAL7035 Grey 144 190 131 0.80 Polycarbonate 16 12+11 2xM32+M16 35 15 Yes 690 240
SAFETY SW GREY 6P 32A H 3155216 3155216 SBG 632H 32 6P 66 RAL7035 Grey 144 190 131 1.09 Polycarbonate 16 12+11 4xM32+M16 35 15 Yes 690
SAFETY SW GREY 3P 40A H 3155217 3155217 SBG 340H 40 3P 66 RAL7035 Grey 144 190 131 0.82 Polycarbonate 35 12+11 2xM32+M16 35 22 0 690
SAFETY SW GREY 6P 40A H 3155218 3155218 SBG 640H 40 6P 66 RAL7035 Grey 144 190 131 1.11 Polycarbonate 35 12+11 4xM32+M16 35 13,9 Yes 690
SAFETY SW GREY 3P 63A H 3155219 3155219 SBG 363H 63 3P 66 RAL7035 Grey 144 190 131 0.85 Polycarbonate 35 12+11 2xM32L+M16 35 30 Yes 690
SAFETY SW GREY 6P 63A H 3155220 3155220 SBG 663H 63 6P 66 RAL7035 Grey 180 255 139 1.58 Polycarbonate 35 12+11 4xM32L+M16 35 30 Yes 690 240
SAFETY SW WHITE 3P 16A 3155221 3155221 SBG 316V 16 3P 65 RAL9010 White 117 137 62 0.29 Polycarbonate 16 7,5 No 690 240 6
SAFETY SW WHITE 4P 16A 3155222 3155222 SBG 416V 16 4P 65 RAL9010 White 117 137 62 0.32 Polycarbonate 16 7,5 No 690 240 6
SAFETY SW WHITE 3P 16A AUX 3155223 3155223 SBG 316VH 16 3P 65 RAL9010 White 117 137 62 0.33 Polycarbonate 16 7,5 Yes 690 240 6
SAFETY SW WHITE 4P 16A AUX 3155224 3155224 SBG 416VH 16 4P 65 RAL9010 White 117 137 62 0.36 Polycarbonate 16 7,5 Yes 690 240 6
SAFETY SW WHITE 3P 25A H 3155225 3155225 SBG 325VH 25 3P 65 RAL9010 White 127 157 71 Polycarbonate 16 11 Yes 690 240 6
SAFETY SW WHITE 4P 25A 3155226 3155226 SBG 425VH 25 4P 65 RAL9010 White 127 157 71 0.40 Polycarbonate 16 11 Yes 690 240 6
SAFETY SW WHITE 2P 16A 3134148 352202 SBG 216V 16 2P 65 RAL9010 White 117 137 62 0.25 Polycarbonate 16 0 No 690 240 6
SAFETY SW RED 3P 16A 3135624 354185 SBGR 316 16 3 65 RAL3009 Falu red 117 137 62 0.29 Polycarbonate 16 7,5 No 690 240 6
SAFETY SW BLACK 3P 16A 3135625 354186 SBGS 316 16 3 65 RAL9005 Jet Black 117 137 62 0.29 Polycarbonate 16 7,5 No 690 240 6
SAFETY SW RED 4P 16A 3135626 354187 SBGR 416 16 4 65 RAL3009 Falu red 117 137 62 0.32 Polycarbonate 16 7,5 No 690 240 6
SAFETY SW BLACK 4P 16A 3135627 354188 SBGS 416 16 4 65 RAL9005 Jet Black 117 137 62 0.29 Polycarbonate 16 7,5 No 690 240 6
SAFETY SW RED 3P 25A H 3135628 354189 SBGR 325H 25 3P 65 RAL3009 Falu red 127 157 71 Polycarbonate 16 11 Yes 690 240 6
SAFETY SW BLACK 3P 25A H 3135629 354190 SBGS 325H 25 3P 65 RAL9005 Jet Black 127 157 71 0.36 Polycarbonate 16 11 Yes 690 240 6
SAFETY SW RED 4P 25A 3135630 354191 SBGR 425H 25 4P 65 RAL3009 Falu red 127 157 71 0.36 Polycarbonate 16 11 Yes 690 240 6
SAFETY SW BLACK 4P 25A 3135631 354192 SBGS 425H 25 4P 65 RAL9005 Jet Black 127 157 71 0.36 Polycarbonate 16 11 Yes 690 240 6
