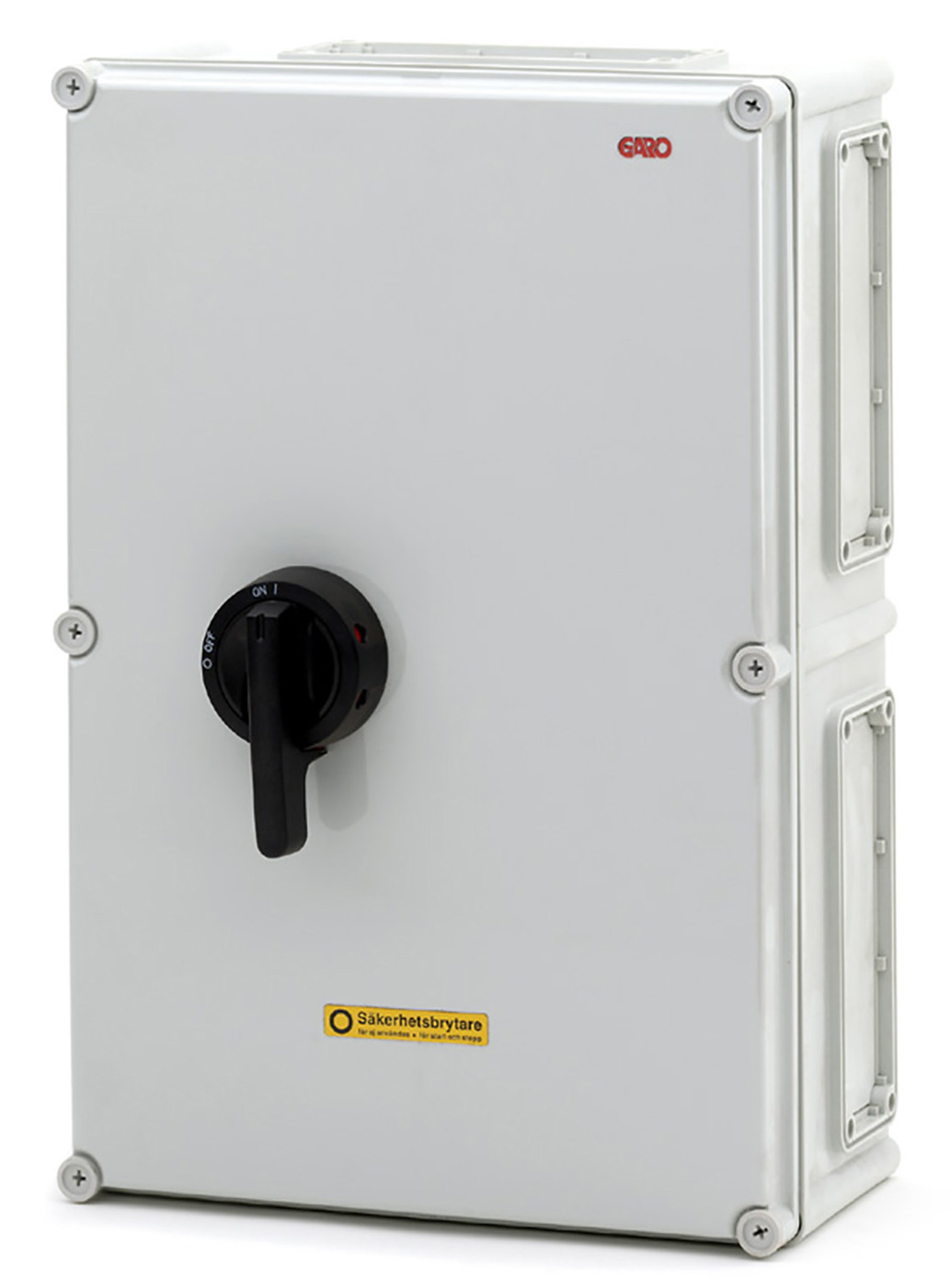

SAFETY SW PC 3P 200A

Safety switches polycarbonate

Safety switches polycarbonate Safety switch 3-pole 200A polycarbonate.
E-number
3134179
Article number
107603
Support
Standard EN 60947-3
Package size [pcs] 1
Connection PE [pcs] [mm²] 12+11
Name SAFETY SW PC 3P 200A
E-number 3134179
Article number 107603
Type designation SBG3200
Rated current AC23 400V [A] 200
No.of Poles [pcs] 3
Degree of protection [IP] 65
Colour RAL7035 Grey
Width [mm] 380
Height [mm] 560
Depth [mm] 240
Netweight [kg] 12.26
Materials Polycarbonate
Connection PE [pcs] [mm²] 12+11
Glands 1xEPA2260+M20
Max connection area 70-185
kW 110
Connection Al [mm²] 240
Auxiliary contact Ja/Yes
Isolation voltage [V] 1000
Connection phase Cu [mm²] 240

More variants of Safety switches polycarbonate

E-number Article number Type designation Rated current AC23 400V [A] No.of Poles [pcs] Degree of protection [IP] Colour Width [mm] Height [mm] Depth [mm] Netweight [kg] Materials Connection N & phase Cu [mm²] Connection PE [pcs] [mm²] Glands Max connection area kW Connection Al [mm²] Auxiliary contact Isolation voltage [V] Connection phase Cu [mm²] Connection N/PE Cu [mm²]
SAFETY SW PC 3P 200A 3134179 107603 SBG3200 200 3 65 RAL7035 Grey 380 560 240 12.26 Polycarbonate 12+11 1xEPA2260+M20 70-185 110 240 Ja/Yes 1000 240
SAFETY SW PC 6P 200A 3134180 107604 SBG6200 200 6 65 RAL7035 Grey 560 760 310 24.70 Polycarbonate 12+11 2xEPA2260+M20 70-185 110 240 Ja/Yes 1000
SAFETY SW 3P 160A PC 3134181 107605 GKUM3160T1V 135 3 65 RAL7035 Grey 280 560 171 4.50 Polycarbonate 12+11 2xM63+M16 70 75 120 Ja/Yes 690
SAFETY SW 3P 250A PC 3134182 107606 GKUM3250AVT1V 250 3 65 RAL7035 Grey 380 560 240 12.50 Polycarbonate 1xEPA2260+M20 70-185 132 240 Ja/Yes 1000
SAFETY SW 6P 250A PC 3134183 107607 GKUM6250AVT1V 250 6 65 RAL7035 Grey 560 760 310 24.70 Polycarbonate 12+11 2xEPA2260+M20 70-185 132 240 Ja/Yes 1000
SAFETY SW 3P 400A PC 3134184 107608 GKUM3400VT1V 400 3 65 RAL7035 Grey 560 760 310 22.20 Polycarbonate 12+11 2xEPA2260+M20 70-185 200 2x240 Ja/Yes 1000
SAFETY SW 3P 630A PC 3134185 107609 GKUM3630VT1V 630 3 65 RAL7035 Grey 560 760 310 22.80 Polycarbonate 12+11 2xEPA2260+M20 70-185 355 2x240 Ja/Yes 1000
SAFETY SWITCH 3-POL 80A AUX 3135756 110125 SBGH380H 80 3 65 RAL7035 Grey 280 380 171 3.10 Polycarbonate 12+11 2xM40+M16 70 45 Yes 690 70
Safety switch grey 3-poles 80A with auxilliary 3135757 110126 SBG3125H 125 3 65 RAL7035 Grey 280 560 171 5.30 Polycarbonate 70 12+11 1xEPA2260+M20 70 55 120 Ja/Yes 690
SAFETY SW GREY 6P 80A H 3135758 110127 SBG680H 80 6 65 RAL7035 Grey 280 380 171 3.82 Polycarbonate 70 12+11 4xM40+M16 70 45 Ja/Yes 690
SAFETY SW GREY 6P 125A H 3135759 110128 SBG6125H 125 6 65 RAL7035 Grey 380 560 240 10.23 Polycarbonate 70 12+11 4xM63+M16 70 55 Ja/Yes 690
SAFETY SW GREY 3P 16A 3155201 3155201 SBG 316G 16 3P 65 RAL7035 Grey 117 137 62 0.29 Polycarbonate 16 7,5 No 690 240 6
SAFETY SW GREY 4P 16A 3155203 3155203 SBG 416G 16 4P 65 RAL7035 Grey 117 137 62 0.32 Polycarbonate 16 7,5 No 690 240 6
SAFETY SW GREY 3P 16A AUX 3155204 3155204 SBG 316GH 16 3P 65 RAL7035 Grey 117 137 62 0.33 Polycarbonate 16 7,5 Yes 690 240 6
SAFETY SW GREY 4P 16A AUX 3155205 3155205 SBG 416GH 16 4P 65 RAL7035 Grey 117 137 62 0.36 Polycarbonate 16 7,5 Yes 690 240 6
SAFETY SW GREY 3P 25A H 3155206 3155206 SBG 325GH 25 3P 65 RAL7035 Grey 127 157 71 0.37 Polycarbonate 16 11 Yes 690 240 6
SAFETY SW GREY 4P 25A H 3155207 3155207 SBG 425GH 25 4P 65 RAL7035 Grey 127 157 71 0.40 Polycarbonate 16 11 Yes 690 240 6
SAFETY SW GREY 6P 25A H 3155214 3155214 SBG 625H 25 6P 66 RAL7035 Grey 144 190 131 1.04 Polycarbonate 16 12+11 4xM25+M16 16 11 Yes 690
SAFETY SW GREY 3P 32A H 3155215 3155215 SBG 332H 32 3P 66 RAL7035 Grey 144 190 131 0.80 Polycarbonate 16 12+11 2xM32+M16 35 15 Yes 690 240
SAFETY SW GREY 6P 32A H 3155216 3155216 SBG 632H 32 6P 66 RAL7035 Grey 144 190 131 1.09 Polycarbonate 16 12+11 4xM32+M16 35 15 Yes 690
SAFETY SW GREY 3P 40A H 3155217 3155217 SBG 340H 40 3P 66 RAL7035 Grey 144 190 131 0.82 Polycarbonate 35 12+11 2xM32+M16 35 22 0 690
SAFETY SW GREY 6P 40A H 3155218 3155218 SBG 640H 40 6P 66 RAL7035 Grey 144 190 131 1.11 Polycarbonate 35 12+11 4xM32+M16 35 13,9 Yes 690
SAFETY SW GREY 3P 63A H 3155219 3155219 SBG 363H 63 3P 66 RAL7035 Grey 144 190 131 0.85 Polycarbonate 35 12+11 2xM32L+M16 35 30 Yes 690
SAFETY SW GREY 6P 63A H 3155220 3155220 SBG 663H 63 6P 66 RAL7035 Grey 180 255 139 1.58 Polycarbonate 35 12+11 4xM32L+M16 35 30 Yes 690 240
SAFETY SW WHITE 3P 16A 3155221 3155221 SBG 316V 16 3P 65 RAL9010 White 117 137 62 0.29 Polycarbonate 16 7,5 No 690 240 6
SAFETY SW WHITE 4P 16A 3155222 3155222 SBG 416V 16 4P 65 RAL9010 White 117 137 62 0.32 Polycarbonate 16 7,5 No 690 240 6
SAFETY SW WHITE 3P 16A AUX 3155223 3155223 SBG 316VH 16 3P 65 RAL9010 White 117 137 62 0.33 Polycarbonate 16 7,5 Yes 690 240 6
SAFETY SW WHITE 4P 16A AUX 3155224 3155224 SBG 416VH 16 4P 65 RAL9010 White 117 137 62 0.36 Polycarbonate 16 7,5 Yes 690 240 6
SAFETY SW WHITE 3P 25A H 3155225 3155225 SBG 325VH 25 3P 65 RAL9010 White 127 157 71 Polycarbonate 16 11 Yes 690 240 6
SAFETY SW WHITE 4P 25A 3155226 3155226 SBG 425VH 25 4P 65 RAL9010 White 127 157 71 0.40 Polycarbonate 16 11 Yes 690 240 6
SAFETY SW WHITE 2P 16A 3134148 352202 SBG 216V 16 2P 65 RAL9010 White 117 137 62 0.25 Polycarbonate 16 0 No 690 240 6
SAFETY SW RED 3P 16A 3135624 354185 SBGR 316 16 3 65 RAL3009 Falu red 117 137 62 0.29 Polycarbonate 16 7,5 No 690 240 6
SAFETY SW BLACK 3P 16A 3135625 354186 SBGS 316 16 3 65 RAL9005 Jet Black 117 137 62 0.29 Polycarbonate 16 7,5 No 690 240 6
SAFETY SW RED 4P 16A 3135626 354187 SBGR 416 16 4 65 RAL3009 Falu red 117 137 62 0.32 Polycarbonate 16 7,5 No 690 240 6
SAFETY SW BLACK 4P 16A 3135627 354188 SBGS 416 16 4 65 RAL9005 Jet Black 117 137 62 0.29 Polycarbonate 16 7,5 No 690 240 6
SAFETY SW RED 3P 25A H 3135628 354189 SBGR 325H 25 3P 65 RAL3009 Falu red 127 157 71 Polycarbonate 16 11 Yes 690 240 6
SAFETY SW BLACK 3P 25A H 3135629 354190 SBGS 325H 25 3P 65 RAL9005 Jet Black 127 157 71 0.36 Polycarbonate 16 11 Yes 690 240 6
SAFETY SW RED 4P 25A 3135630 354191 SBGR 425H 25 4P 65 RAL3009 Falu red 127 157 71 0.36 Polycarbonate 16 11 Yes 690 240 6
SAFETY SW BLACK 4P 25A 3135631 354192 SBGS 425H 25 4P 65 RAL9005 Jet Black 127 157 71 0.36 Polycarbonate 16 11 Yes 690 240 6

Accessories for Safety switches polycarbonate

Name E-number Article number Type designation Description
AUXILIARY SWITCH 2 32-63A 107645 Auxiliary switch 16A 250V AC fits 32-63A
AUXILIARY SWITCH 2 80A 107646 Auxiliary switch fits 80A
AUXILIARY SWITCH 2 125-630A 107647 Auxiliary switch fits 125-160A
RAINROOF U2 W97 RAINROOF U2 W97 107648 Rainroof W97xH52 xL125 mm
RAINROOF U3 W144 RAINROOF U3 W144 107649 Rainroof W156xH62xD140mm
RAINROOF TR03 W410 RAINROOF TR03 W410 107651 Rainroof W410xH83 xL300 mm
