Chargingunit Outlet Entity Pro

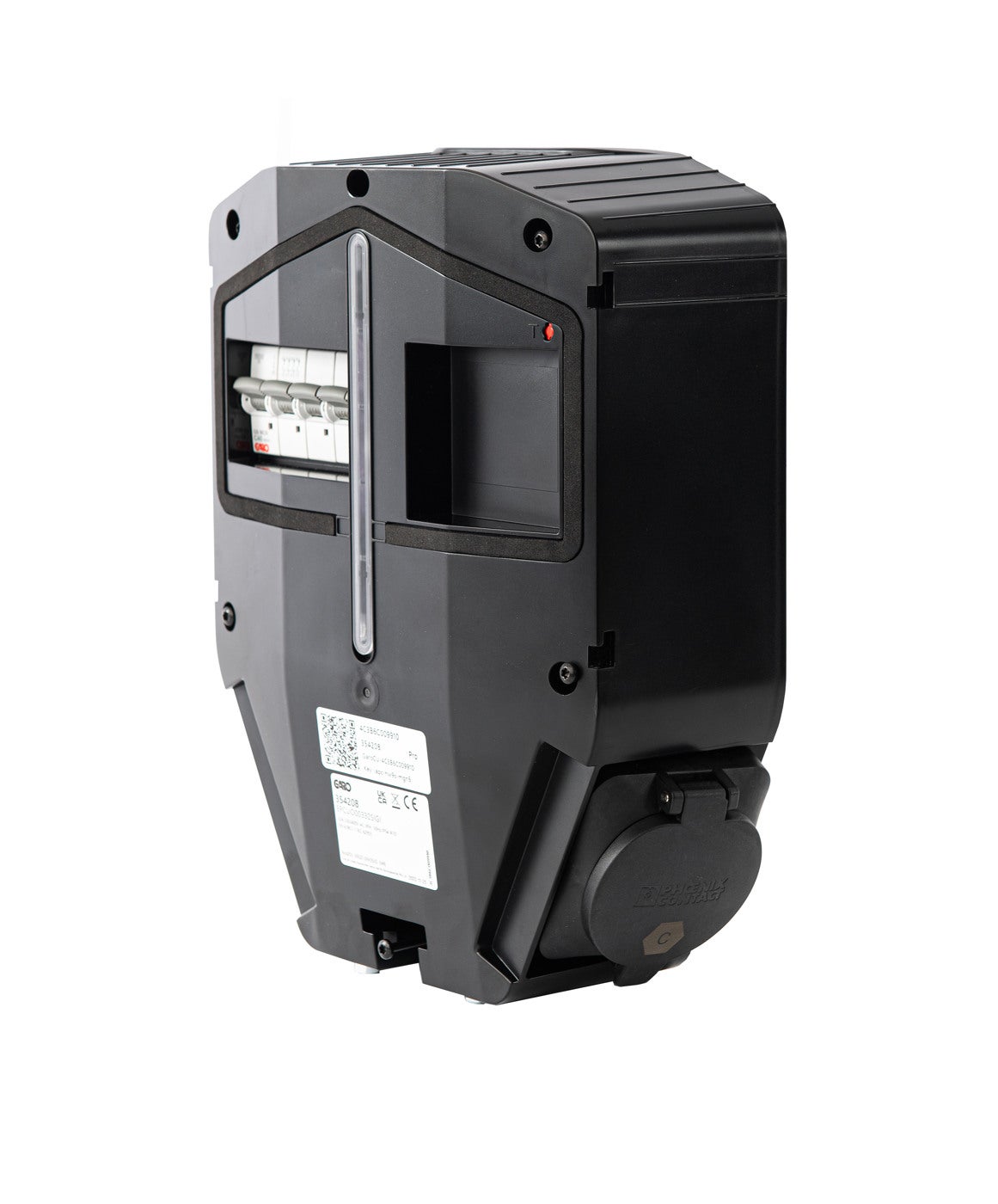

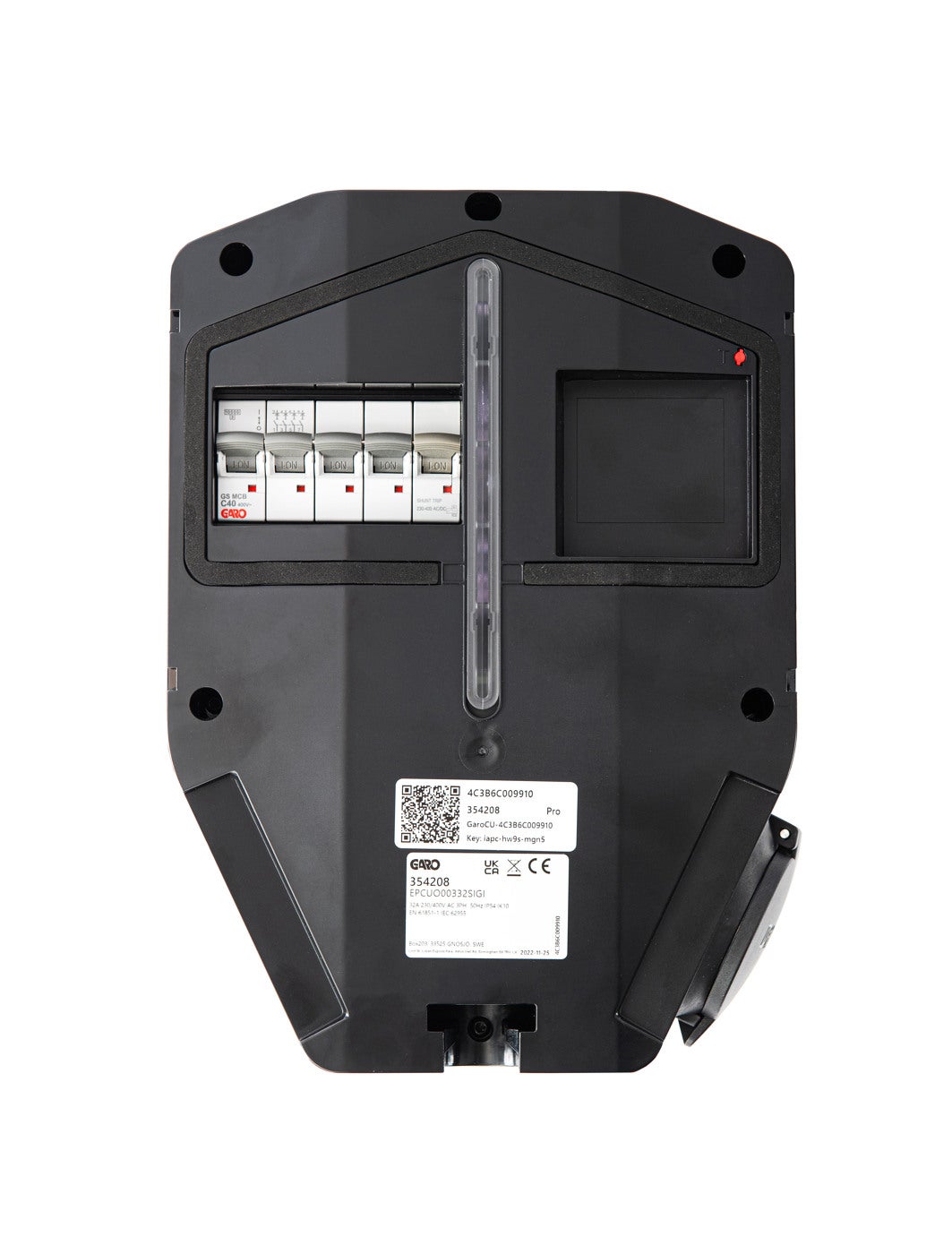

The charging unit is the component in the Entity family that determines the properties of the charger. The Entity PRO charging unit comes with a fixed cable available in various lengths or an outlet. Built-in electronic meter or visible MID meter. Integrated residual current device (RCD) with an all-pole mechanical circuit breaker for AC and DC that meets all requirements. The wallboxes can communicate with each other over Ethernet or mesh Wi-Fi and the internet over LTE CAT M1, Ethernet or Wi-Fi. NB: Charg Charging unit Entity Pro 22kW with outlet, phasebalancing and modem with SIM for Garo Connect.
| Standard | EN61851-1, IEC62955, IEC61439-7, EN61008-1, EN60898-1, ISO15118 |
|---|---|
| Short-circuit current [kA] | 10kA |
| Storage temperature [C] | -40C...+40C |
| Operation Temperature [C] | -40C...+40C |
| Frequency [Hz] | 50Hz |
| Housing material | Plastic |
| Color | Black |
| Rated current [A] | 32A |
| Rated voltage [V AC] | 230/400V AC |
| Mounting method | Wall mounting |
| Modelltype | Entity Pro |
| Phases [PH] | 3PH |
| Length of cable [m] | Not included |
| Lock | Yes |
| Energymeter MID | 0 |
| Networkable LAN | 0 |
| Networkable WiFi | 0 |
| AC/DC output 1 | Type 2 Outlet |
| Power per charging point [kW] | 22kW |
| Local load balance | 0 |
| RAL-number | RAL9011 |
| Dynamic load management | 0 |
| Configurated APP | 0 |
| Charging current [A] | 0-32 |
| Degree of protection [IP] | IP54 |
| Impact strength [IK] | IK10 |
| EngineerWidth | 240 |
| EngineerHeight | 340 |
| EngineerDepth | 150 |
| Name | CHARGUNIT ENTITY PRO 22 |
|---|---|
| E-number | E2701005 |
| Article number | 354208 |
| Type designation | EPCUO00332SIGI |
| Energymeter | Built-in meter |
| NetProductWeight | 3.9 |
