Chargingunit Cable Entity Pro
The charging unit is the component in the Entity family that determines the properties of the charger. The Entity PRO charging unit comes with a fixed cable available in various lengths or an outlet. Built-in electronic meter or visible MID meter. Integrated residual current device (RCD) with an all-pole mechanical circuit breaker for AC and DC that meets all requirements. The wallboxes can communicate with each other over Ethernet or mesh Wi-Fi and the internet over LTE CAT M1, Ethernet or Wi-Fi. NB: Charg Chargingunit Entity Pro 14kW with cable 8meter
-
CHARGUNIT ENTITY PRO 14 CAB 5ME-number
E2701006Article number
354209 -

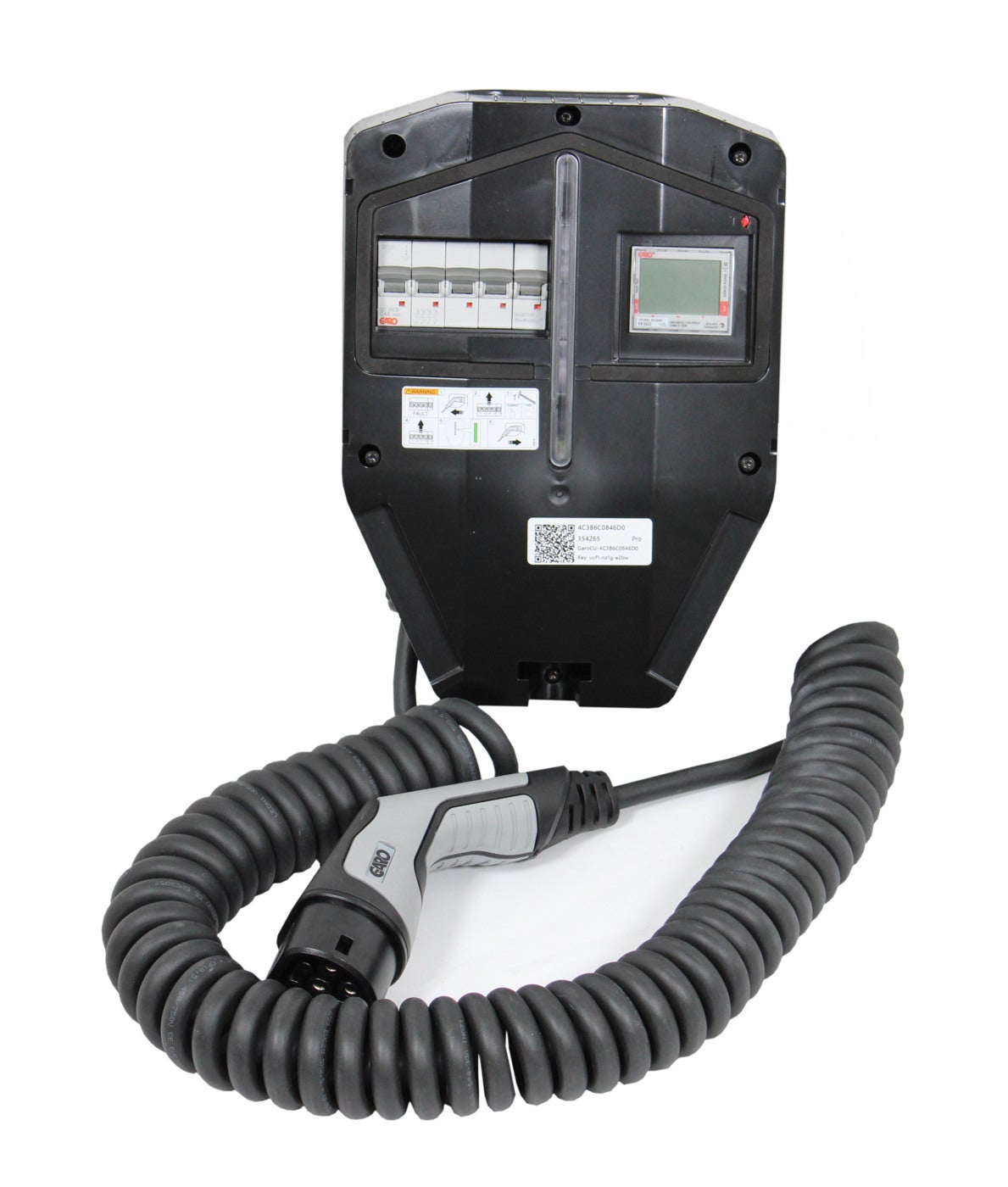

CHARGUNIT ENTITY PRO 14MID H5ME-number
E2701051Article number
354265 -

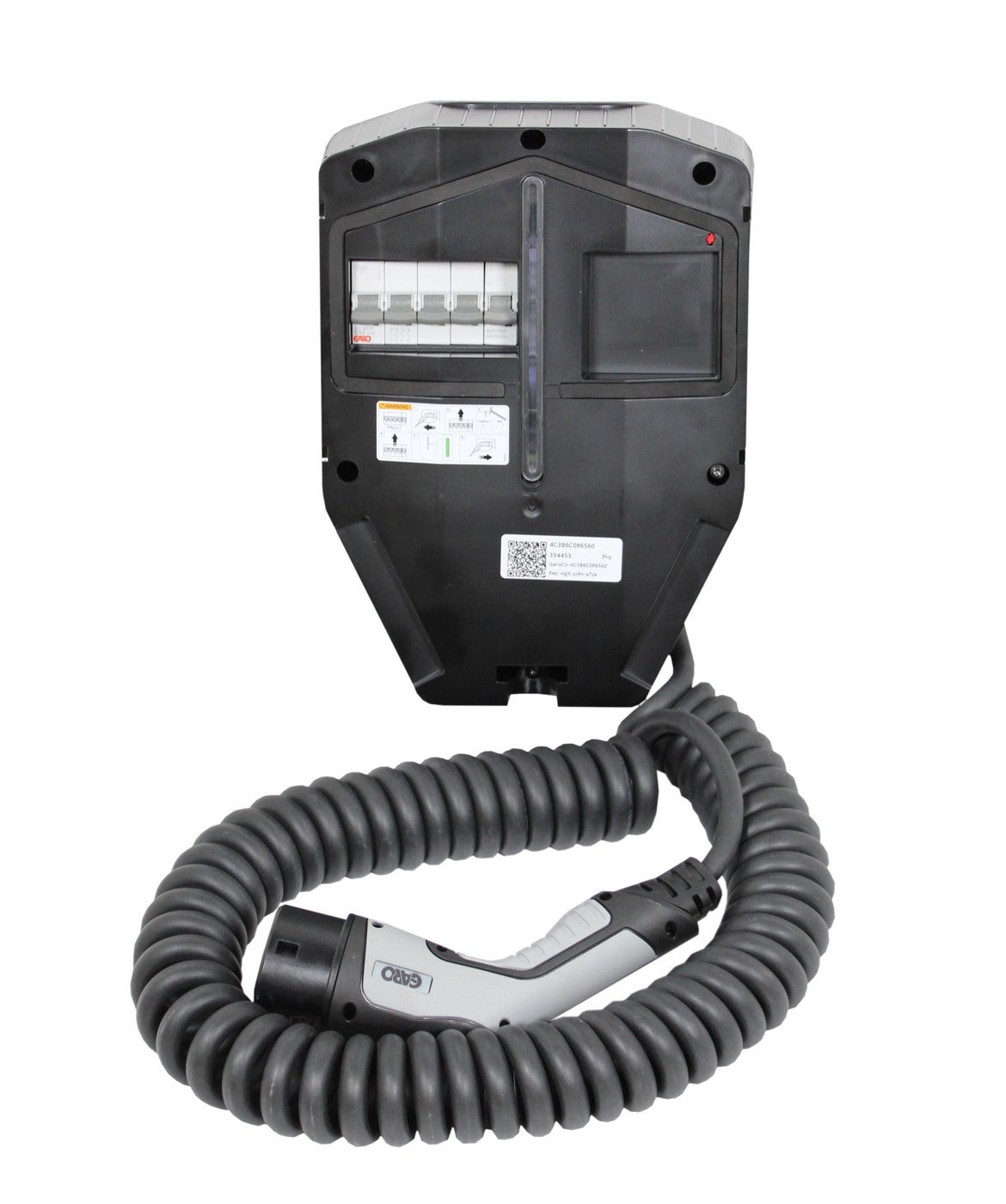

CHARGUNIT ENTITY PRO 14 H5ME-number
E2701053Article number
354453 -

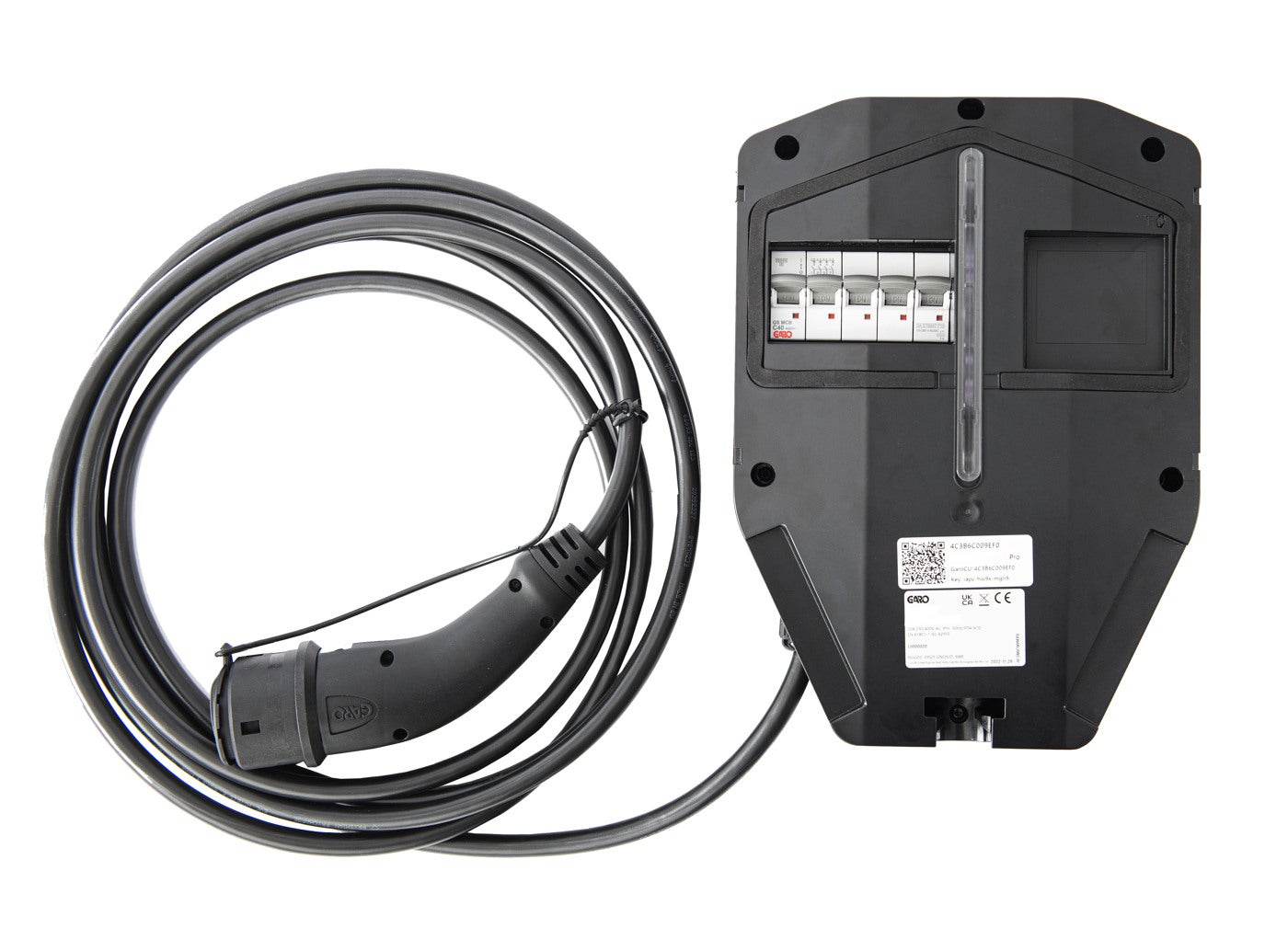

CHARGUNIT ENTITY PRO 14 CAB 8E-number
E2700811Article number
354480 -
CHARGUNIIT ENTITY PRO 22 CAB 5E-number
E2700812Article number
354481
| Standard | EN61851-1, IEC62955, IEC61439-7, EN61008-1, EN60898-1, ISO15118 |
|---|---|
| Short-circuit current [kA] | 10kA |
| Storage temperature [C] | -40C...+40C |
| Operation Temperature [C] | -40C...+40C |
| Frequency [Hz] | 50Hz |
| Housing material | Plastic |
| Color | Black |
| Rated voltage [V AC] | 230/400V AC |
| Mounting method | Wall mounting |
| Modelltype | Entity Pro |
| Lock | Yes |
| RAL-number | RAL9011 |
| Degree of protection [IP] | IP54 |
| Impact strength [IK] | IK10 |
| EngineerWidth | 240 |
| EngineerHeight | 340 |
| EngineerDepth | 150 |
| Name | CHARGUNIT ENTITY PRO 14 CAB 8 |
|---|---|
| E-number | E2700811 |
| Article number | 354480 |
| Type designation | EPCUC80320SIGI |
| Rated current [A] | 20A |
| Energymeter | Built-in meter |
| Phases [PH] | 3PH |
| Length of cable [m] | 8m |
| AC/DC output 1 | Type 2 Cable Straight |
| Power per charging point [kW] | 13,9kW |
| Charging current [A] | 0-20 |
| NetProductWeight | 5.5 |
