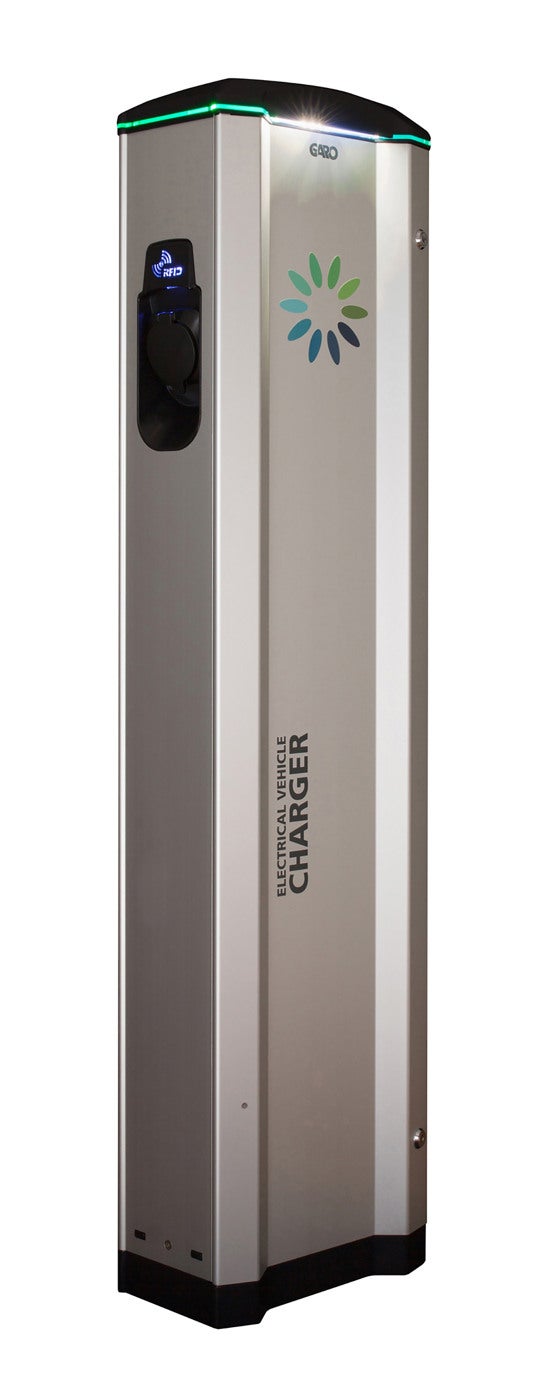

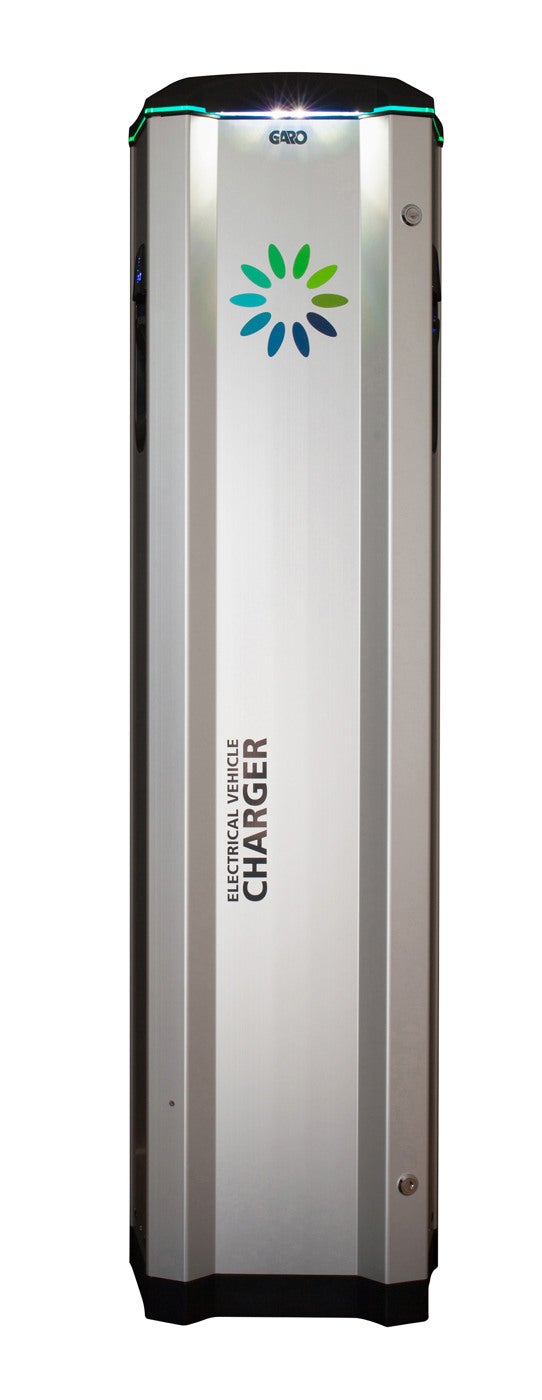

LS4 outlet MC
Public charging stations for ground mounting with 2 fixed cables and integrated MCB and RCCB for each outlet. Light list indicator is at the top of the station and on distance you can read the charging status. The connection to the base station with mobile com or wired internet connection. In accordance with the applicable international standard IEC 60364-7-722 charging of electric cars there are requirements for Type B RCDs or type A RCDs in combination with the DC monitoring that breaks at 6mA. EVSE ground mounted type2 EV-outlet 11kW with meter, RFID and mobile com utan ISO.
| NetProductWeight | 24.5 |
|---|---|
| EngineerWidth | 375 |
| EngineerHeight | 1400 |
| EngineerDepth | 208 |
| Name | EVSE LS4 T2EV 11kW M R MC |
|---|---|
| E-number | E2701320 |
| Article number | 354658 |
| Type designation | LS4-DCM-T211WO-R-MC |
