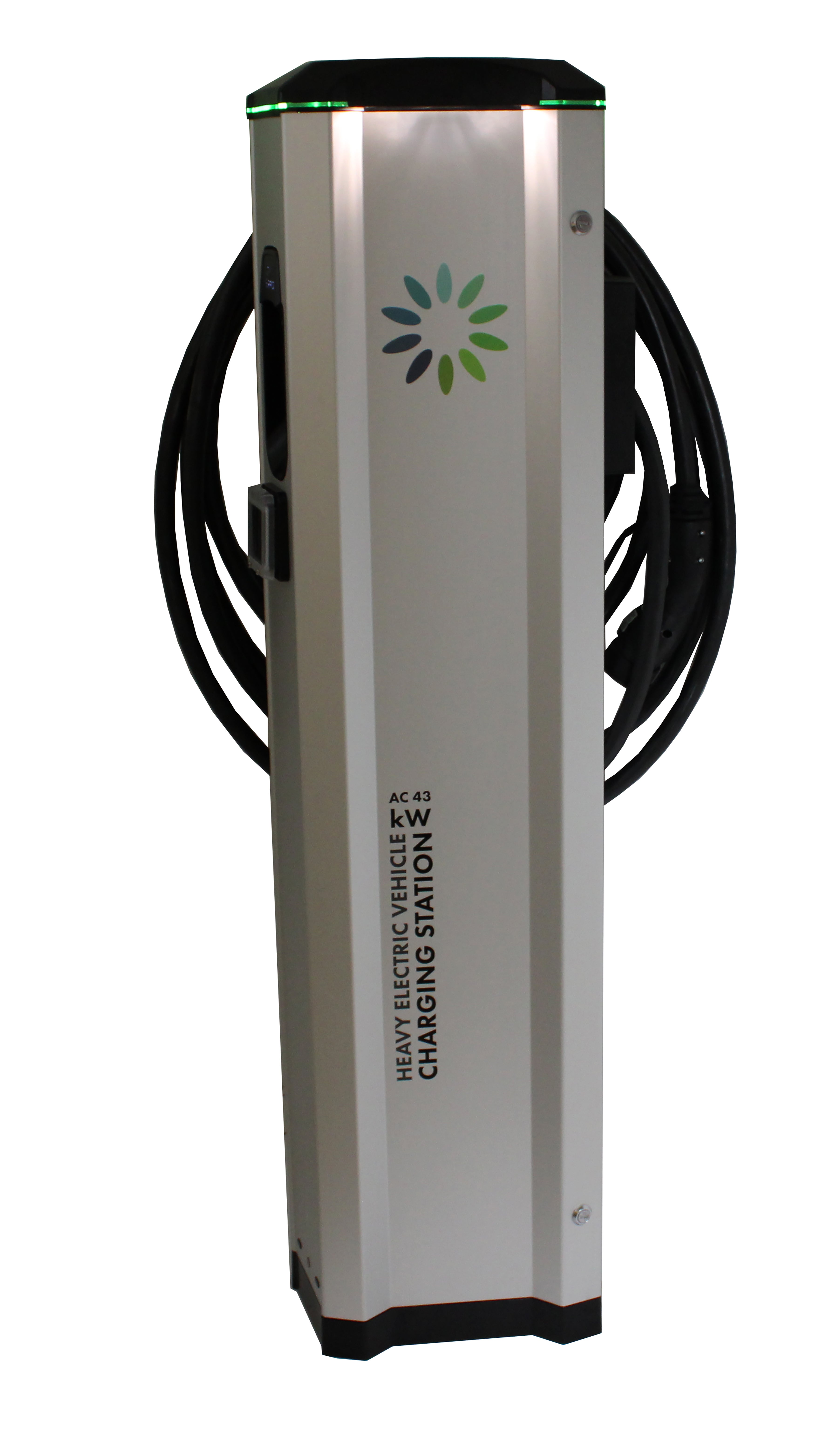

LS4 43kW with fixed cable LAN

The LS4 43kW is a powerful AC-station mainly developed for Heavy Duty EV’s such as trucks, buses and other Heavy Duty vehicles with up to 43kW onboard chargers. An economical and robust solution for charging during nights or longer periods of time which reduces the need for more expensive DC-solutions. Tested and developed for the Nordic climate ensures full operation under harsh conditions. The LS4 43kW is suitable for Public or semi-public use, equipped with a 7,5 m tethered cable as standard, 10m cable o LS4 43kW: An AC EVC for charging in a public- semipublic environment. For heavy duty EV’s able to charge 43kW AC.
E-number
E2700690
Article number
354391
Type designation LS4-DCM-T243FC-R-LAN-MC
Standard EN61851-1 IEC 61439-7 AEVCS
Operation Temperature [C] -25C...+40C
Frequency [Hz] 50/60Hz
Housing material Aluminium
Color Grey
Rated current [A] 63A
Rated voltage [V AC] 230/400V AC
Mounting method Wall mounting
Modelltype LS4 43kW Mini
Phases [PH] 3PH
Length of cable [m] 7,5m
Lock Yes
Energymeter MID Yes
AC/DC output 1 Type 2 Cable Straight
Power per charging point [kW] 43kW
Communication MC
Local load balance 0
Number of RCCB-B [pcs] Type B
Degree of protection [IP] IP54
Impact strength [IK] IK10
NetProductWeight 40
EngineerWidth 375
EngineerHeight 1400
EngineerDepth 208
OCPP 0
Name EVSE LS4 43kW T2FC M R
E-number E2700690
Article number 354391

Accessories for LS4 43kW with fixed cable LAN

EV CABLE T2 3PH 63A 8M S
E-number
Article number
110757
Type designation
RFID CARD 5-PAC
E-number
E2700417
Article number
110968
Type designation
RC5-V02
RFID TAG EV2 5-PAC
E-number
E2700574
Article number
111007
Type designation
RT5 V2
EV CABLE T2 3PH 63A 10M S
E-number
Article number
111200
Type designation
CABLE STRAIN RELIEF LS4
E-number
E2449895
Article number
352698
Type designation
LS4-CSR
GROUND ANCHOR LS4
E-number
E2449896
Article number
352699
Type designation
LS4-GA
WALL MOUNT LS4 STANDARD
E-number
E2449897
Article number
352800
Type designation
LS4-WMS
