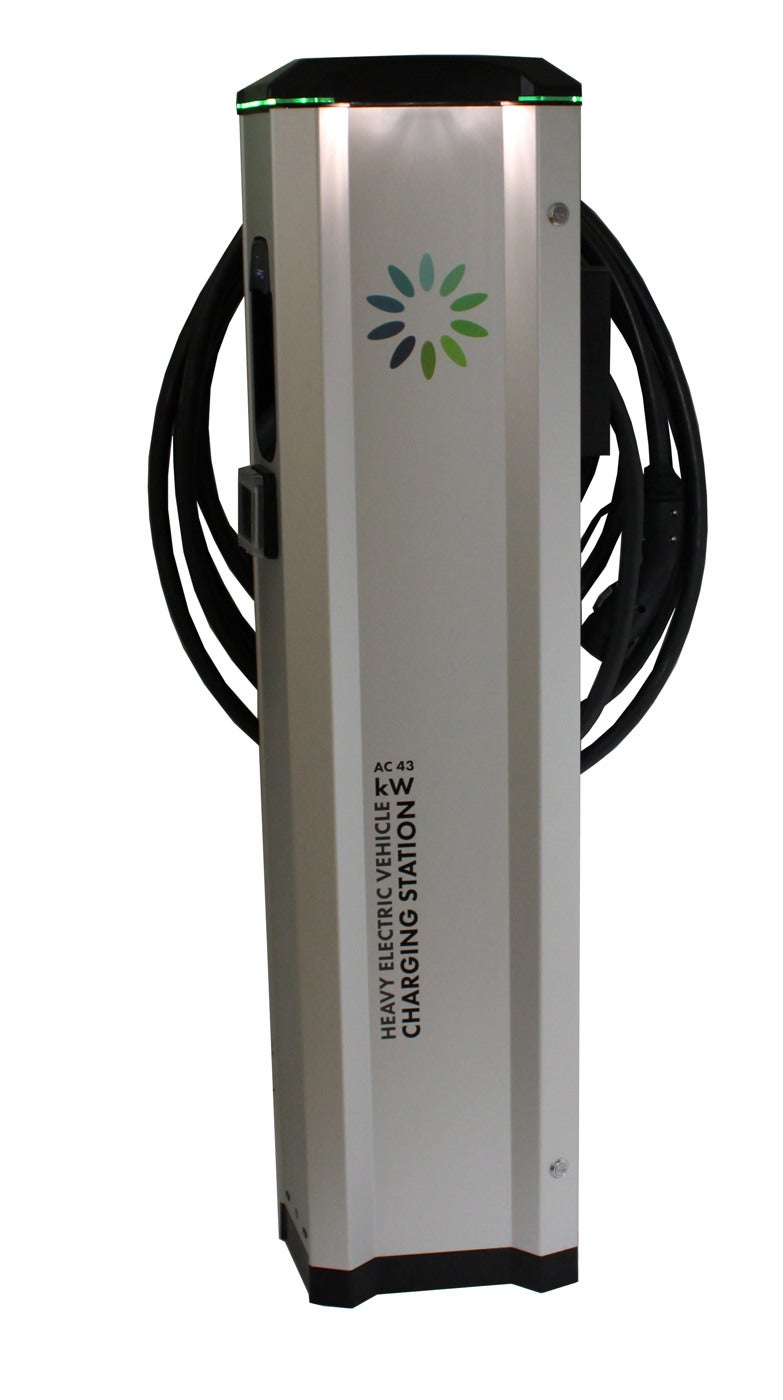

LS4 43kW with fixed cable MC
The LS4 43kW is a powerful AC-station mainly developed for Heavy Duty EV’s such as trucks, buses and other Heavy Duty vehicles with up to 43kW onboard chargers. An economical and robust solution for charging during nights or longer periods of time which reduces the need for more expensive DC-solutions. Tested and developed for the Nordic climate ensures full operation under harsh conditions. The LS4 43kW is suitable for Public or semi-public use, equipped with a 7,5 m tethered cable as standard, 10m cable o EVC LS4 43kW Type2 fixed cable, meter, RFID and Mobile com (4G) without ISO
E-number
354505
354505
Article number
354505
354505
| Type designation | LS4-DCM-T243FC-R-LANMC |
|---|---|
| Standard | EN61851-1 IEC 61439-7 AEVCS |
| Operation Temperature [C] | -25C...+40C |
| Frequency [Hz] | 50/60Hz |
| Housing material | Aluminium |
| Color | Grey |
| Rated current [A] | 63A |
| Rated voltage [V AC] | 230/400V AC |
| Mounting method | Floor fastening |
| Modelltype | LS4 43kW |
| Impact strength[IK] | IK10 |
| Phases [PH] | 3PH |
| Length of cable [m] | 7,5m |
| Lock | Yes |
| Energymeter MID | Yes |
| AC/DC output 1 | Type 2 Cable Straight |
| Power per charging point [kW] | 43kW |
| Communication | MC/LAN |
| Number of RCCB-B [pcs] | Type B |
| Degree of protection [IP] | IP54 |
| Impact strength [IK] | IK10 |
| Name | EVSE T2FC 43kW M R LS4 |
|---|---|
| E-number | 354505 |
| Article number | 354505 |
