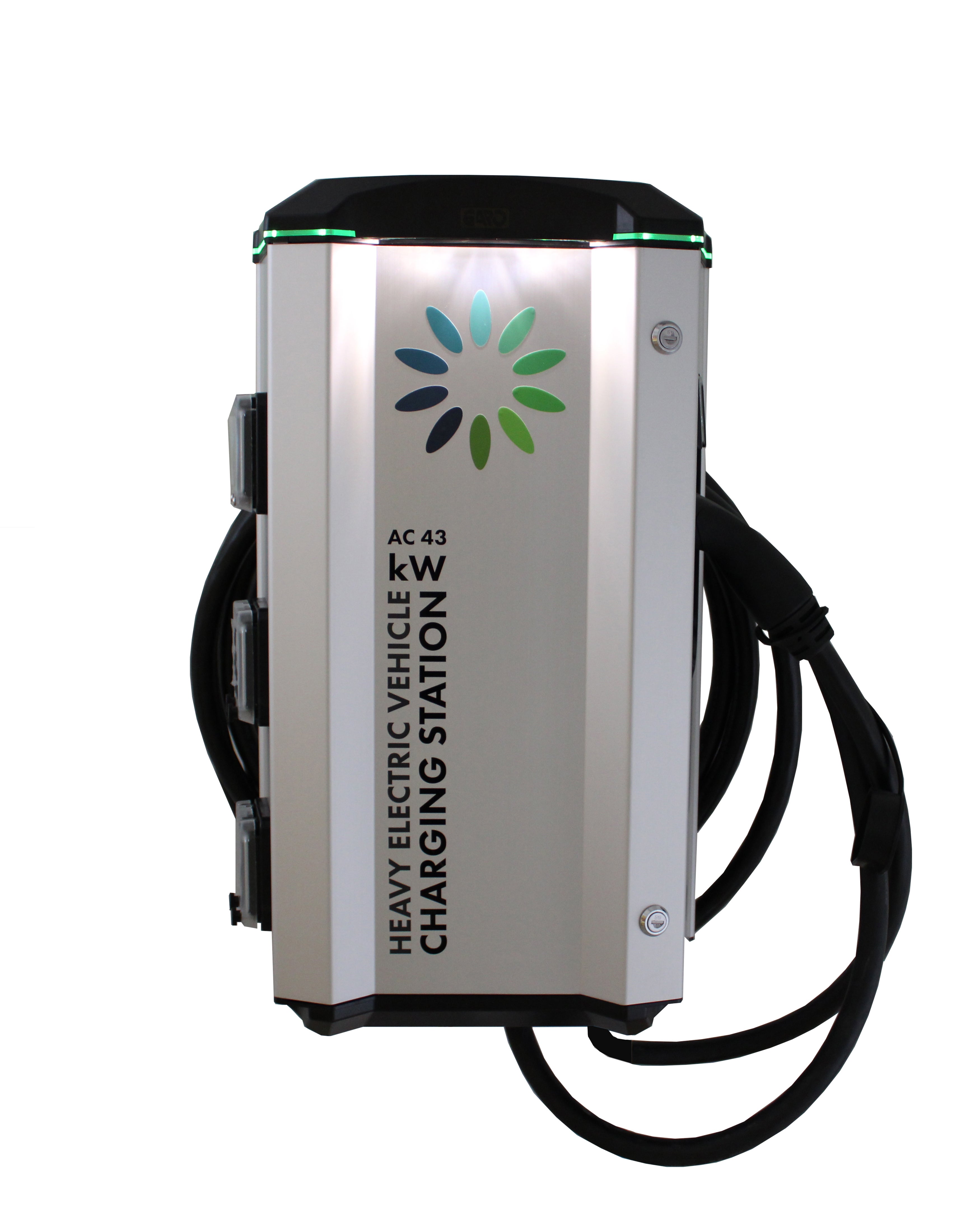

LS4 43kW Mini with fixed cable MC

The LS4 43kW Mini is a powerful AC-station mainly developed for Heavy Duty EV’s such as trucks, buses and other Heavy Duty vehicles that can charge 43kW AC. An economical and robust solution for charging during nights or longer periods of time which reduces the need for more expensive DC-solutions. Tested and developed for the Nordic climate ensures full operation under harsh conditions, IP54 and IK10 certified. Since the MCB and RCCD is mounted on the side of the product for easy access, the product is sui LS4 43kW MINI:An AC EVC for charging in an environment with restricted access.For heavy duty EV’s able to charge 43kW AC
E-number
E2700691
Article number
354392
Standard EN61851-1 IEC 61439-7 AEVCS
Operation Temperature [C] -25C...+40C
Frequency [Hz] 50/60Hz
Housing material Aluminium
Color Grey
Rated current [A] 63A
Rated voltage [V AC] 230/400V AC
Phases [PH] 3PH
Length of cable [m] 7,5m
Lock Yes
Energymeter MID Yes
AC/DC output 1 Type 2 Cable Straight
Power per charging point [kW] 43kW
Communication MC
Number of RCCB-B [pcs] Type B
Degree of protection [IP] IP54
Impact strength [IK] IK10
Name EVC LS4 43kW MINI T2FC M R
E-number E2700691
Article number 354392
Type designation LS4M-DCM-T243FC-R-LANMC-I
NetProductWeight 25
EngineerWidth 377
EngineerHeight 660
EngineerDepth 213

More variants of LS4 43kW Mini with fixed cable MC

E-number Article number Type designation Mounting method Modelltype Impact strength[IK] NetProductWeight EngineerWidth EngineerHeight EngineerDepth
EVC LS4 43kW MINI T2FC M R E2700691 354392 LS4M-DCM-T243FC-R-LANMC-I 25 377 660 213
EVSE T2FC 43kW M R LS4M 354506 354506 LS4M-DCM-T243FC-R-LANMC Wall mounting LS4 43kW Mini IK10
